433 Hotkey
433Mhz Hotkey Receiver
Buttonsmasher

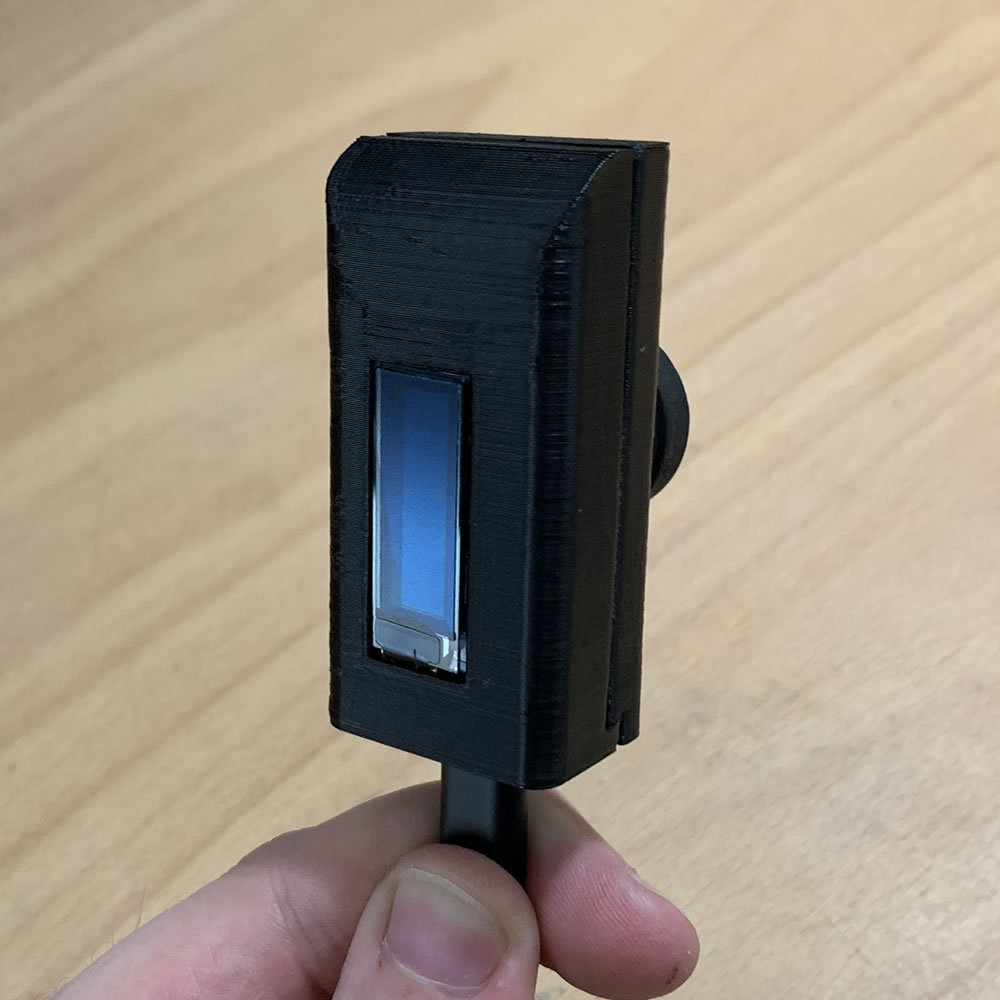

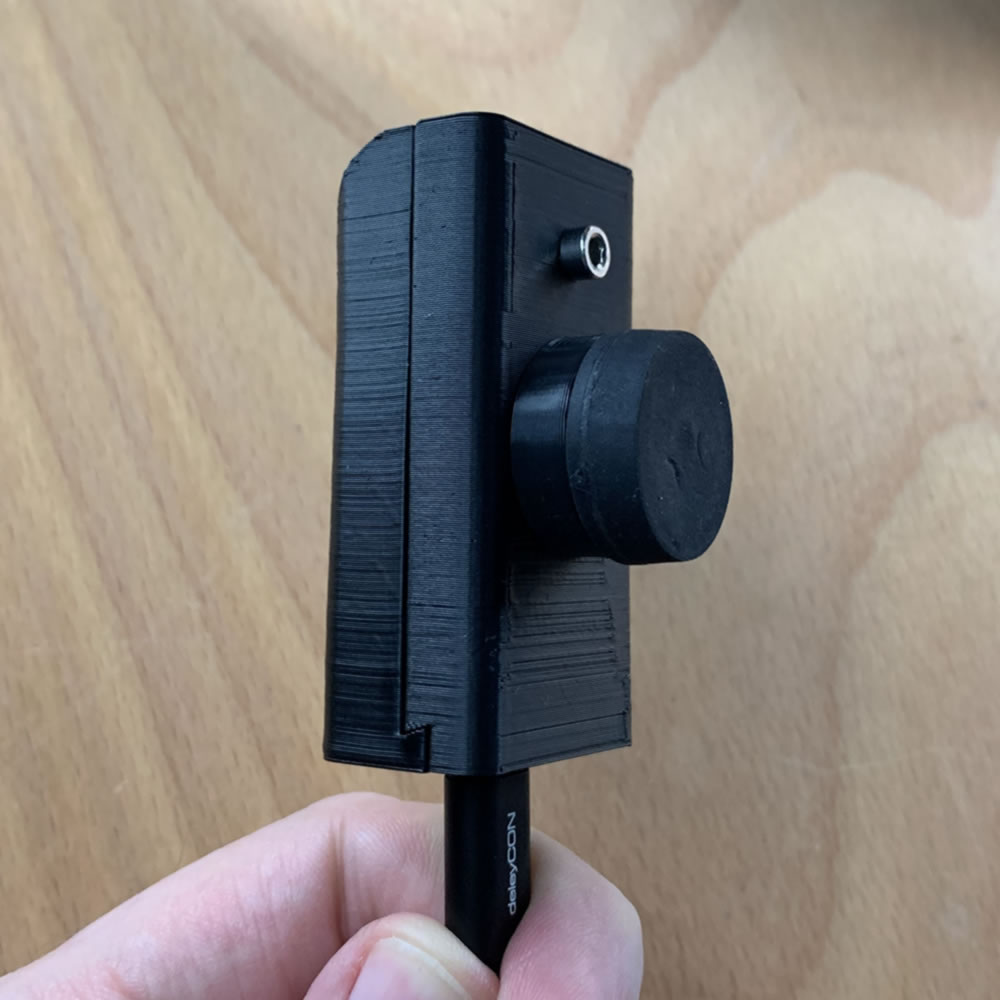

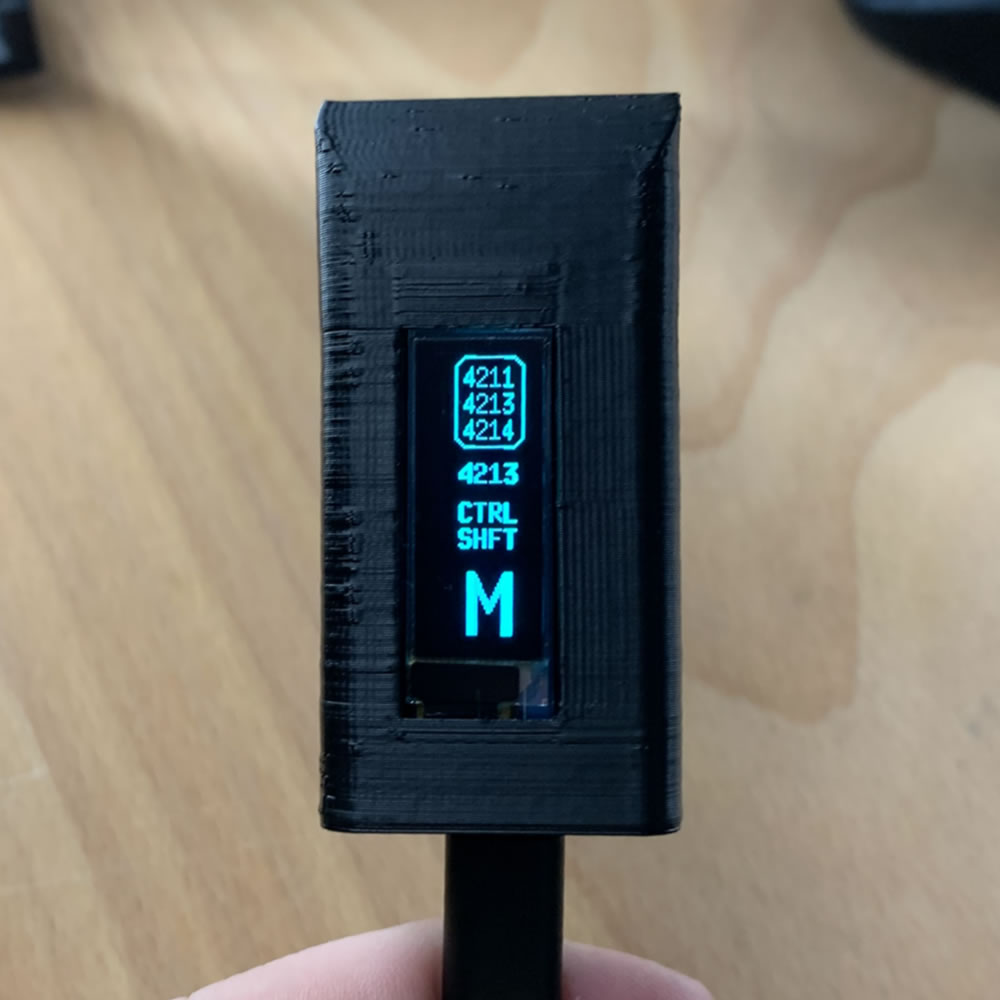

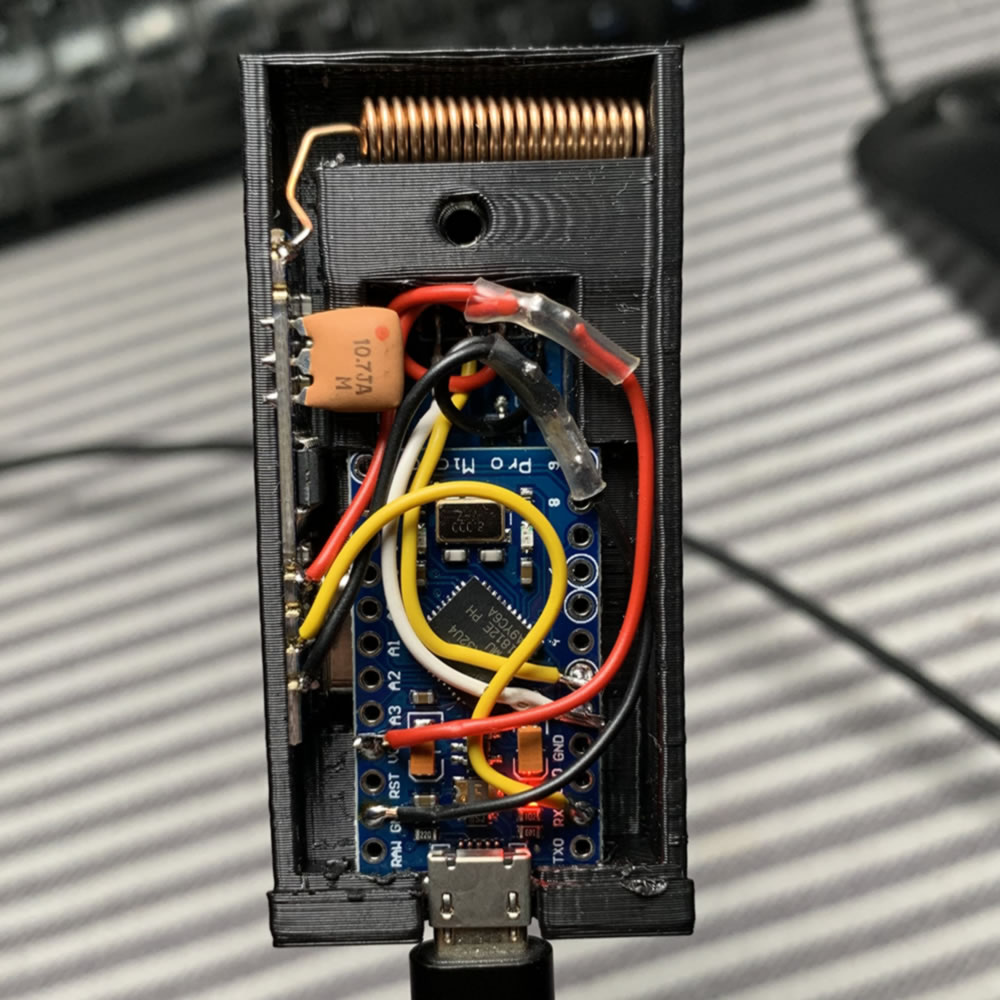

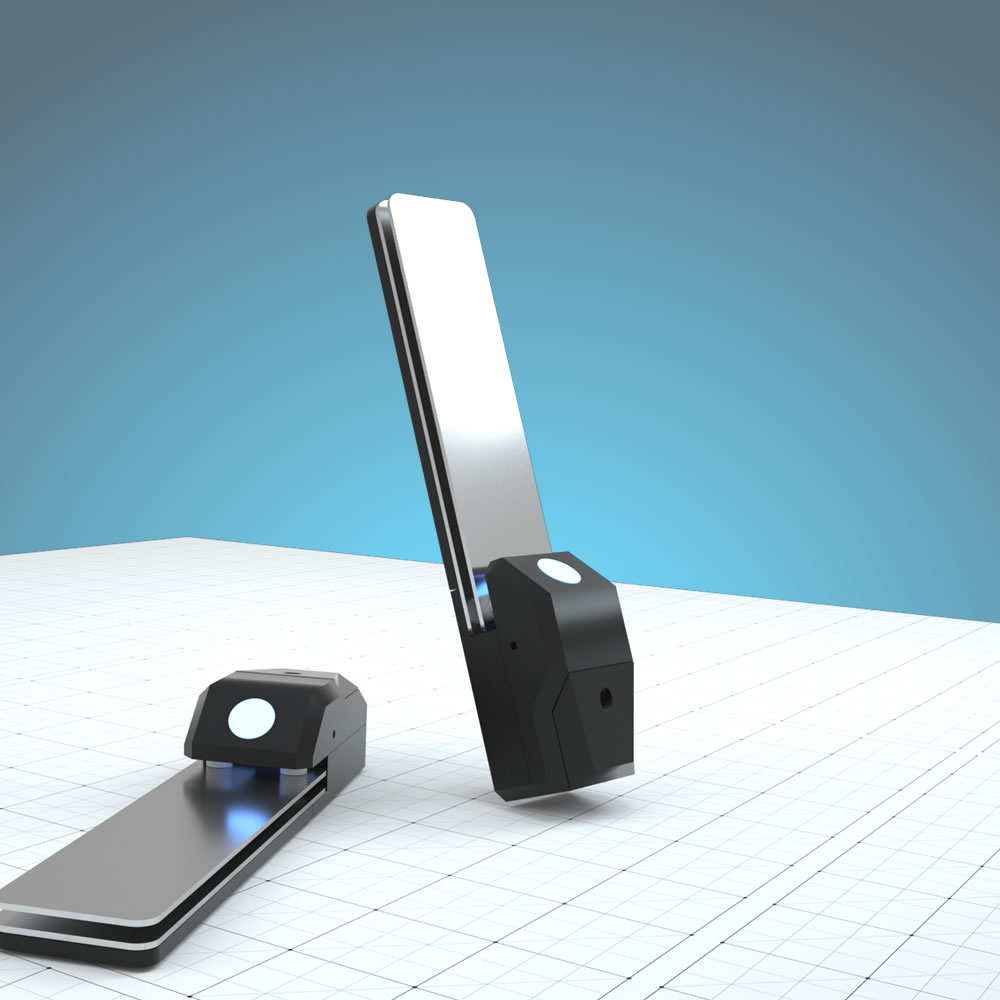

Di you see the Food Switches and remote that I build? This is the hub for receiving the RF calls. It converts the commands into button-presses and displays them on the Display for visual feedback. It has a magnetic back so it is easy to mount and unmount in various situations and keeps me flexible with setups.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
M3x25 bolt COMMON
Standard M3x25 Hex Bolt
Holding the front plate in place
Source: local, ebay
2x
± 0.20
sum: 0.40
M3 Threaded insert COMMON
Brass Insert for M3 4,4x7, long version
Counterpart to the M3
Source: local, ebay
2x
± 0.30
sum: 0.60

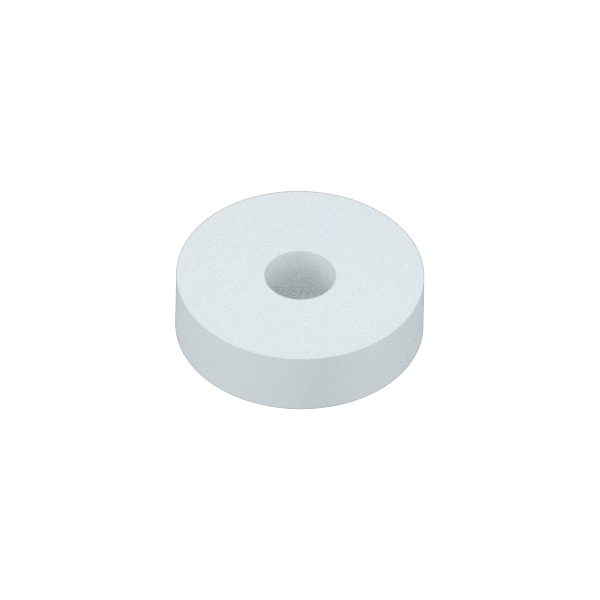

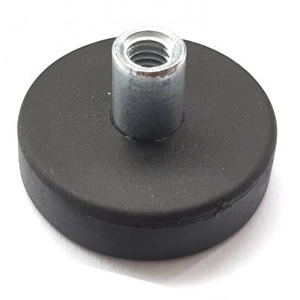

Magnet Disk OPTIONAL
Small magnet with m4 thread, ~ 22x6mm
Allows mounting the device to metal surfaces
Source: local, ebay
1x
± 2.00
Without optional parts =
2 (4 pcs)
~ 1.00
All parts =
3 (5 pcs)
~ 3.00
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
