MO560
Stream Remote
433Mhz Remote
Zapping scenes

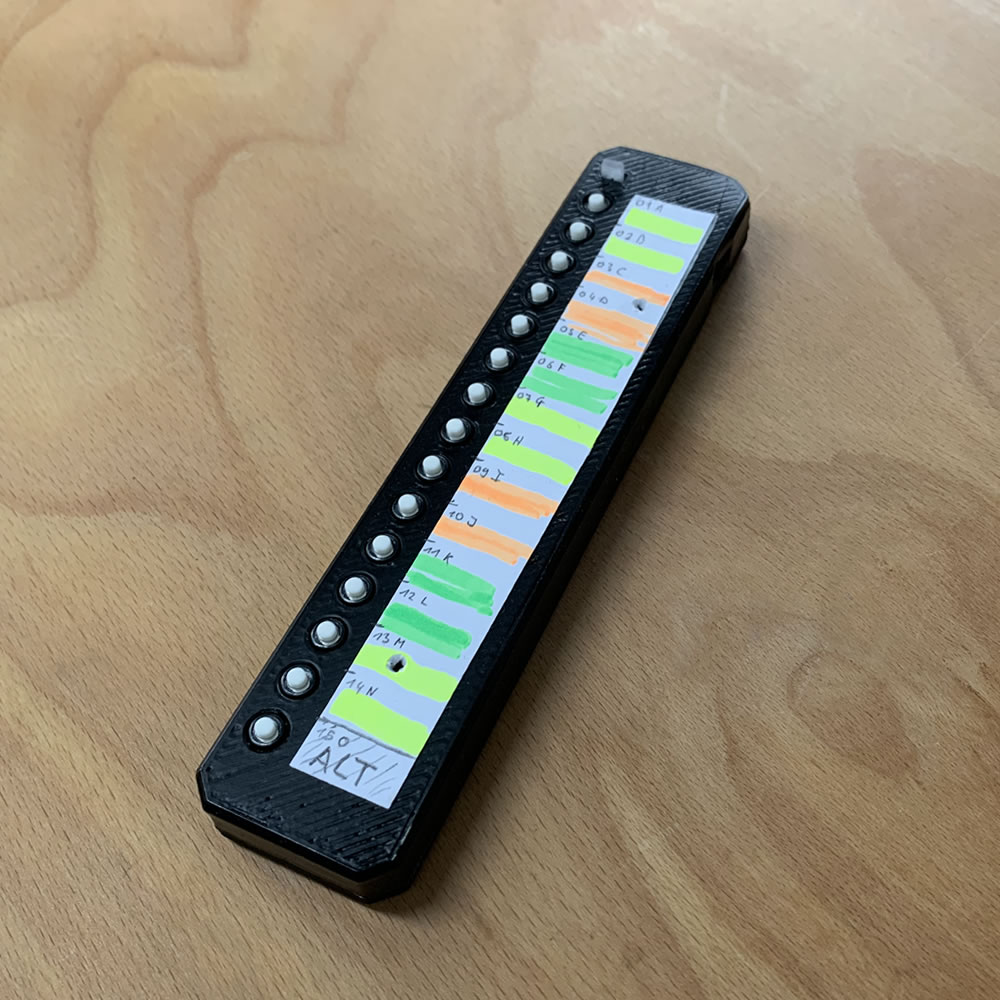

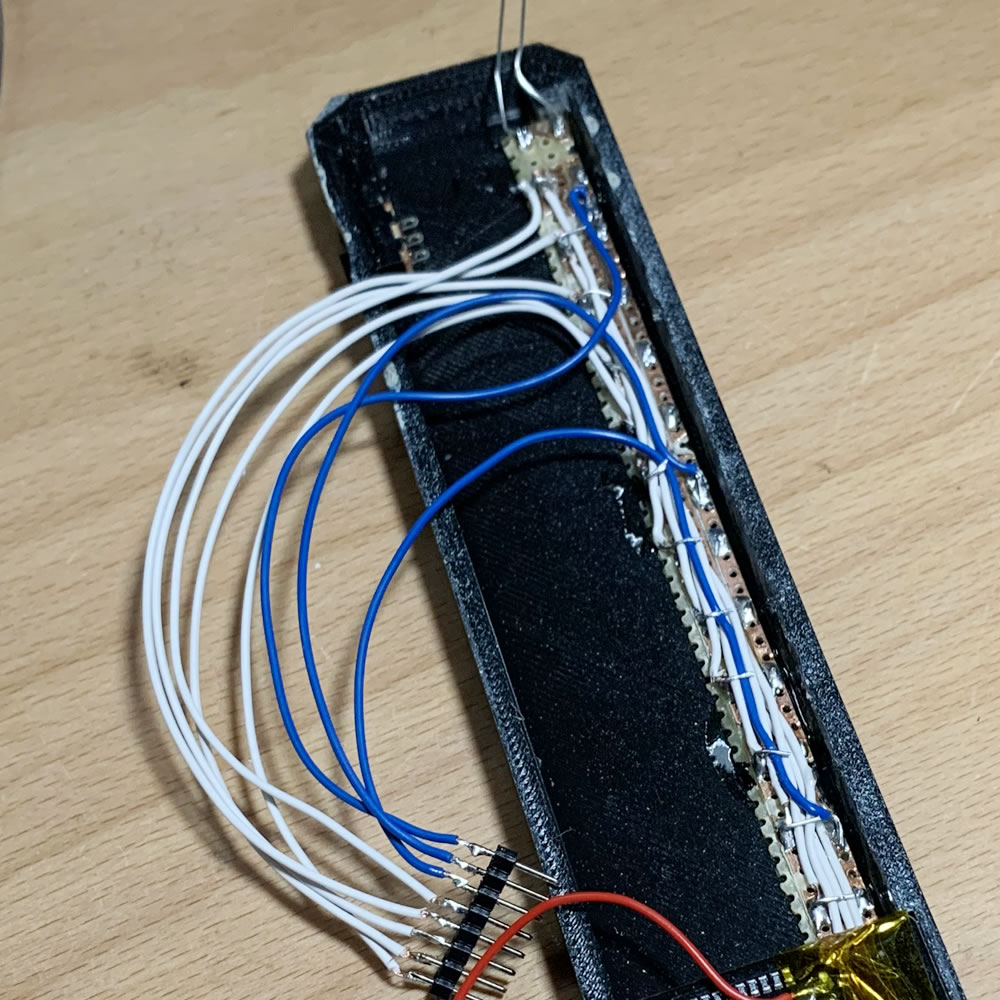

This remote allowes me to change scenes and trigger events in OBS with the press of a button. It has a 433Mhz sender included as well as a battery and a charing port. By pressing the last button, you gain 15 additional buttons with a second function bringing the remote up to 28 functions in total.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm

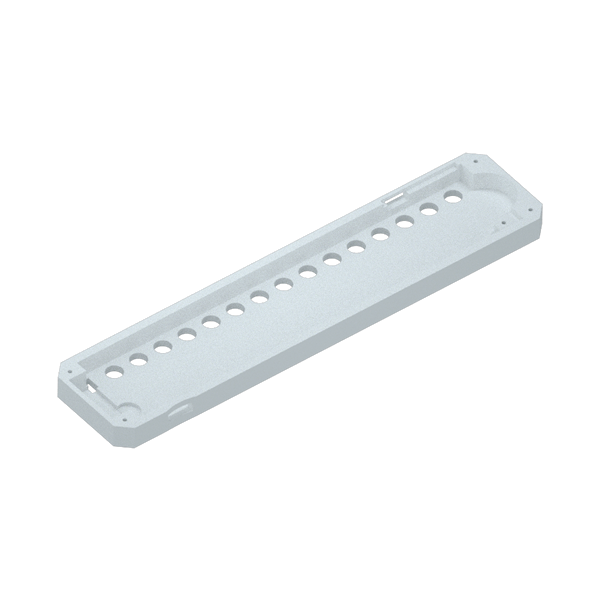

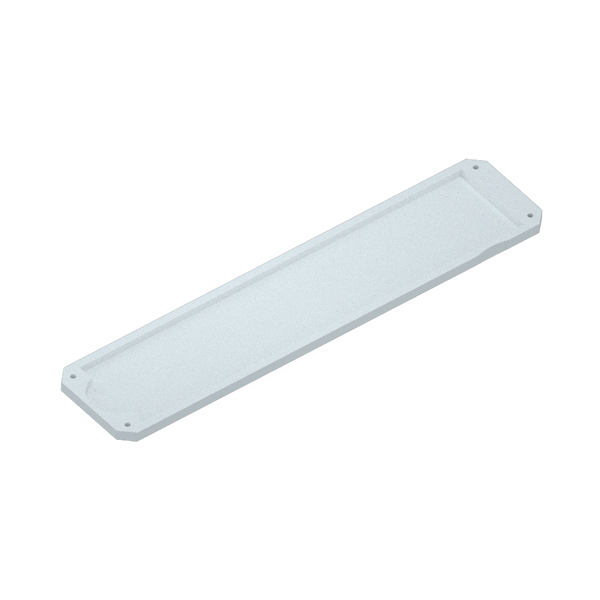

Holding the cover to the backpiece
Source: local, ebay
4x
± 0.05
sum: 0.20

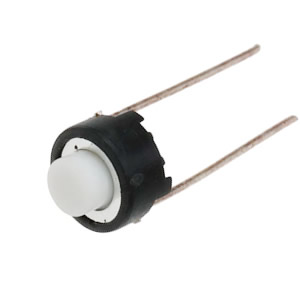

Push Button
2Pin non-latching 6x6x5 generic mini switch
Choose yourself how many buttons you need
Source: local, ebay
15x
± 0.05
sum: 0.75

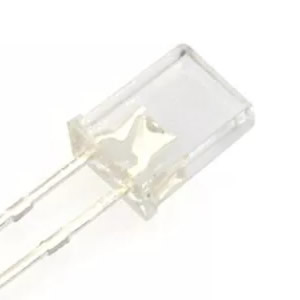

Square LED
Generic through hole LED

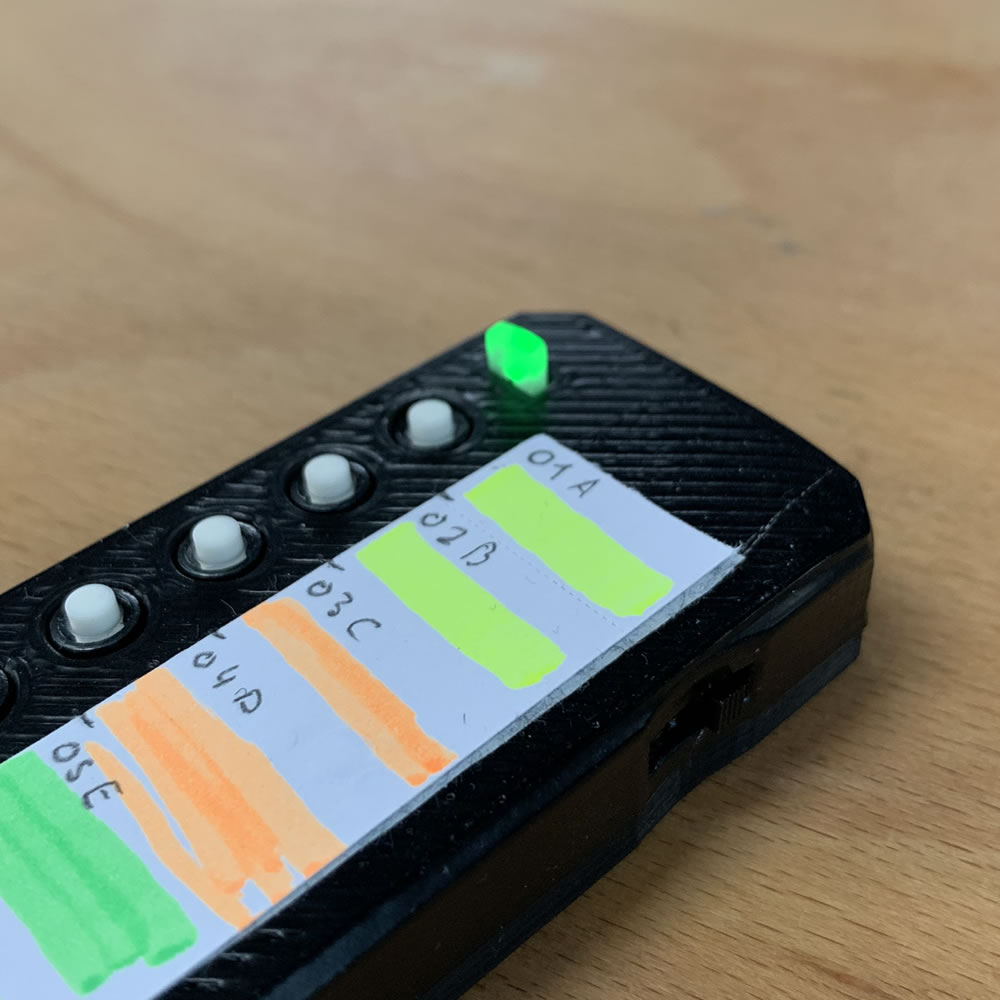

Display key presses and option menu state
Source: ebay
1x
± 0.10
All parts =
3 (20 pcs)
~ 1.05
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
