MO180
4Port BP
4 ports, 2 channel, 24V Outlet
24V Remote Power

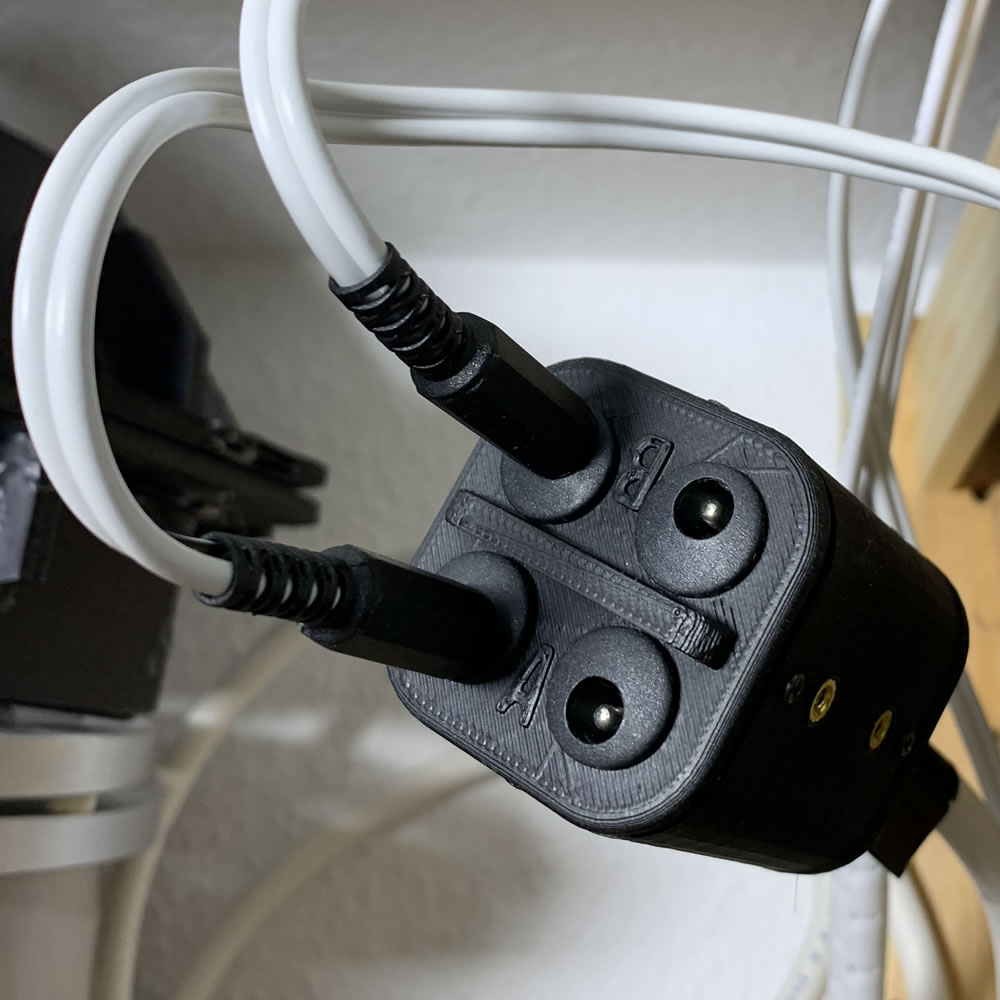

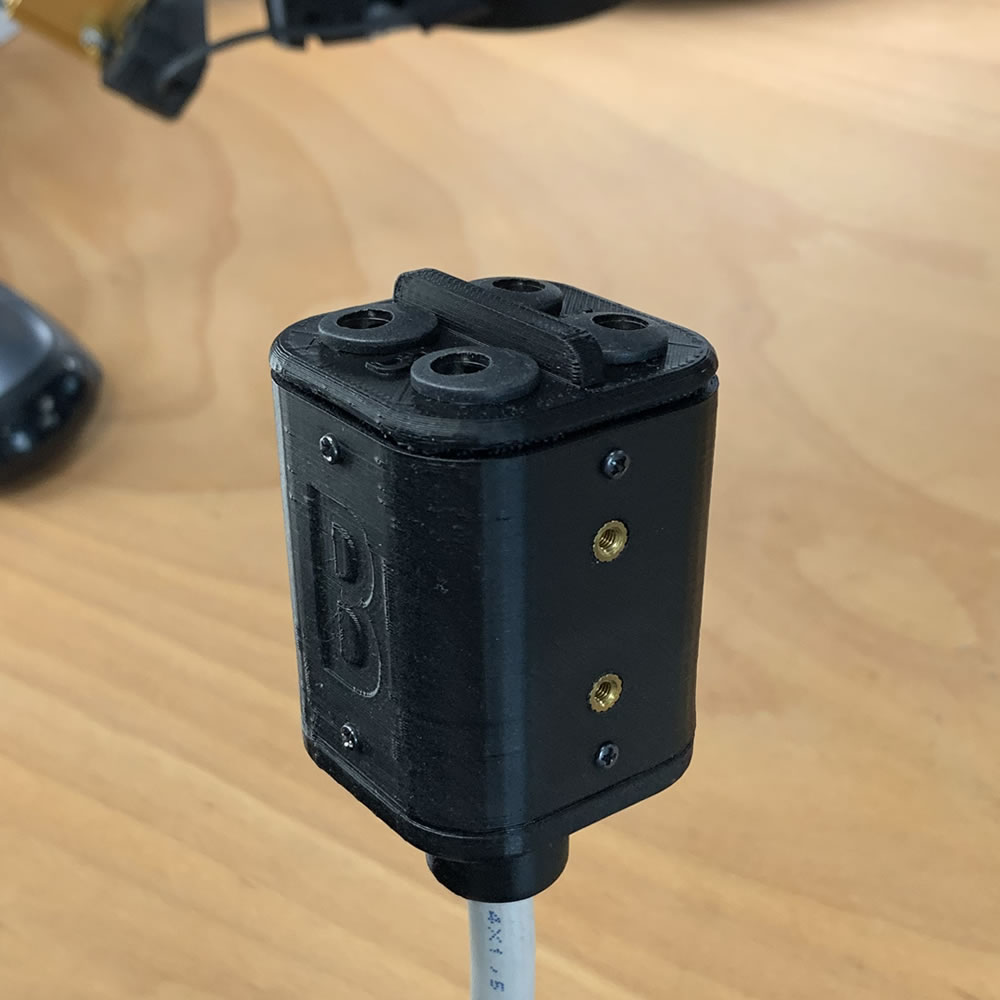

The more I worked with various designs for lights, I further and further needed more outlets to provide these lights with the needed power and channels to control them. This one is a very early version. It uses a very beefy cable to run long distances while providing a 2x2ch outlet for up to 400W.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Holding the top to the body
Source: local, ebay
4x
± 0.05
sum: 0.20
Barrel Port
Round 5.5x2.5 barrel socket female
Power ditribution ports 2x2 channel
Source: ebay
4x
± 0.40
sum: 1.60
M3 Threaded insert COMMON OPTIONAL
Brass Insert for M3 4,4x7, long version
Only needed for different mounting options
Source: local, ebay
4x
± 0.30
sum: 1.20
Without optional parts =
2 (8 pcs)
~ 1.80
All parts =
3 (12 pcs)
~ 3.00
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
