MO800
Caliper Cam
Closeup-Camera for Calipers
Meassure on cam

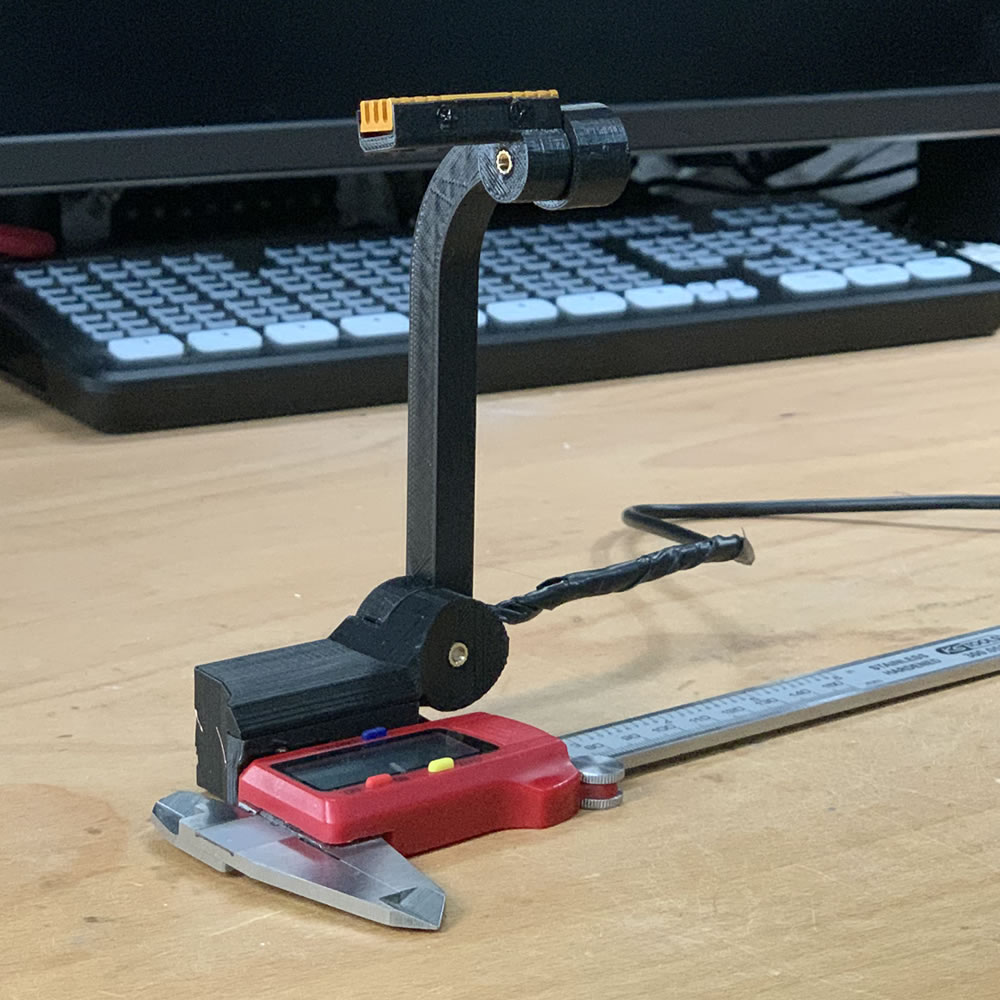

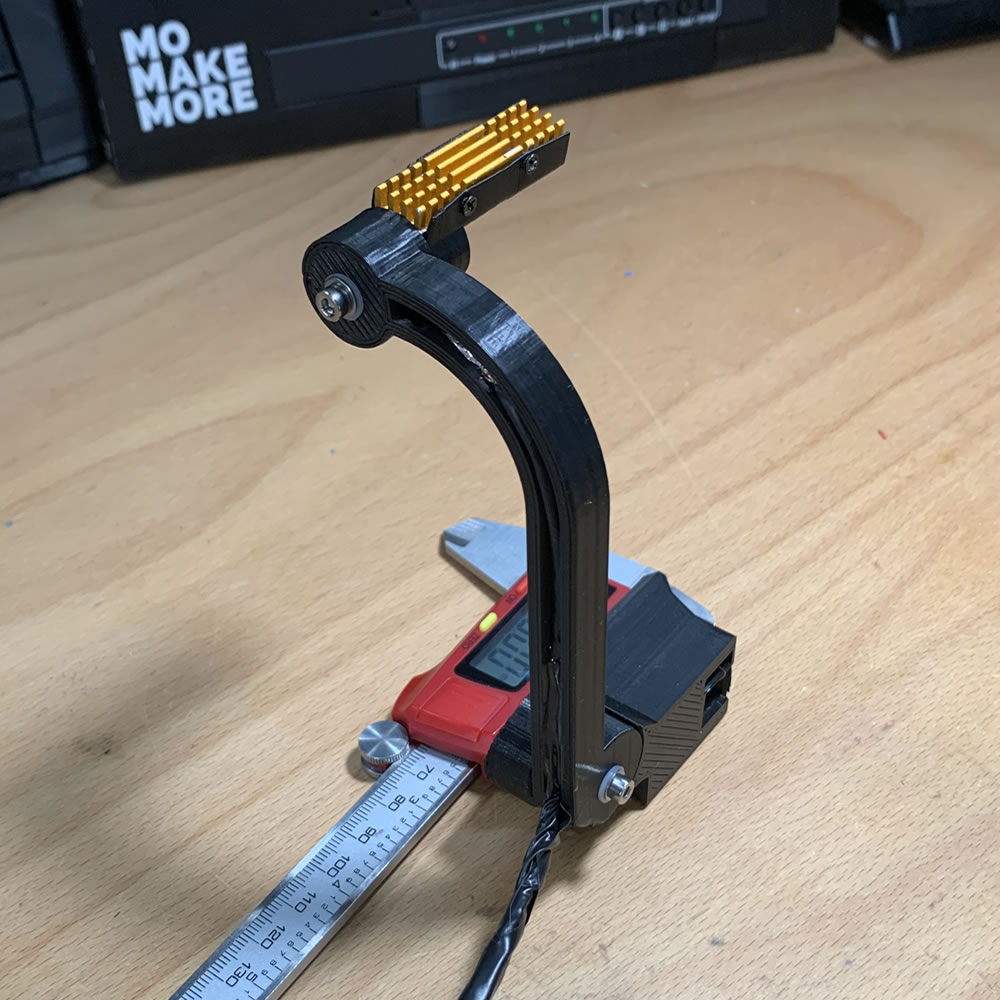

Showing onstream what I am meassuring and how to take the values added a nice touch the look and feel. This camera is magnetically detachable from the caliper and is optimized in the angle and sharpness for hit special case.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Holding the heatsink and the base
Source: local, ebay
5x
± 0.05
sum: 0.25
M3x20 bolt COMMON
Standard M3x20 Hex Bolt
Allows the rotation on two axis
Source: local, ebay
2x
± 0.20
sum: 0.40
M3 Nylon Washer COMMON OPTIONAL
White M3 Nylon Washer 1mm slim
Better grip to the printed part
Source: local, ebay
2x
± 0.01
sum: 0.02
M3 Metal Washer COMMON
Standard M3 Metal Washer ~.3mm shim
Protect the print from the bolt
Source: local, ebay
2x
± 0.02
sum: 0.04
M3 Threaded insert COMMON
Brass Insert for M3 4,4x7, long version
Countering the bolts
Source: local, ebay
2x
± 0.30
sum: 0.60
Magnet Block (10x10x5)
Strong little Magnet in a common size
Easy snap on and off for fast mounting
Source: local, ebay
2x
± 0.40
sum: 0.80
Heat Dissipation Pad
Adhesive Dissipation Silicone Thermal Pad
cut to 10x30mm, place under heatsink
Source: ebay
1x
± 2.00
Aluminium Heatsink SPECIAL
Medium Spare Heatsink 30x30x12
Find used from old Mainboard Northbridges, sewed off 1/3
Source: ebay
1x
± 1.00
Without optional parts =
7 (15 pcs)
~ 5.09
All parts =
8 (17 pcs)
~ 5.11

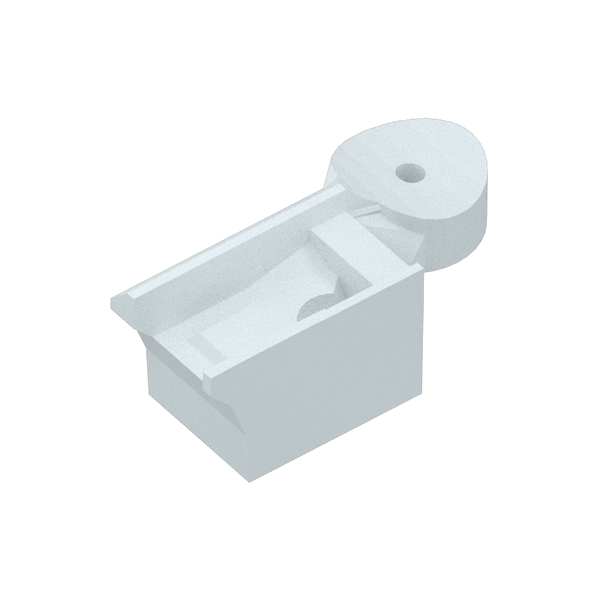

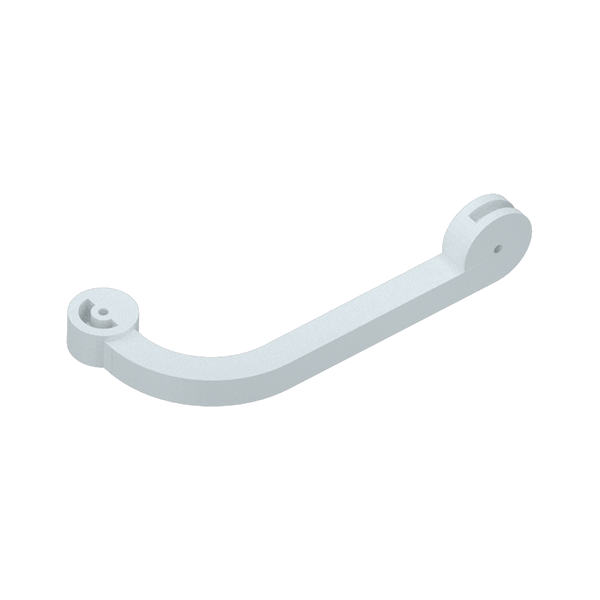

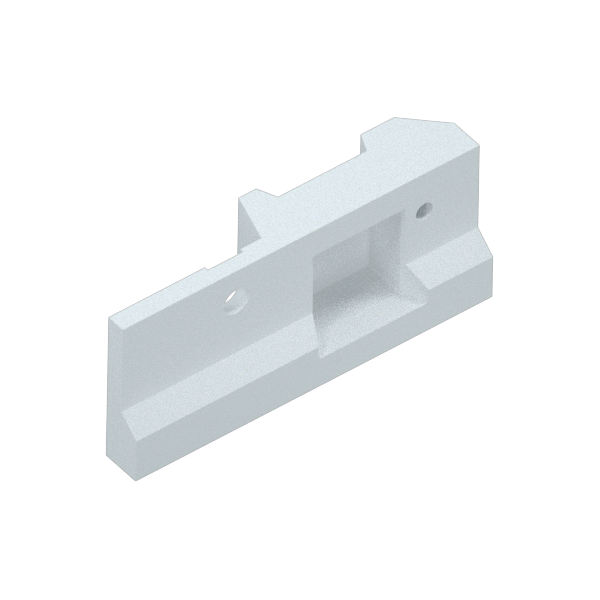

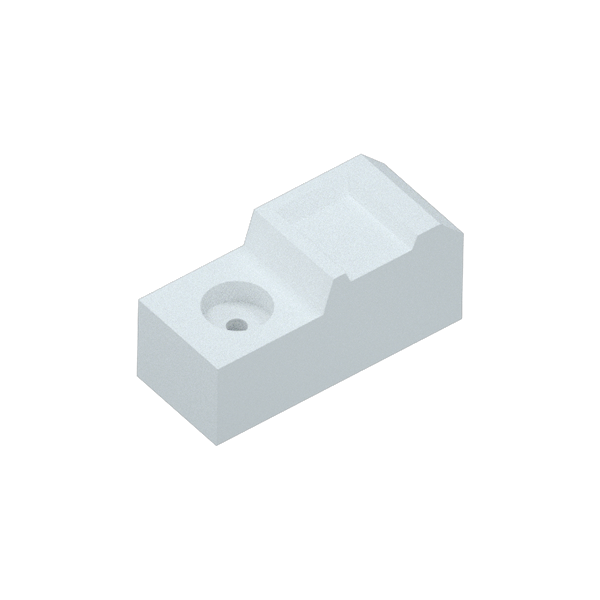

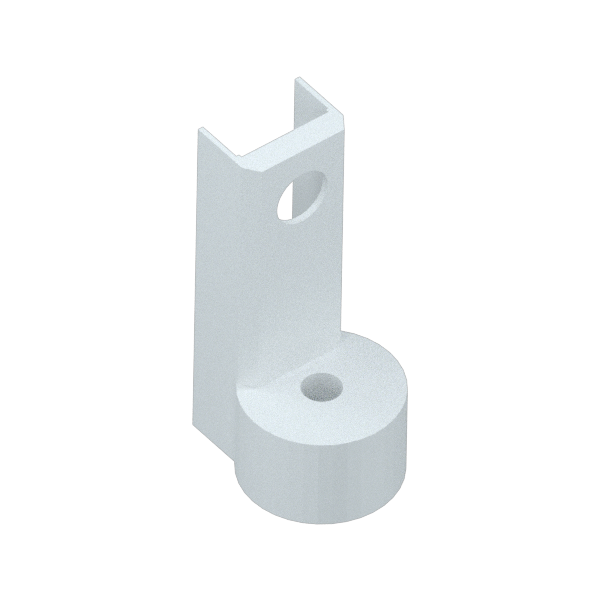

STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
