MO730
Cam Bee

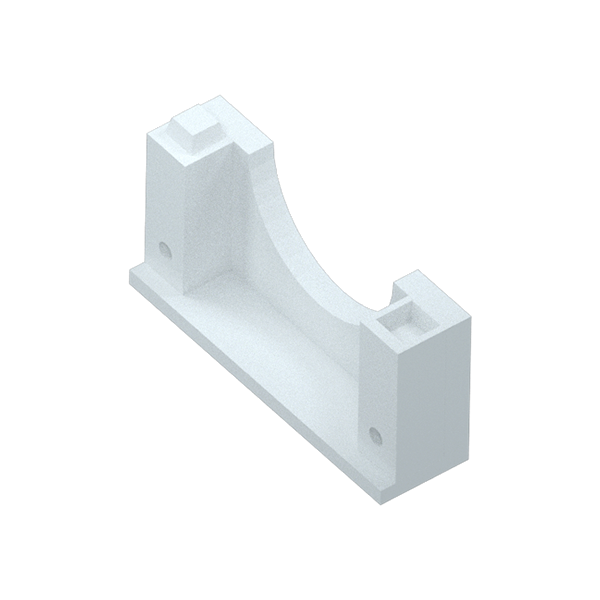

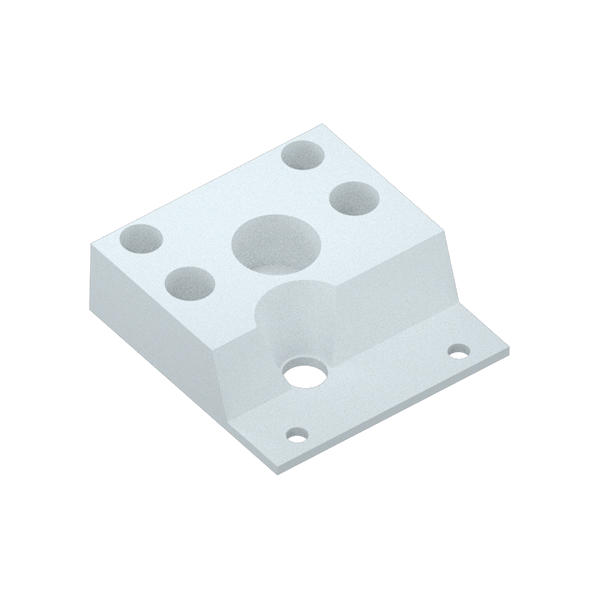

Cam Bee Housing
Bzzz

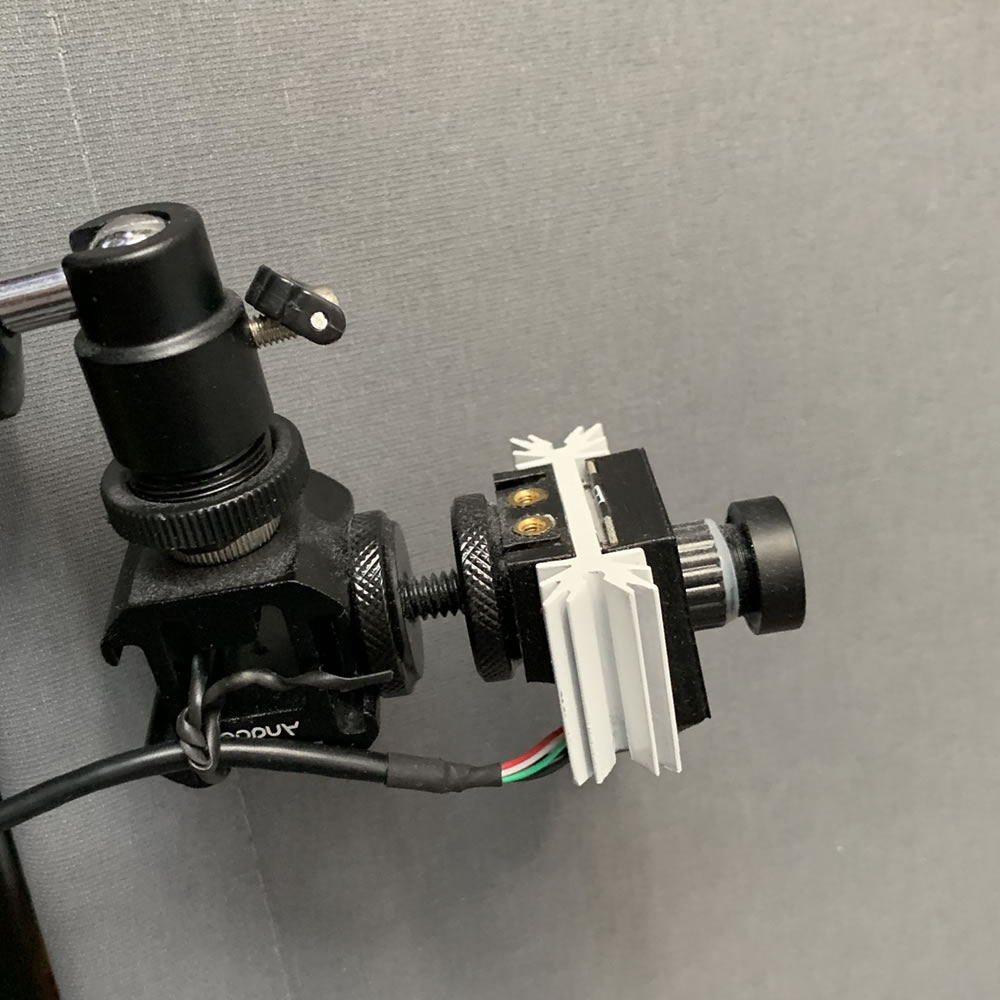

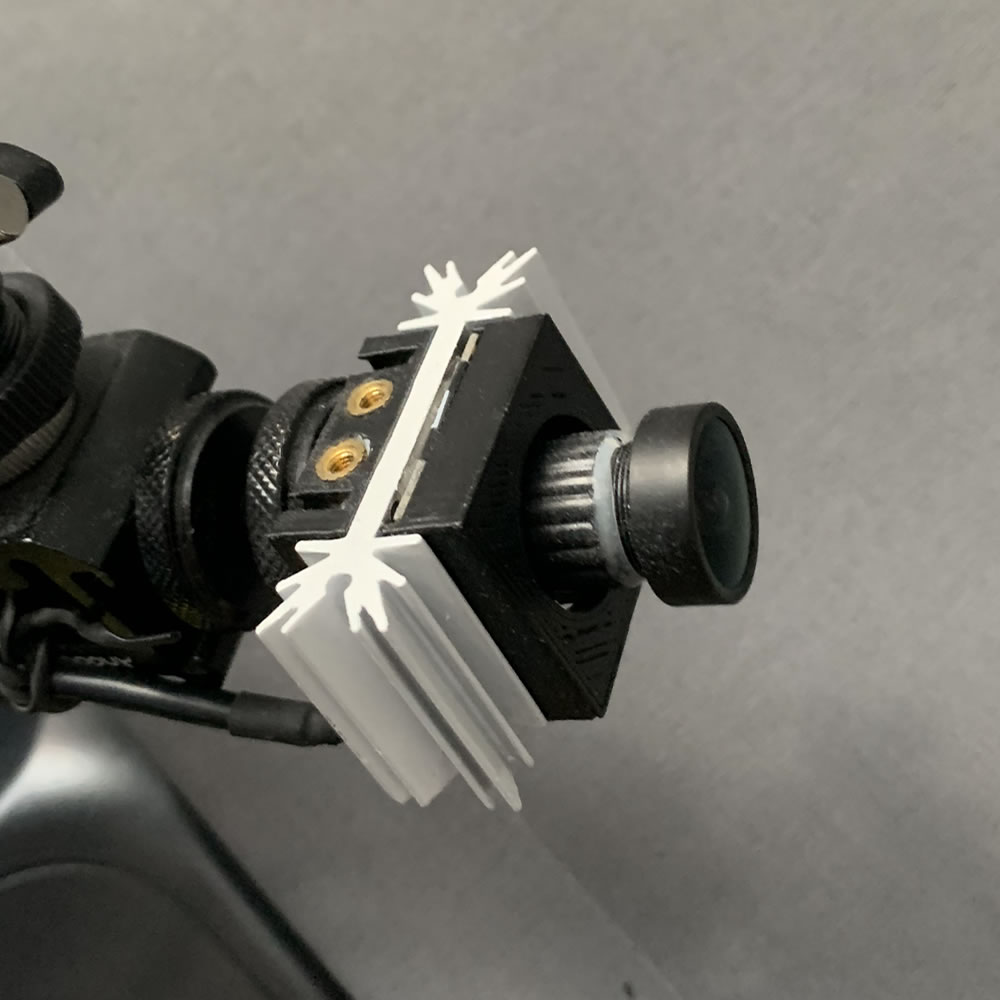

This camera maya is a special cam. It comes in a very small pcb factor that matches perfect into this heatsink. I doubt that anybody has this camera module or this heatsink. But does thos keep me from offering it for that one guy who has this exact compontents? No!
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Holding the cover to the backpiece
Source: local, ebay
4x
± 0.05
sum: 0.20

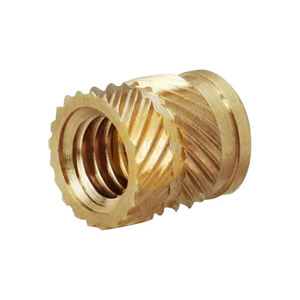

M3 Threaded insert COMMON OPTIONAL
Brass Insert for M3 4,4x7, long version
Can be used for additional mountings
Source: local, ebay
4x
± 0.30
sum: 1.20

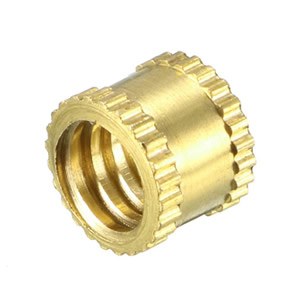

Threaded insert 1/4 OPTIONAL
Brass Insert for 1/4'' camera mounting options
Mountingpoint for 1/4 holder
Source: local, ebay
1x
± 0.40
Heat Dissipation Pad
Adhesive Dissipation Silicone Thermal Pad
24x24mm pad between the camera chip and heatsink
Source: ebay
1x
± 2.00
Aluminium Heatsink SPECIAL
MOSFET heatsink 25x45x13
Dissipates the heat of camera chip for 24h use
Source: ebay
1x
± 1.00
Without optional parts =
3 (6 pcs)
~ 3.20
All parts =
5 (11 pcs)
~ 4.80
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
