MO760
Cam Gimbal
Cam Gimbal adjustmentt
Adjustable

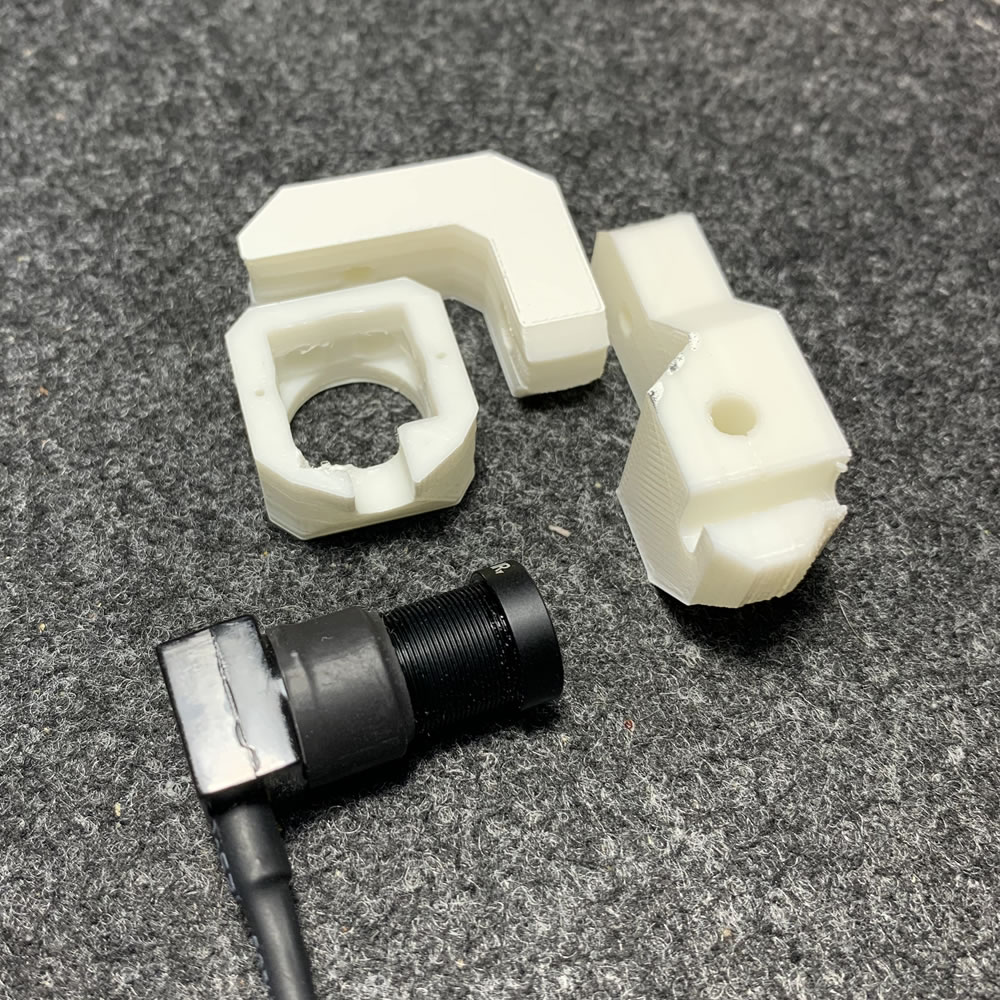

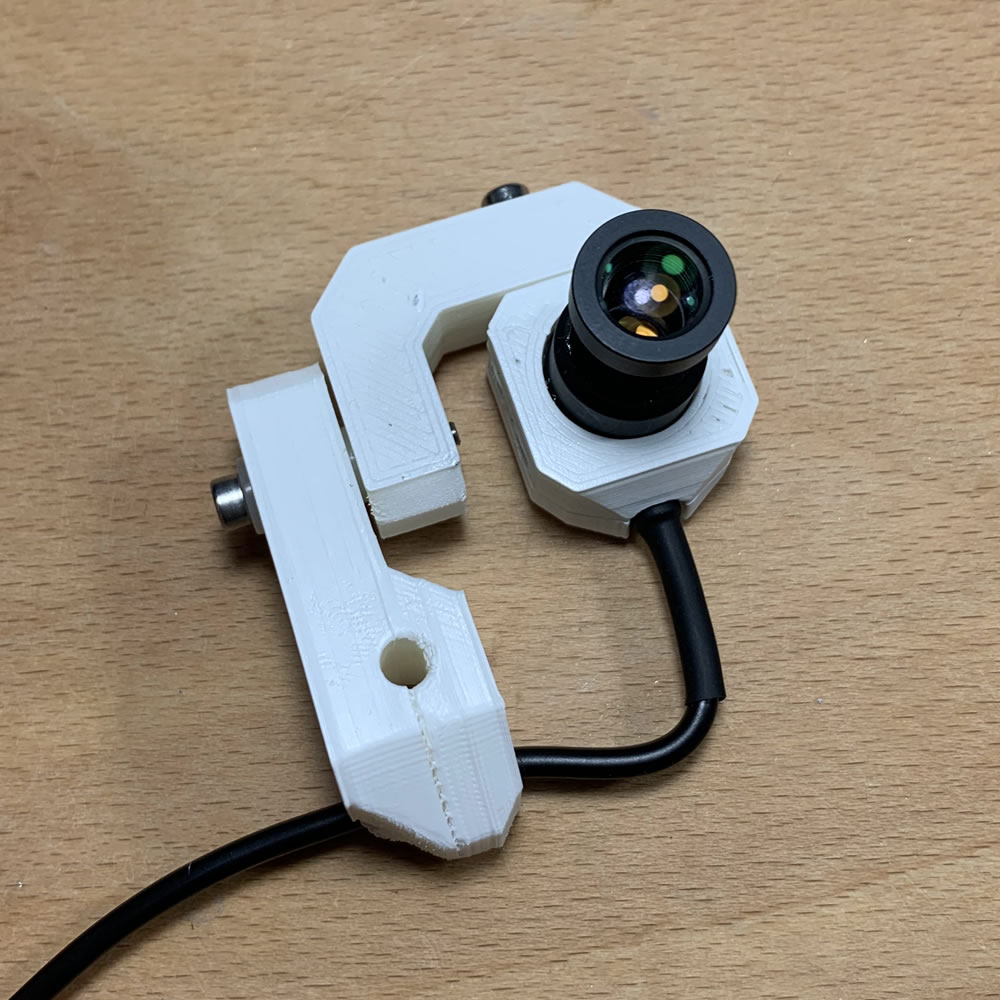

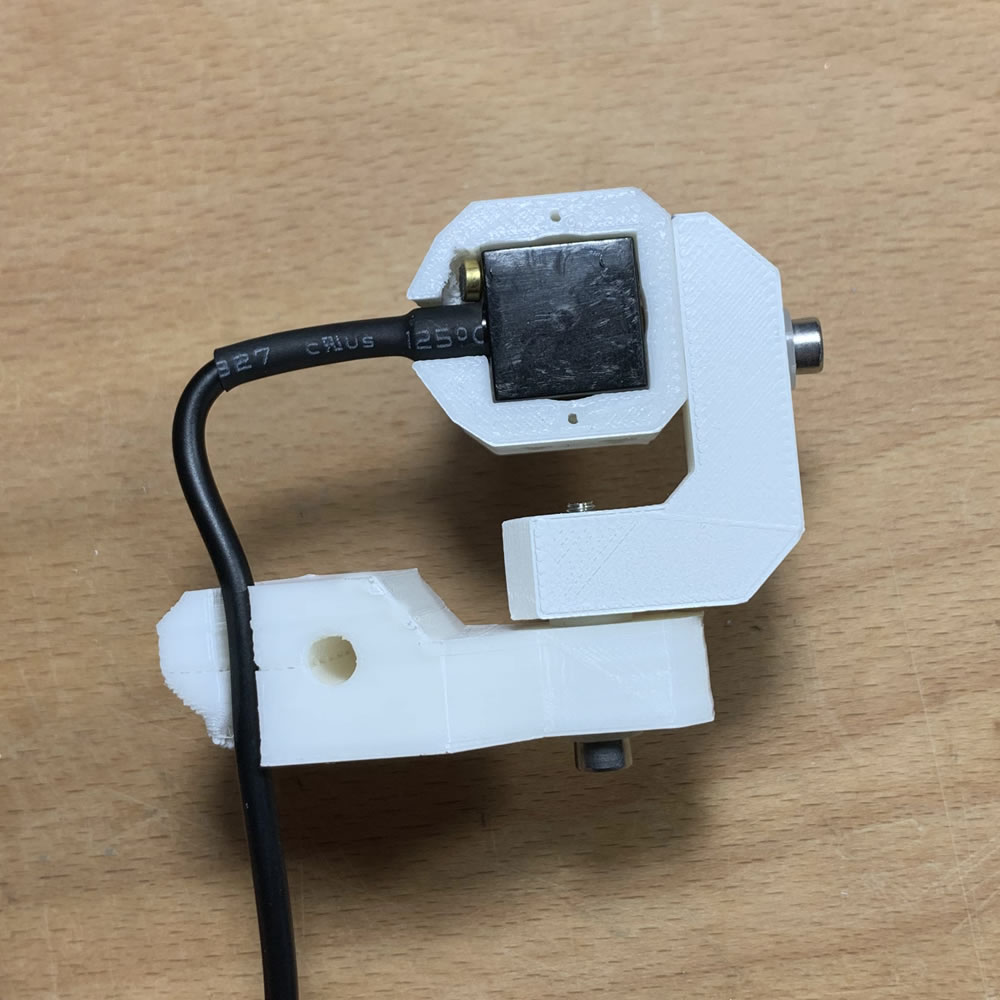

These parts allow you to mount a camera and adjust its 3 axis for a perfect adjustment. Its that simple.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
M3 Threaded insert COMMON
Brass Insert for M3 4x5, short version
Counter for the bolts
Source: local, ebay
2x
± 0.30
sum: 0.60
M3x15 bolt COMMON
Standard M3x15 Hex Bolt
Allows the rotation on 2 axis
Source: local, ebay
2x
± 0.15
sum: 0.30
M3 Nylon Washer COMMON
White M3 Nylon Washer 1mm slim
Makes the Segments easier to rotate
Source: local, ebay
2x
± 0.01
sum: 0.02
M3 Metal Washer COMMON
Standard M3 Metal Washer ~.3mm shim
Protect the print from the screws
Source: local, ebay
2x
± 0.02
sum: 0.04
All parts =
4 (8 pcs)
~ 0.96
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
