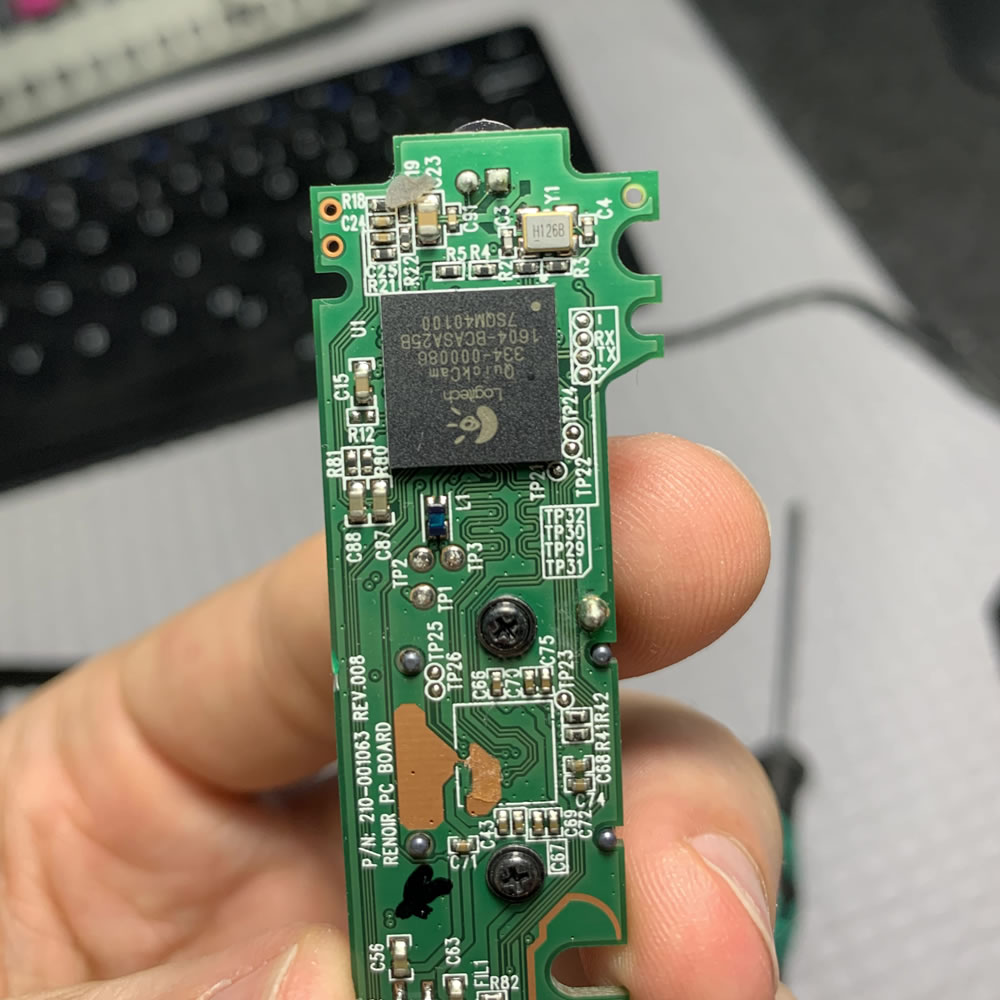

C920 slim body hack
Slimline

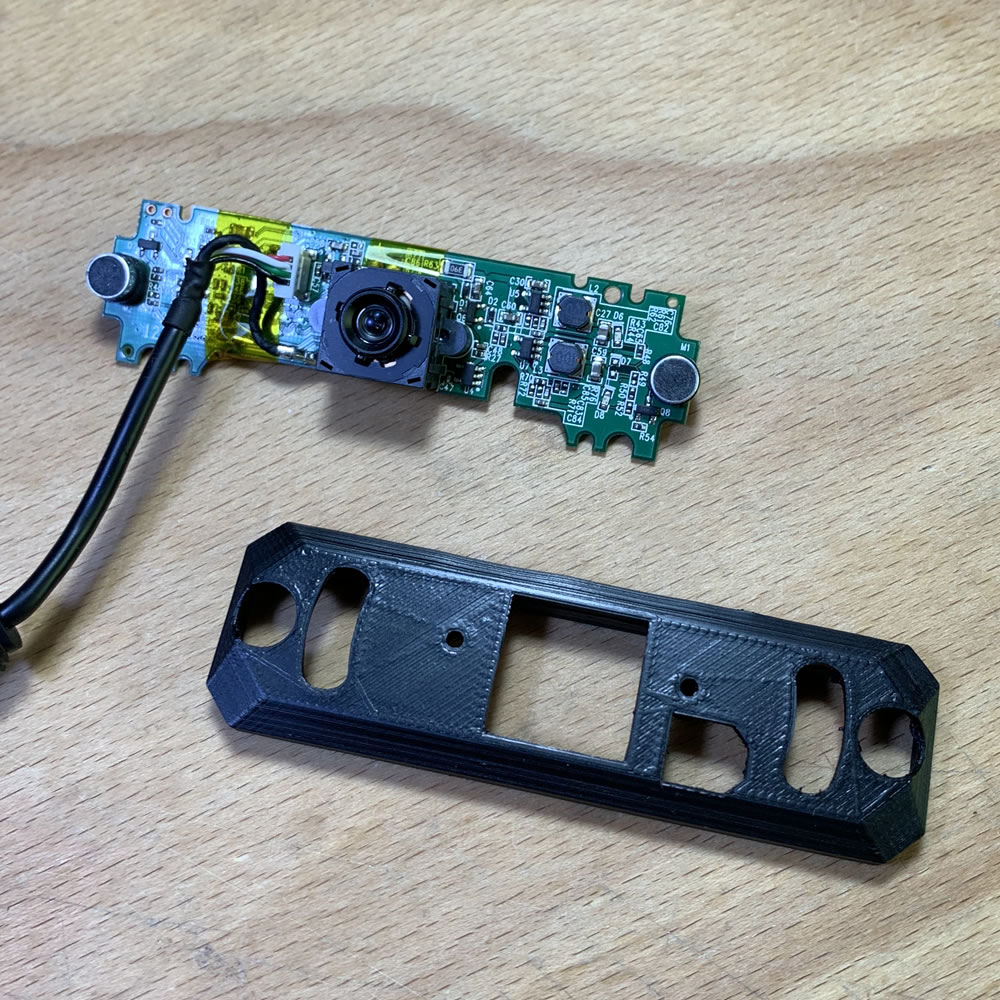

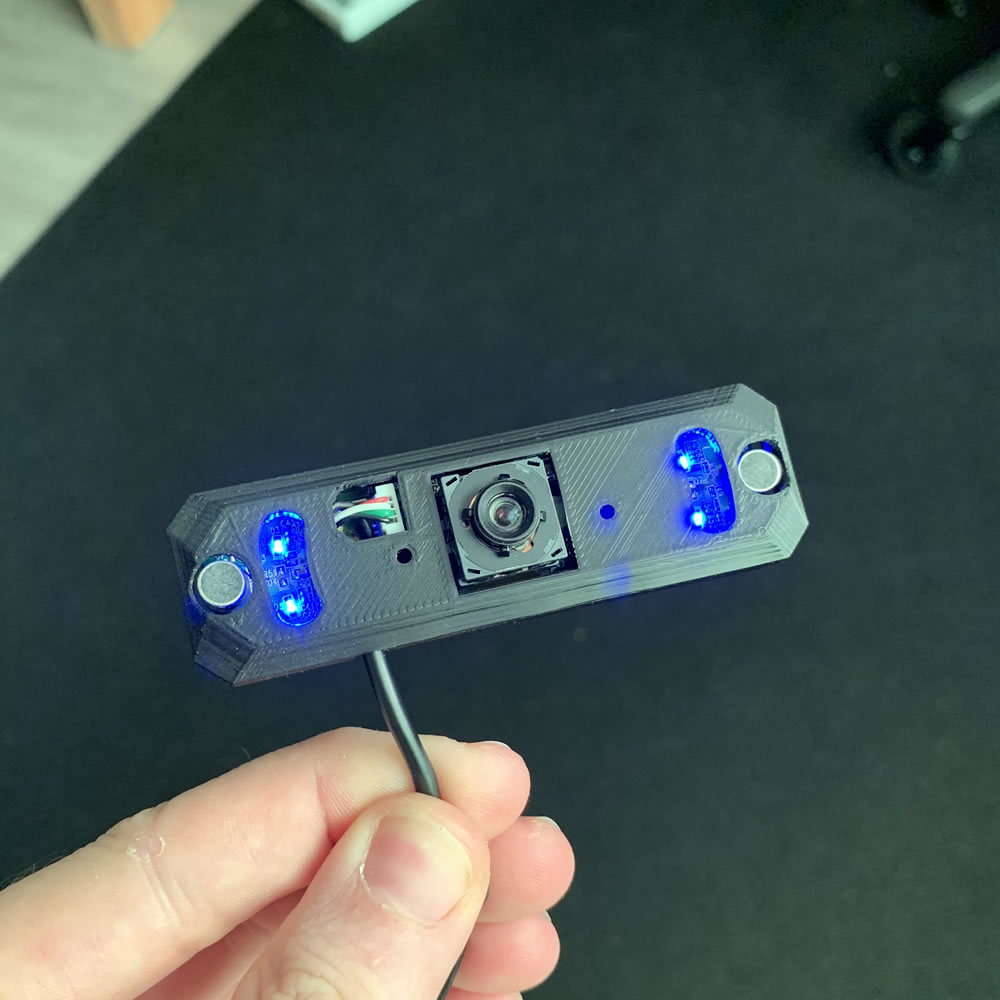

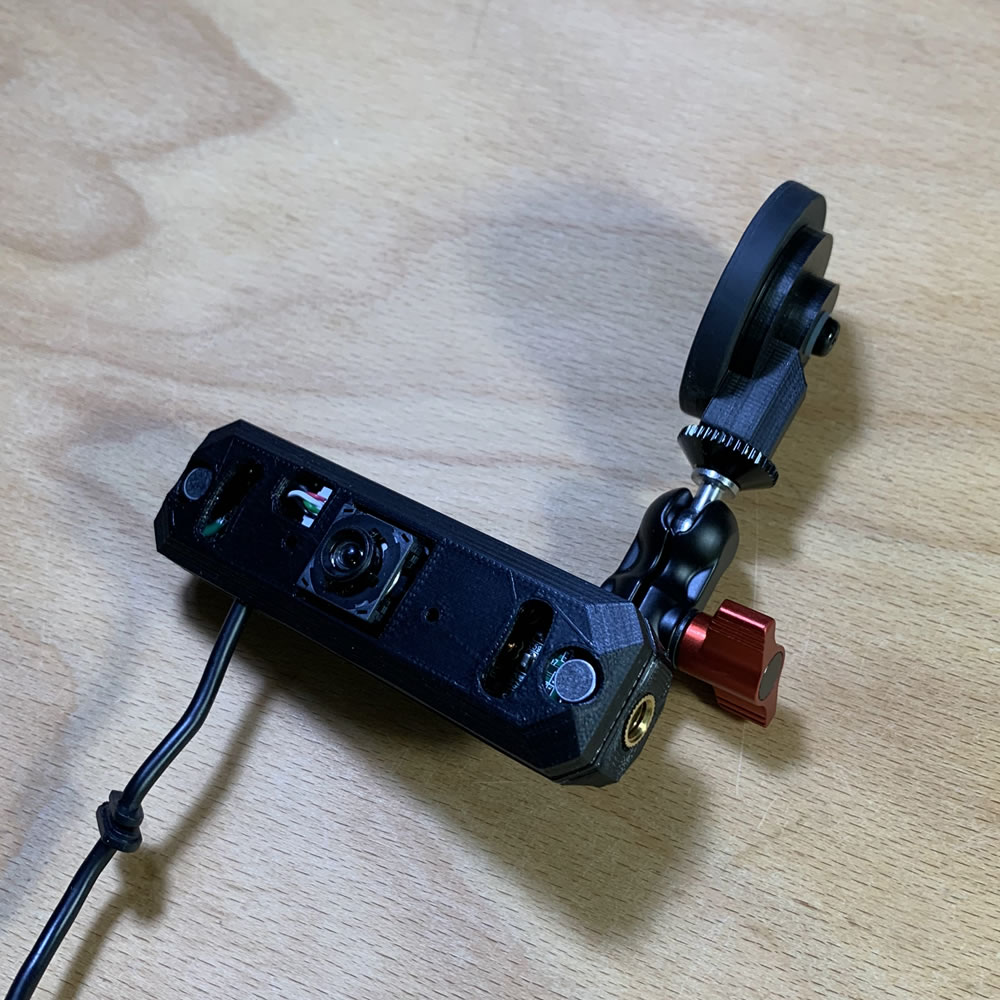

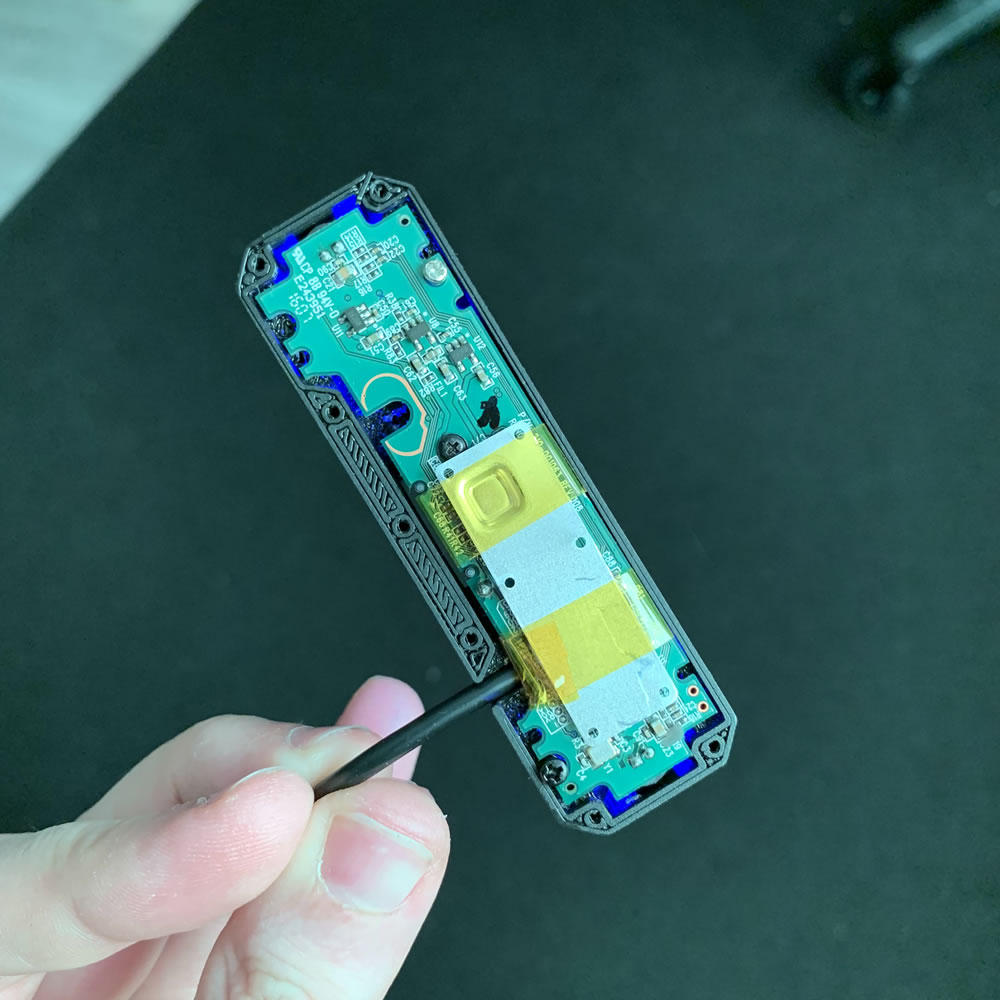

The original Logitech camera has a lot of plastic and wasted space that can be shedded. I came up with a housing that is much small and more versatile for my mounting-needs while no losing any quality in video and sound.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Two holding the cover, one for the heatsink
Source: local, ebay
8x
± 0.05
sum: 0.40
Threaded insert 1/4 OPTIONAL
Brass Insert for 1/4'' camera mounting options
Can be mounted from all sides
Source: local, ebay
5x
± 0.40
sum: 2.00
Heat Dissipation Pad
Adhesive Dissipation Silicone Thermal Pad

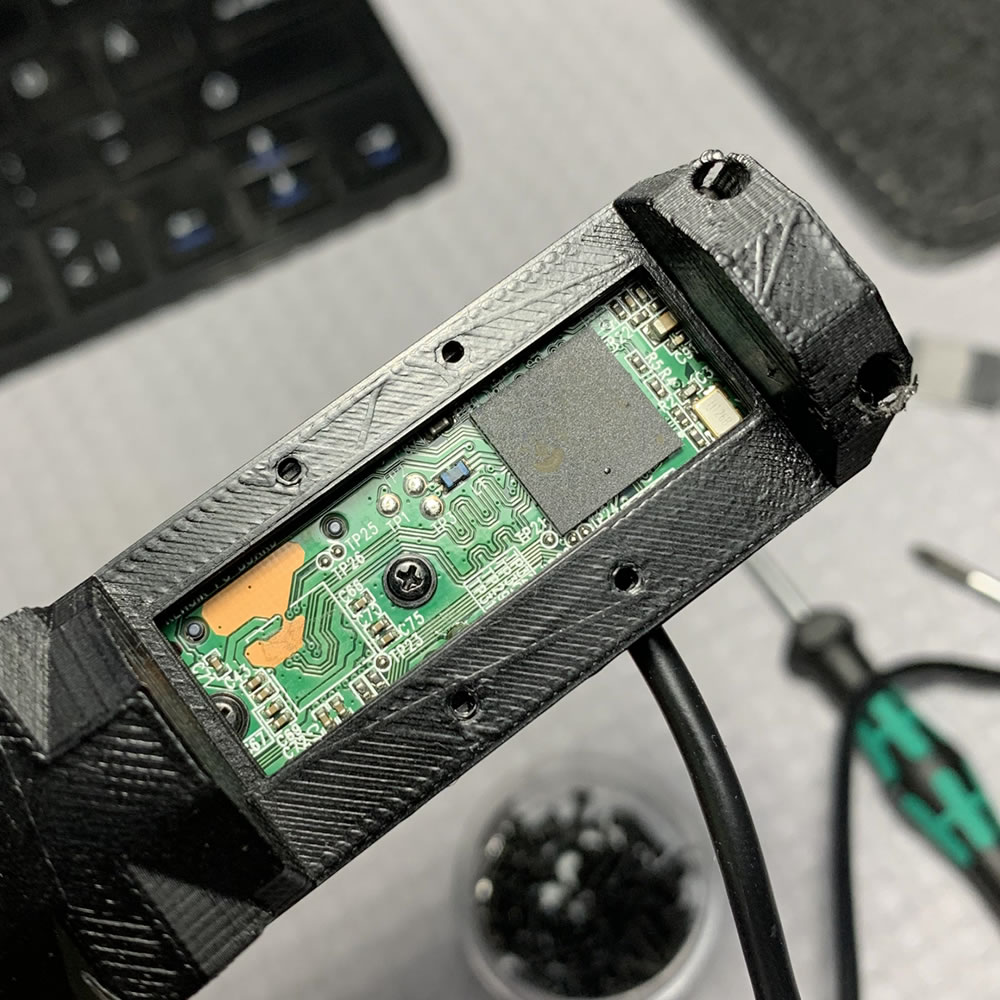

15x15mm pad between the camera chip and heatsink
Source: ebay
3x
± 2.00
sum: 6.00

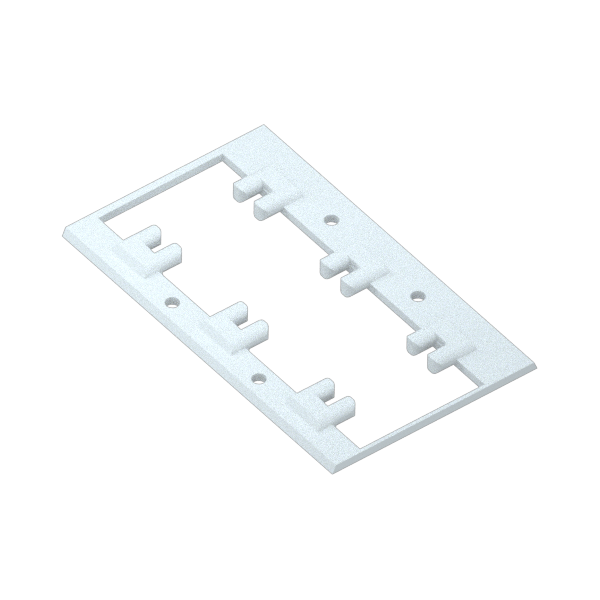

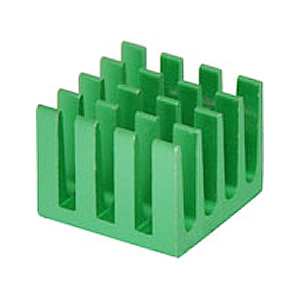

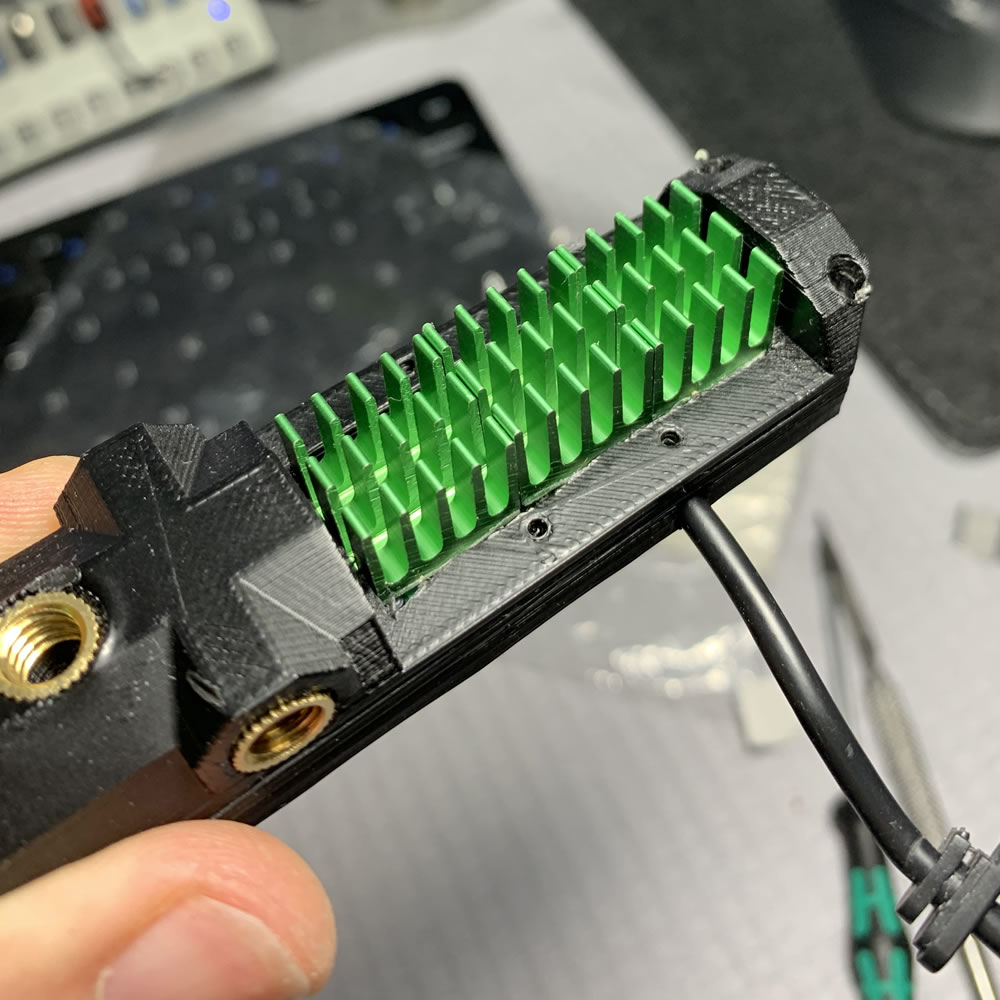

Aluminium Heatsink
Small Heatsink 14x14x14
Dissipates the heat of camera chip for 24h use
Source: ebay
3x
± 1.50
sum: 4.50
Without optional parts =
3 (14 pcs)
~ 10.90
All parts =
4 (19 pcs)
~ 12.90

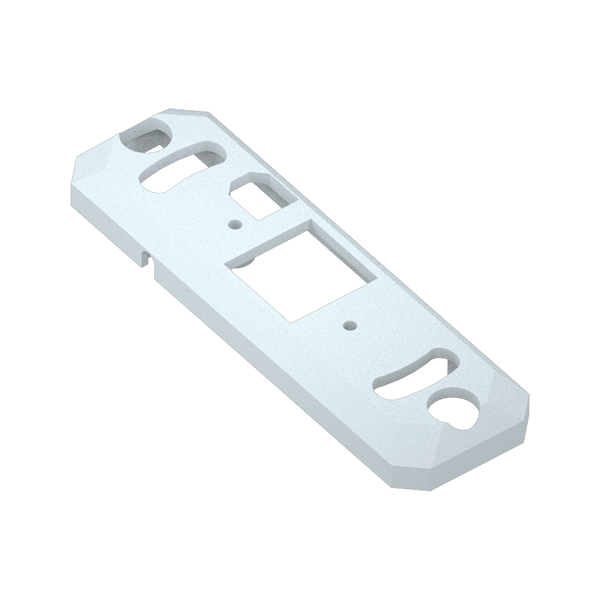

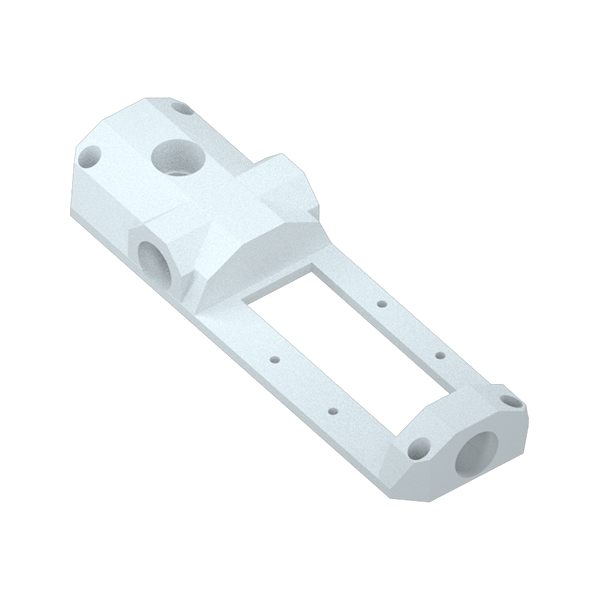

STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
