MO780
Cam Mini

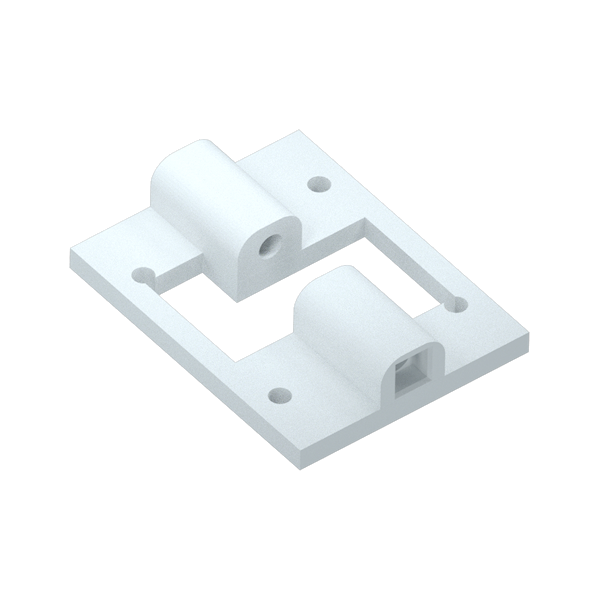

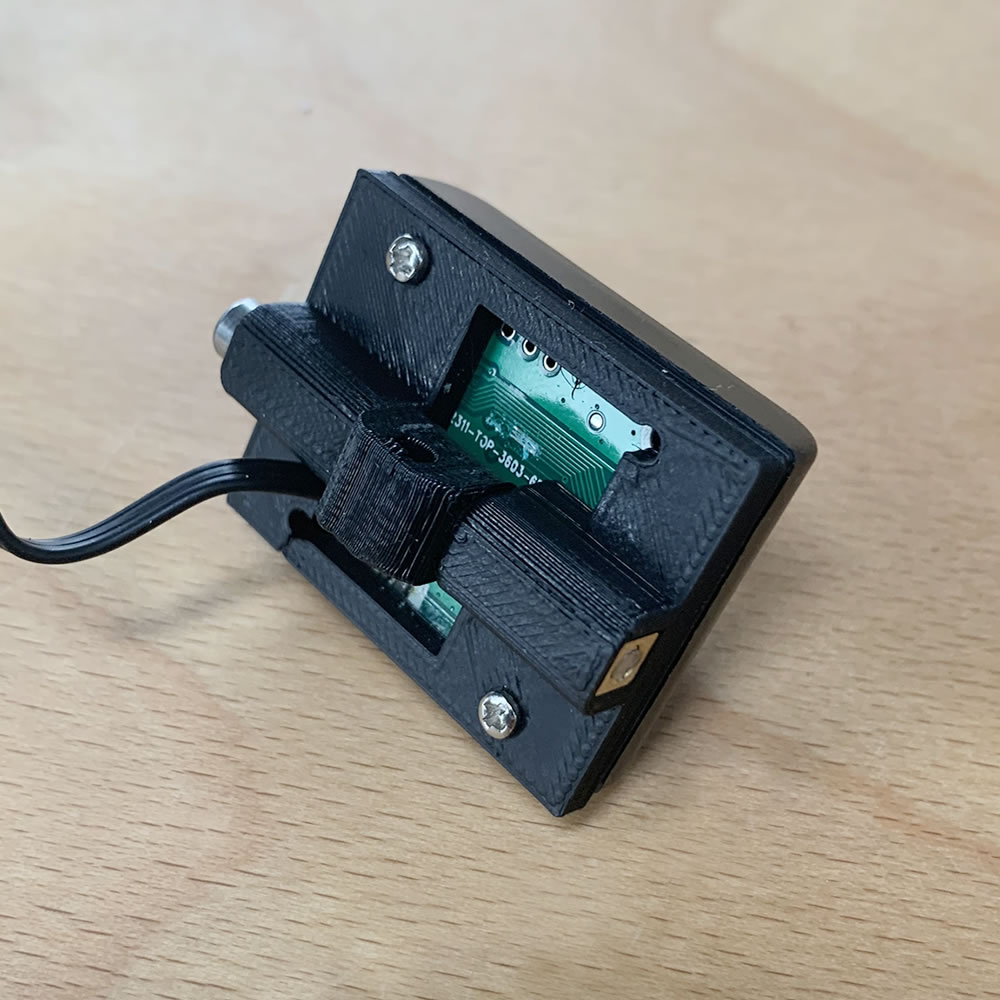

Cam Mini Backcover

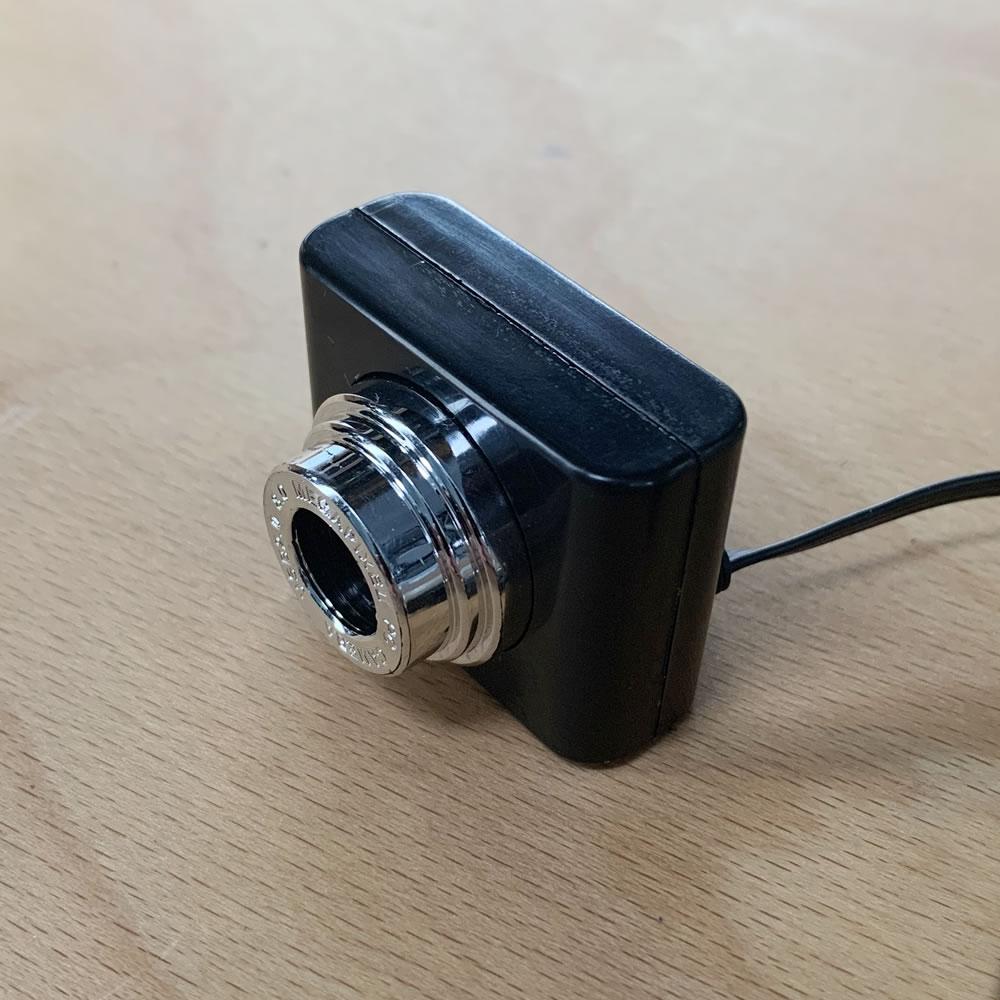

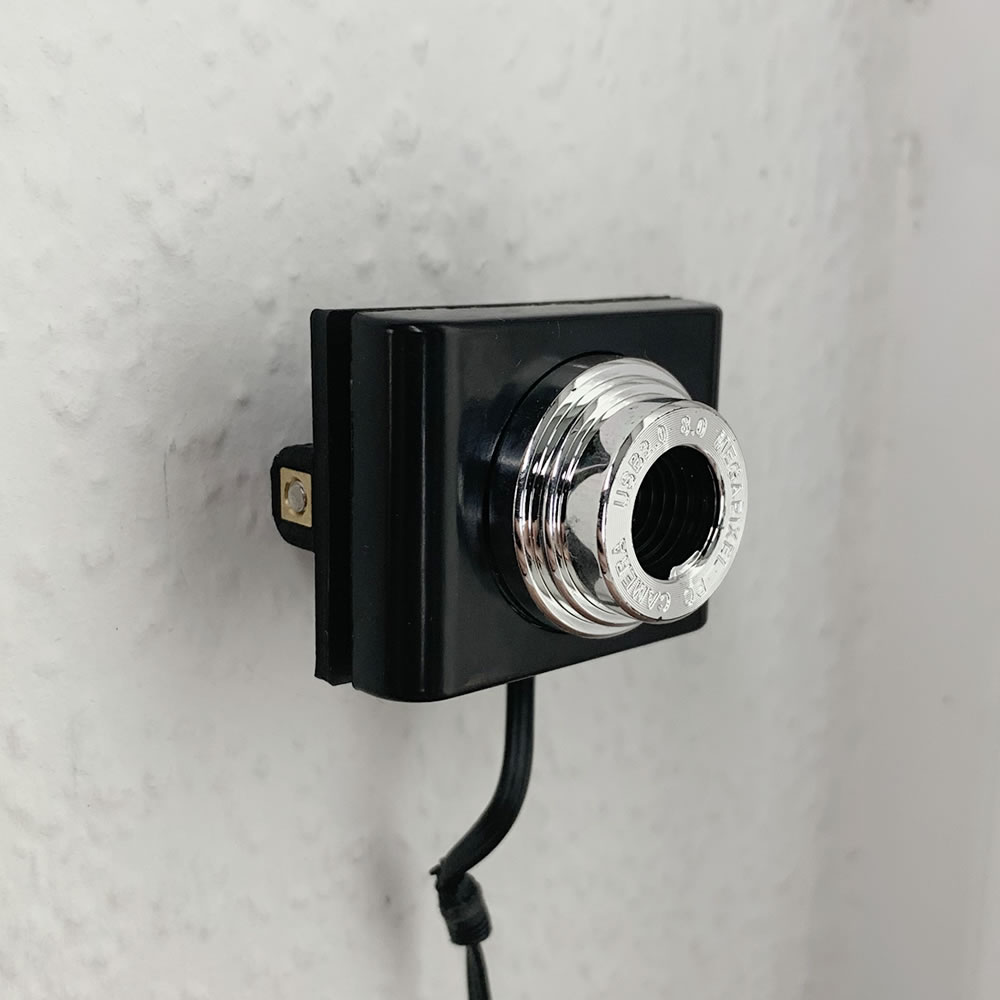

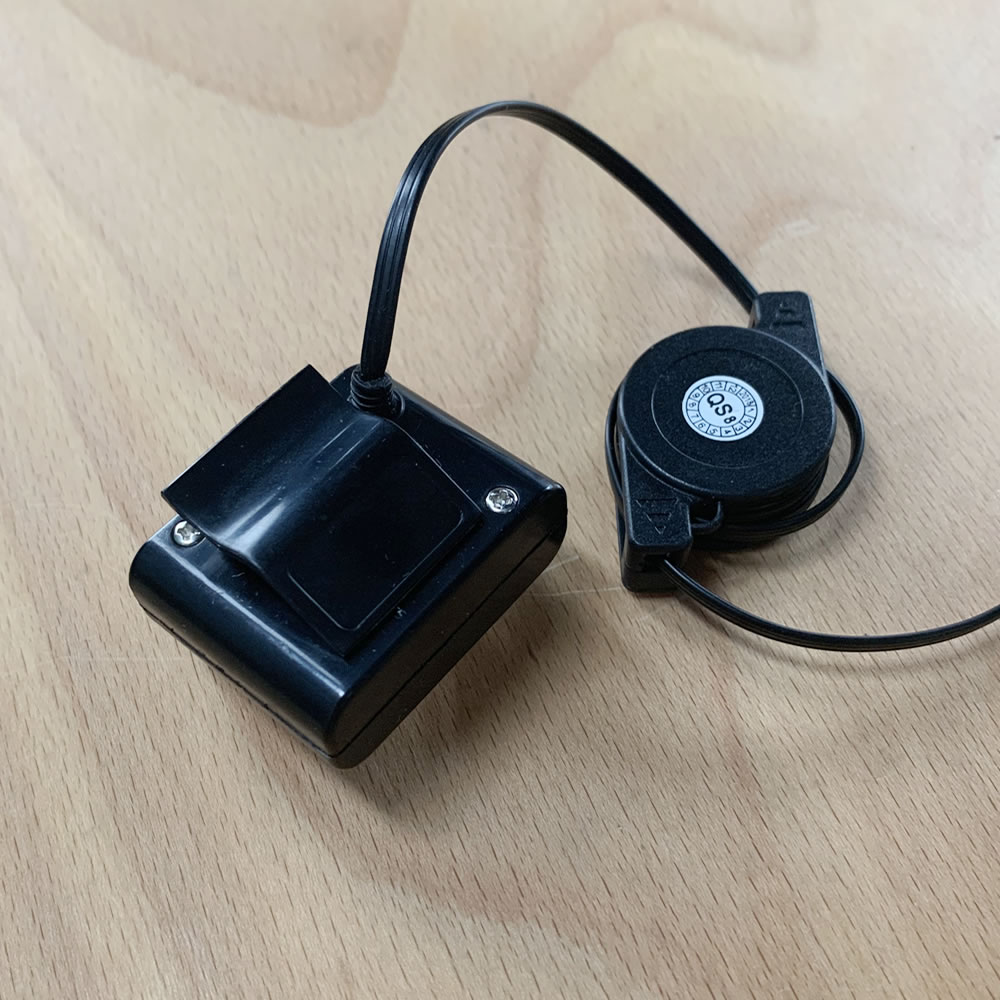

Cheapest camera

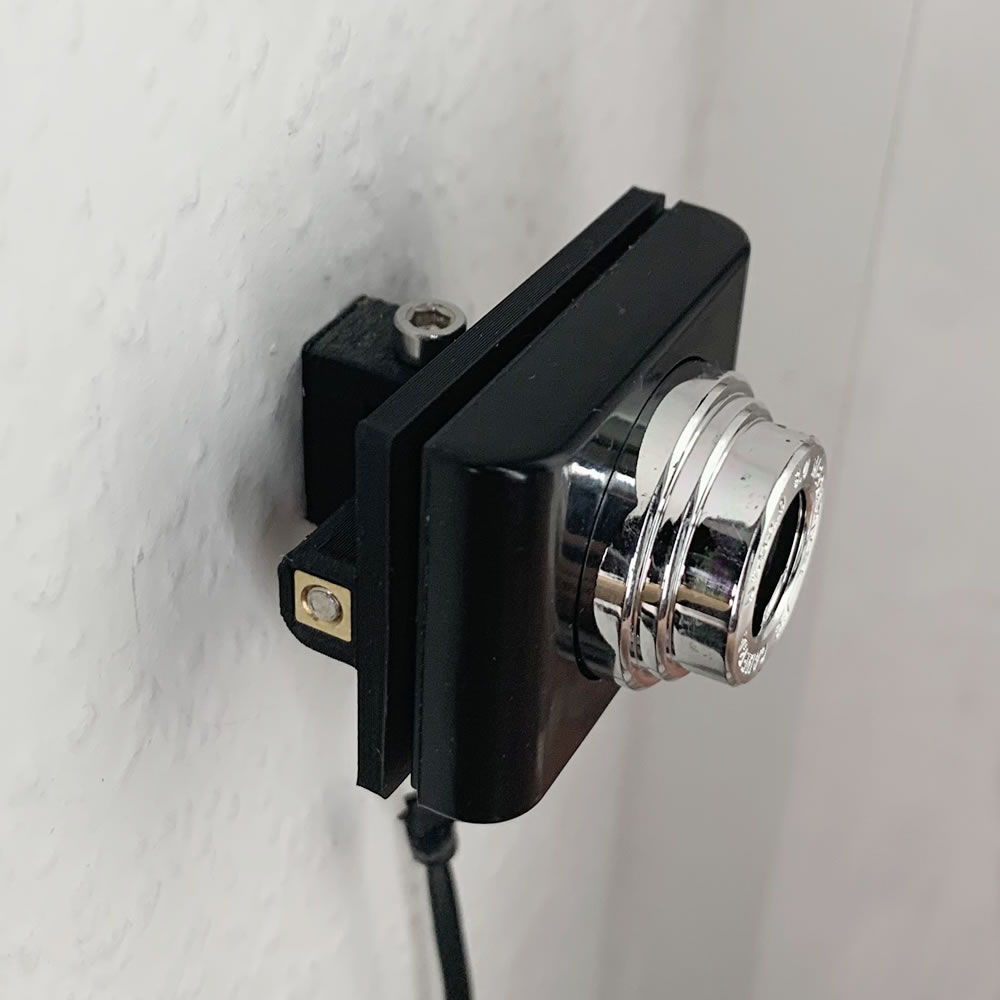

This is the most cheapest camera back in the days. It came for 4$ and has a horrible quality. Still, I started with these 10+ years ago and created a backend for it, so I can mount it to track the grows of plants.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤

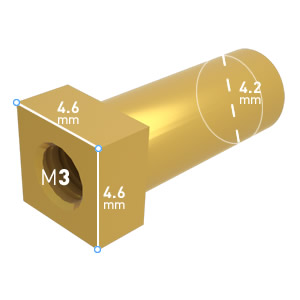

Insert M3 Square 0x0x0
Brass Insert with a square profile on the end
Main axis inser for the M3x40
Source: local, ebay
1x
± 0.30

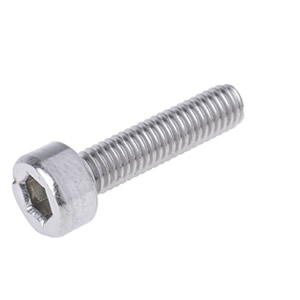

M3x40 Bolt COMMON
Standard M3x40mm Hex Bolt
Main Axis angle horizontal
Source: local, ebay
1x
± 0.20
M3x20 bolt COMMON
Standard M3x20 Hex Bolt
Rotation axis vertically
Source: local, ebay
1x
± 0.20
All parts =
3 (3 pcs)
~ 0.70
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
