MO775
Cam Snake
Cam Snake Neck
Bebop

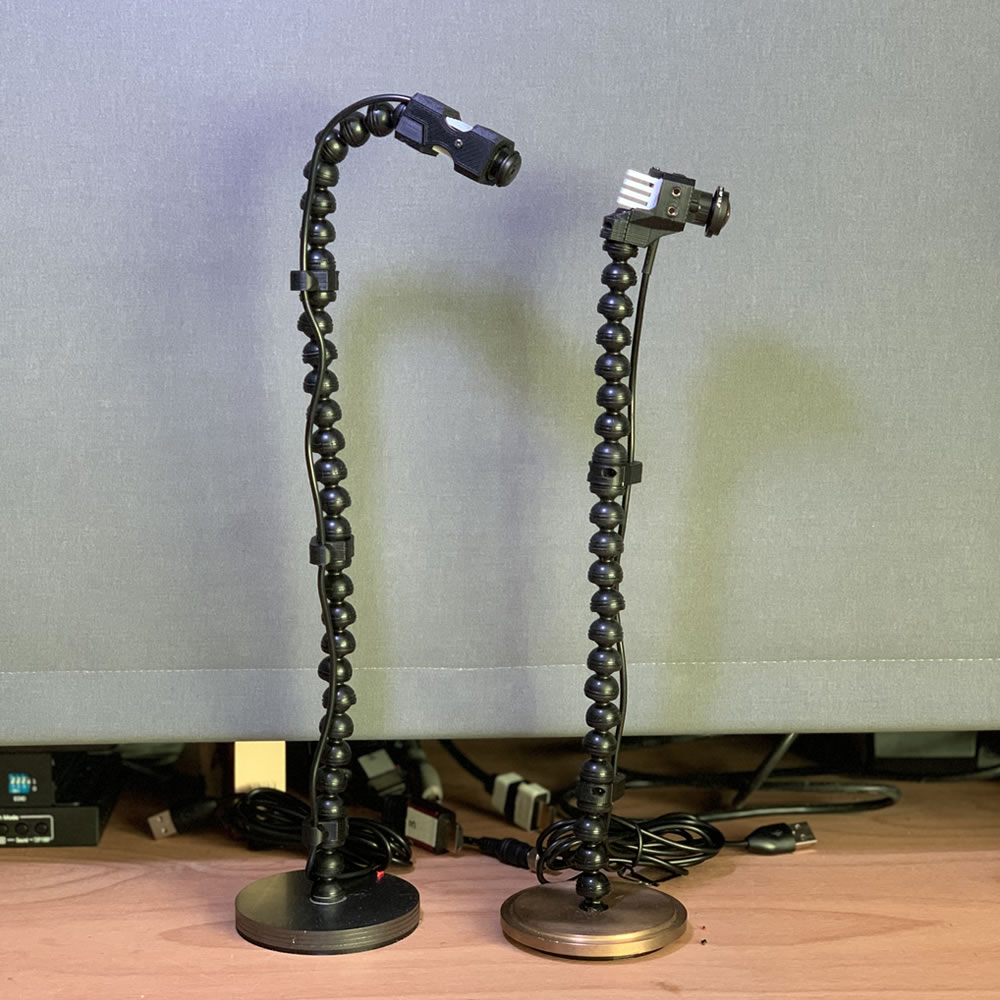

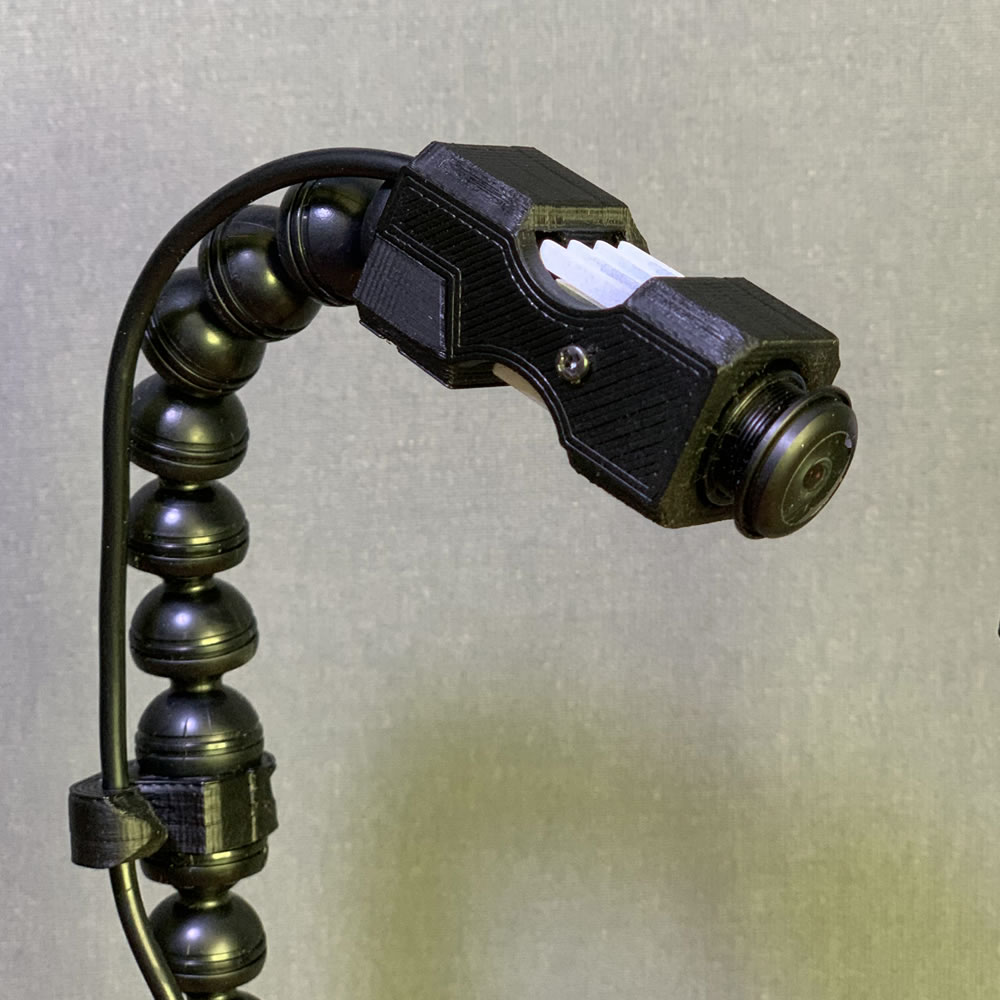

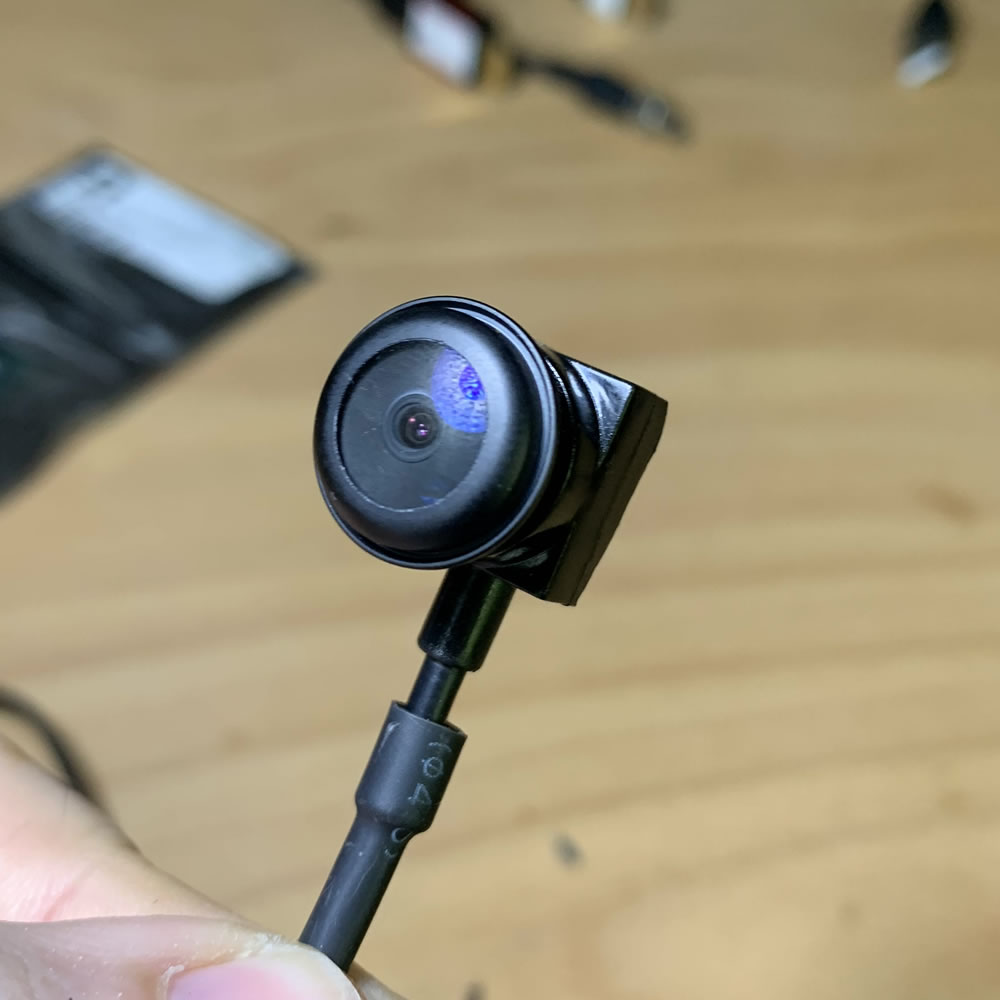

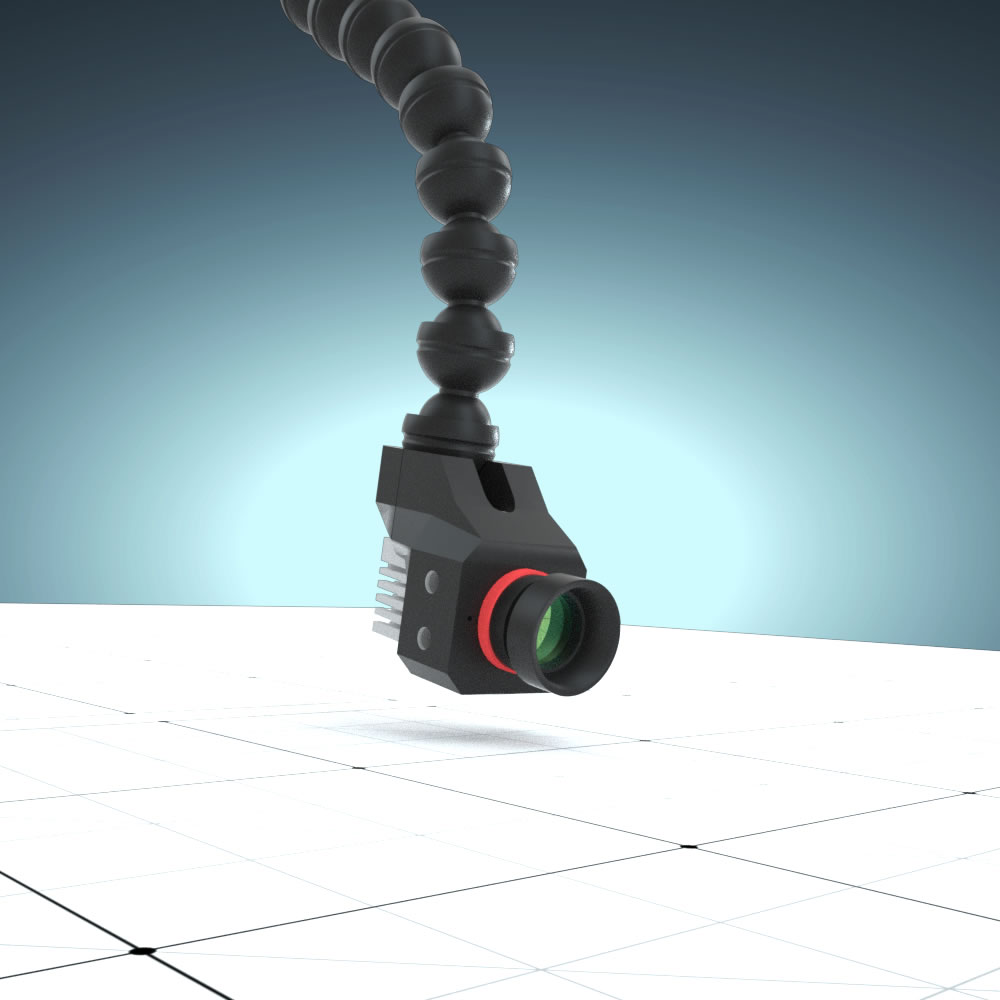

A small camera for table situations that can be bend to the needed position to film close ups of solderings or other table based activities (so also Cam Hammer).
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Two holding the cover, one for the heatsink
Source: local, ebay
3x
± 0.05
sum: 0.15
M3 Threaded insert COMMON OPTIONAL
Brass Insert for M3 4x5, short version
Can be used for additional mountings
Source: local, ebay
6x
± 0.30
sum: 1.80

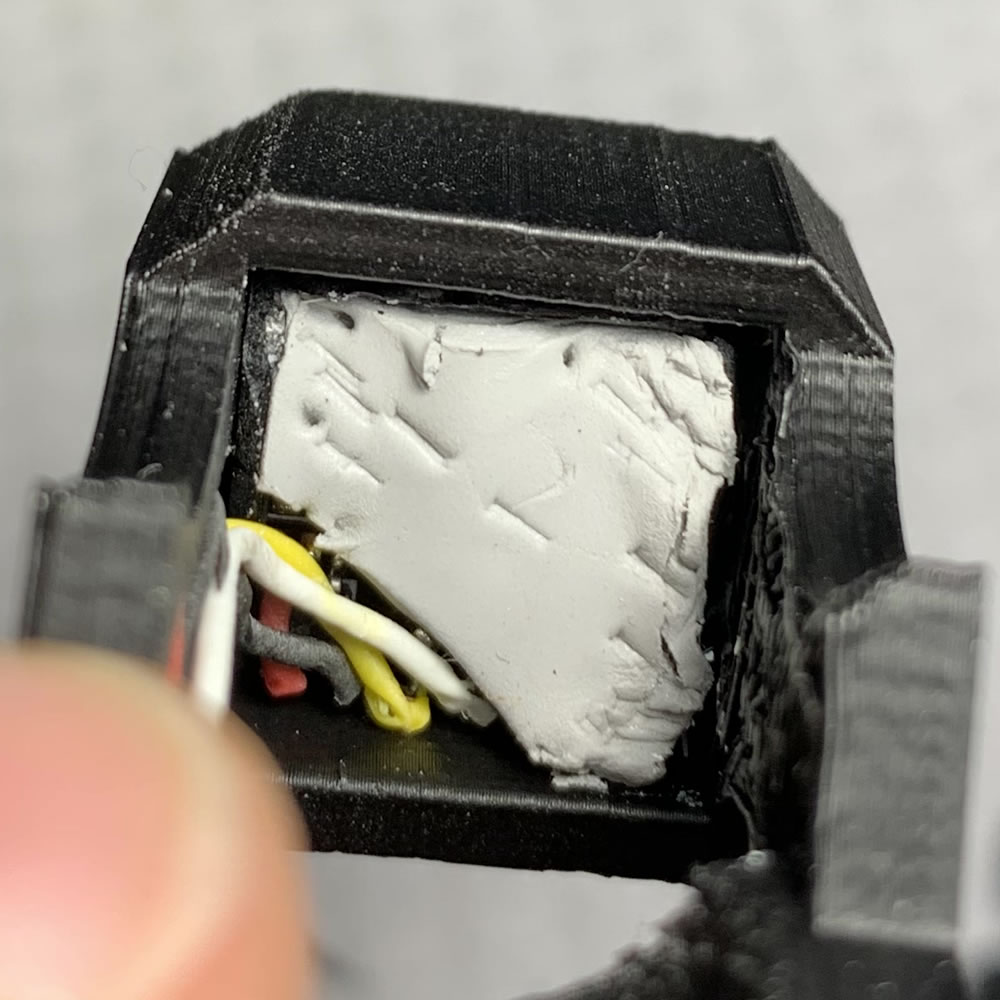

Heat Dissipation Pad
Adhesive Dissipation Silicone Thermal Pad

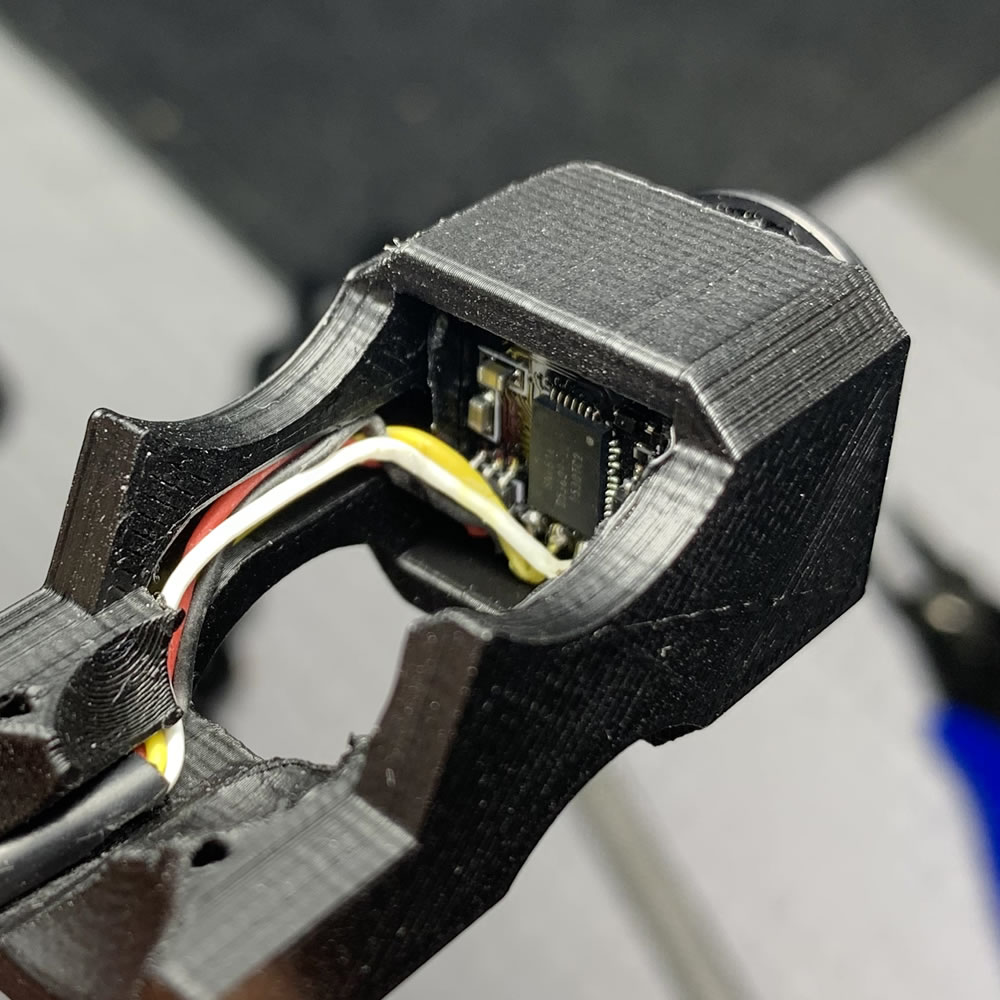

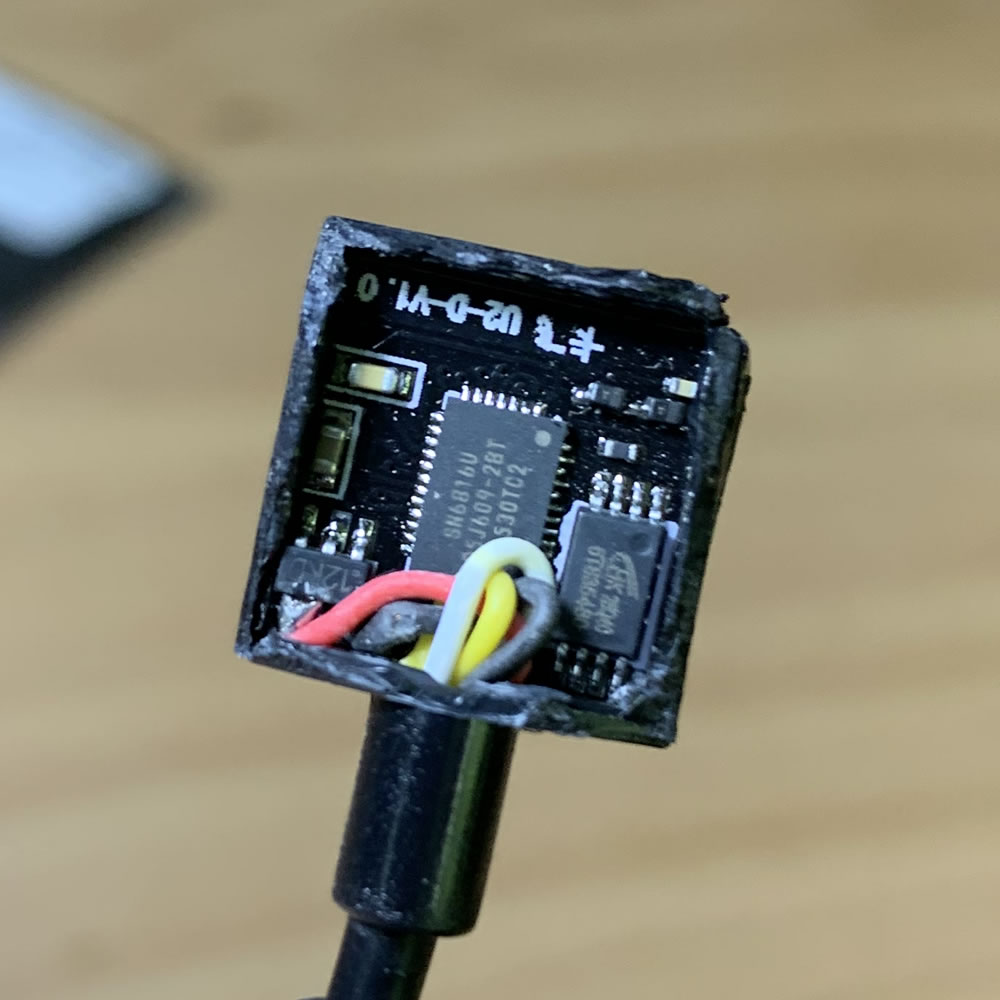

15x15mm pad between the camera chip and heatsink
Source: ebay
1x
± 2.00

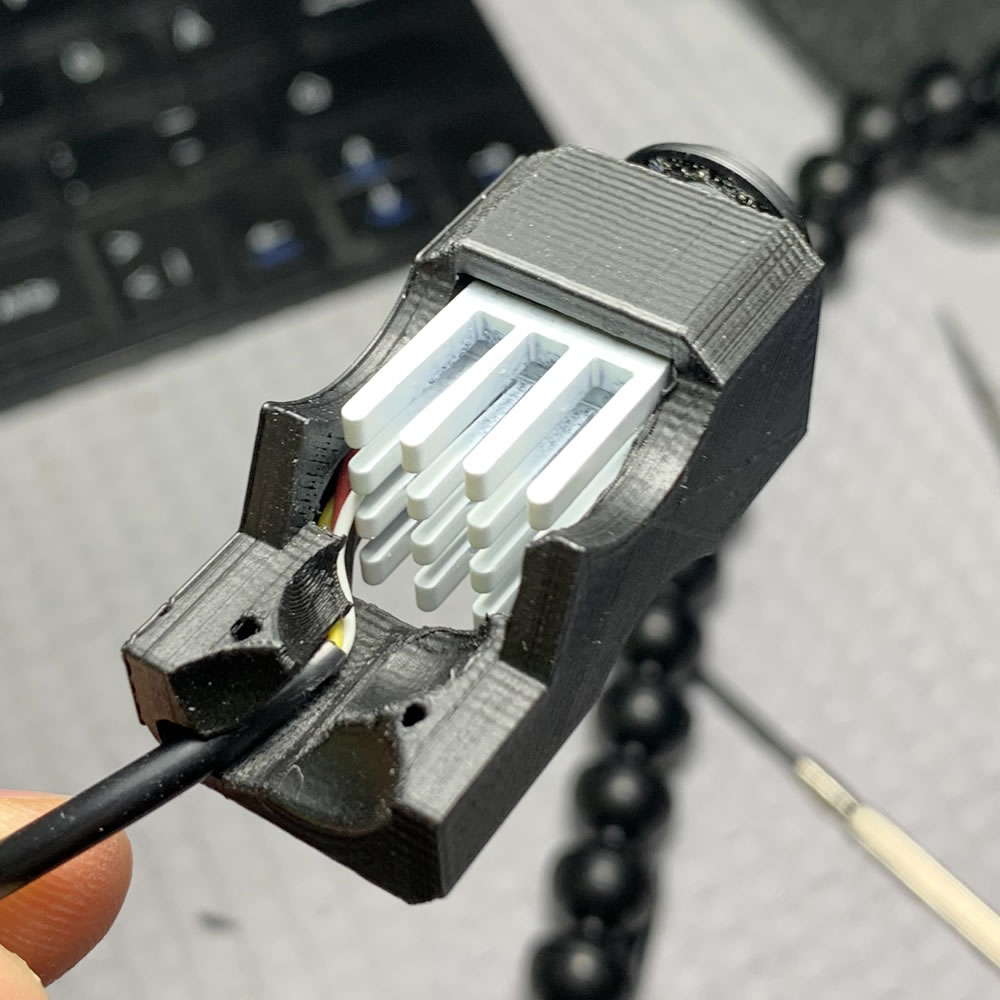

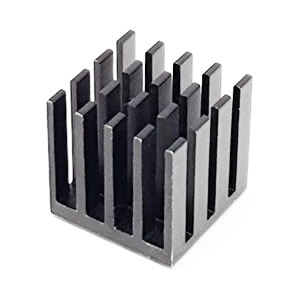

Aluminium Heatsink SPECIAL
Small Heatsink 15x14x15
Dissipates the heat of camera chip for 24h use
Source: ebay
1x
± 1.00
Without optional parts =
3 (5 pcs)
~ 3.15
All parts =
4 (11 pcs)
~ 4.95
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
