MO720
Cam Square
Cam Square Housing
Squared

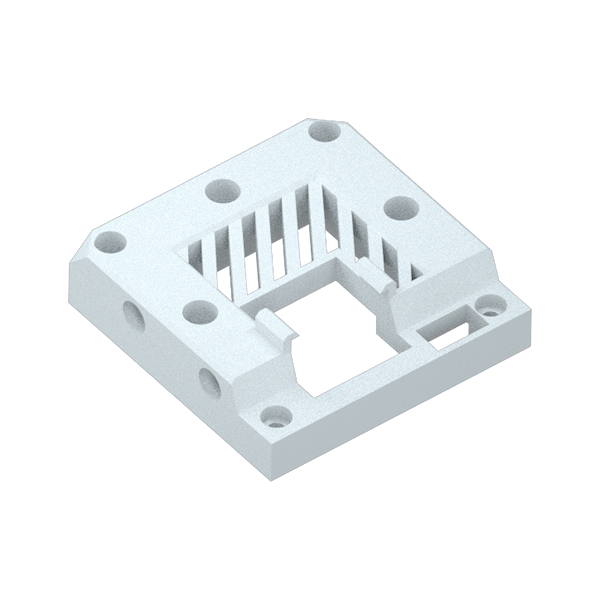

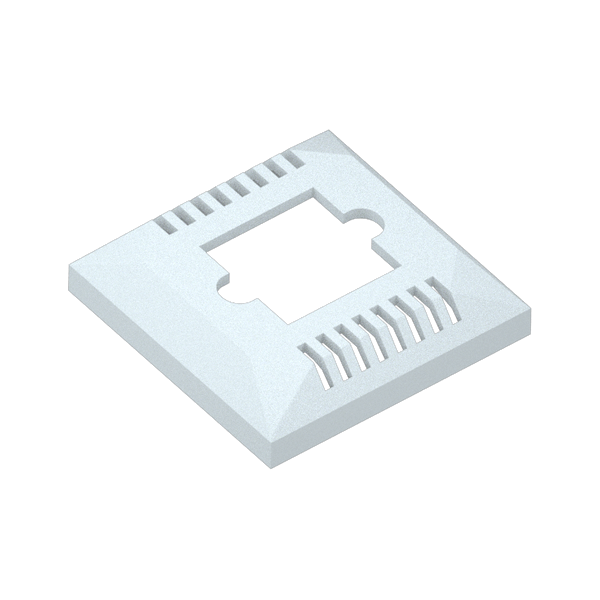

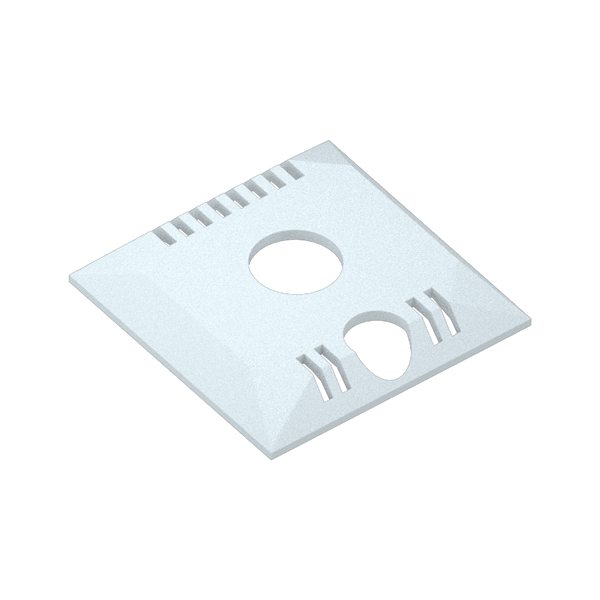

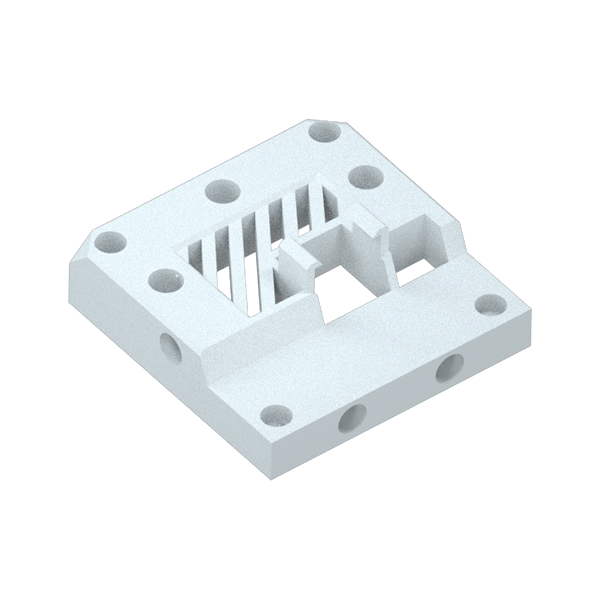

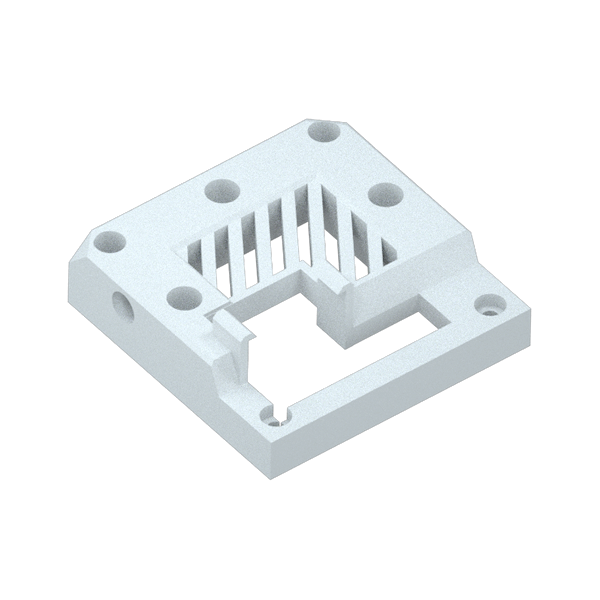

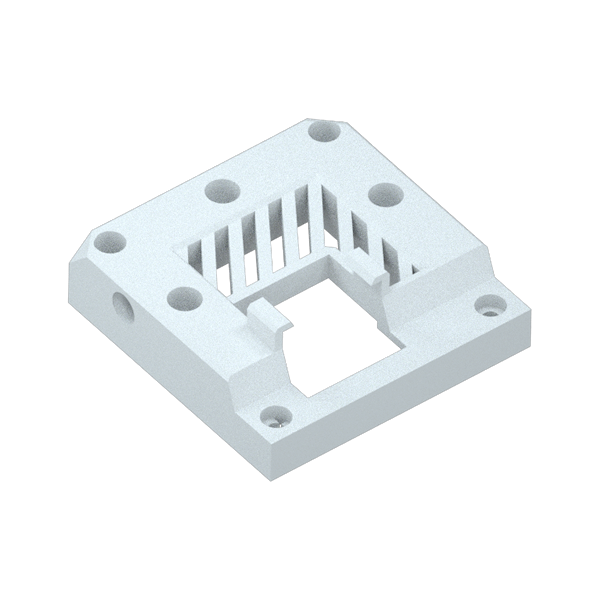

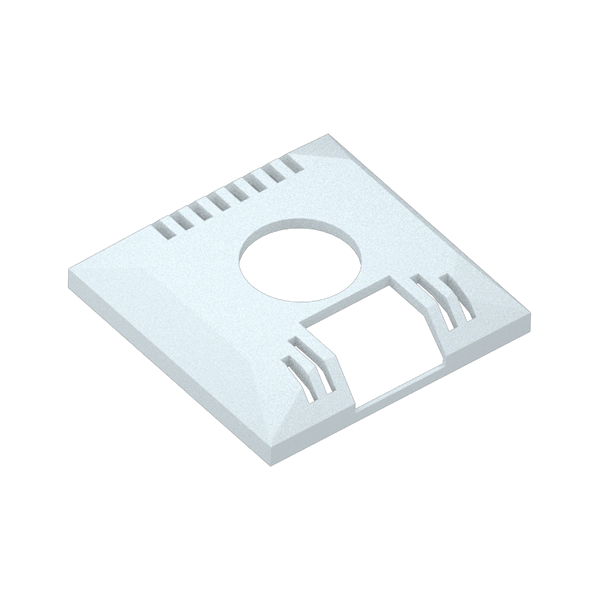

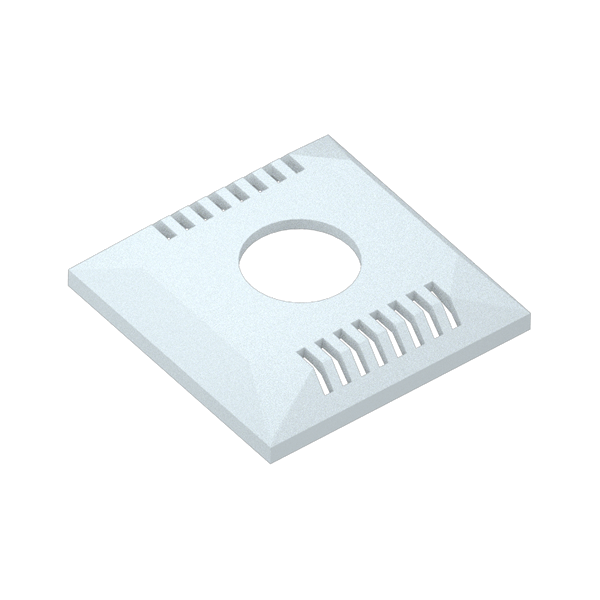

When looking online for bare bone pcb camera modules, you might come along the vamous formfactor of these cameras. This series of hosuings has 3 different front and backs as everyone came up with their own type of output for the USB cable. Maybe it can be useful for you.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Holding the cover to the backpiece
Source: local, ebay
4x
± 0.05
sum: 0.20
M3 Threaded insert COMMON OPTIONAL
Brass Insert for M3 4,4x7, long version
Can be used for additional mountings
Source: local, ebay
9x
± 0.30
sum: 2.70
Without optional parts =
1 (4 pcs)
~ 0.20
All parts =
2 (13 pcs)
~ 2.90
