MO790

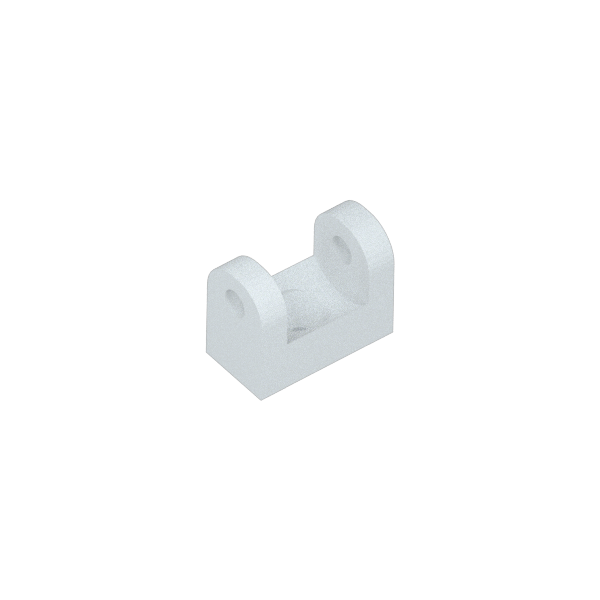

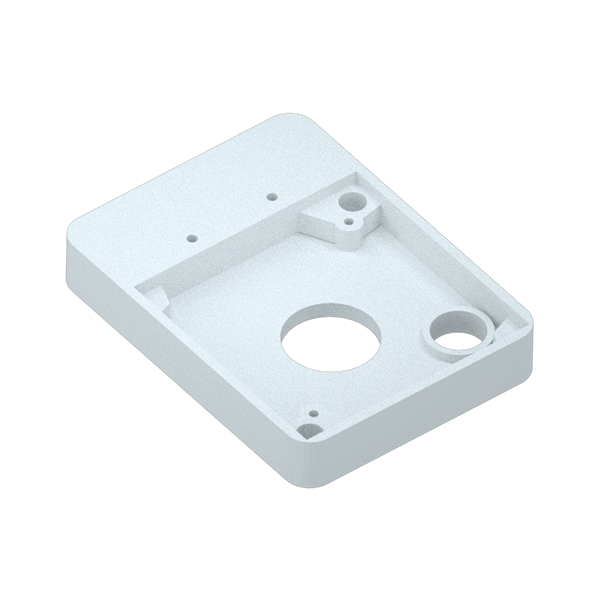

Cam Swivel

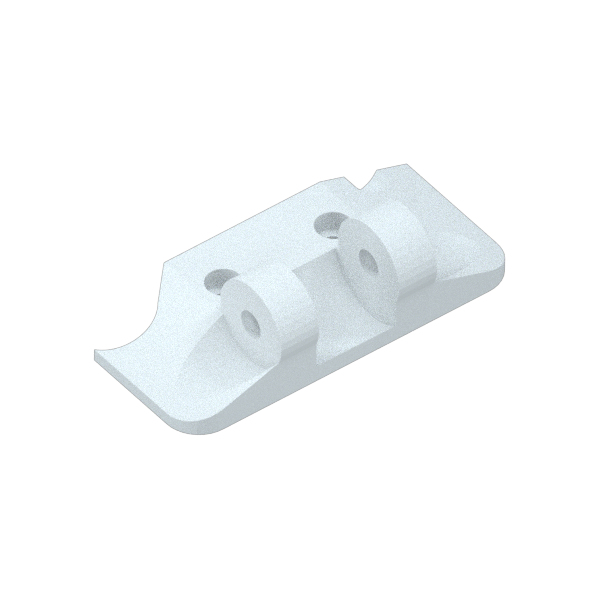

Cam swivel Mount
Square Cam Special

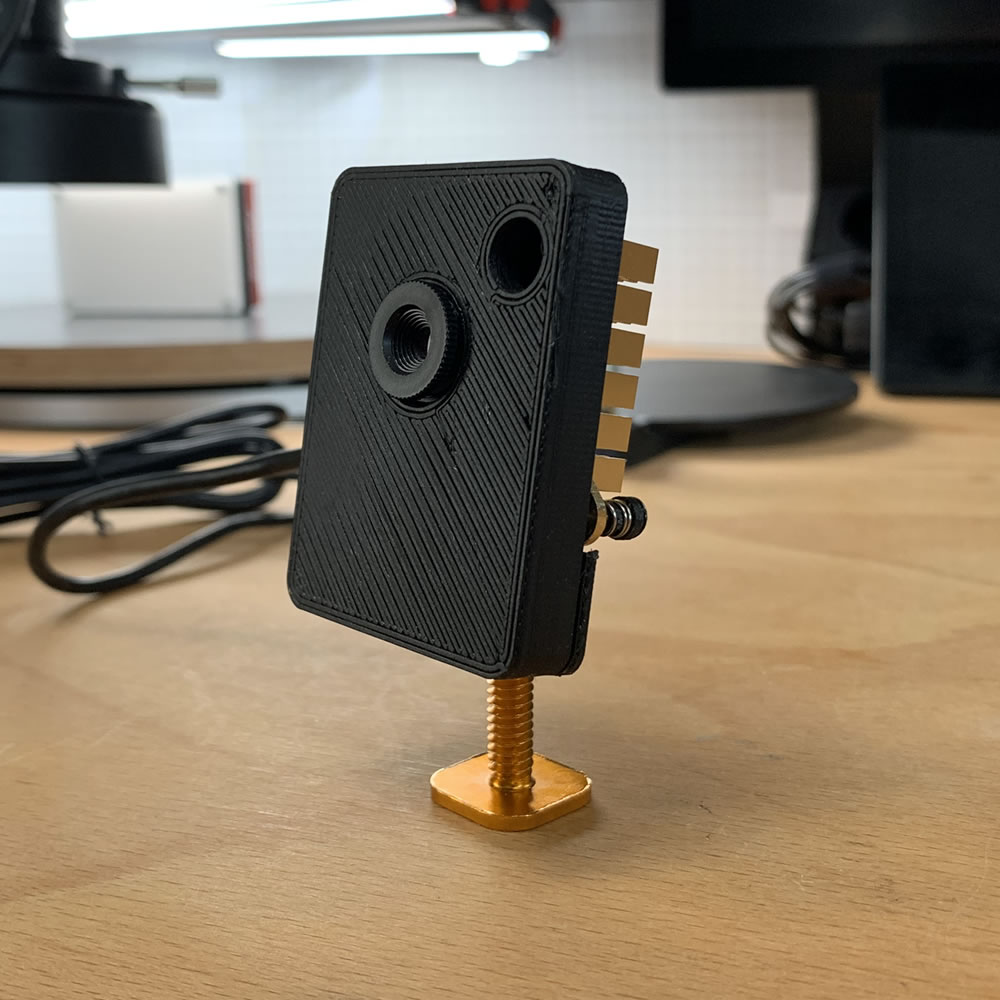

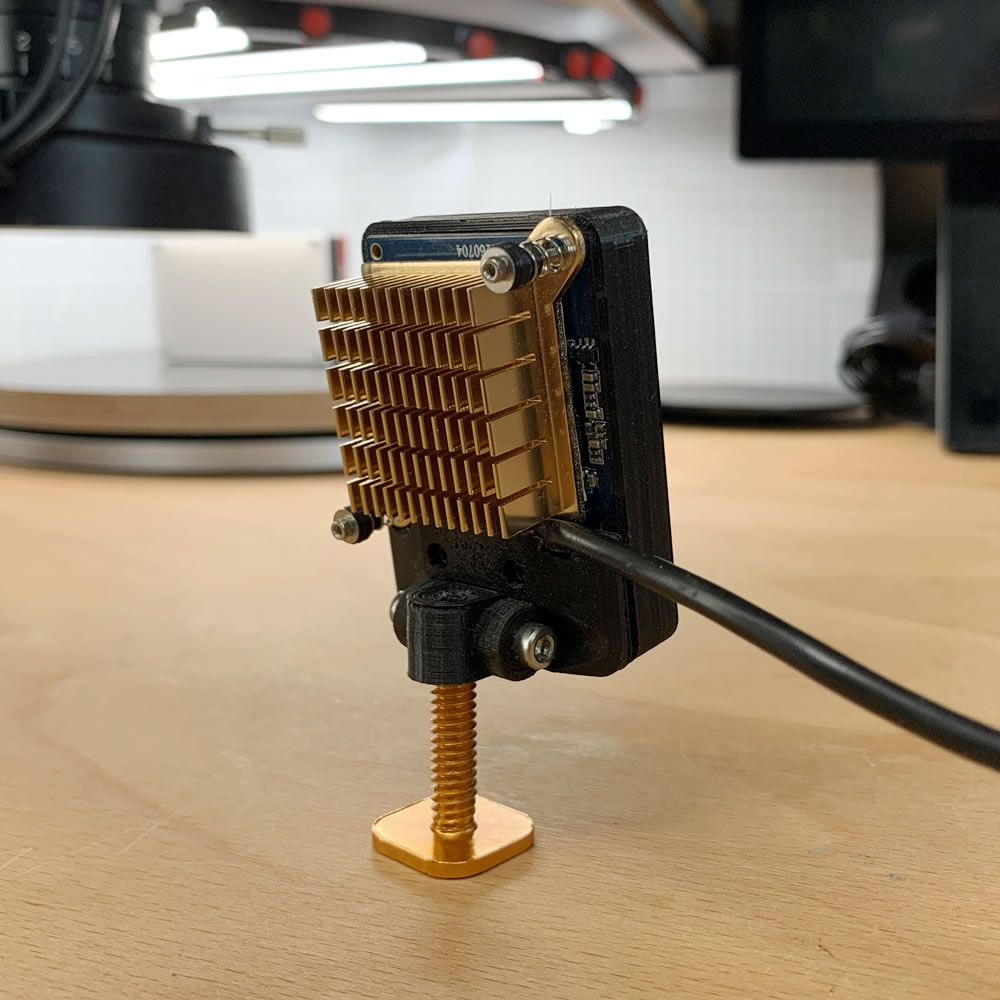

These was one of my first PCB based cameras. It has a big heatsink and a swivel mount to be directed in various angles.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Two holding the cover, one for the heatsink
Source: local, ebay
4x
± 0.05
sum: 0.20
M3x20 bolt COMMON
Standard M3x20 Hex Bolt
Alllow the camera to pitch
Source: local, ebay
1x
± 0.20

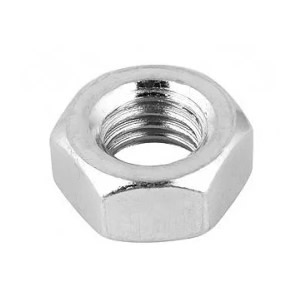

M3 Hex Nut STOCK
Standard M3 threaded hex nut
counter-nut for the other side
Source: local, ebay
1x
± 0.10
M3 Metal Washer COMMON
Standard M3 Metal Washer ~.3mm shim
Protection of the thumbscrew against the print
Source: local, ebay
2x
± 0.02
sum: 0.04
Threaded insert 1/4 OPTIONAL
Brass Insert for 1/4'' camera mounting options
Option to mount the camera on a 1/4 screw
Source: local, ebay
1x
± 0.40
Heat Dissipation Pad
Adhesive Dissipation Silicone Thermal Pad
cut to 30x30mm, place under heatsink
Source: ebay
1x
± 2.00

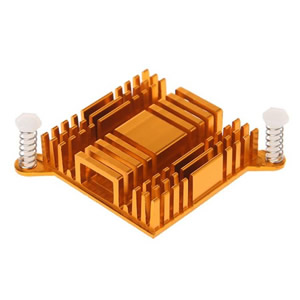

Aluminium Heatsink SPECIAL
Medium Spare Heatsink 30x30x12
Find used from old Mainboard Northbridges
Source: ebay
1x
± 1.00
Without optional parts =
6 (10 pcs)
~ 3.54
All parts =
7 (11 pcs)
~ 3.94
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
