MO530
Ceiling Halo
Slim Dimmable Ceiling Lights
Prolog

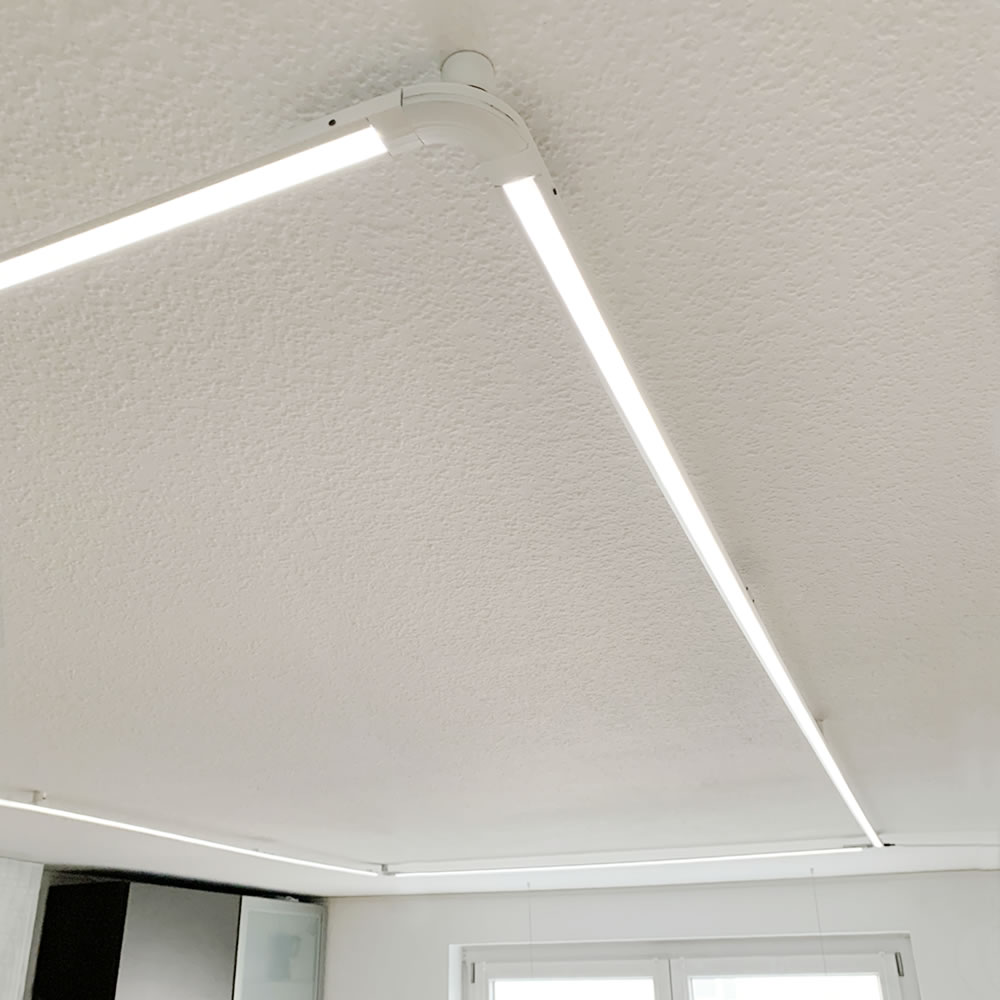

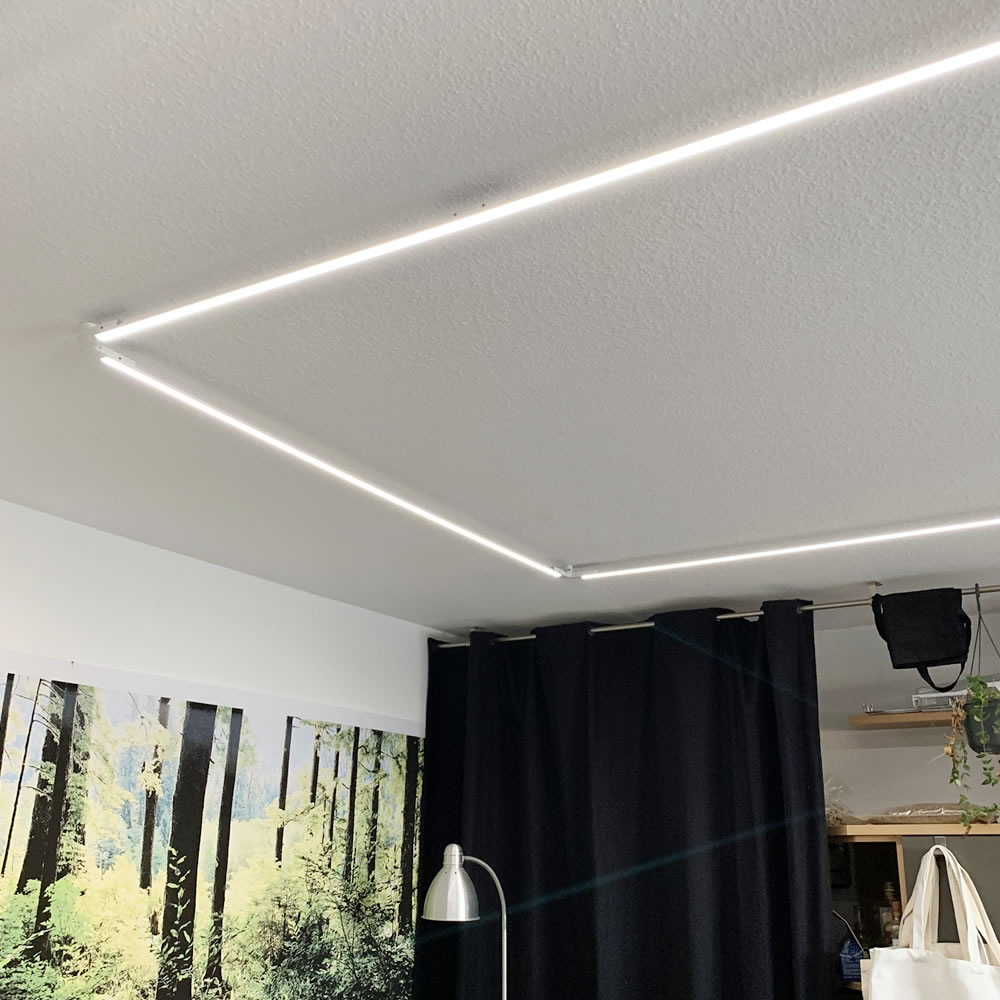

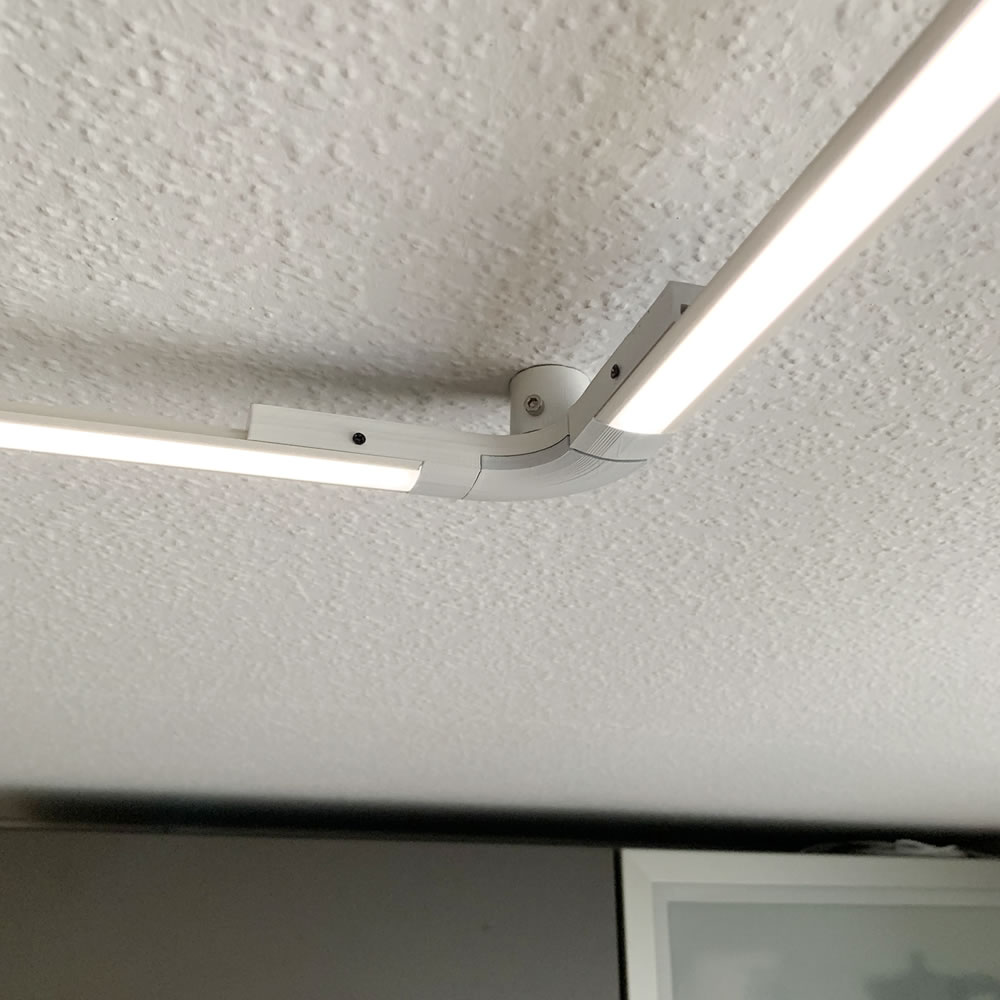

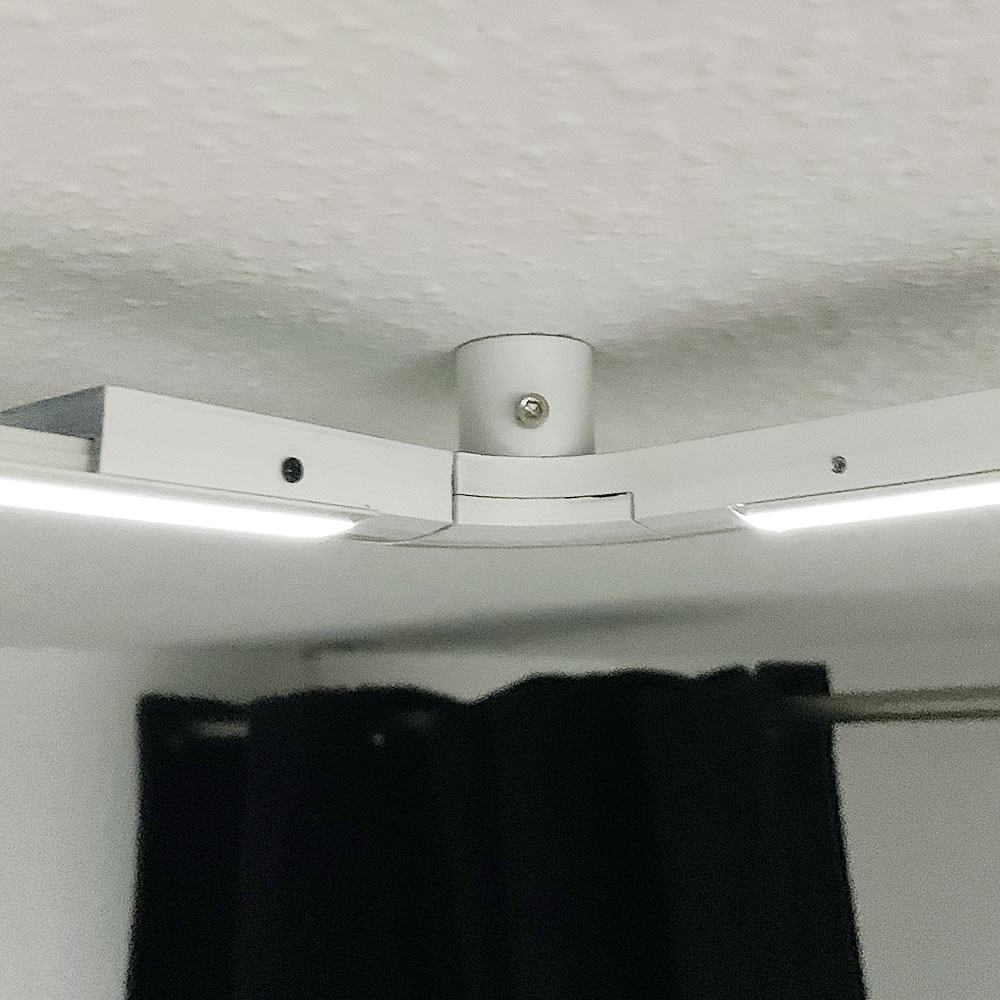

Do you also have one of these kitchen, where the architect thought, the best position for a light would be a single light source in the center of the room, so that where ever you stand in your kitchen, you cast a shadow onto the cutting board/stove/sink? Fix European interior architecture mistakes with this LED ceiling light.

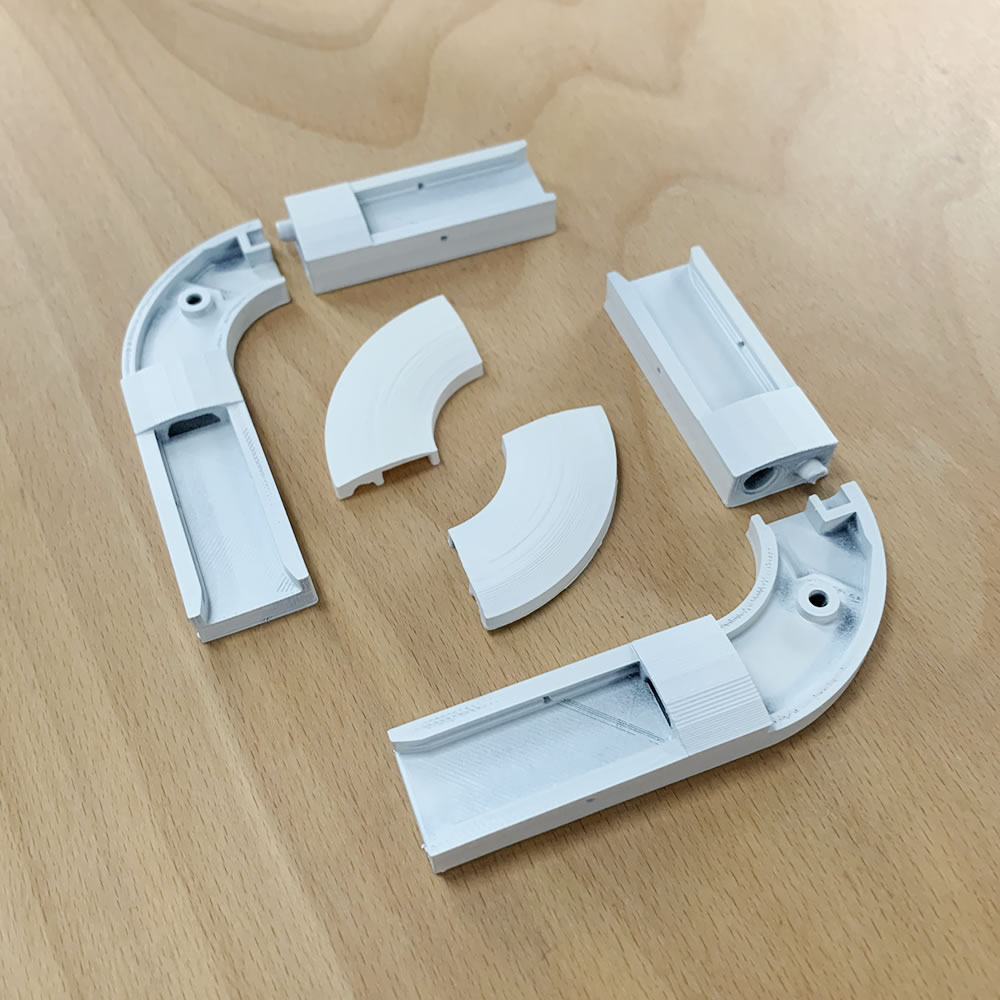

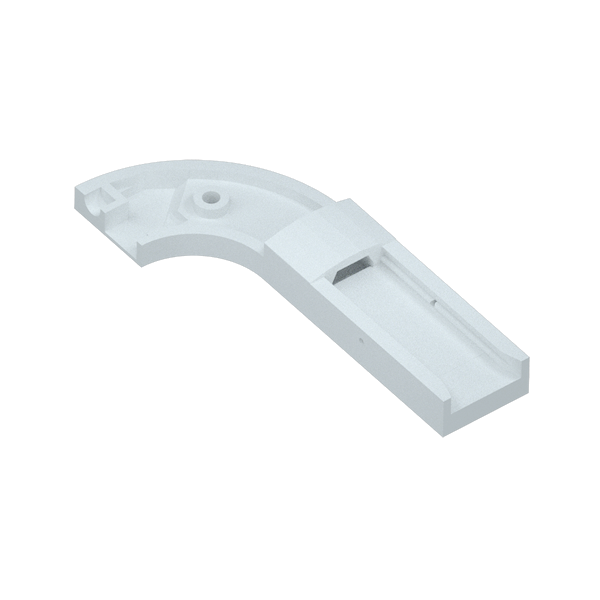

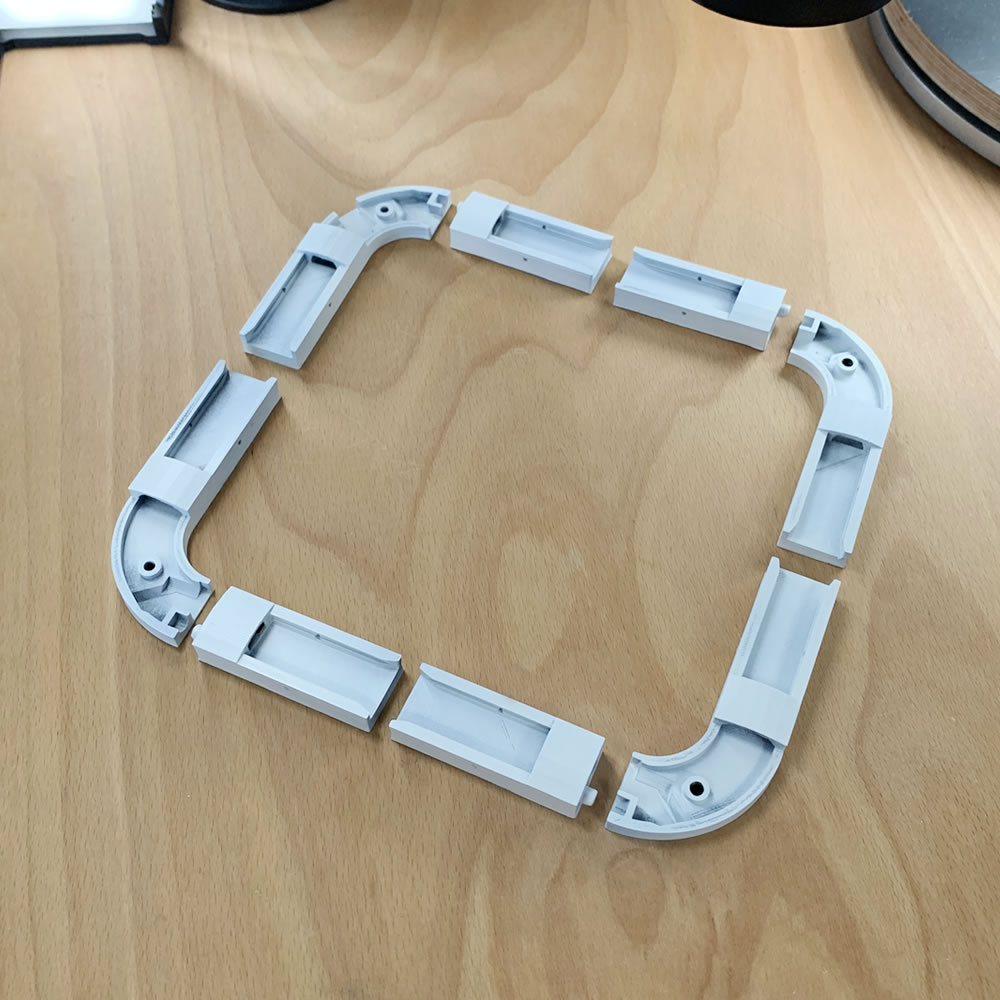

Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm

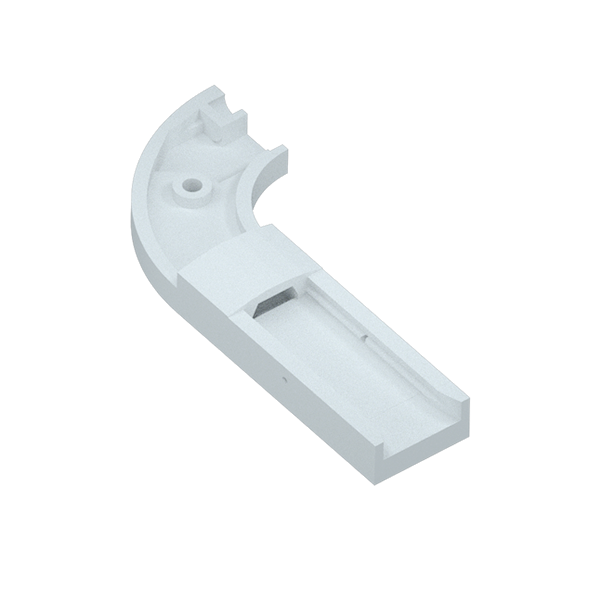

Fixing the profiles to the printed parts
Source: local, ebay
16x
± 0.05
sum: 0.80
M3x8 bolt
Standard M3x8 Hex Bolt

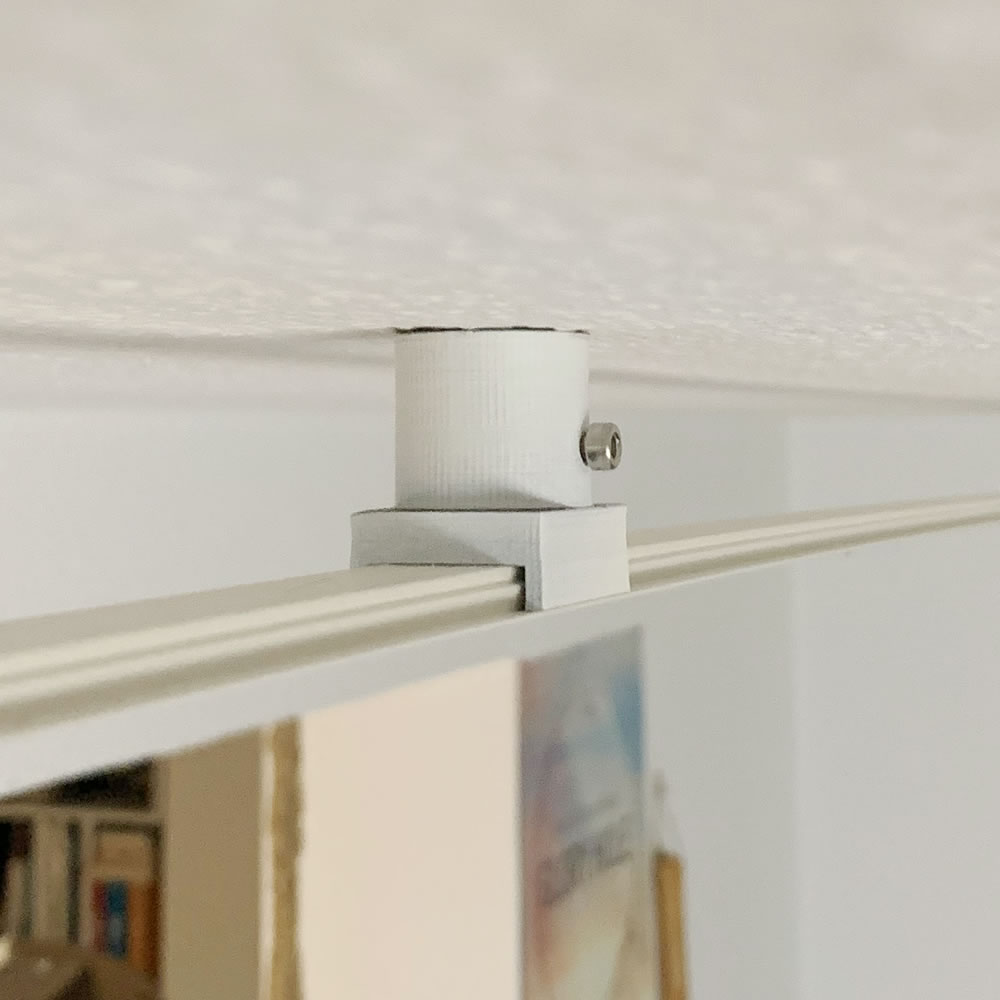

Locking the long profiles to the ceiling-cups
Source: local, ebay
6x
± 0.15
sum: 0.90

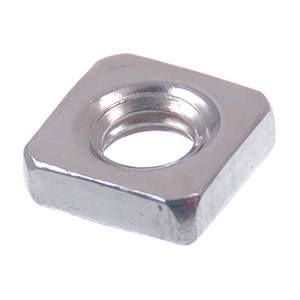

M3 Square Nut STOCK
Standard M3 threaded square nut
Internaly placed countering the m3 bolts
Source: local, ebay
6x
± 0.10
sum: 0.60

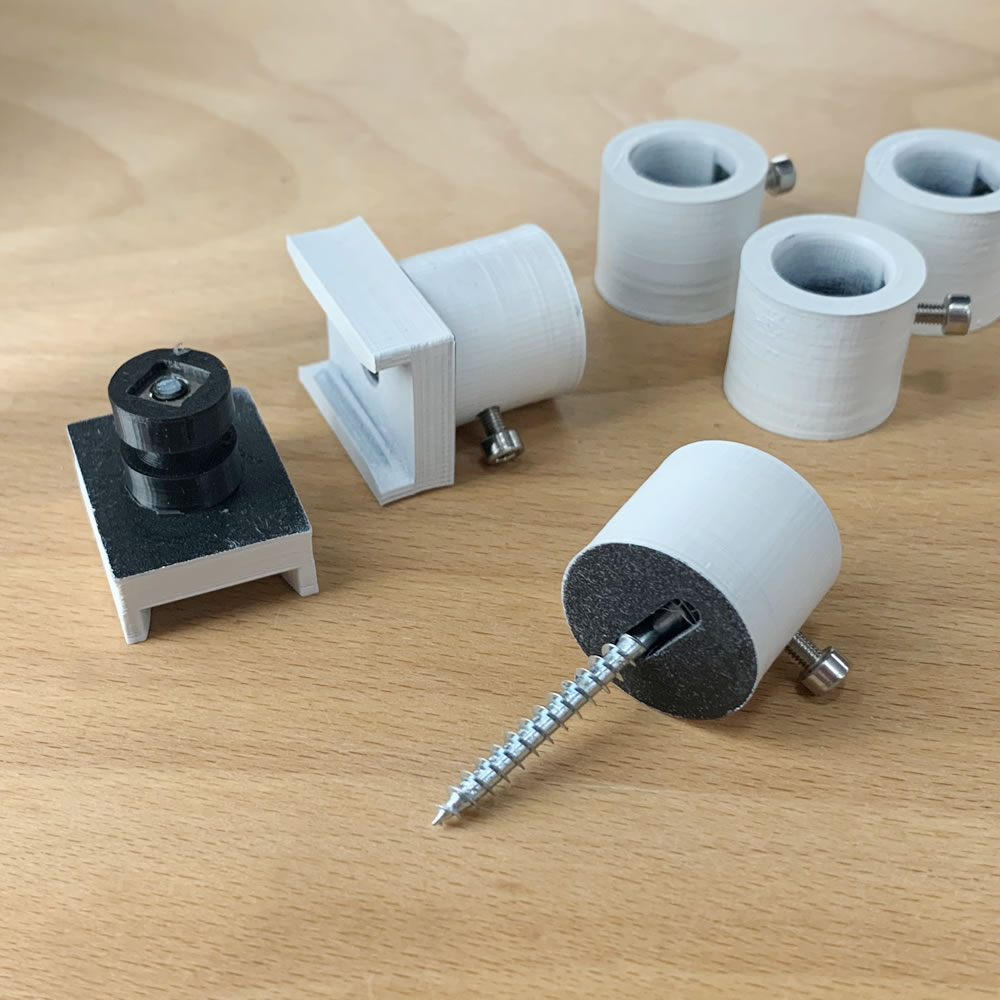

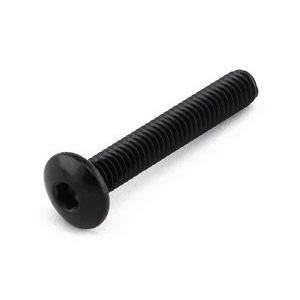

M4x50 Nylon Bolt
Standard M4x50mm Nylon Bolt

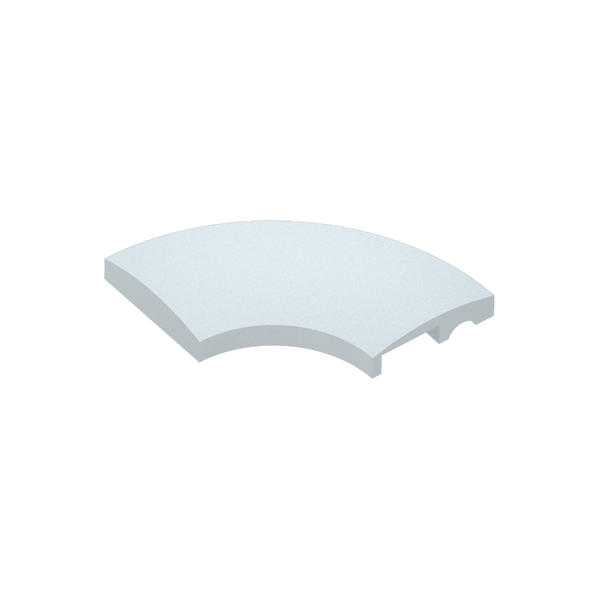

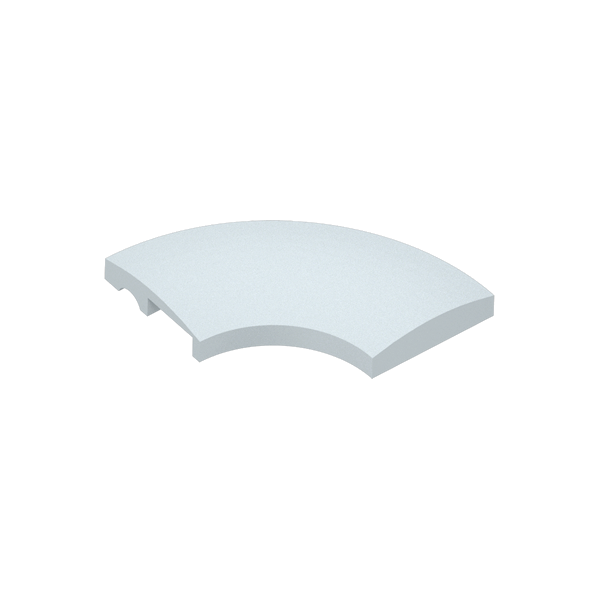

For traversal holder and the curve-covers (cut of head, glued in)
Source: local, ebay
6x
± 0.10
sum: 0.60

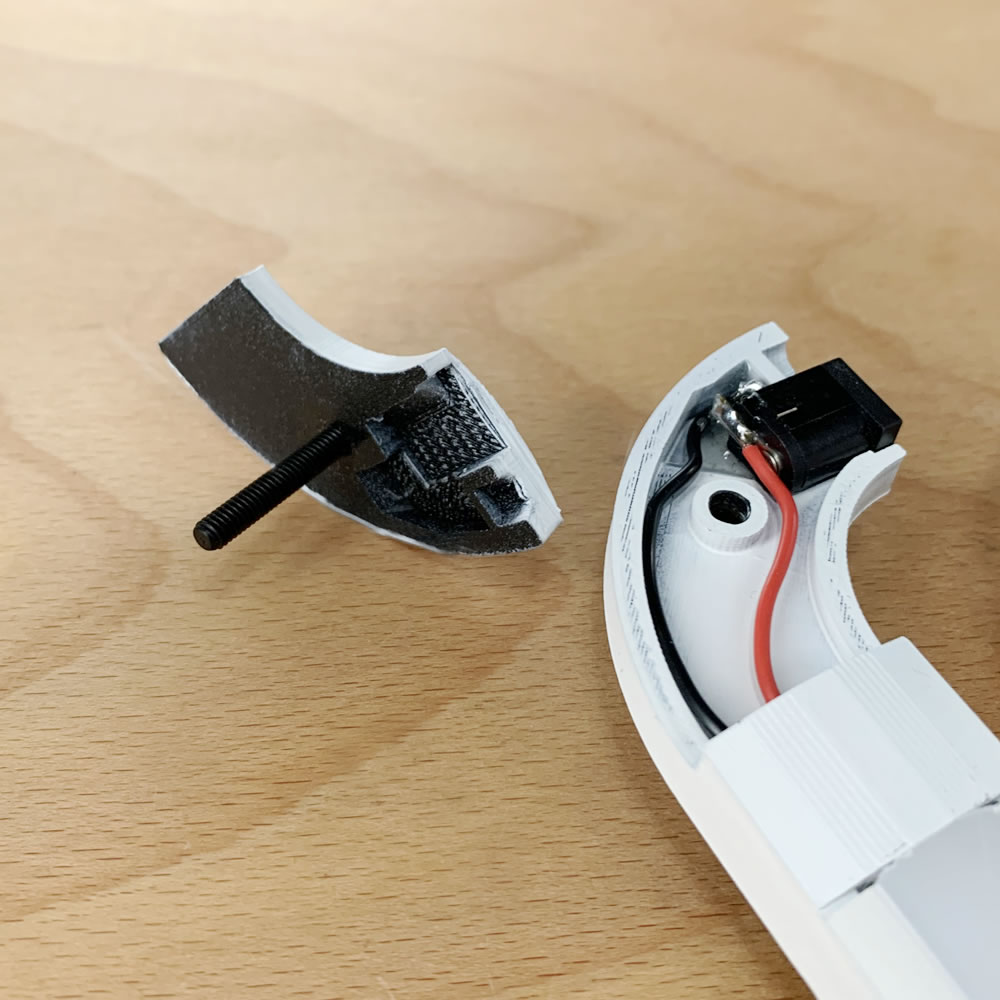

M4 Square Nut
Square nut with M4 thread 7x7x3mm

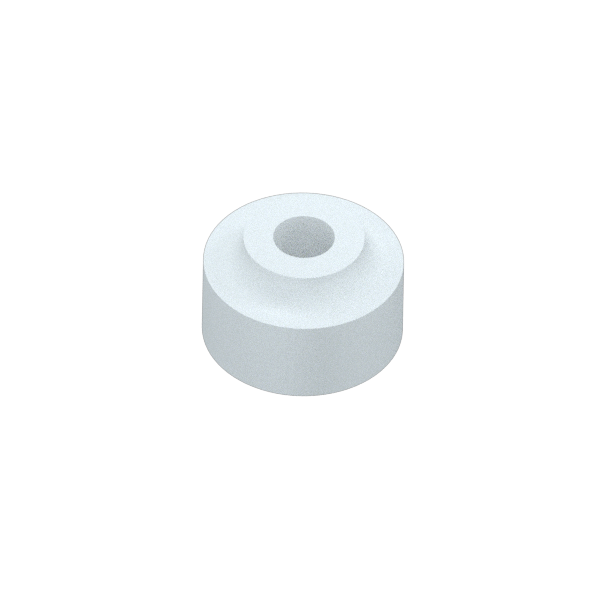

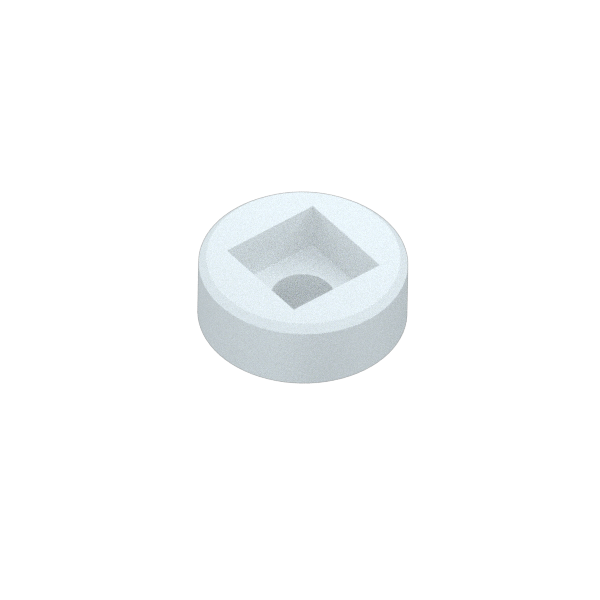

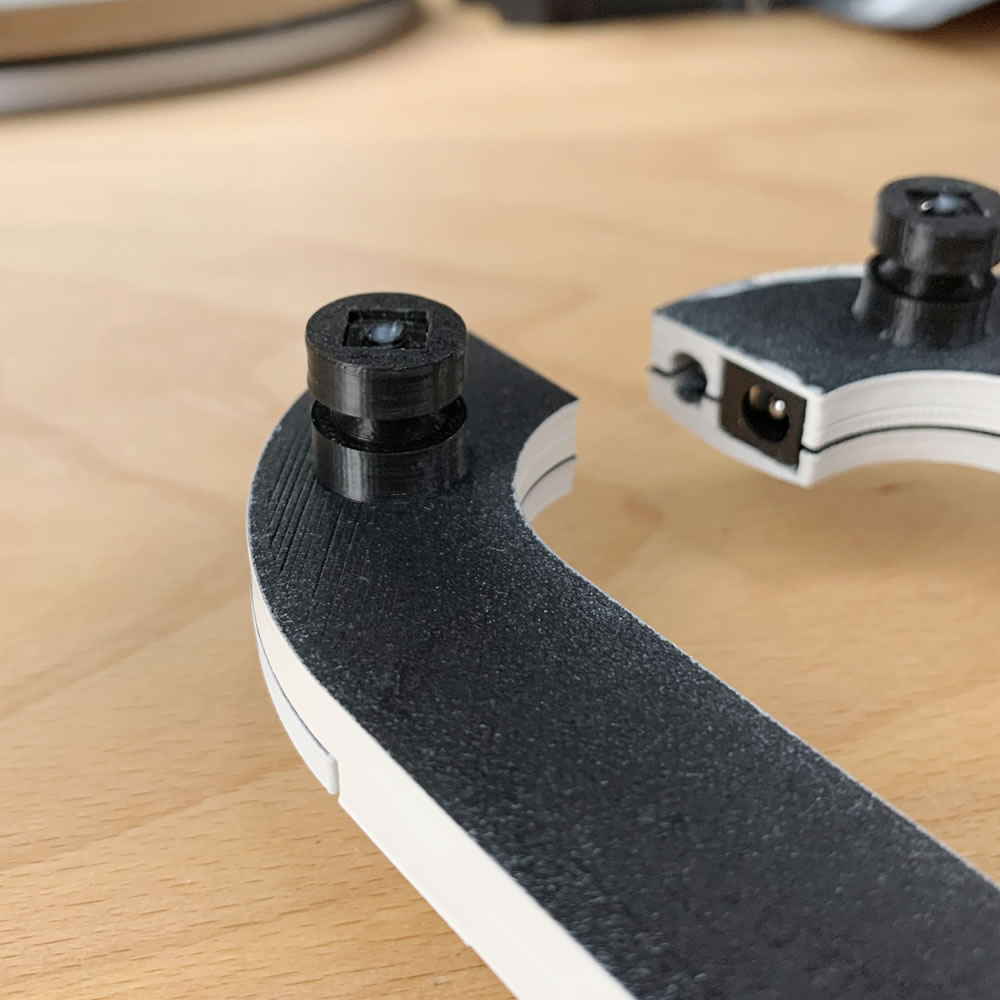

Holding the Curve-Covers to the mounting-barrels
Source: local, ebay
6x
± 0.10
sum: 0.60

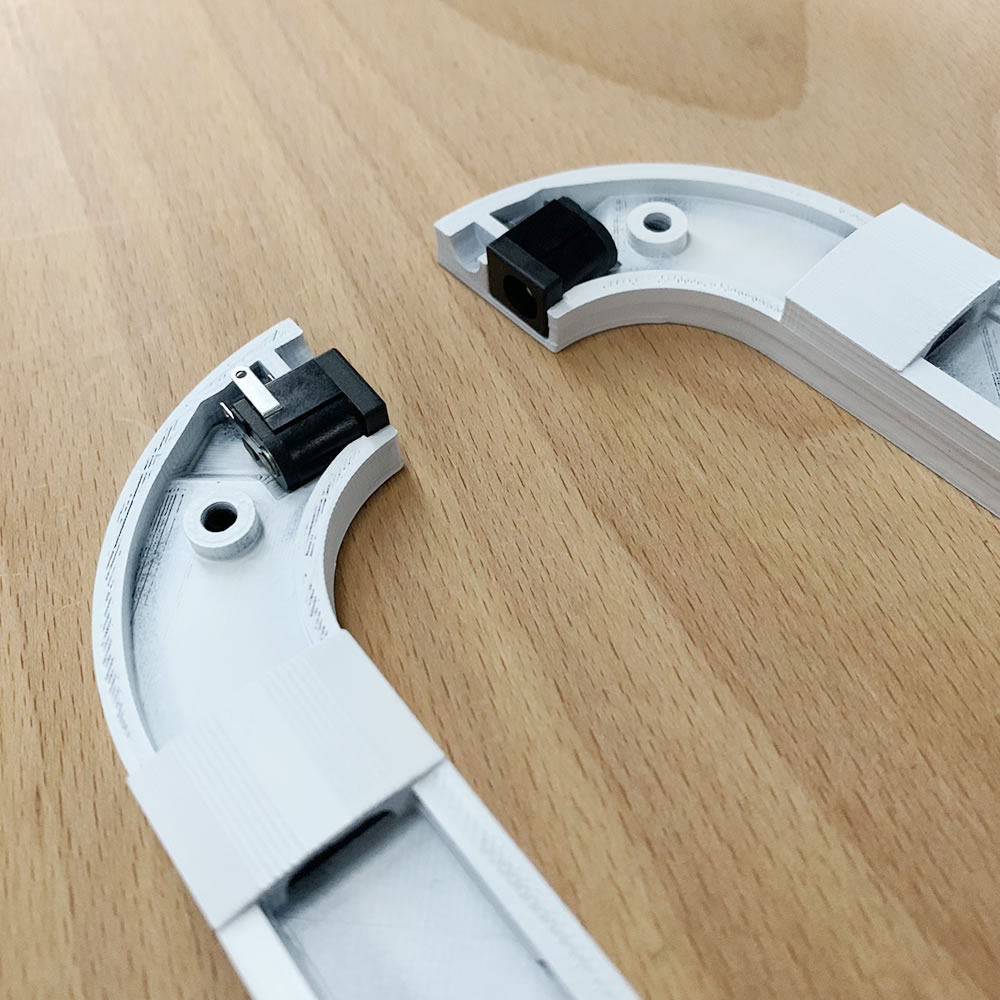

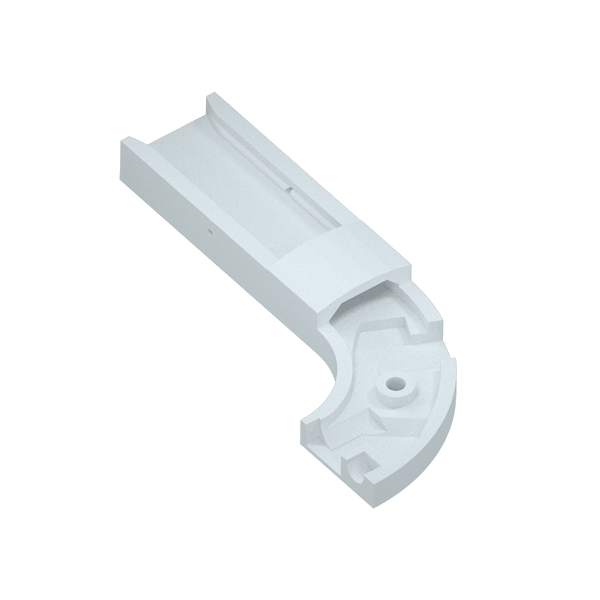

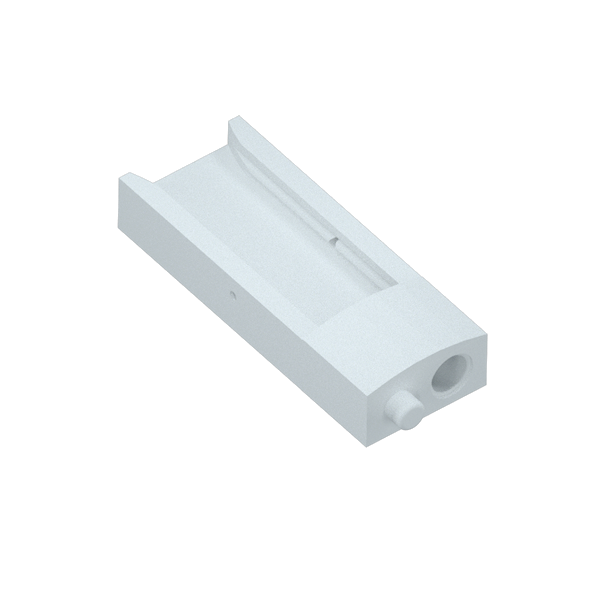

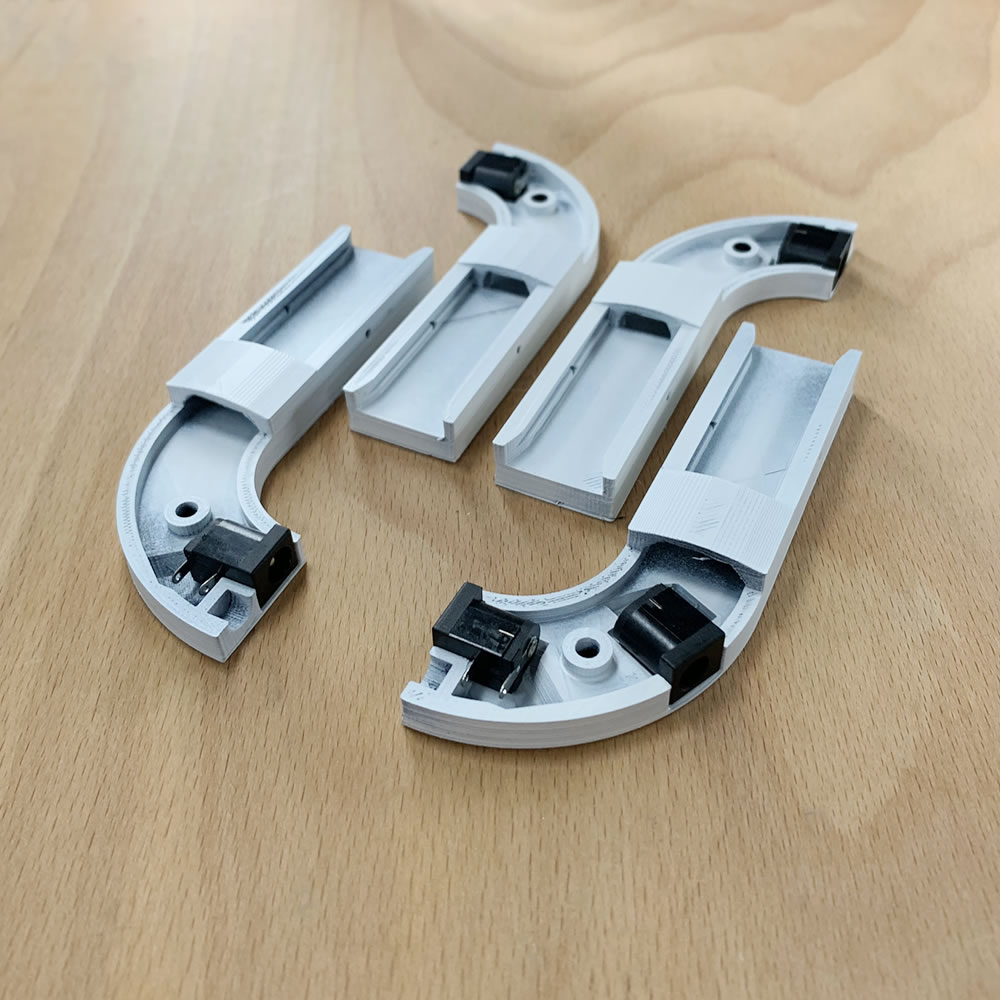

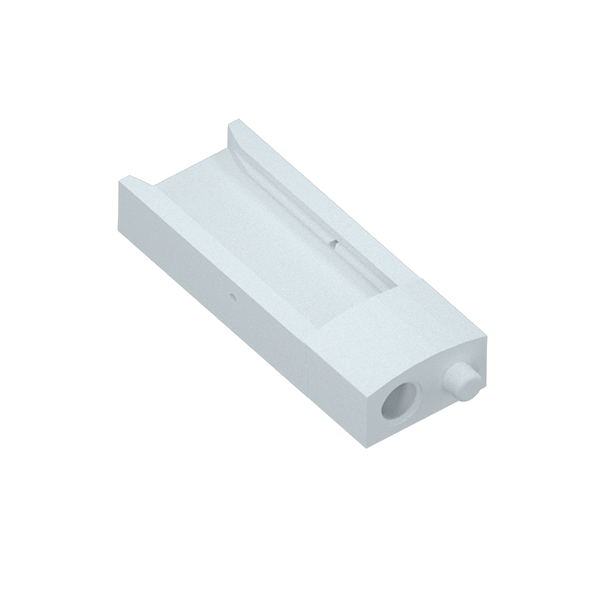

Barrel Port
Square 5.5x2.5 barrel socket female

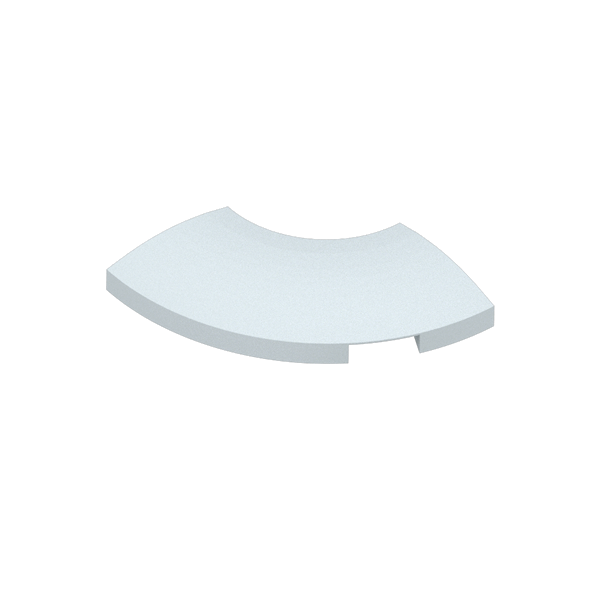

4 sockets for interconnecting, one for power in
Source: ebay
5x
± 0.30
sum: 1.50

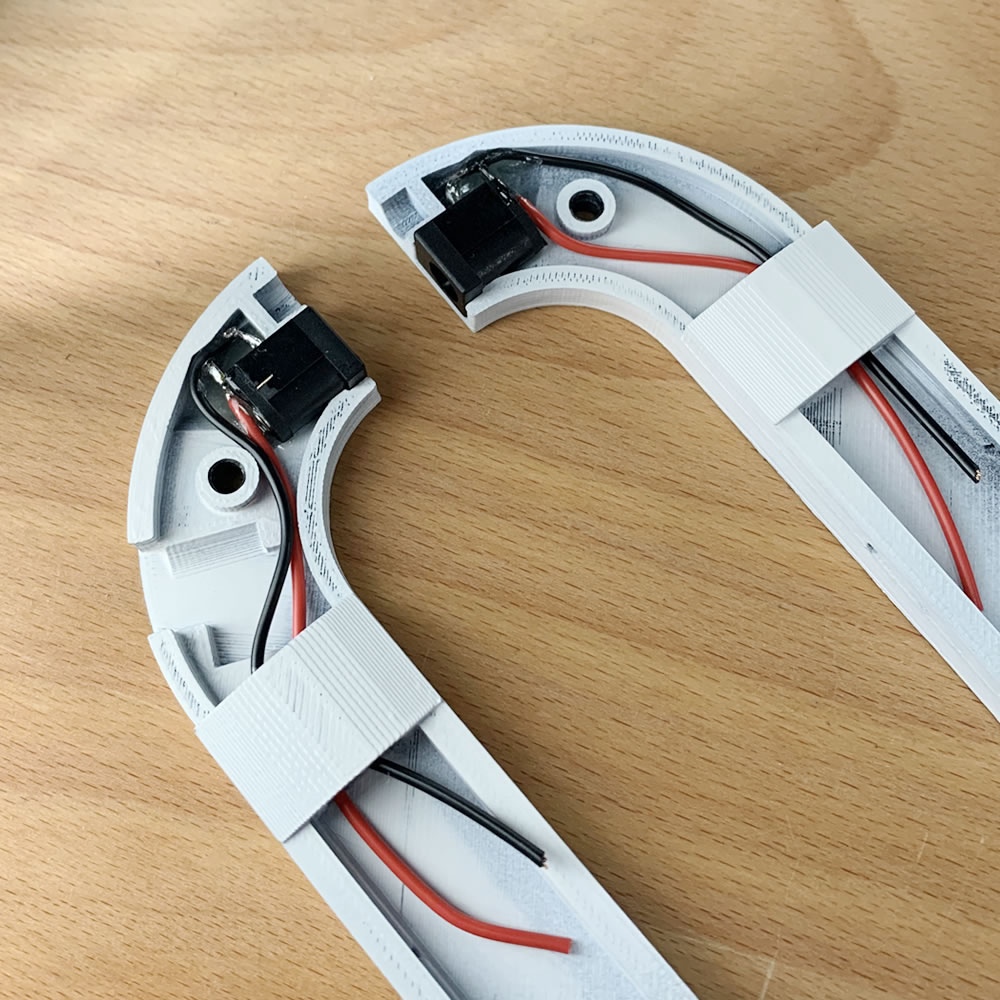

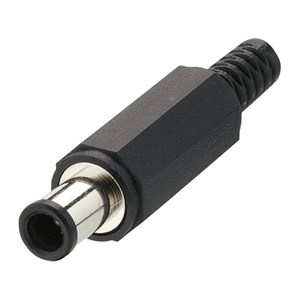

Barrel Plug
Male 5.5x2.5 barrel plug
4 male plugs for interconnecting
Source: ebay
4x
± 0.30
sum: 1.20

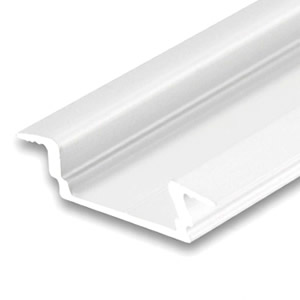

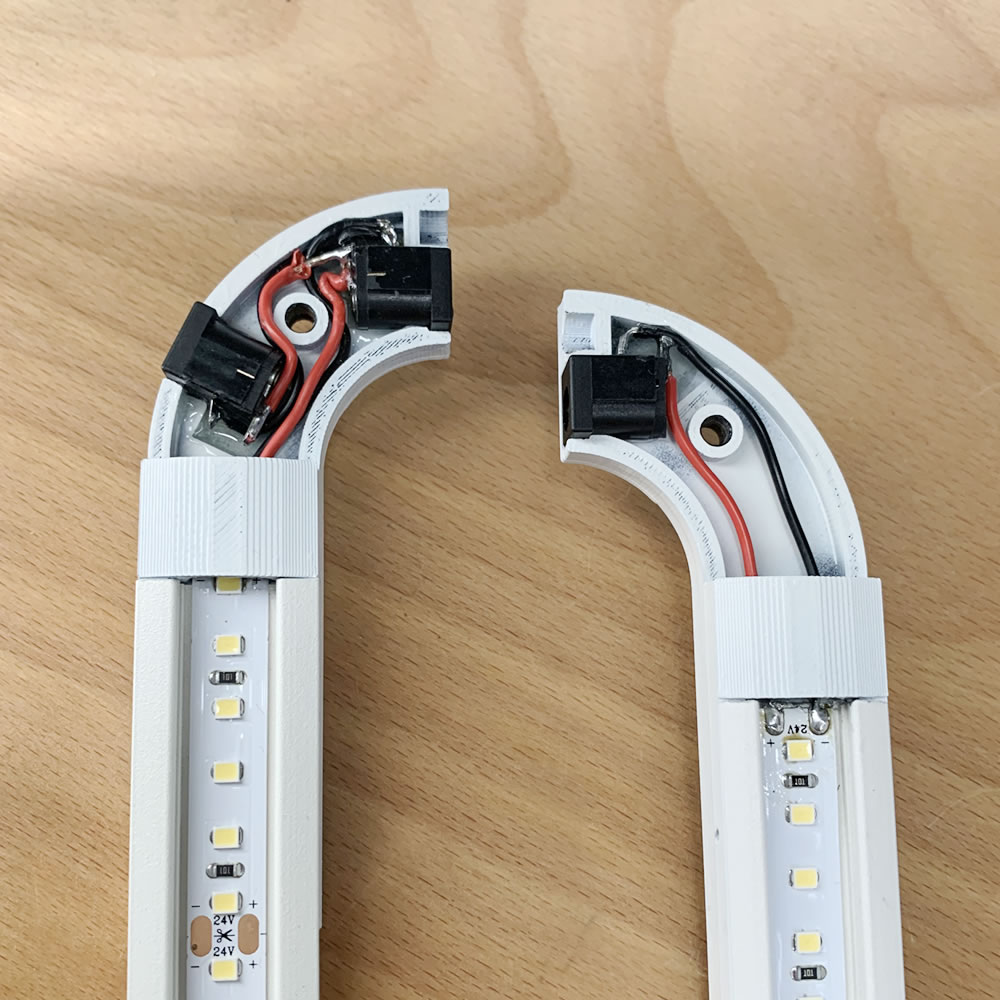

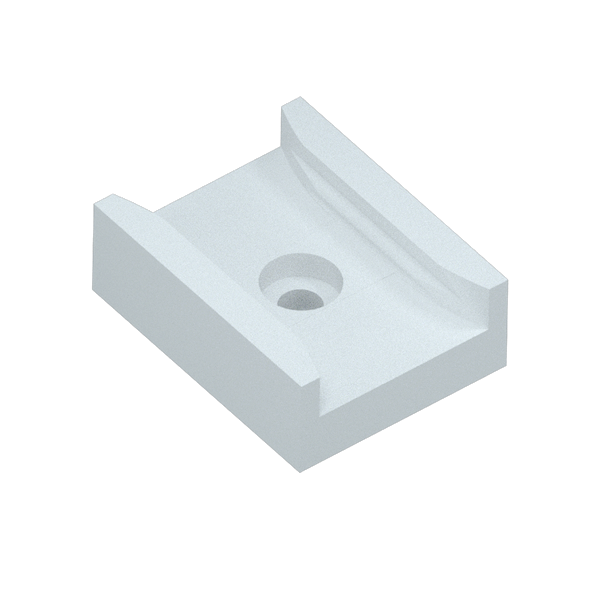

LED Aluminium Profile UNIT IN METER
White extrusion profile for 10mm LED Strips
LED Profile 2x 260cm and 2x 140cm (combined 800cm)
Source: ebay
8m
± 8.00
sum: 64.00
LED Strip UNIT IN METER
24V high brightness LED Strips 10mm
I needed 8m Strips for my config
Source: ebay
8m
± 5.00
sum: 40.00
All parts =
9 (65 pcs)
~ 110.20
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
