MO450
Fan Shroud

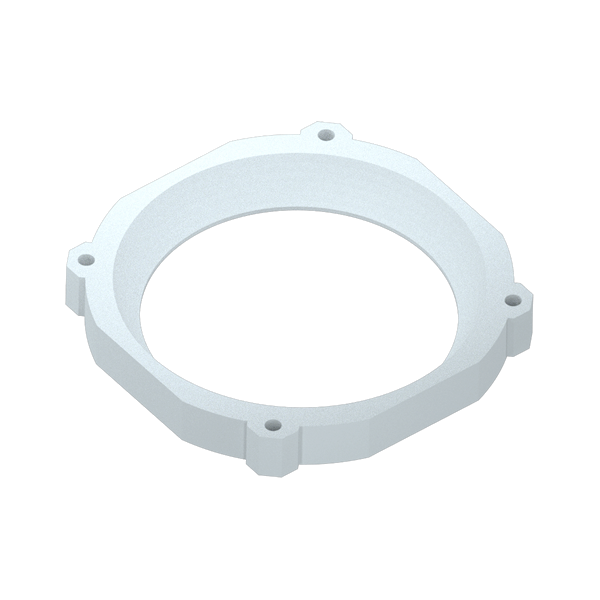

Shroud decoupler for 140mm
Guided air

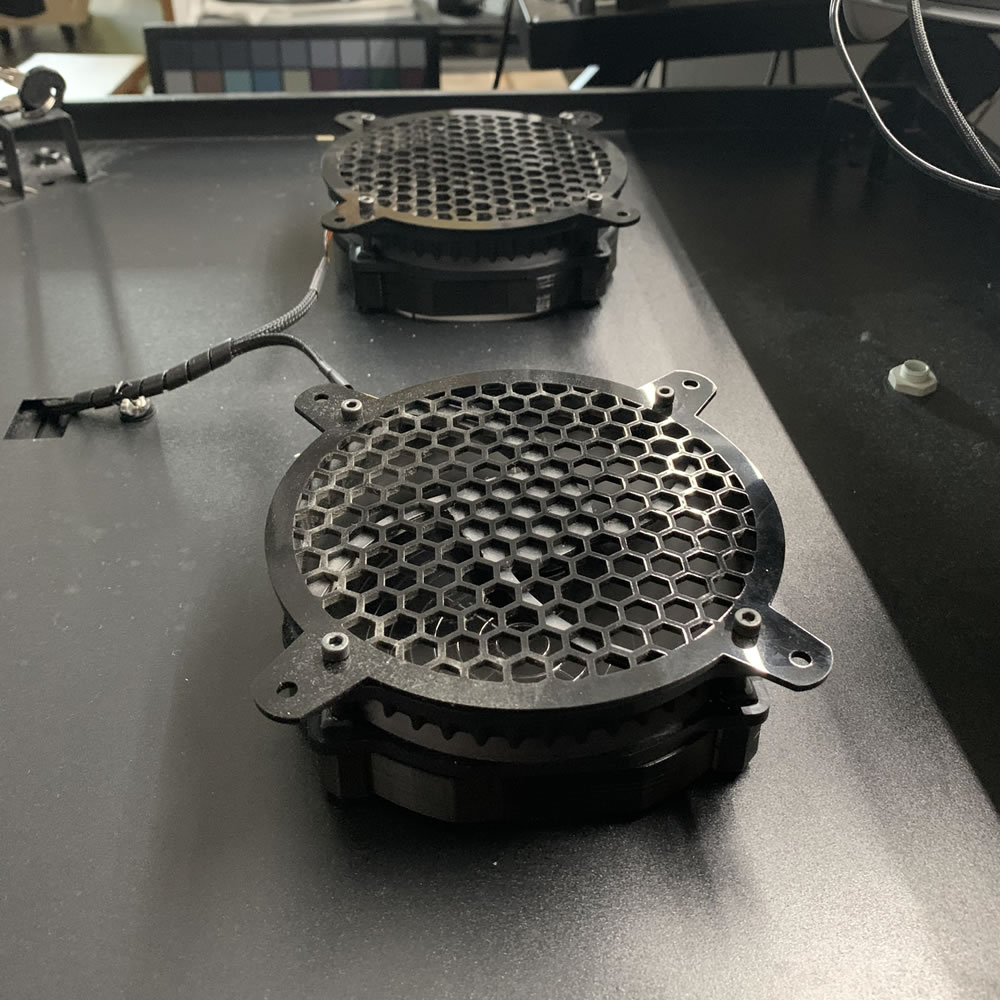

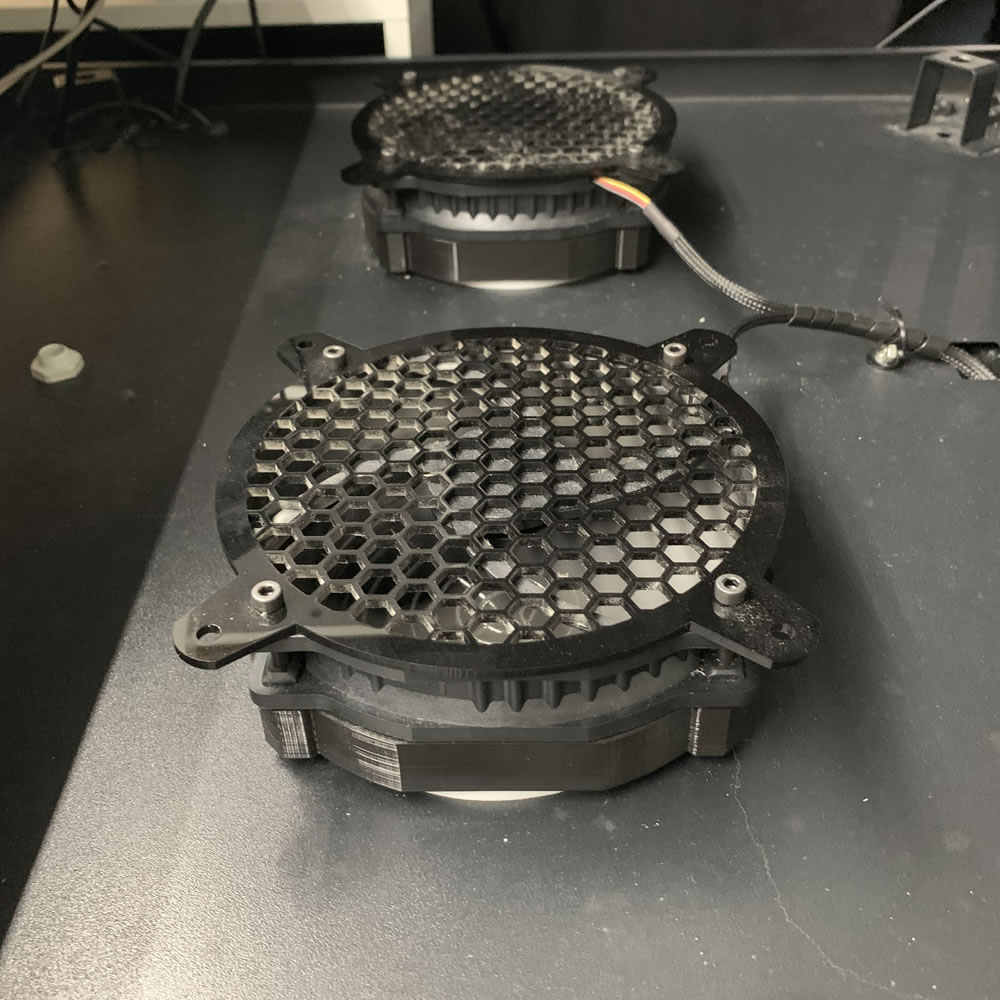

Bringing air in and out of my server rack is a main concern. Especially in the summer times. Mounting them on the rack was done by creating adapter-parts. This is the outlet-shroud adapter part sto mount the fan to my rack.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
M4x50 Nylon Bolt
Standard M4x50mm Nylon Bolt
Choose the length to your desire.
Source: local, ebay
4x
± 0.10
sum: 0.40
Scythe SY1425HB12M
Scythe Glide Stream 140mm 1200U/min
140mm Fan. You can use other brands if you like
Source: ebay
1x
± 16.00
All parts =
2 (5 pcs)
~ 16.40
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
