MO190

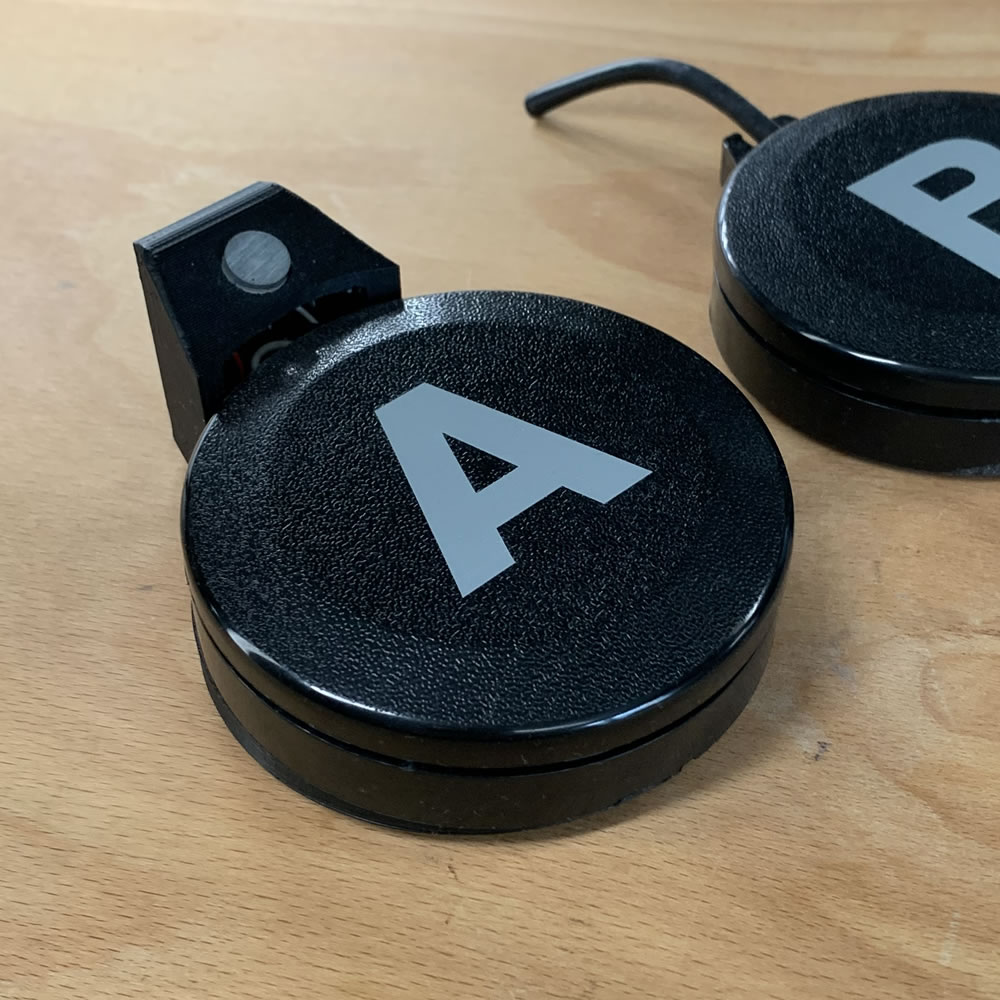

SW Foot
SubText
Look Mom: No hands
As a human, you can press buttons with your fingers. When you try to press a button while your hands are busy (e.g. playing guitar) you can also you your feet to press a button. It is the same for Live-Streaming. This is what its all about. Being able to trigger event and actions while your hands are still visible on camera but you really need to trigger that overlay oder switch to another camera.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Holding the baseplate to the switch body
Source: local, ebay
4x
± 0.05
sum: 0.20

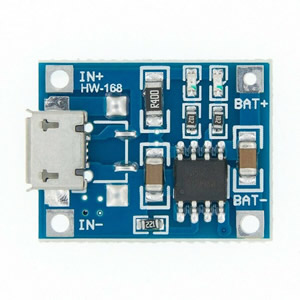

TP4056 Charger
Mini Board LiPo Charger
Charge when needed, else keep it wireless
Source: ebay
1x
± 1.00

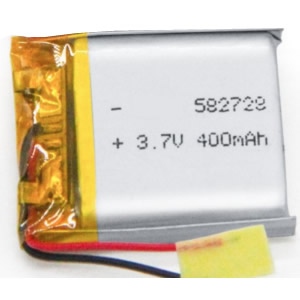

LiPo Battery BATTERY
Mini LiPo 25x30mm 400mA
Holding enough power for the 433 Mhz Module
Source: ebay
1x
± 2.00

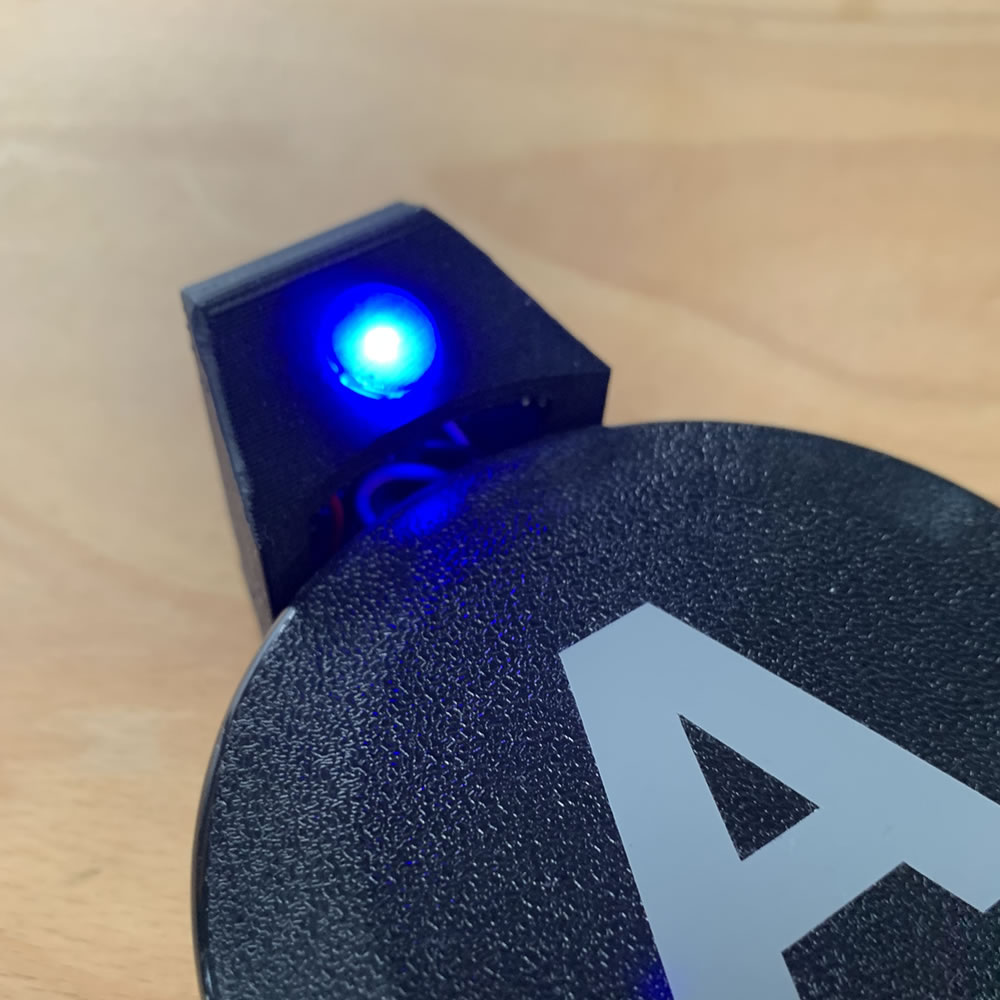

LED 10mm
Big 10mm LED (misc color)
Saw-off 10mm blue LED for visual feedback
Source: ebay
1x
± 0.30

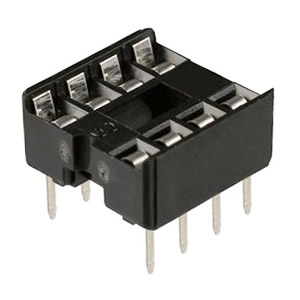

8-DIP Socket
Socket for 8Pin DIP, squared
Carrier for the ATTiny Microcontroller
Source: ebay
1x
± 0.20

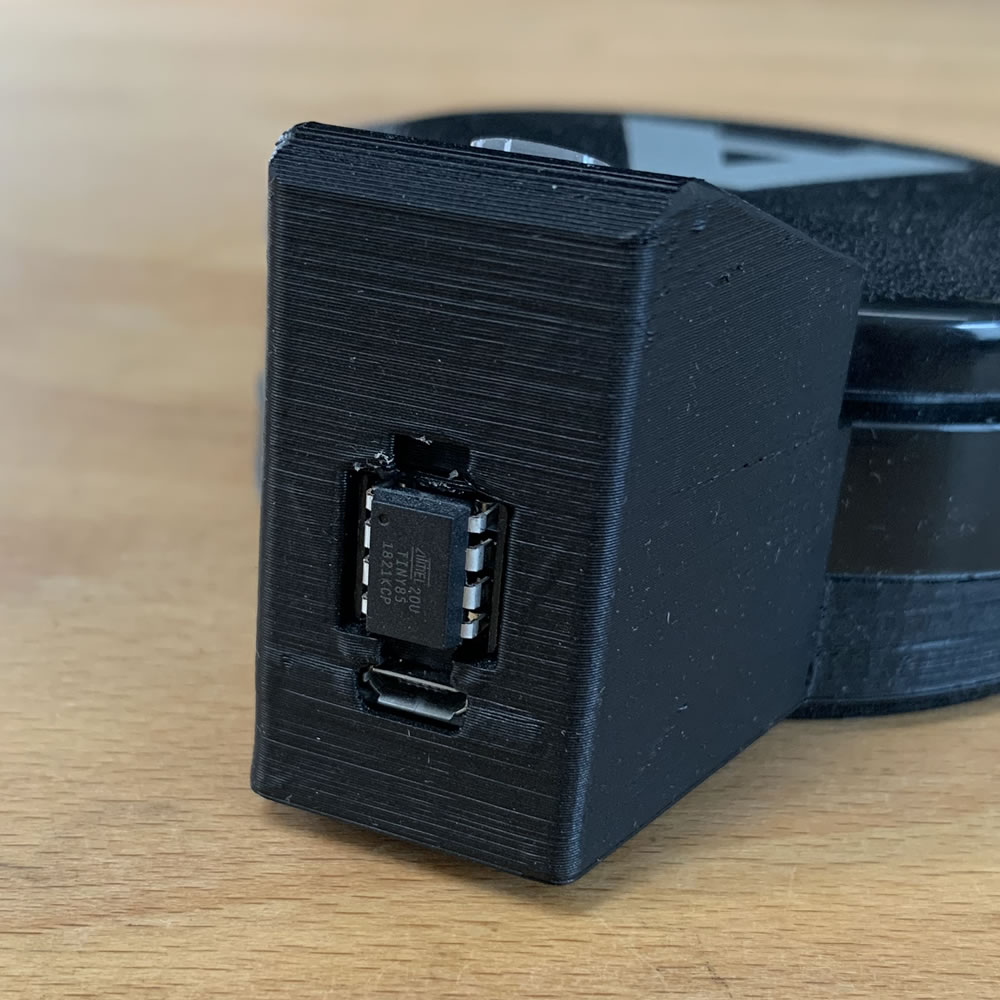

ATTiny85
AVR® RISC-based microcontroller
The brain, taking care of com and the switch
Source: microchip, mouser, farnell, digikey, ebay
1x
± 0.30

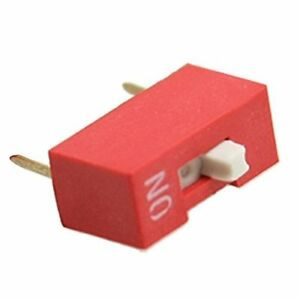

DIP-Switch OPTIONAL
Standard 1-Port DIP Switch
On/Off power switch in a tiny package
Source: ebay
1x
± 0.20

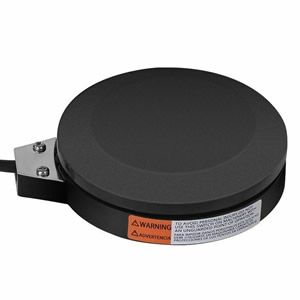

Big Black Button
Robust big Tattoo Foot Pedal
Main part. Robust Black Foot Switch
Source: ebay
1x
± 8.00

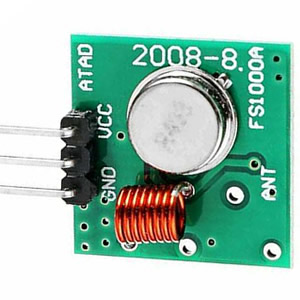

Transmitter
Low budget 433Mhz Transmitter
Small and cheap communication module
Source: ebay
1x
± 1.00
Without optional parts =
8 (11 pcs)
~ 13.00
All parts =
9 (12 pcs)
~ 13.20

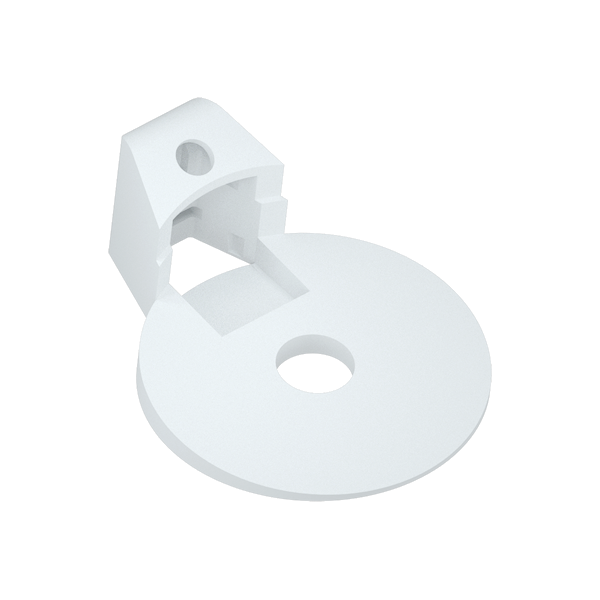

STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
