MO670
Fume Fan
Solder Fume Extraction Fan
Breath freely

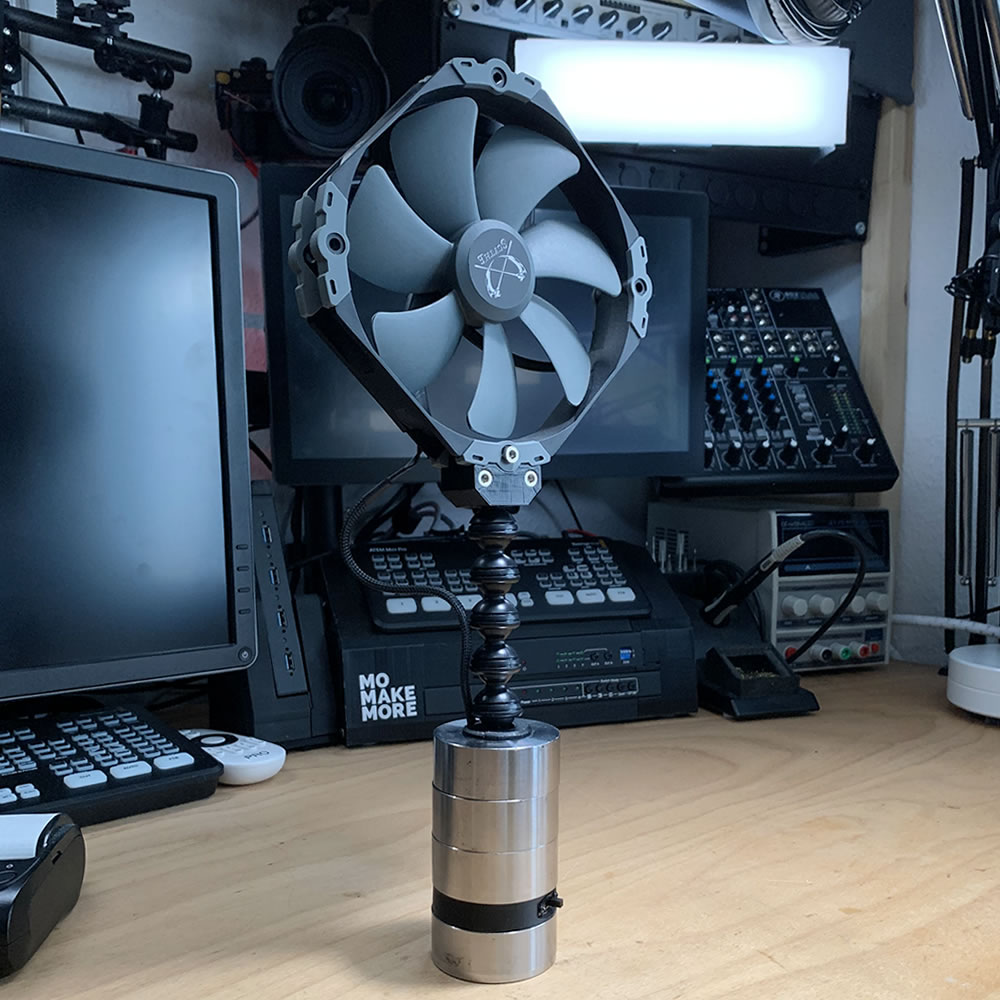

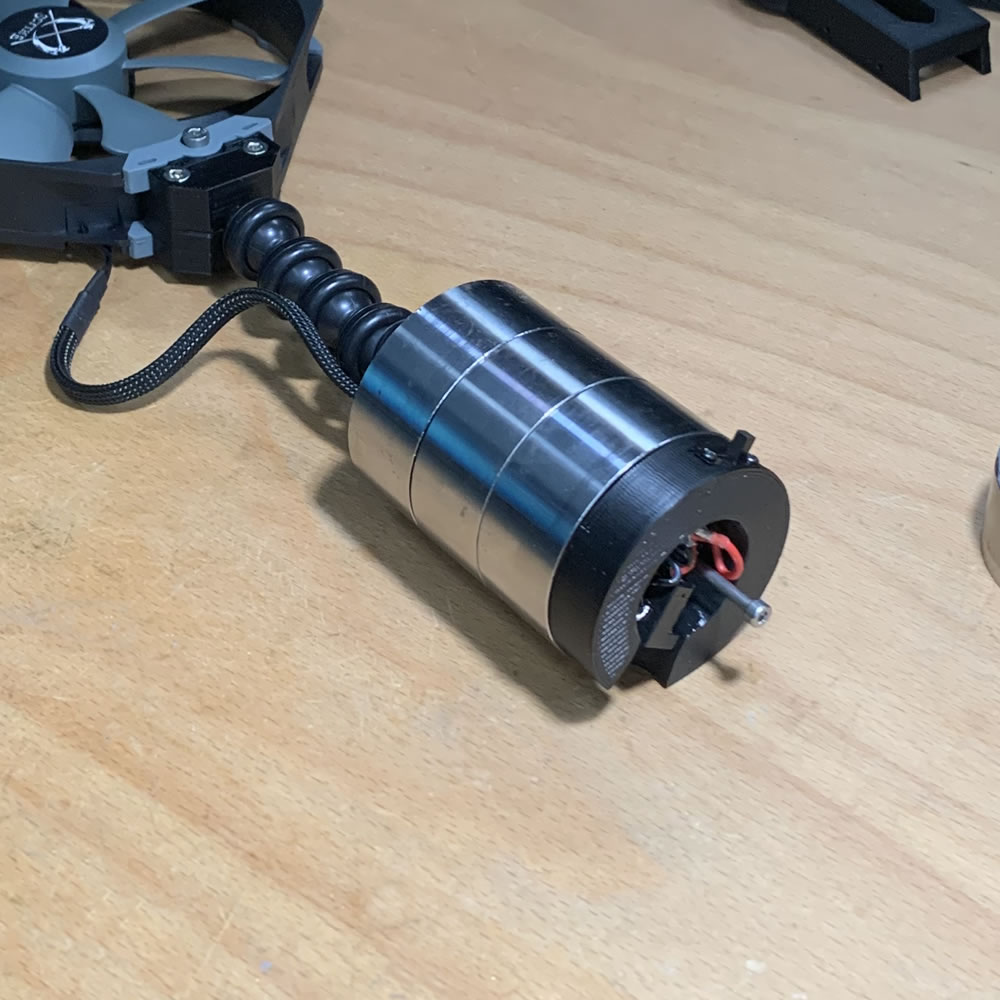

No more holding your breath, or fanning away those fumes while soldering. This fume extractor is based on a heavy weight base and a lightweight fan. Just bend the neck to a position that works best fir your soldering situation and suck away the fumes through the active coal filter on the back. Stay healthy. Breath freely.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Holding the power switch in place
Source: local, ebay
2x
± 0.05
sum: 0.10
M4 Square Nut
Square nut with M4 thread 7x7x3mm

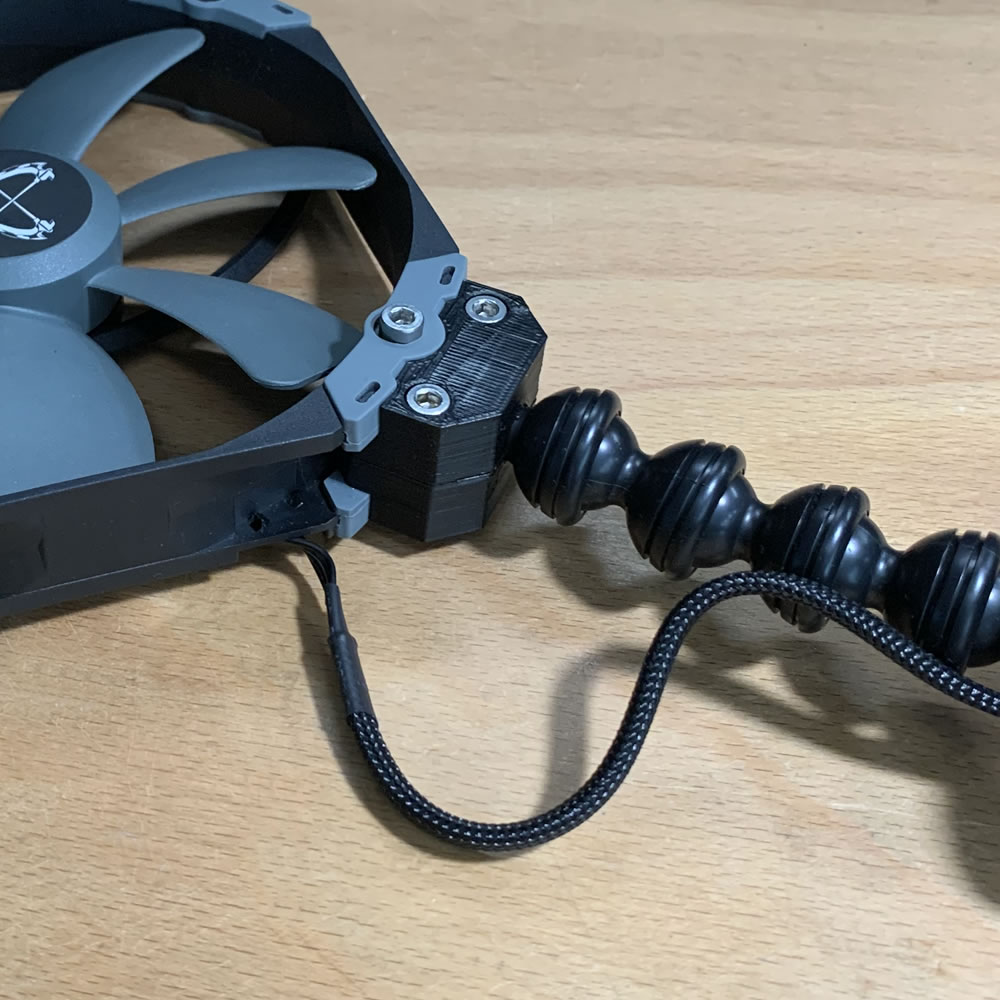

Counter nut for the bracket between octopus and fan
Source: local, ebay
2x
± 0.10
sum: 0.20

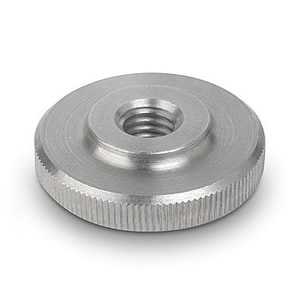

M4 Thumb Nut
Flat thumb nut with M4 thread OD=16-20mm
Quick release for the filter-plate to change the filter
Source: local, ebay
2x
± 0.80
sum: 1.60
M4 bolt
Standard M4x20 hex bolt
Holding the top octopus bracket together
Source: local, ebay
2x
± 0.15
sum: 0.30

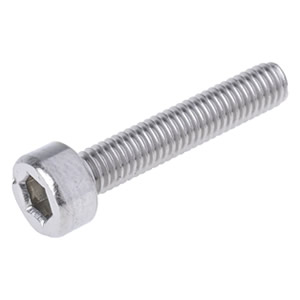

M4 bolt
Standard M4x50 hex bolt
Holding the grid plates to the fan
Source: local, ebay
2x
± 0.20
sum: 0.40

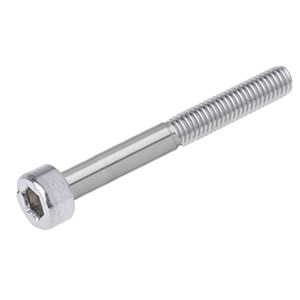

M3x60 Bolt
Standard M3x60mm Hex Bolt
Two M3 bolts holding the base together
Source: local, ebay
2x
± 0.30
sum: 0.60

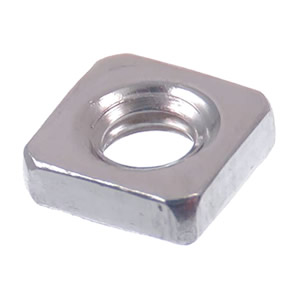

M3 Square Nut STOCK
Standard M3 threaded square nut
Internaly placed countering the m3 bolts
Source: local, ebay
2x
± 0.10
sum: 0.20
Octopus Flexible Tripod
3-armed flexible segments, 15mm diameter
You need only one leg, cut off the rubber if you want
Source: ebay
1x
± 4.00
Round Steel Piece SPECIAL
Turning piece OD=50mm, ID=25mm, H=20mm
Heavy weight to give the fan a stable base
Source: ebay
4x
± 12.00
sum: 48.00

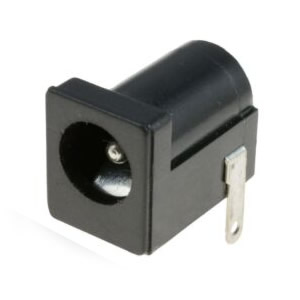

Barrel Port
Square 5.5x2.5 barrel socket female
Square barrel socket for power in
Source: ebay
1x
± 0.30

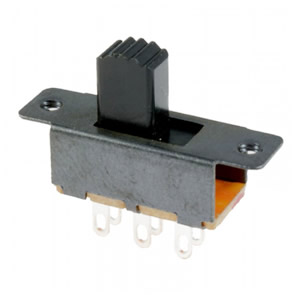

On/Off Switch
Sliding toggle switch 22x6x21mm
3Pin On/Off sliding switch
Source: ebay
1x
± 0.30

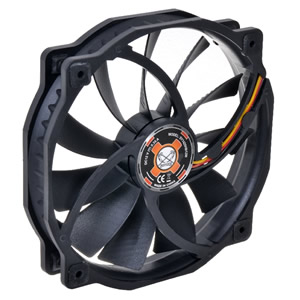

Scythe SY1425HB12M
Scythe Glide Stream 140mm 1200U/min
Silent high power extraction fan
Source: ebay
1x
± 16.00
All parts =
12 (22 pcs)
~ 72.00
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
