MO150
MicroRig

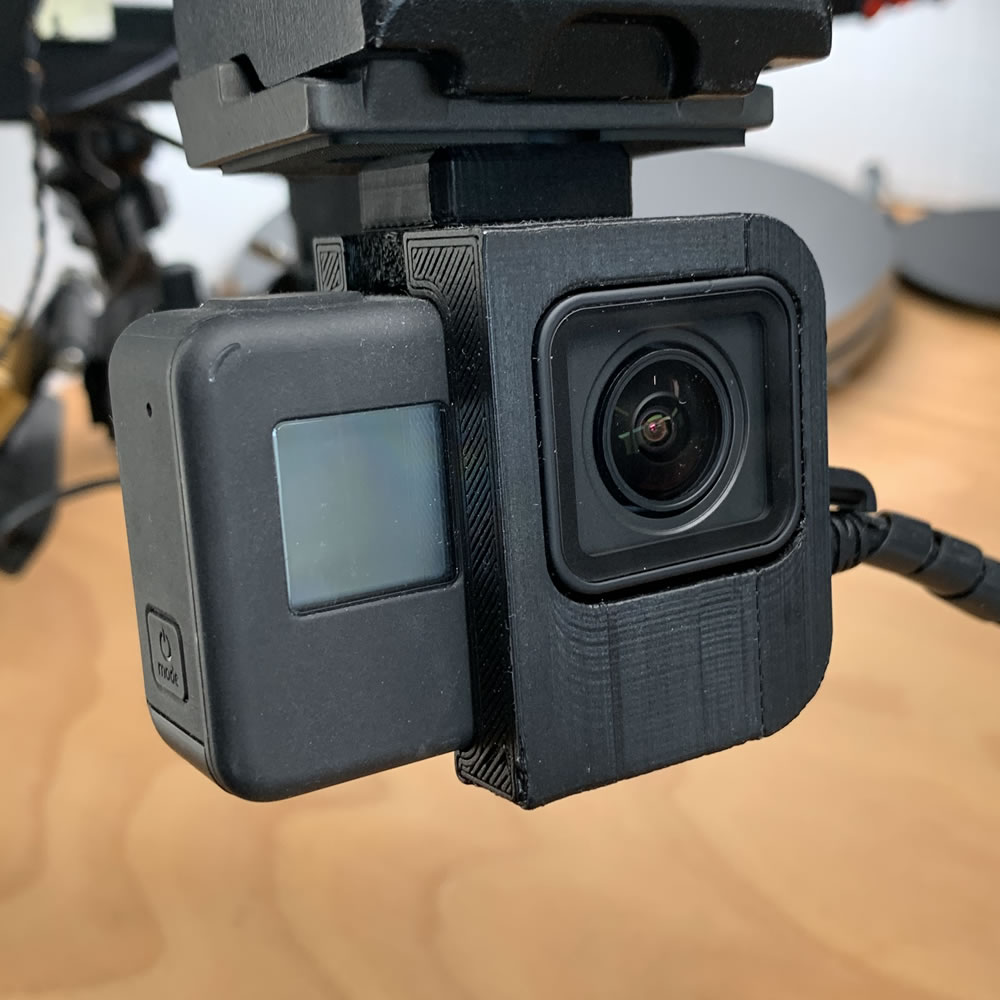

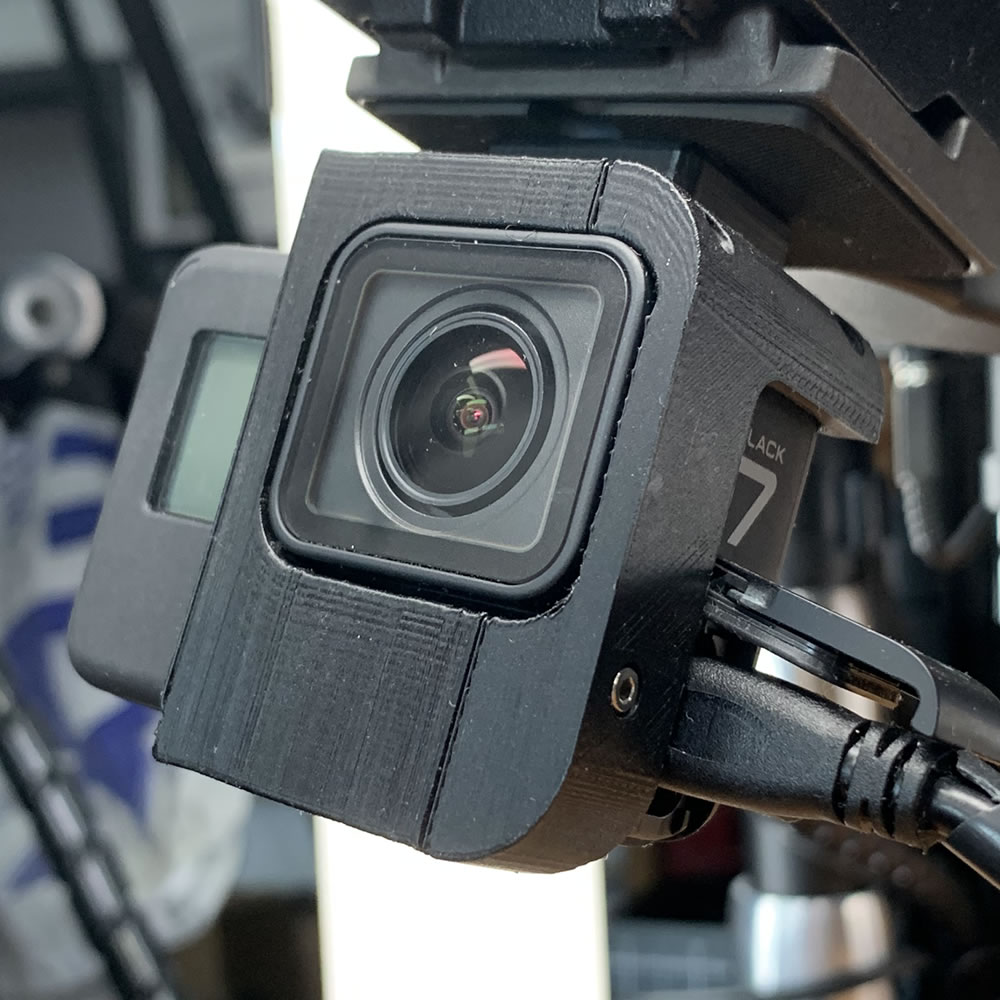

Slim camera frame for advanced mounting options on your action camera
Minimal Approach
When buying a Money Gun (in red or black) it comes with a three component internal circuit: A Motor with a rubber wheel to transport the bills, a battery to power the motor and a switch, to close the circuit. The most basic enhancement is to add a motor controller to regulate the speed of the motor. In its standard configuration the motor is slow and flows out bills like a faucet and gives not at all the feeling of a gun. A motor controller can therefore be a first upgrade.
In addition to that, some external rail- or cheese-plates for mounting are a good idea, to attach lasers, lights, etc. to the device. I also added some additional switches, an OLED-Display, some high brightness flashing LED (for enemy confusion), several sensor e.g. to meassure the magazine capacity on knowing when to reload. I also added a Canon Battery Holder and a WiFi upload because... well, I can. Read up more about this in my Blogpost.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤

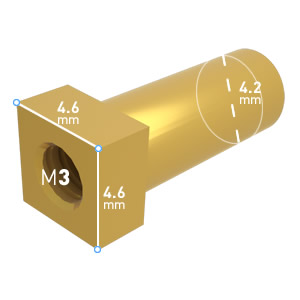

Insert M3 Square 0x0x0 OPTIONAL
Brass Insert with a square profile on the end
Choose how many mounting points you want.
Source: local, ebay
10x
± 0.30
sum: 3.00

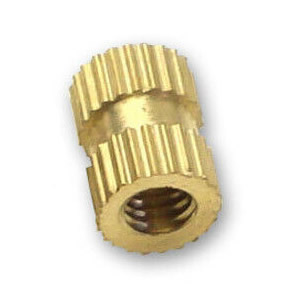

M2 Threaded insert
Brass Insert for M2 4x5, short version
Three point M2 bolt holding the case together
Source: local, ebay
3x
± 0.30
sum: 0.90
M2x15 Bolt
Standard M2x15mm Hex Bolt

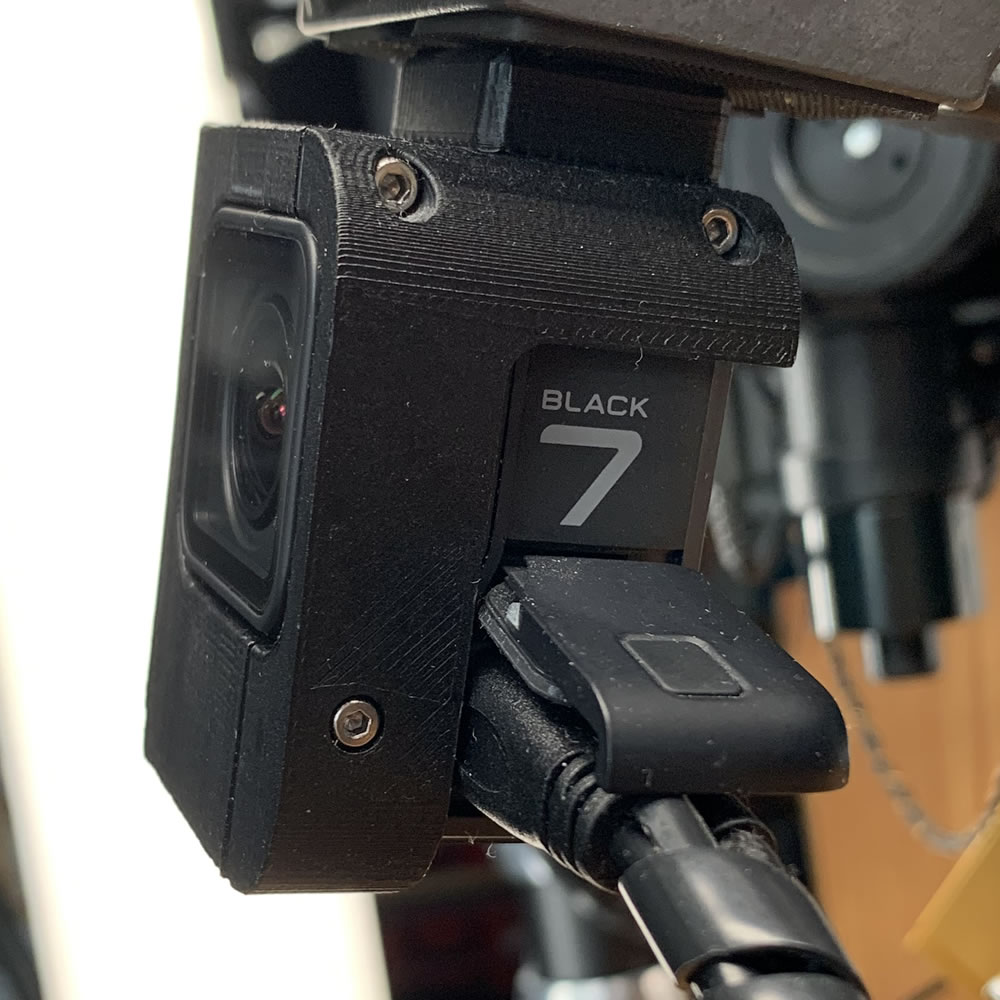

Holding the two printed parts together
Source: local, ebay
3x
± 0.20
sum: 0.60
Without optional parts =
2 (6 pcs)
~ 1.50
All parts =
3 (16 pcs)
~ 4.50
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
