MO690
Grid Light

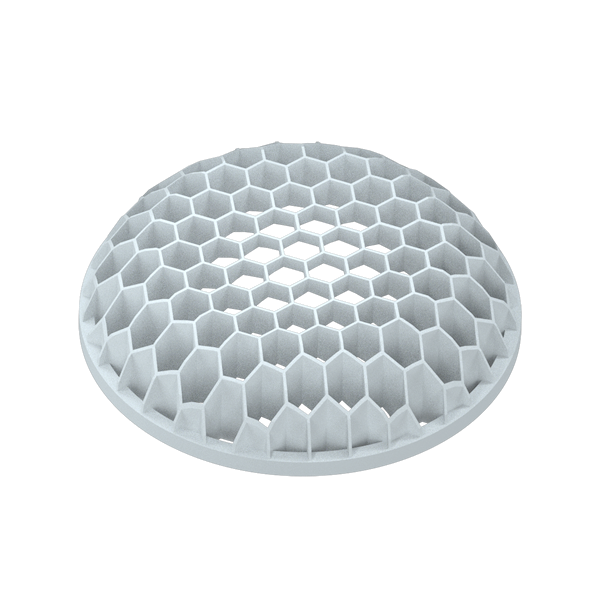

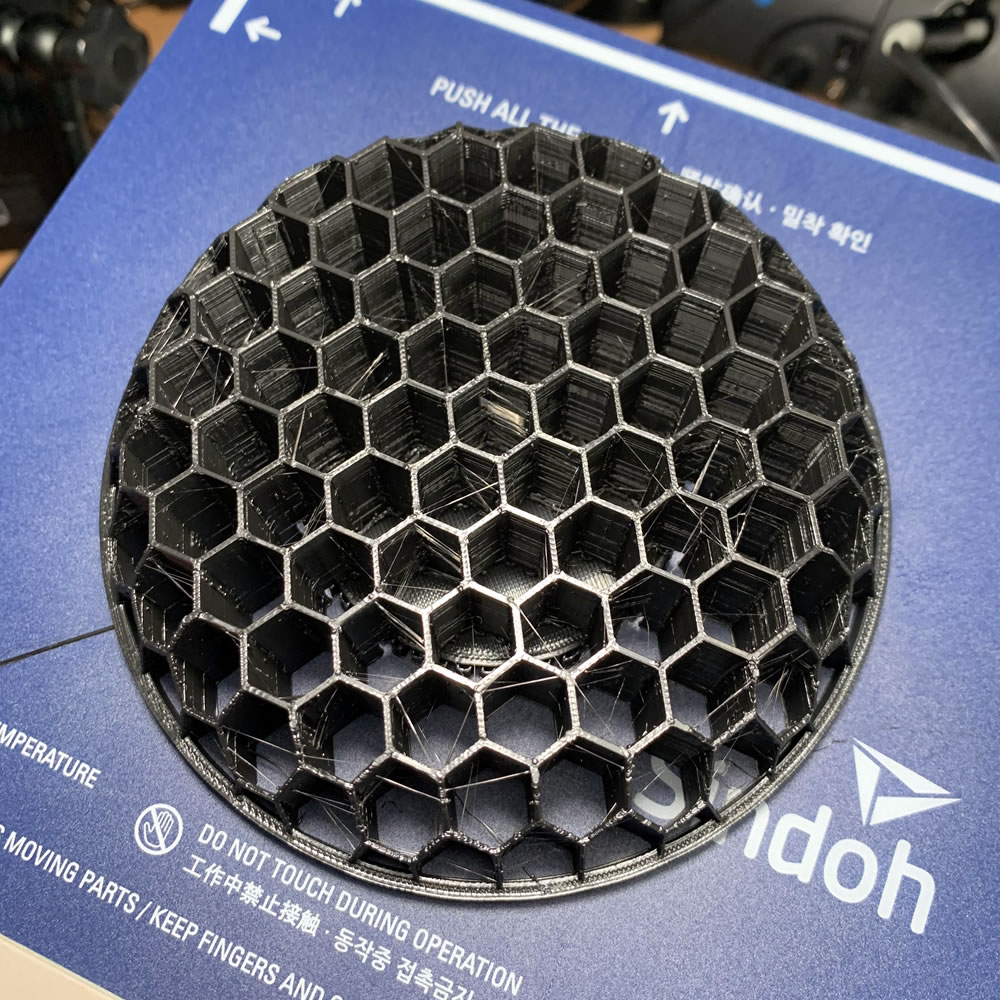

Hexagon Grid Lamp Light
Prolog

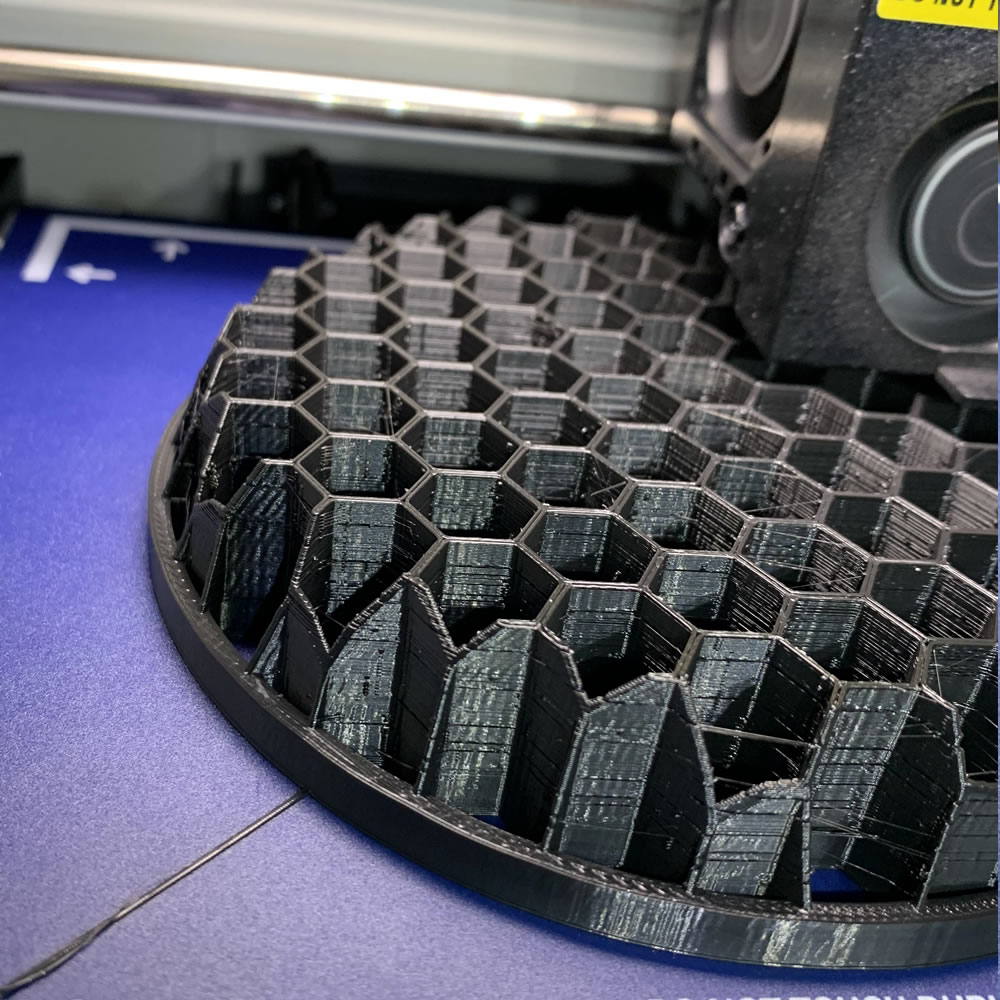

When you have a classic working-light mounted on your desk with a classic lampshade in form of a bowl, you might have blinded yourself when adjusting the light. As soon as your eyes horizon is below the light you physically look into the lightshade and therefore directly into the light bulb. You want to light directed only into one direction like a spot light and not an area light. Think about a light when going to the dentist: brighten up the part you want to operate on, but do not blind the doctor or the patient. Directed light can be achieved in several ways. This solution uses the depth of a grid light to send only perpendicular light photons onto an object.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤

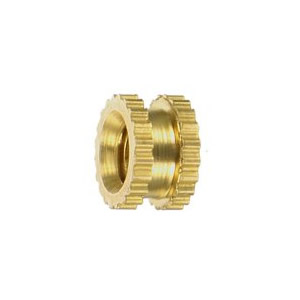

M3 Threaded insert COMMON
Brass Insert for M3 4x5, short version
Counterpart for the M3 bolts
Source: local, ebay
3x
± 0.30
sum: 0.90

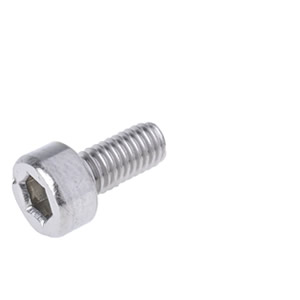

M3x15 bolt COMMON
Standard M3x15 Hex Bolt
Easy detach with just 3 bolts
Source: local, ebay
3x
± 0.15
sum: 0.45
All parts =
2 (6 pcs)
~ 1.35
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
