MO870
Keyboard Holder
Custom part for my favorite Keyboard
Type in space

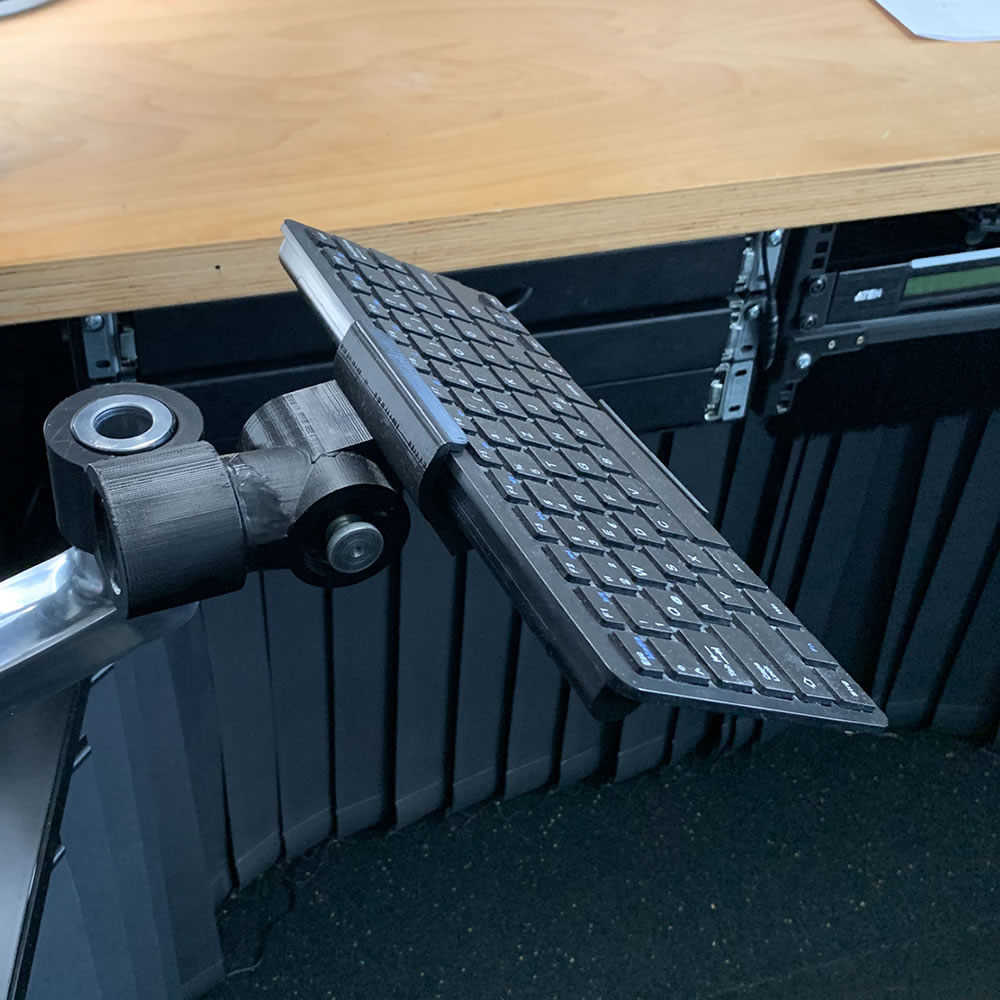

When your tablespace is scarce a keyboard is a waste of surface area. For my 3D printer PC I mounted evrything in a free floating style. This way I can keep the keyboard out of the way and detach it if I need it somewhere else.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤

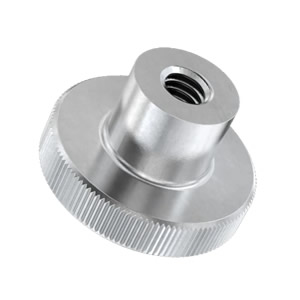

M4 Thumb Nut
Raised thumb nut with M4 thread OD=16-26mm,

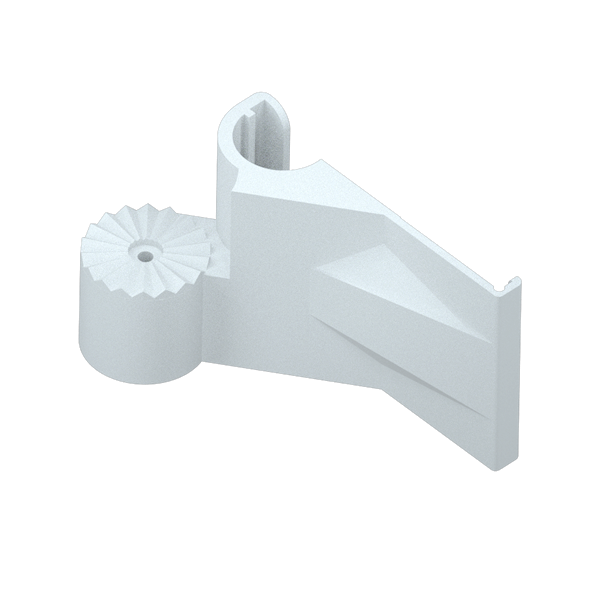

Fixing the pitch angle of the Keyboard carrier
Source: local, ebay
1x
± 1.10
M4x55 Bolt
Standard M4x55mm Hex Bolt
Axis for stepped pitch rotation
Source: local, ebay
1x
± 0.30
All parts =
2 (2 pcs)
~ 1.40
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
