MO460
LED MicroStudio
Micro Studio Depth Light

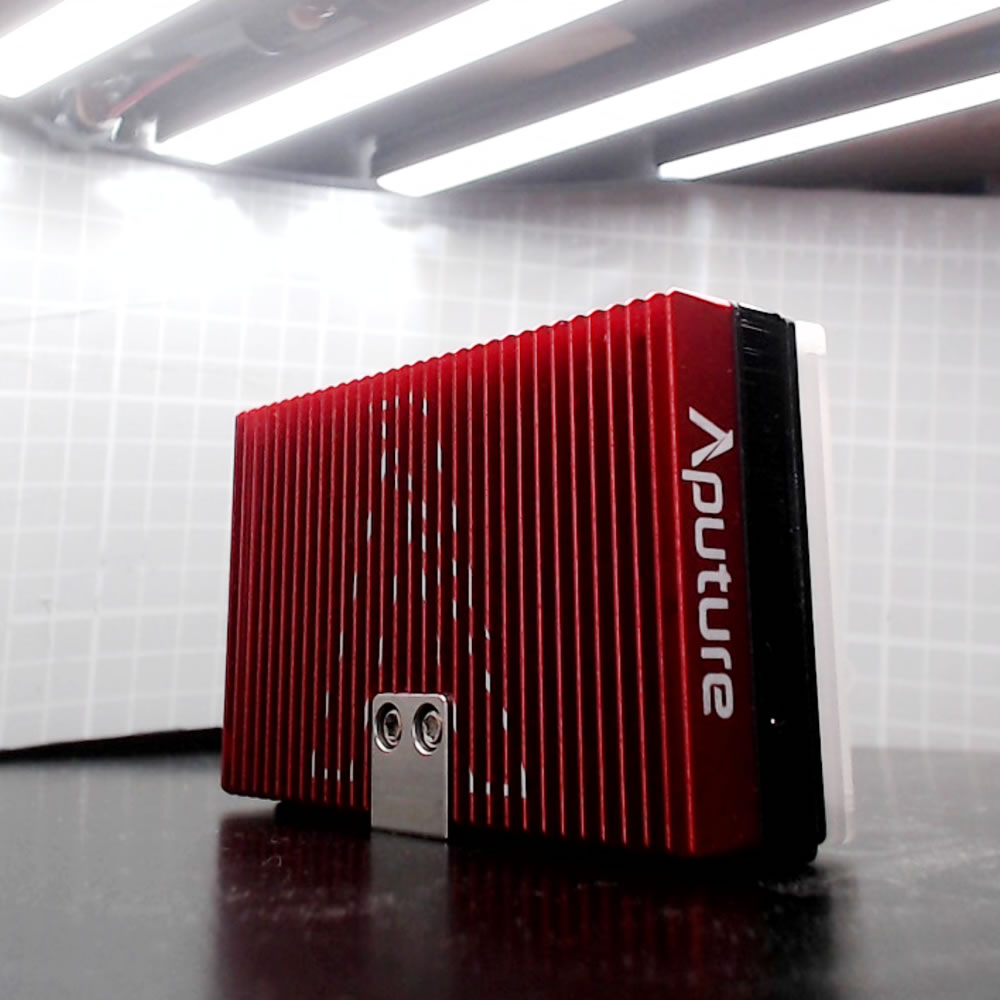

I be in my studio

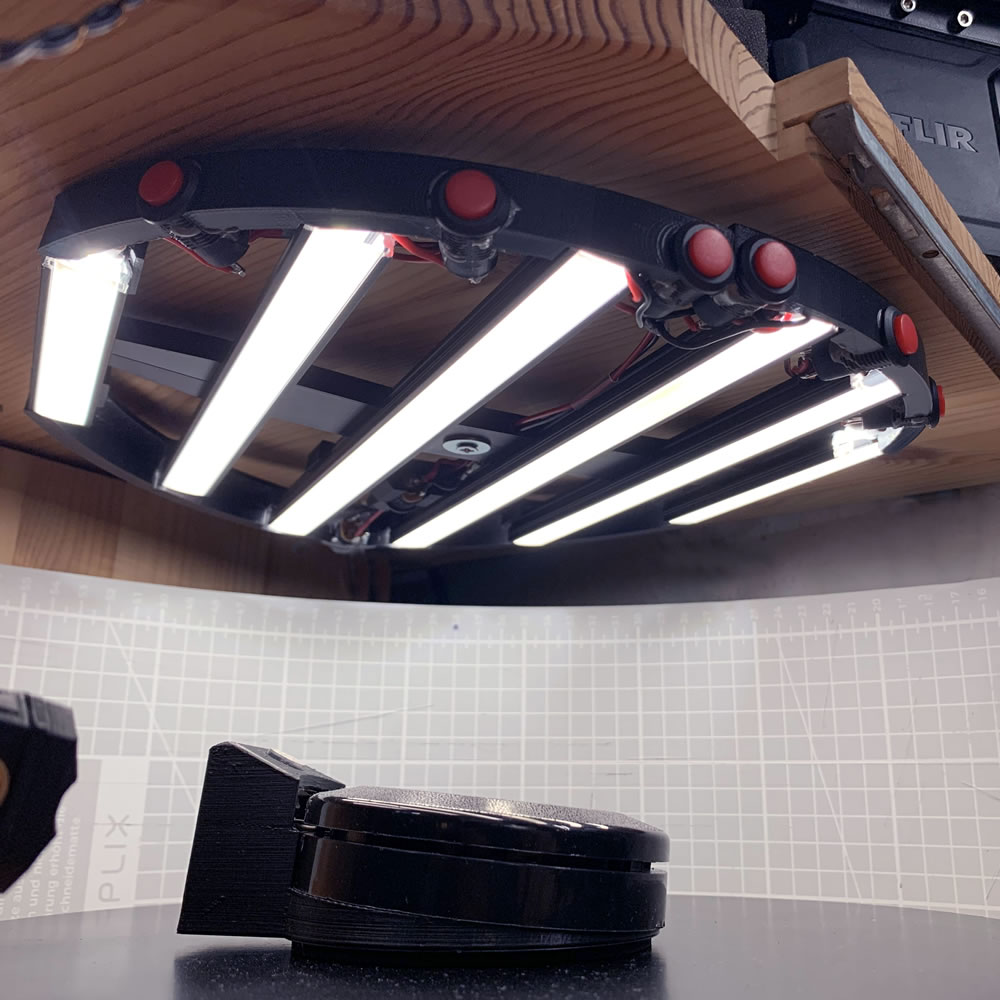

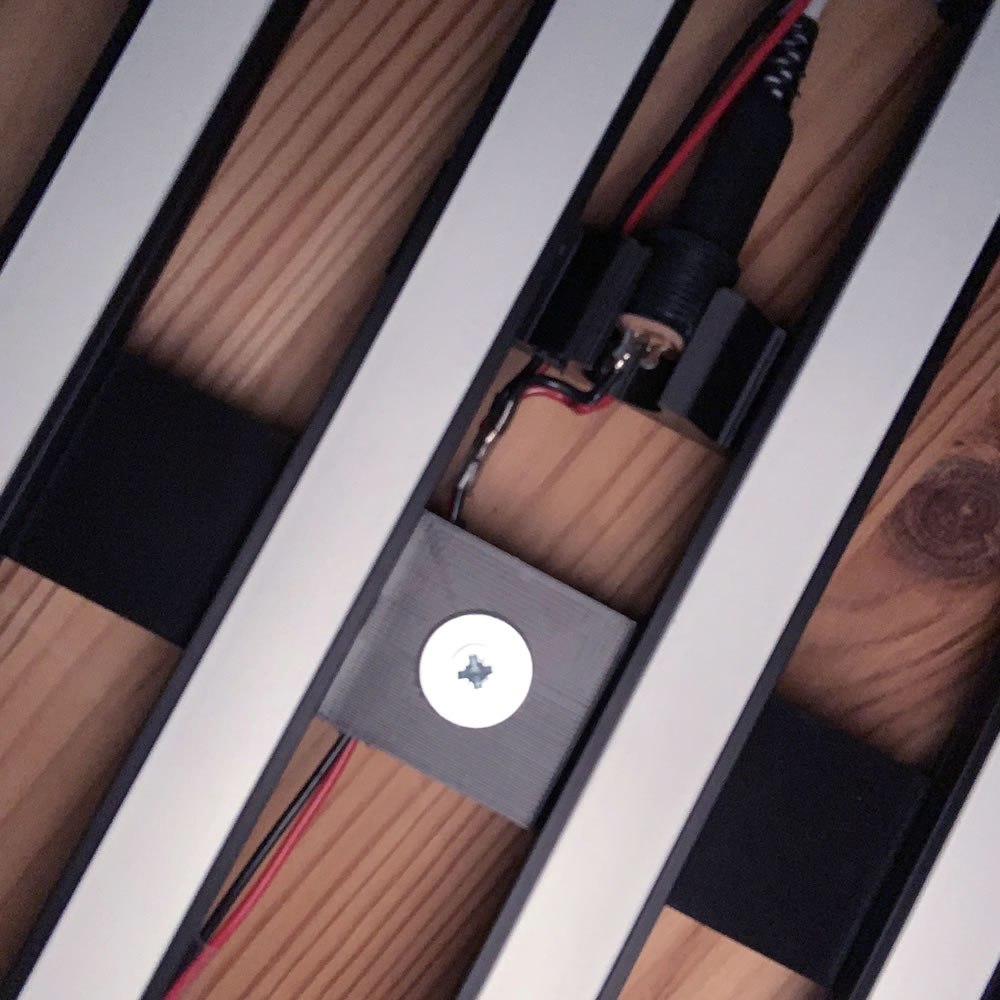

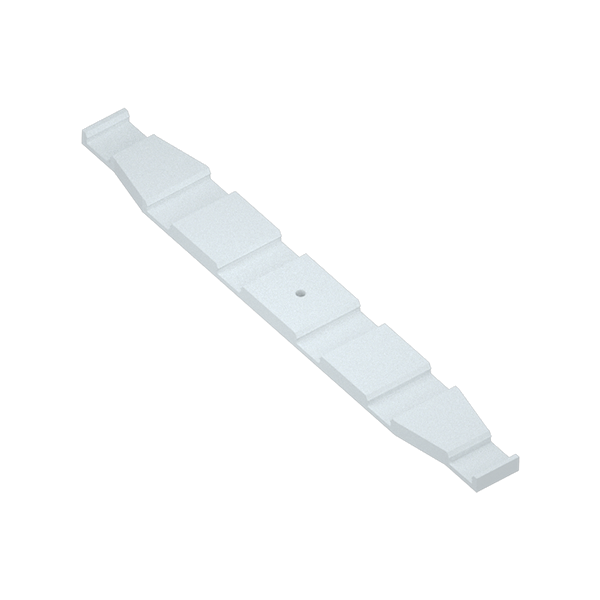

I used this small light application as ceiling light for the small printed parts. Every light can be toggled seperatly and can create various situations. It is also mounted on a single centered screw, so the studio light can be rotated to give the scene more depth or shorted appearances.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤

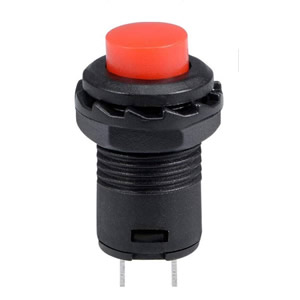

Red push button OPTIONAL
Latching, SPST button switch ~12x30mm
On/Off push button
Source: ebay
6x
± 0.50
sum: 3.00

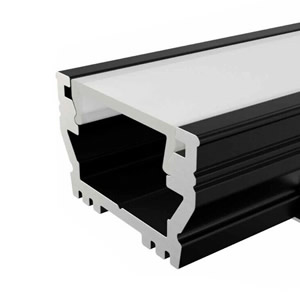

LED Aluminium Profile UNIT IN METER
Aluminium extrusion profile for 10mm LED Strips
Cut into sizes of 2x250, 2x200, 2x100
Source: ebay
1.1m
± 7.00
sum: 7.70

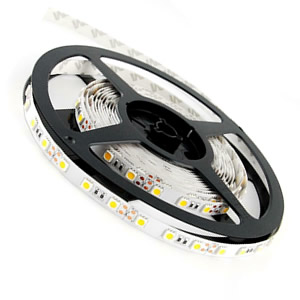

LED Strip UNIT IN METER
24V high brightness LED Strips 10mm
Cut into strips of 2x250, 2x200, 2x100
Source: ebay
1.1m
± 5.00
sum: 5.50

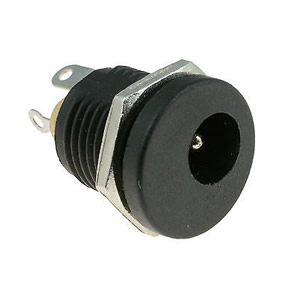

Barrel Port
Round 5.5x2.5 barrel socket female
You can use 2-4 ports
Source: ebay
1x
± 0.40
Without optional parts =
3 (5 pcs)
~ 13.60
All parts =
4 (11 pcs)
~ 16.60

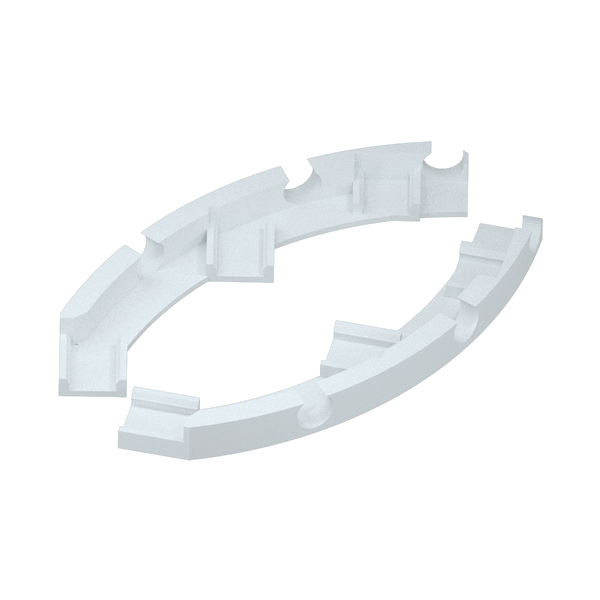

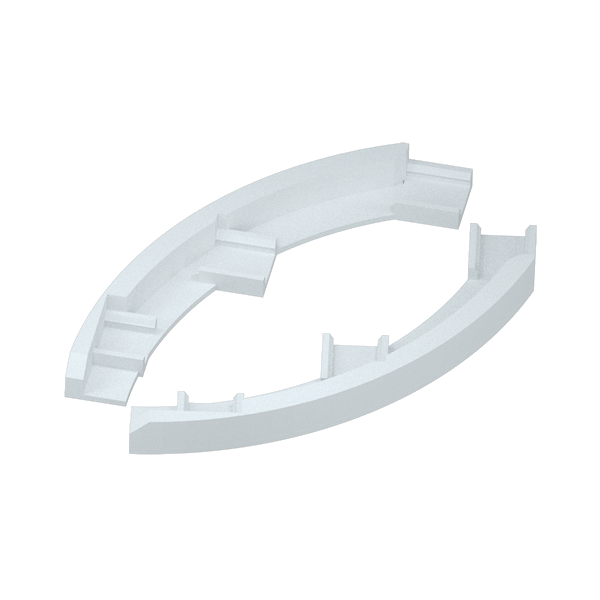

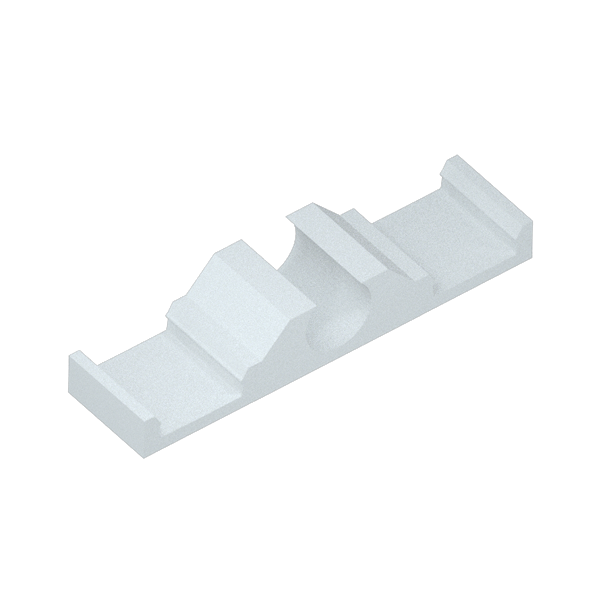

STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
