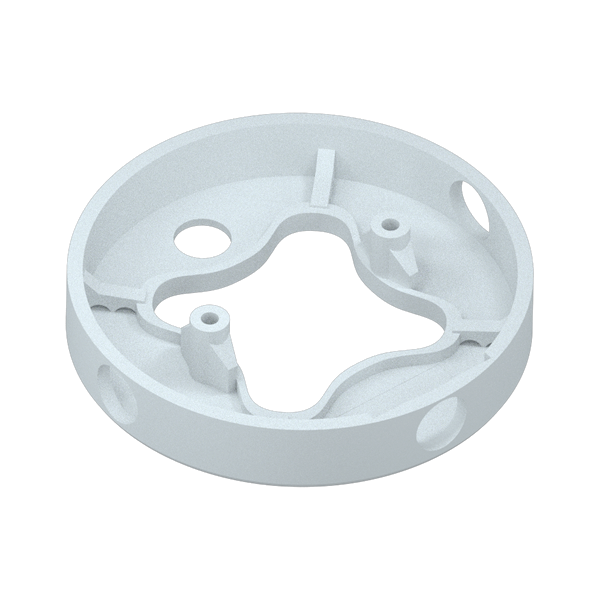

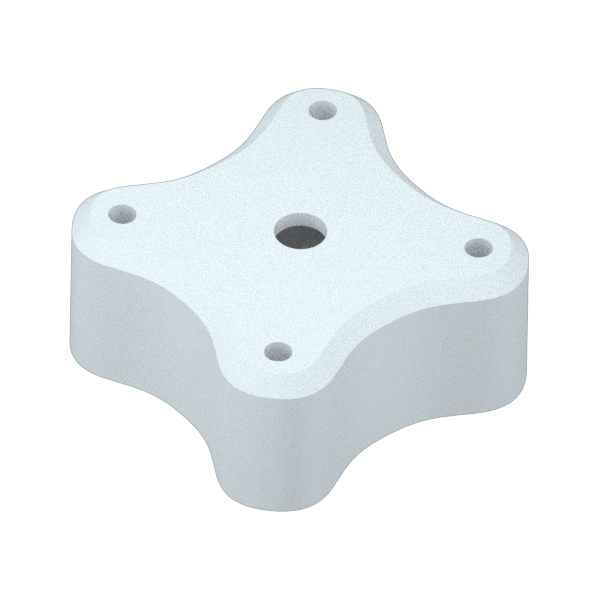

Backend Part

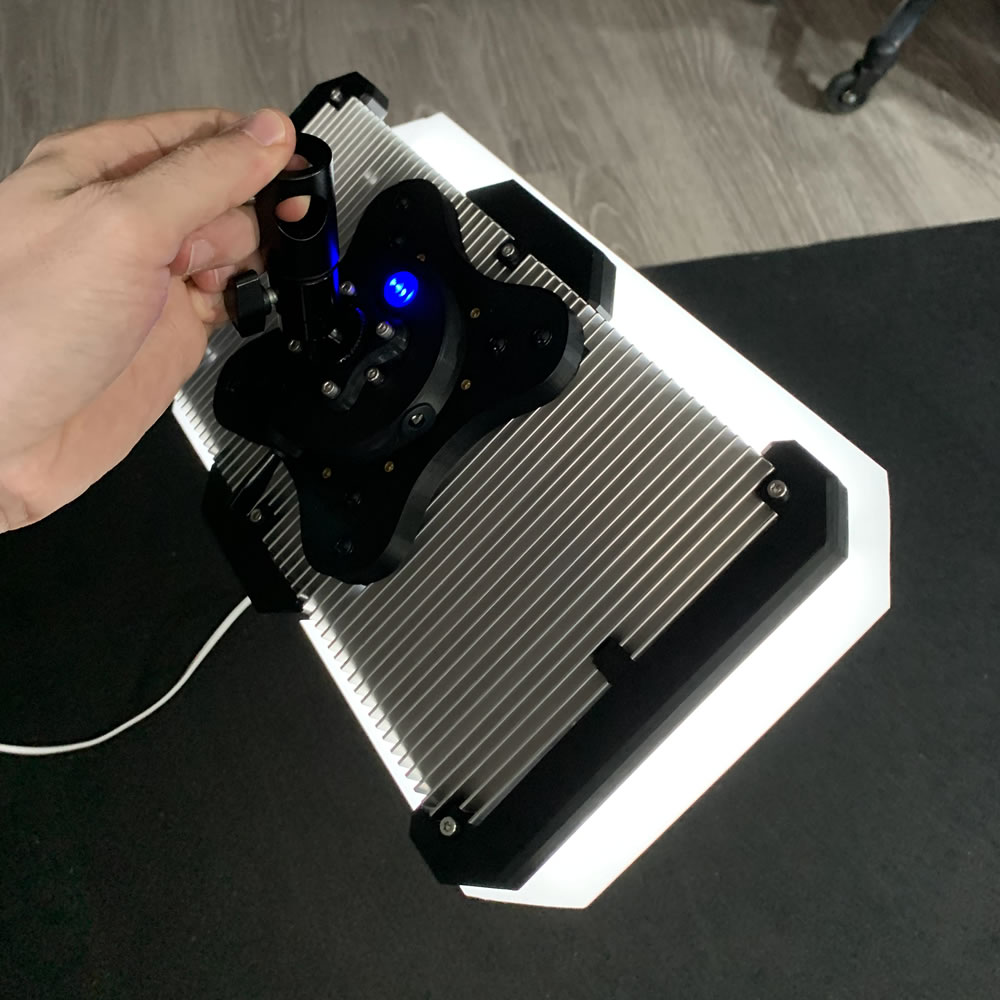

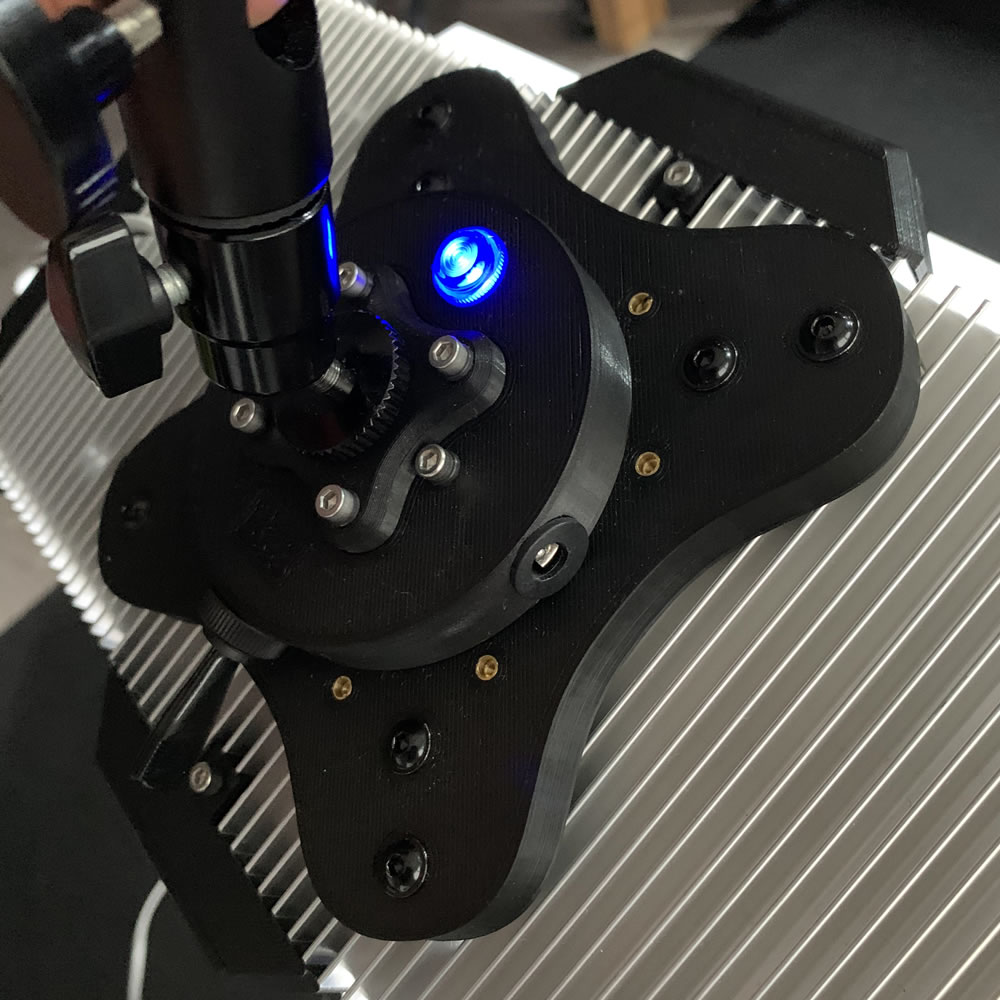

The Light Panels can be daisy chained to keep wiring to a minimum. The light signals that power it on the unit and a big switch overrides the PWM Controller for instant on/off
MO250
LED Panel
High Brightness Studio LED Panel
Flood Lights

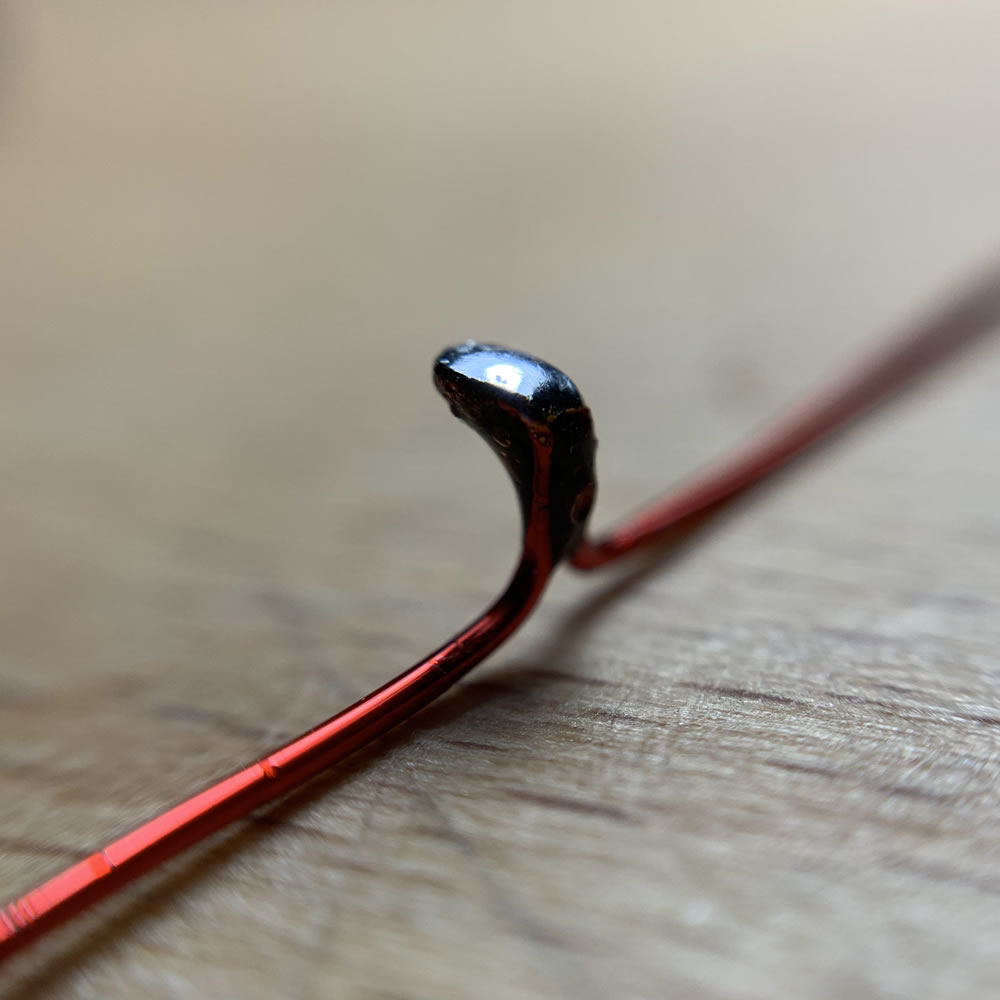

When you follow me for a bit longer, you might know, that I have a crush on VESA-Mountings. When I came by some custom made aluminum heatsinks with a VESA mount, I knew that this could be the solution to build high brightness panels and dump the excess heat into the giant heatsink. When driving all the 24V Leds and max brightness, the heatsink gets only to around 40-50°C depending on the ambient temperature. So that is a win for me.

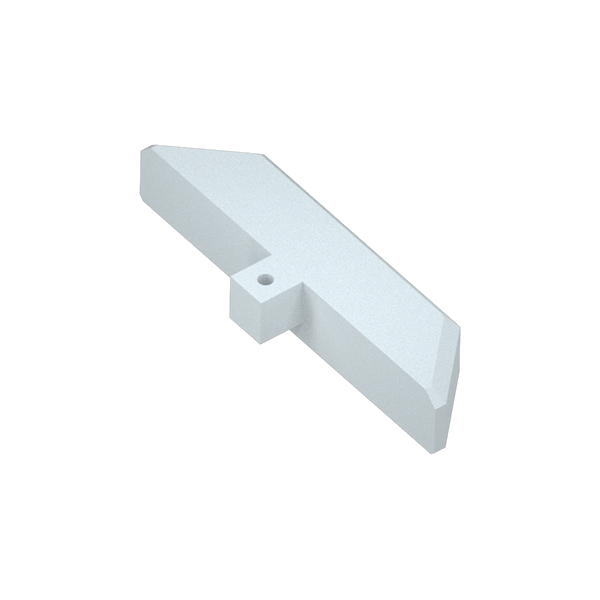

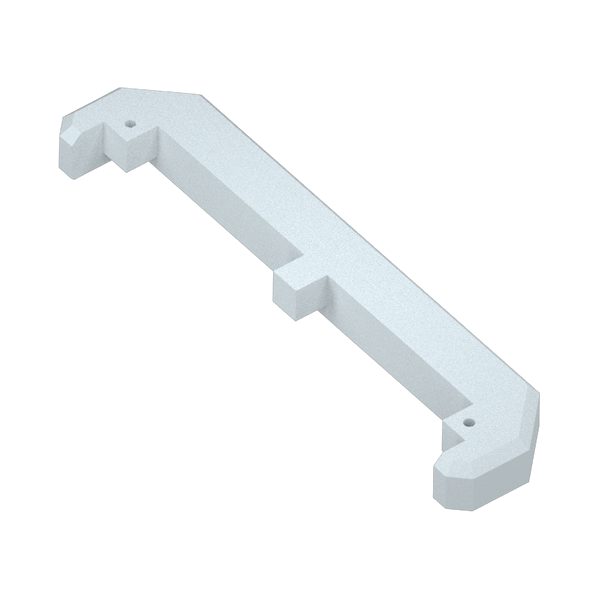

I have not yet released the prints, as I highly doubt that anyone will come by the same VESA heatsinks. They were apparently custom made for some installations. I list this item in my catalog to give you some inspiration on how you can build your own flood lights. Just try to find a decent sized aluminum block and start building upon it. my solutions were in all aspects custom designed to fit my environment when it comes to mounting (spigot), LED (24V, 6000K), power distribution (barrel plug sockets, see the catalog) and type of diffusion.

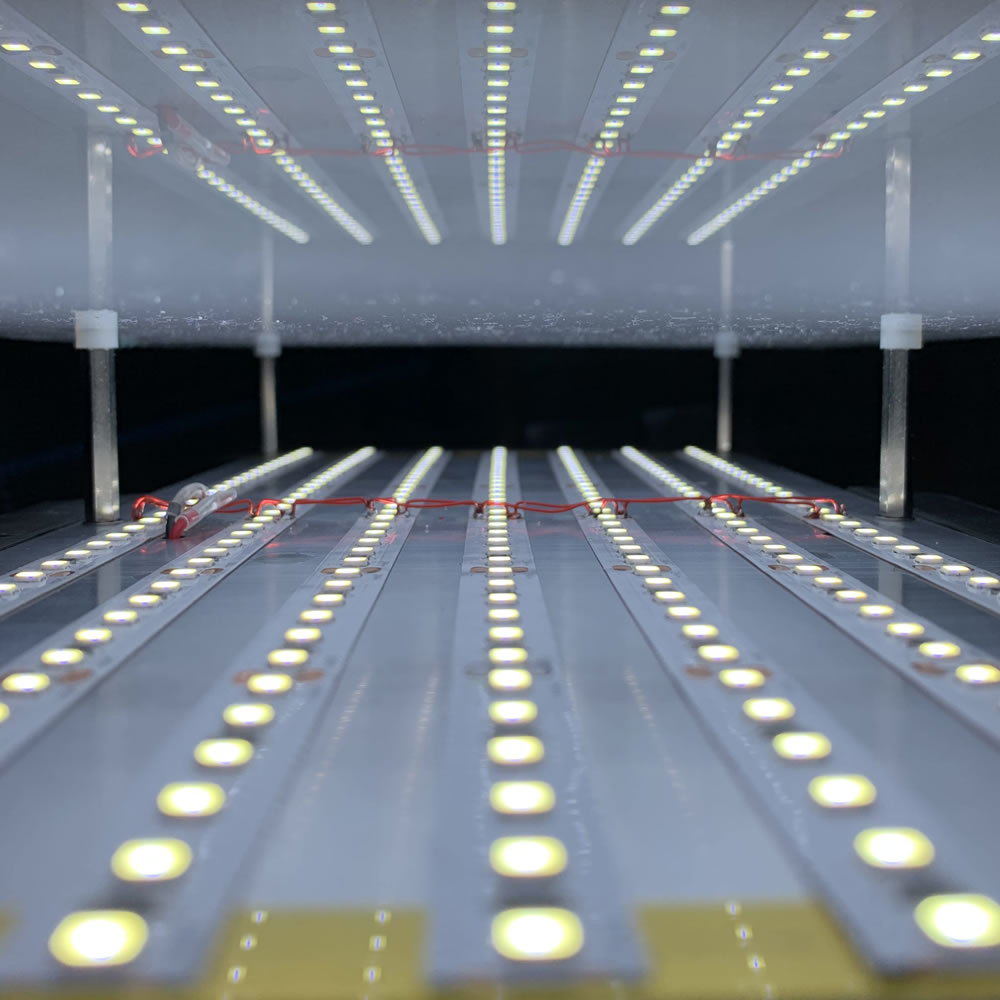

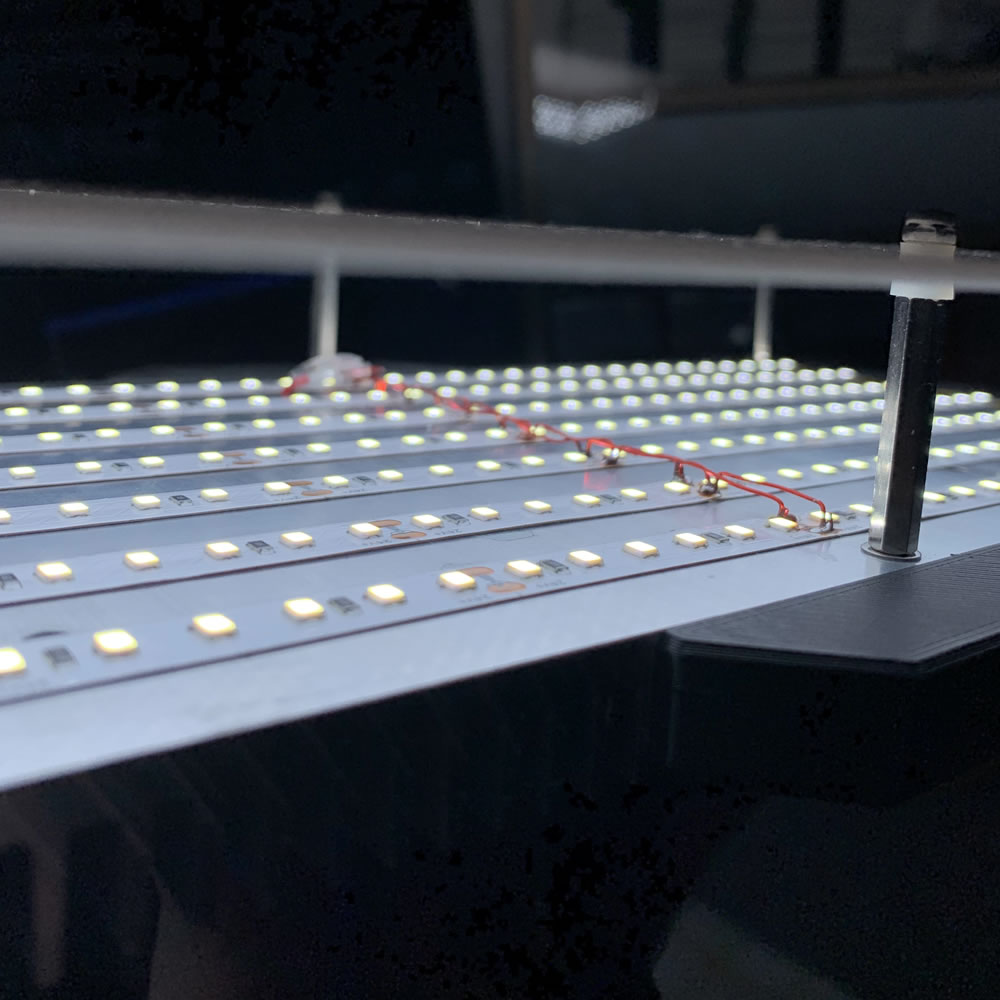

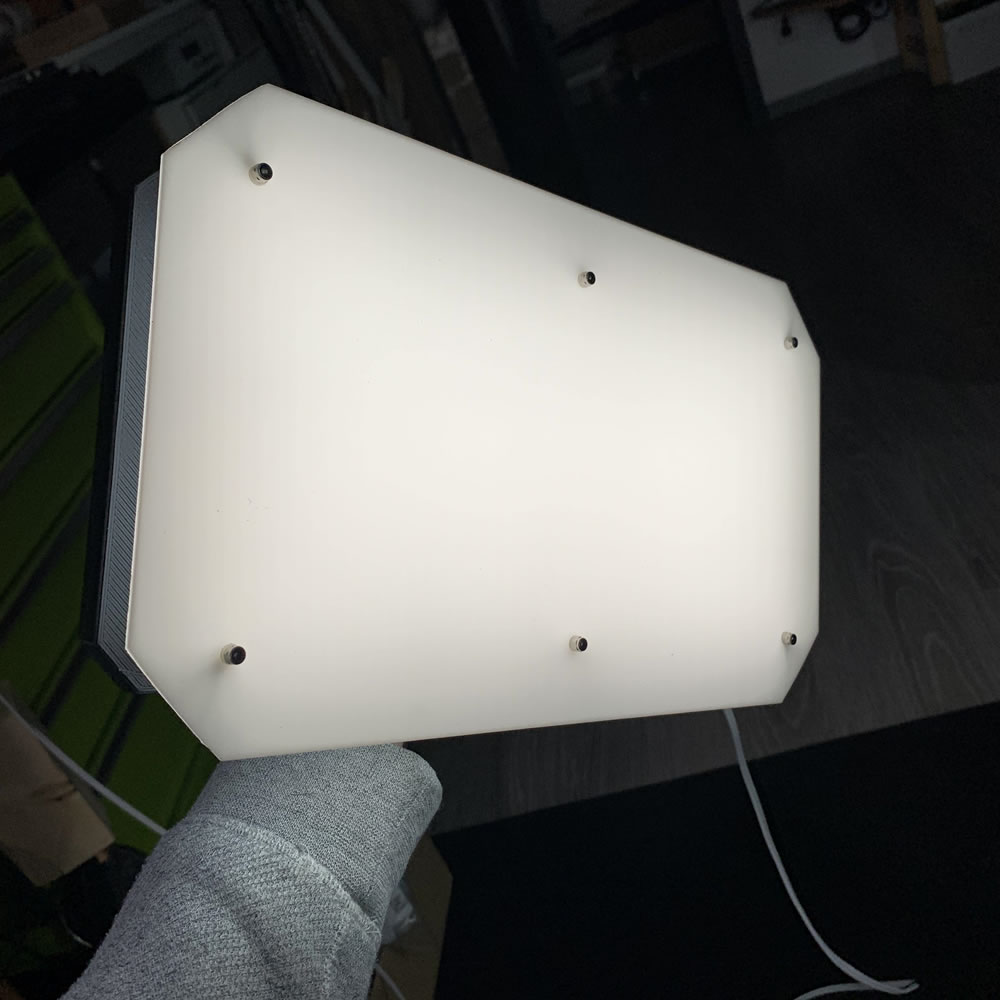

Light Diffusion
The image does not do justice, as the camera calibrates the light out. The Panel generate a lot of lumen and two panels are nough for a 3x3m studio setup
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
M3 Lock Nut COMMON
Standard M3 Nylon Lock Nut
Front side holding down the Diffusor
Source: local, ebay
6x
± 0.05
sum: 0.30
M3 Standoff 40mm
Metal F/F M3 standoff/column hex spacer
Recommended Metal, as it gets hot here
Source: local, ebay
6x
± 0.20
sum: 1.20

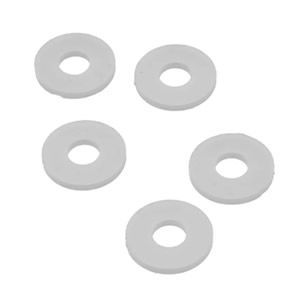

M3 Nylon Washer COMMON
White M3 Nylon Washer 1mm slim
Decouple Metal Nuts from Diffusor
Source: local, ebay
6x
± 0.01
sum: 0.06

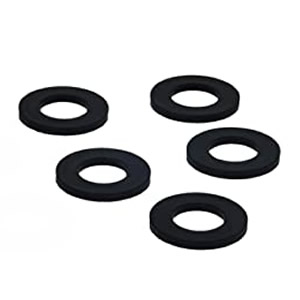

M3 Nylon Washer COMMON OPTIONAL
Black M3 Nylon Washer 1mm slim
Protect printed parts from bolt damage
Source: local, ebay
12x
± 0.01
sum: 0.12
M3 Nylon Washer OPTIONAL
Standard M3 Nylon Washer 3mm thick
Can also be a metal or nylon washer
Source: local, ebay
6x
± 0.03
sum: 0.18

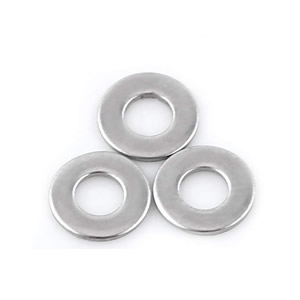

M3 Metal Washer COMMON
Standard M3 Metal Washer ~.3mm shim
Placed between heatsink and standoff
Source: local, ebay
6x
± 0.02
sum: 0.12

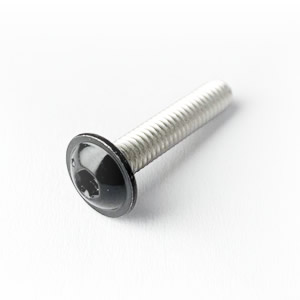

M4 Bolt
Black Flat Head M4 Hex Bolt
Can also be a simple M4x20, I like these flat black heads more
Source: local, ebay
8x
± 0.10
sum: 0.80
Latching Switch OPTIONAL
Black round lever switch, 2 Position, latching
Toggle the light on/off, long lever for easy reach, can be any latching switch or none at all
Source: local, ebay
6x
± 1.00
sum: 6.00

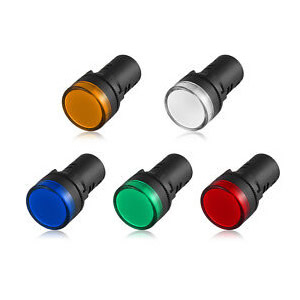

Status LED Color OPTIONAL
12/24V Status LED, dim light, colored
See if light has power regarding the switch/PWM
Source: local, ebay
1x
± 1.00
Barrel Port
Round 5.5x2.5 barrel socket female
One port for power in, one for daisy chaining
Source: ebay
2x
± 0.40
sum: 0.80
M3x20 bolt COMMON
Standard M3x20 Hex Bolt
Mounting the Standoffs and back-cover
Source: local, ebay
8x
± 0.20
sum: 1.60

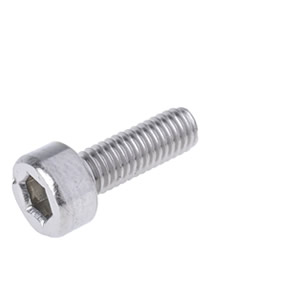

M3x30 bolt COMMON
Standard M3x30 Hex Bolt
For main mounting bracket on the backside
Source: local, ebay
4x
± 0.20
sum: 0.80

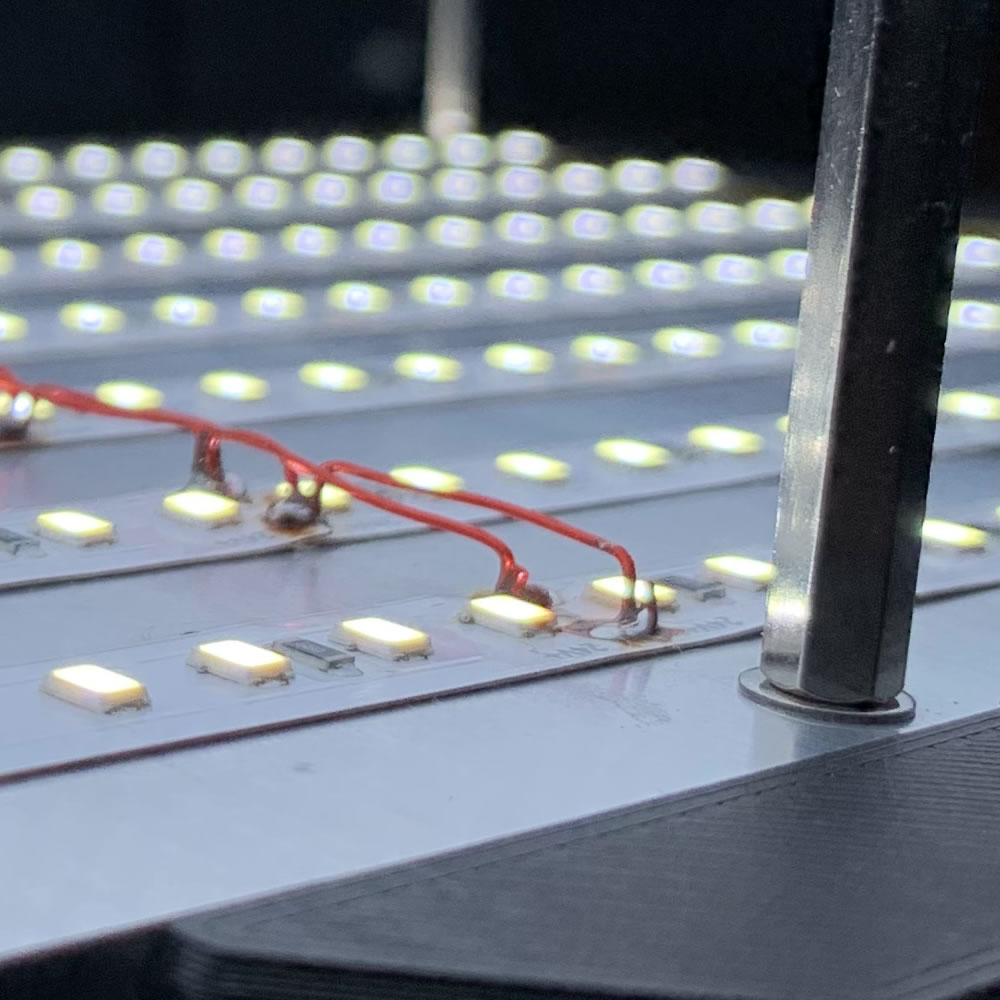

LED Strip UNIT IN METER
24V high brightness LED Strips 10mm
LED Strip of your choice. 7x 30cm Strips
Source: ebay
2.1m
± 5.00
sum: 10.50

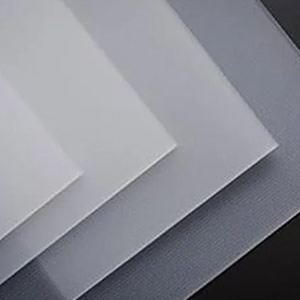

Frosted Acryl
Custom cut Acryl XT 350x200x2mm
Light diffusion for the LED
Source: ebay
1x
± 4.00
Aluminium Heatsink SPECIAL
Custom heatsink 300x150x16mm
Dissipates the heat of the LED Strip
Source: ebay
1x
± 20.00
Without optional parts =
11 (51 pcs)
~ 40.18
All parts =
15 (76 pcs)
~ 47.48
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
