MO660
LED Rail
LED dimmable Studio Lights
Not blinded by the light

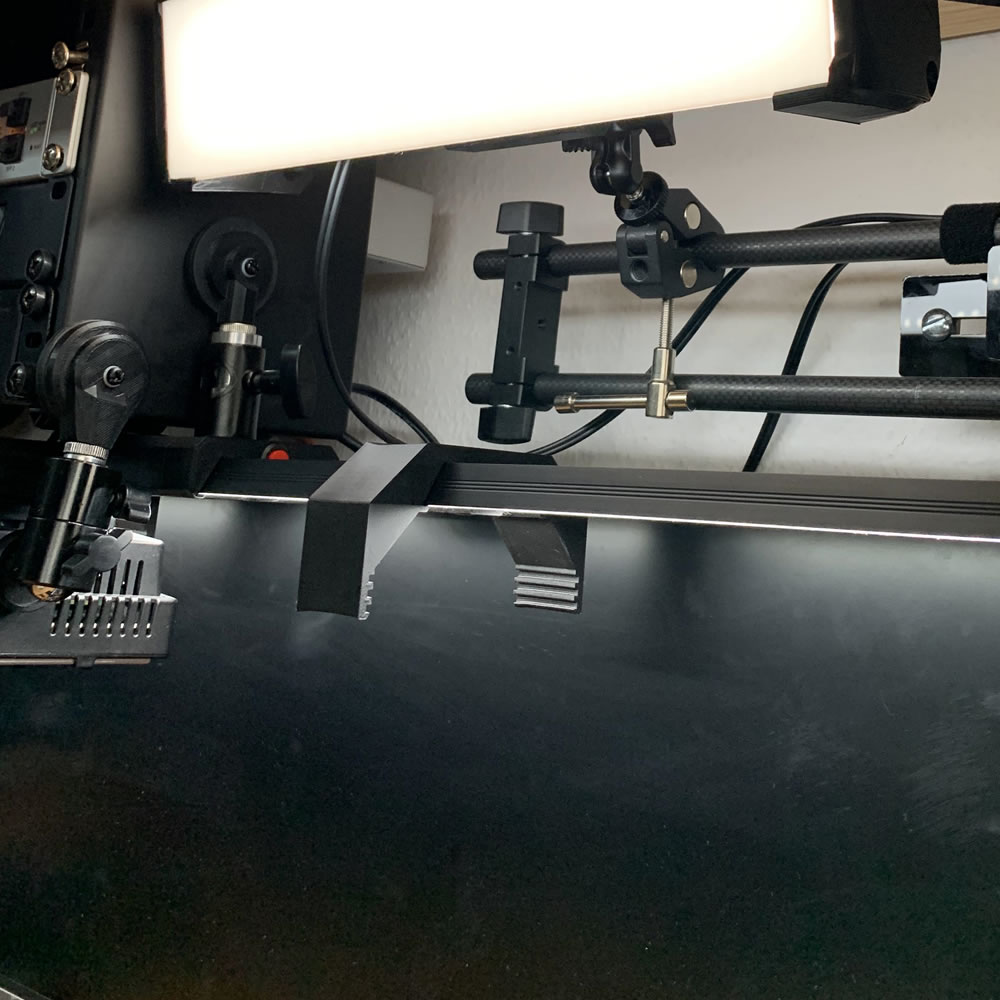

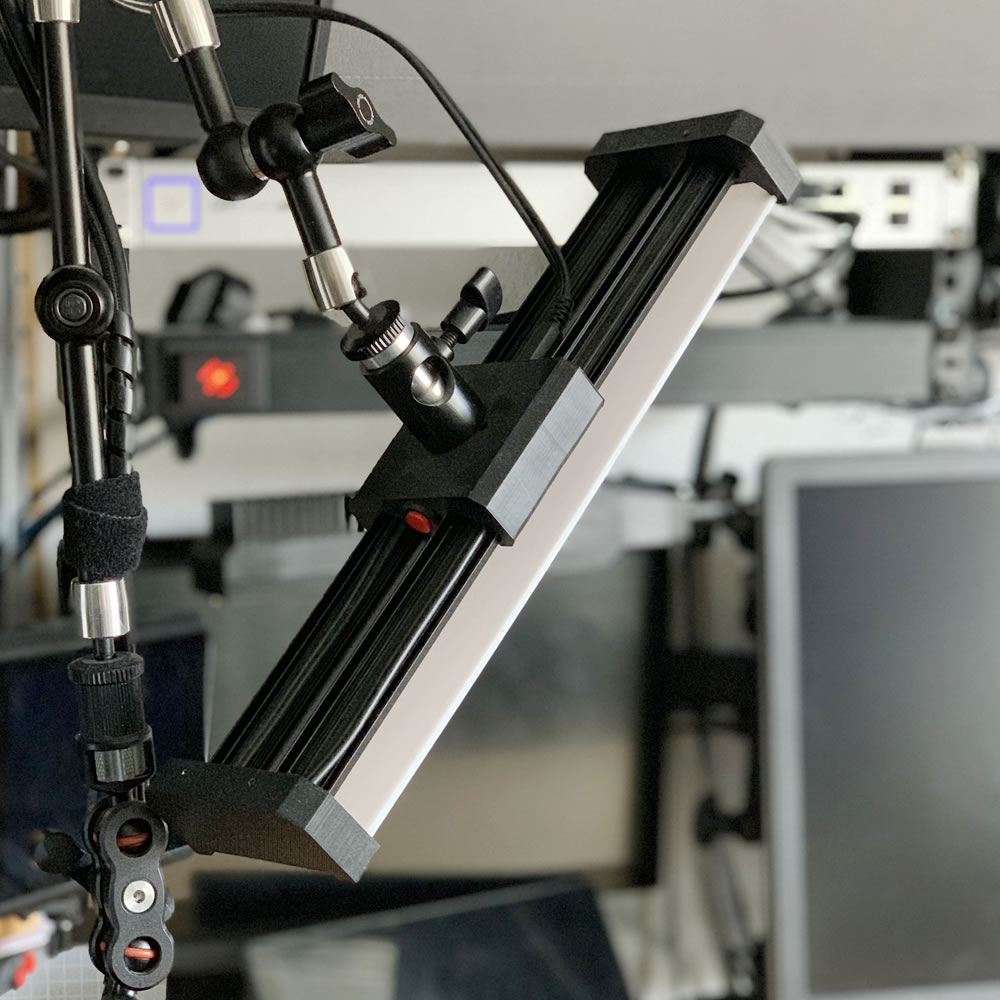

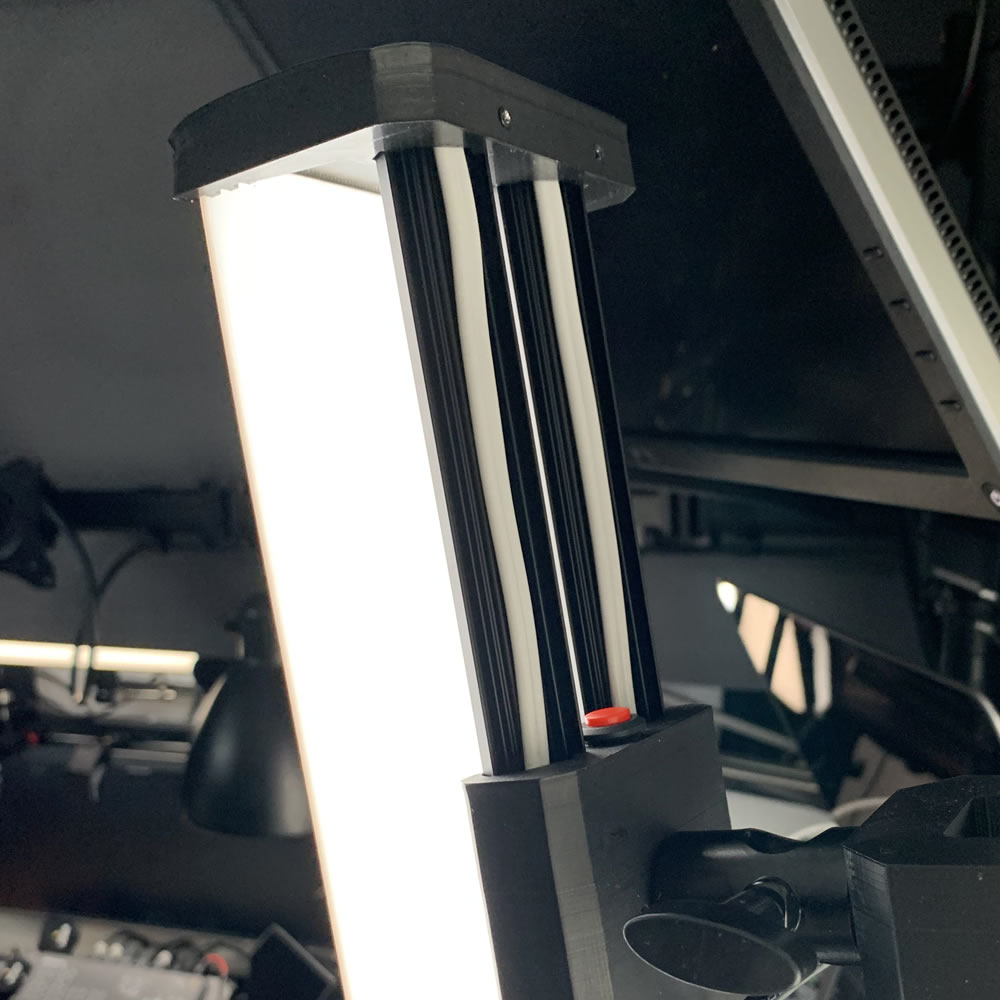

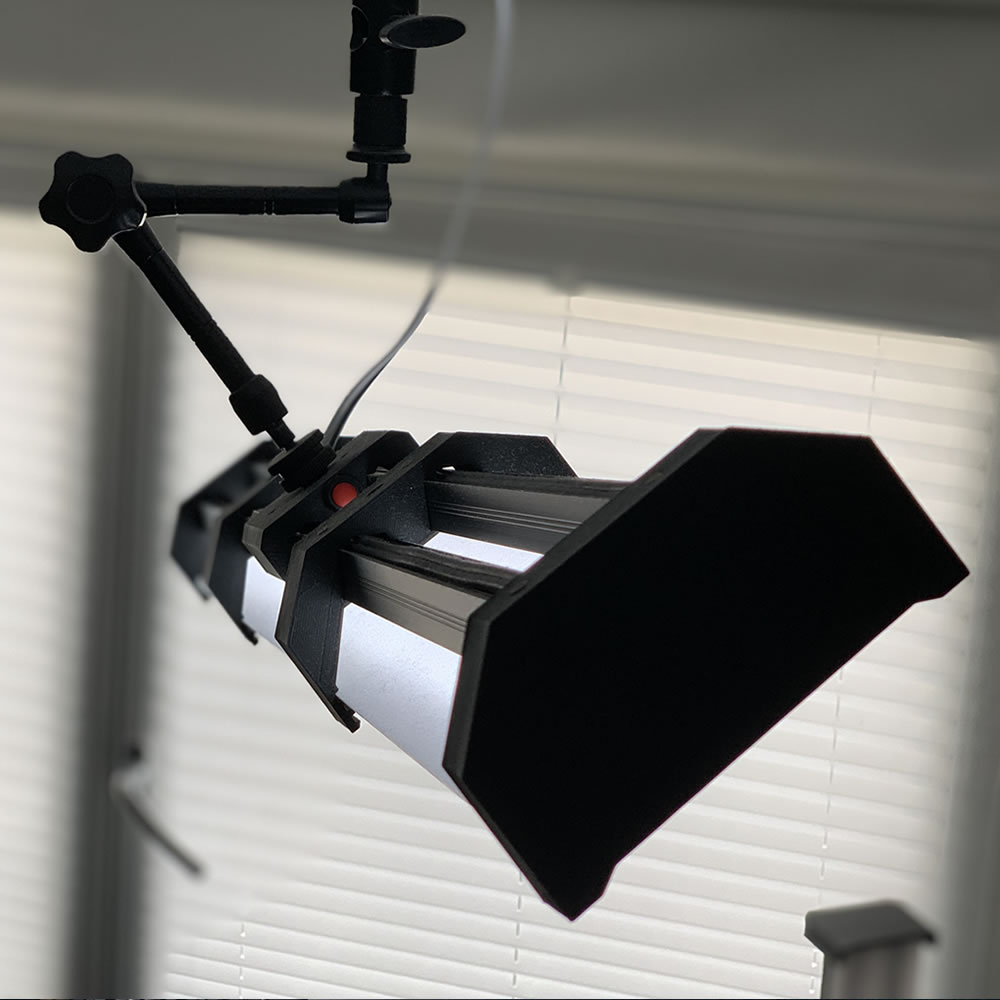

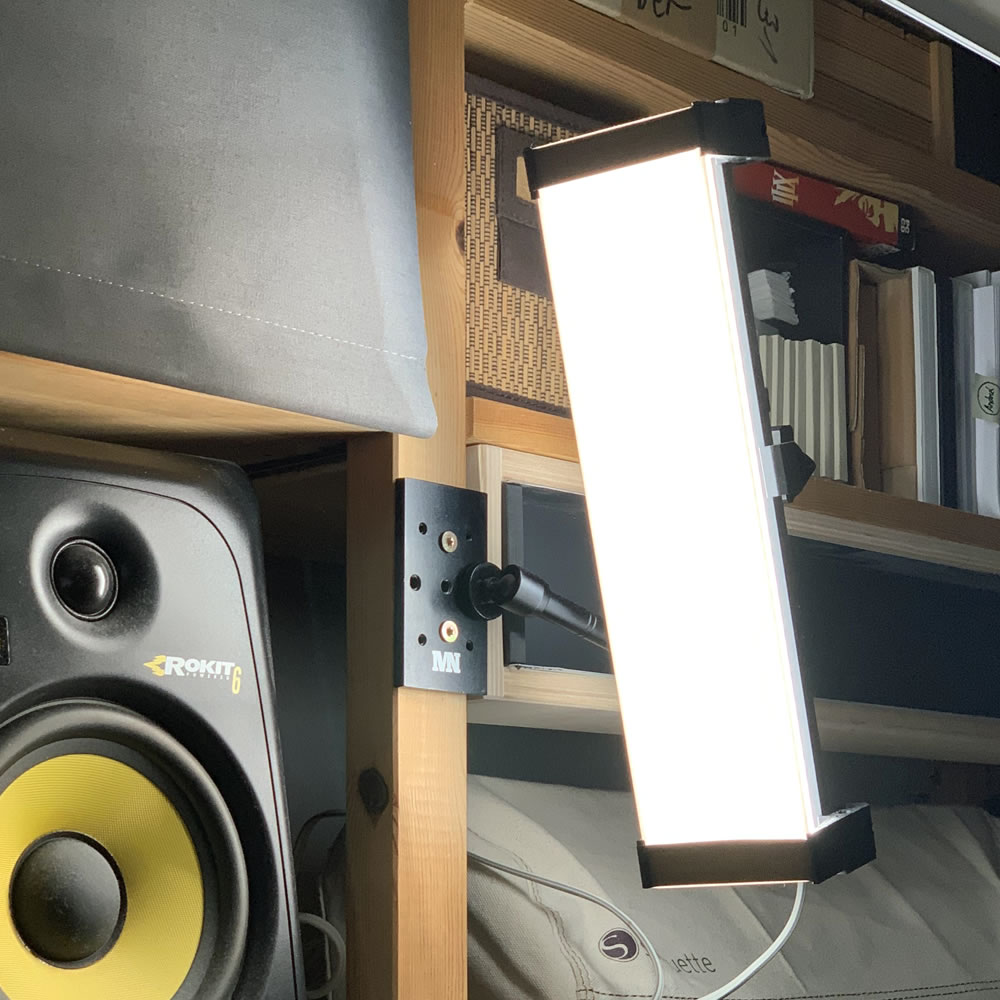

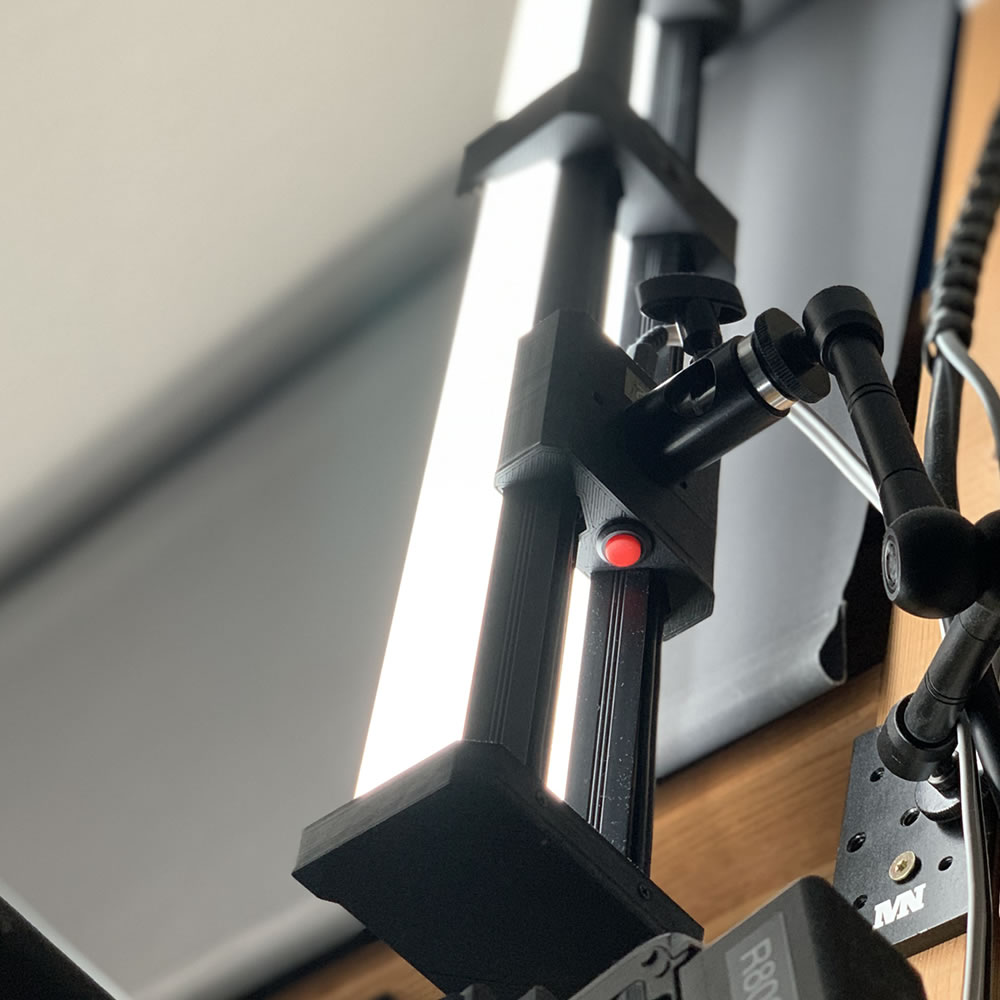

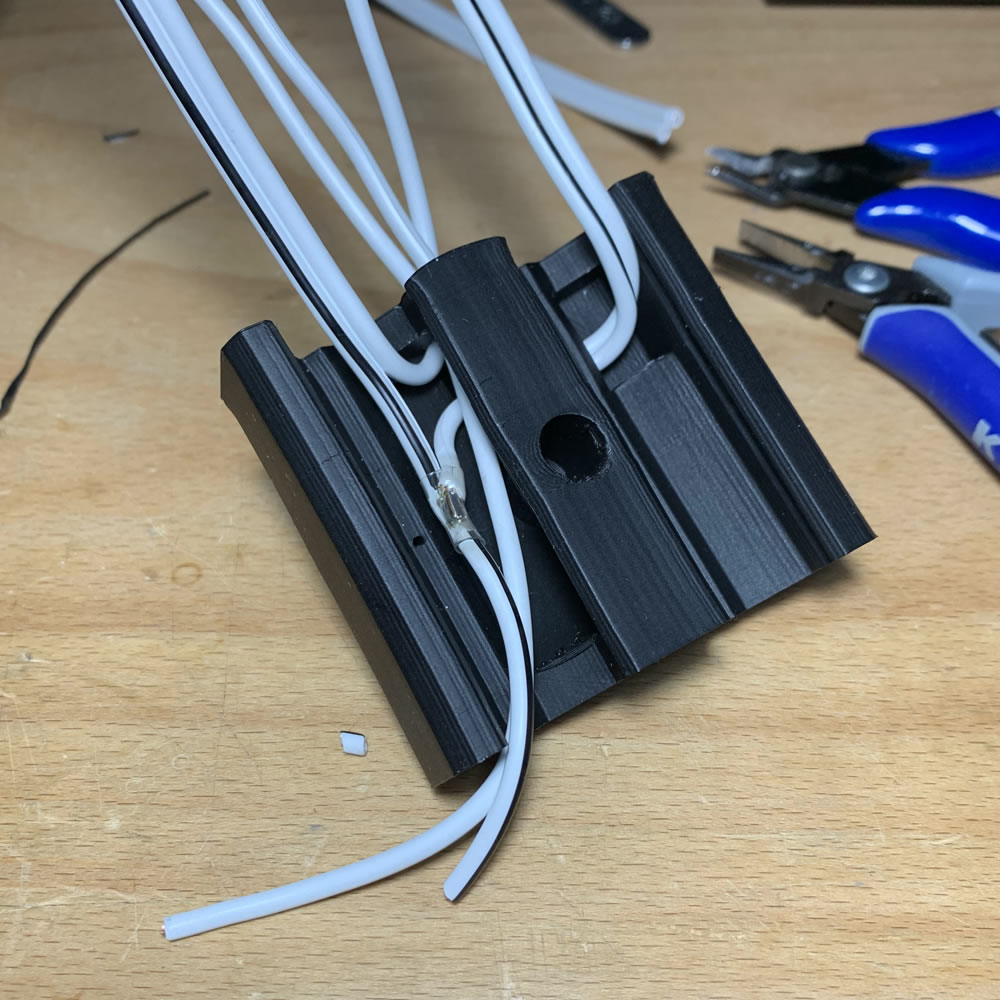

I needed some light sources for my studio setup. I had very strict requirements regarding size, color temperature, power consumption, heat-dissipation, dimmability, compatibility, mounting, weight and of course: price. The result can be seen on the photos below. The basic concept relies on of the shelf extruded aluminium rails that have a very interesting cross section design allowing a good cooling performance. The whole design is based on a few structural element that give the lights a rigid body while keeping it absolutely lightweight. I use for all my lights the same spigot studio connector. The endcaps allow for up to 3 filter inserts. I mostly use them with a high diffusion acrylic filter that does not blind the person in front of the light (me) and smoothing it to a very soft point.
The complete guide will take some time to create. Please stand by and subscribe if you want to keep posted.

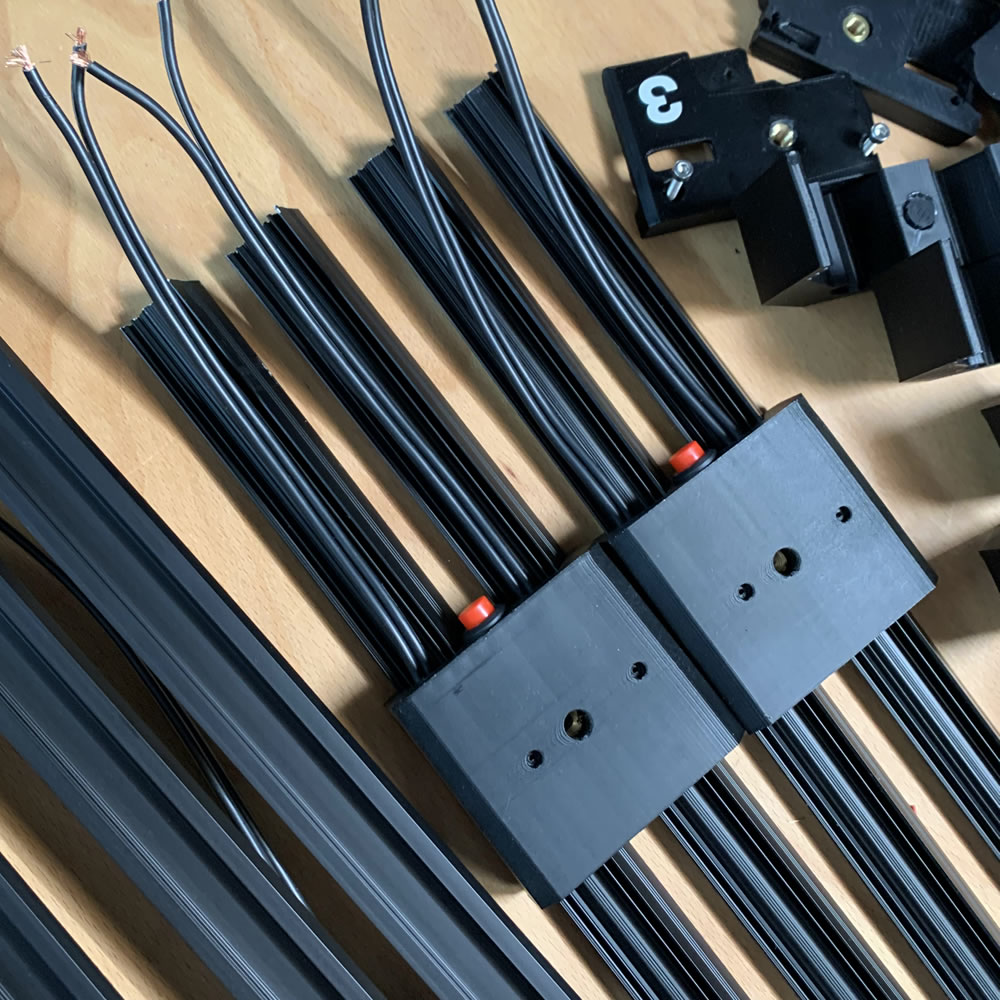

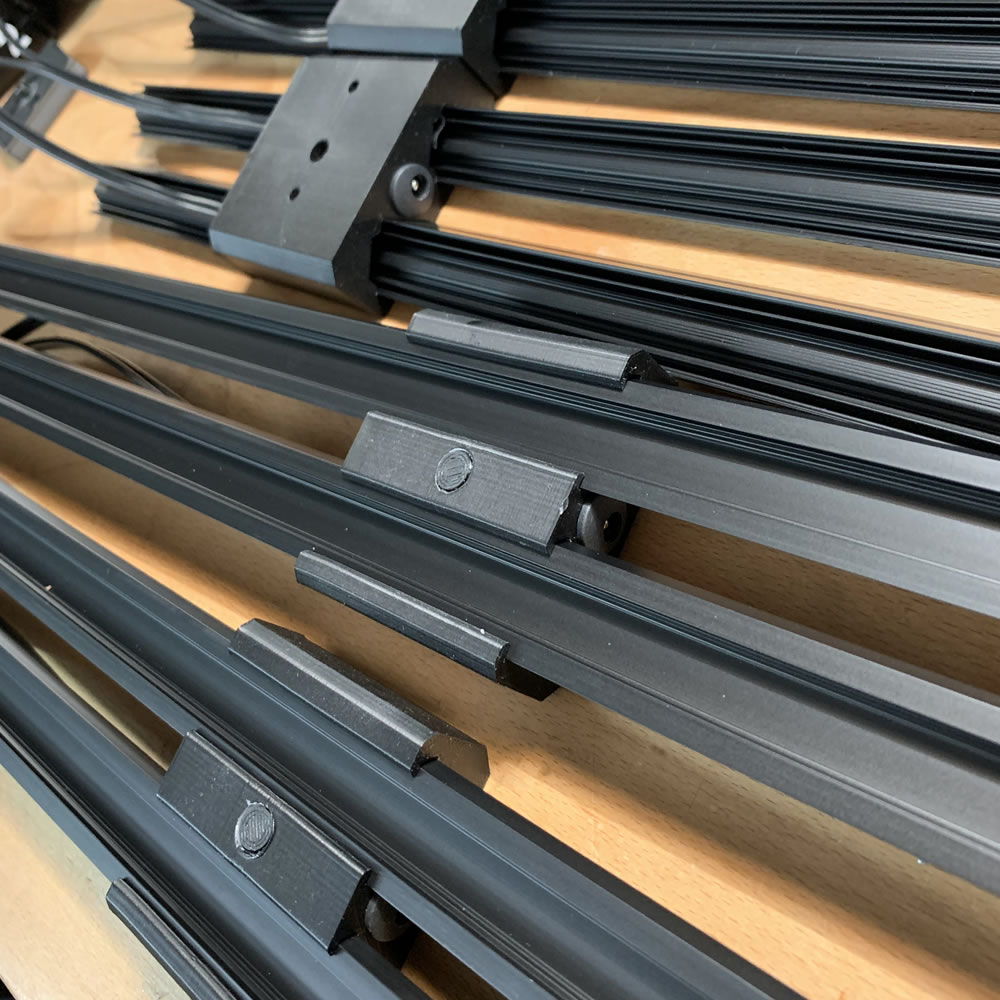

Assembled Parts
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
For positioning the parts on the rail
Source: local, ebay
8x
± 0.05
sum: 0.40
Threaded insert 1/4
Brass Insert for 1/4'' camera mounting options
Can be used to mount to camera equipment
Source: local, ebay
2x
± 0.40
sum: 0.80
Red push button OPTIONAL
Latching, SPST button switch ~12x30mm
On/Off push button
Source: ebay
1x
± 0.50

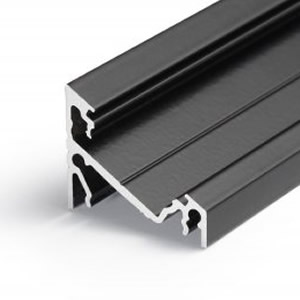

LED Aluminium Profile UNIT IN METER
Aluminium extrusion profile for 10mm LED Strips
Cut into sizes of 2x 600mm
Source: ebay
1.2m
± 8.00
sum: 9.60
LED Strip UNIT IN METER
24V high brightness LED Strips 10mm
Cut into strips of 2x 600mm
Source: ebay
1.2m
± 5.00
sum: 6.00

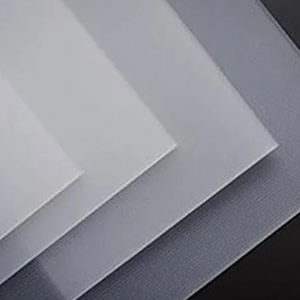

Acryl Diffuser UNIT IN CM²
Custom cut acryl diffuser for LED (2mm)
Custom cut of 75x600mm
Source: local, ebay
450cm²
± 0.02
sum: 9.00
Barrel Port
Round 5.5x2.5 barrel socket female
Power in socket
Source: ebay
1x
± 0.40
Without optional parts =
6 (16 pcs)
~ 26.20
All parts =
7 (17 pcs)
~ 26.70
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
