MO640
Light Joist
Mounting LEDS on the ceiling via magnets
Fluorescent tubes of the future

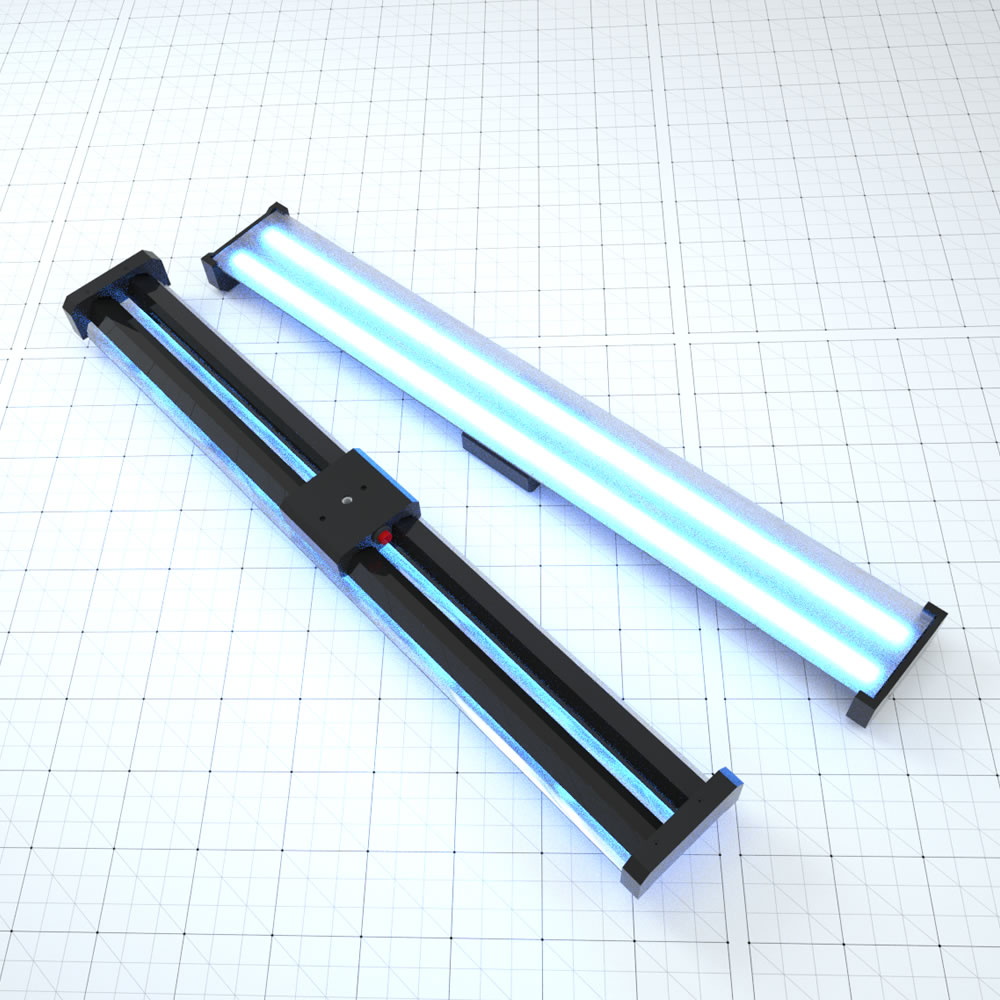

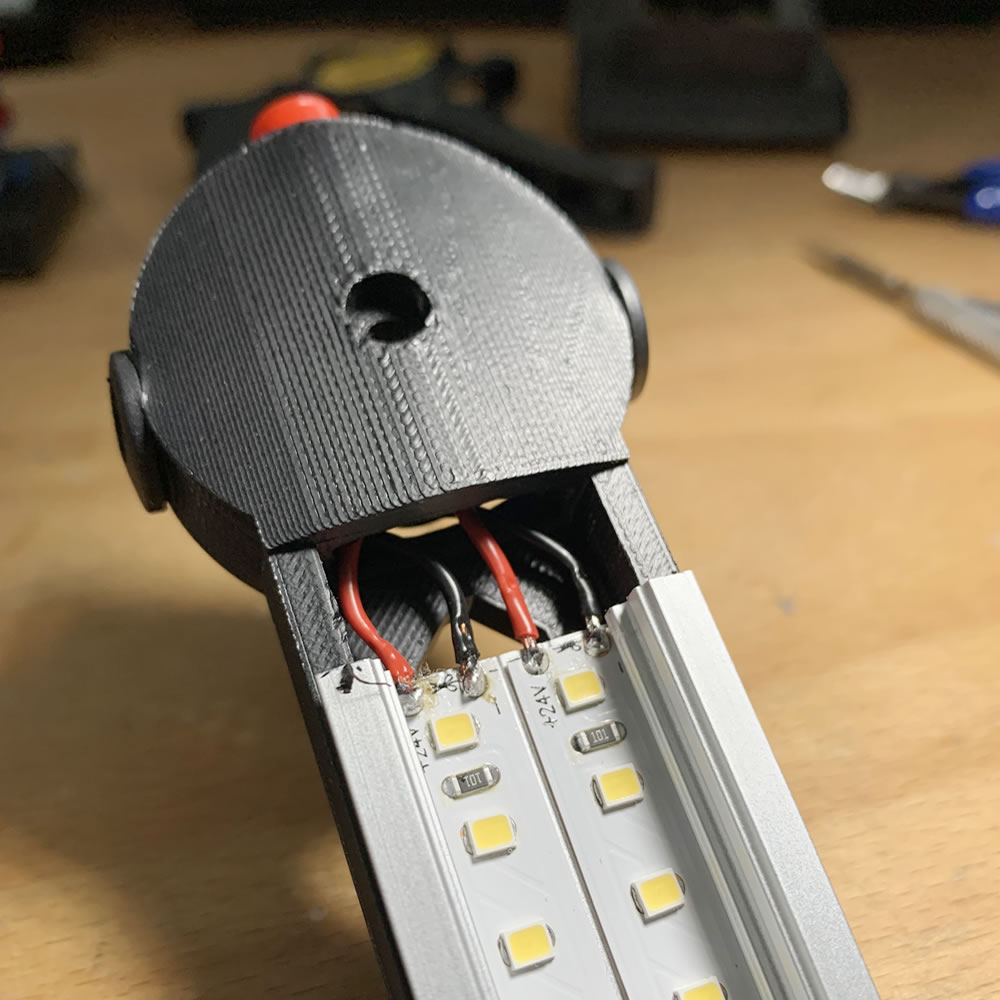

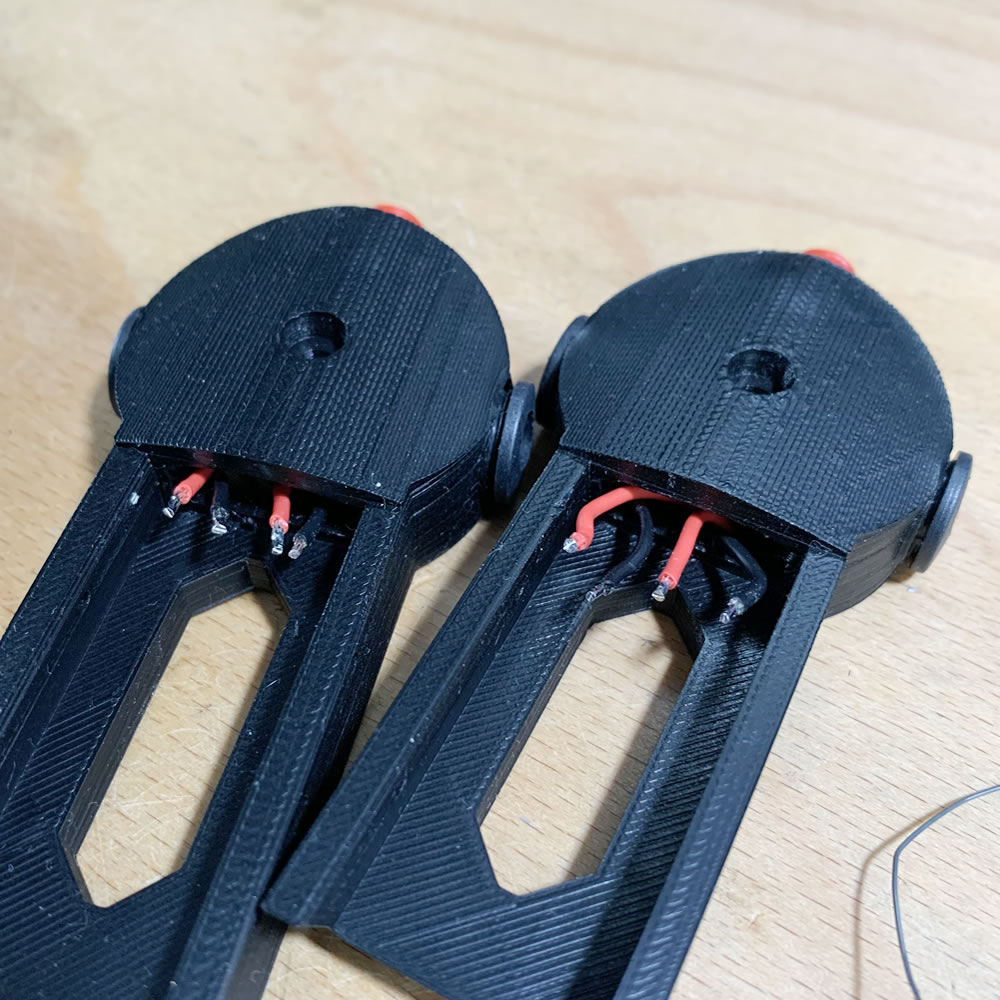

I was in need to light my shop with 2 meter long light profiles and came up with these designs. They have in- and out-ports for 24V Power, a switch to toggle each segment and have a magnetic base for easy mount and dismount for various sitations. I build 4 of those and mounted them to my ceiling rail system.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤

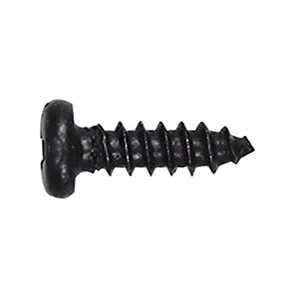

Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
For fixing the part on the profile
Source: local, ebay
8x
± 0.05
sum: 0.40

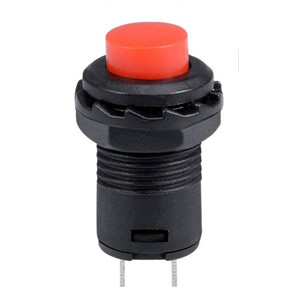

Red push button OPTIONAL
Latching, SPST button switch ~12x30mm
On/Off push button
Source: ebay
1x
± 0.50

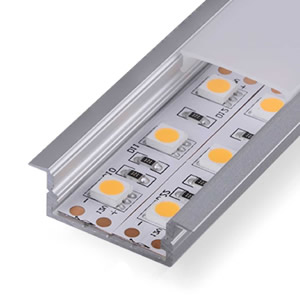

LED Aluminium Profile UNIT IN METER
Aluminium extrusion profile for 2x 10mm LED Strips
Can hold 2x 10mm LED Strips
Source: ebay
2m
± 7.00
sum: 14.00

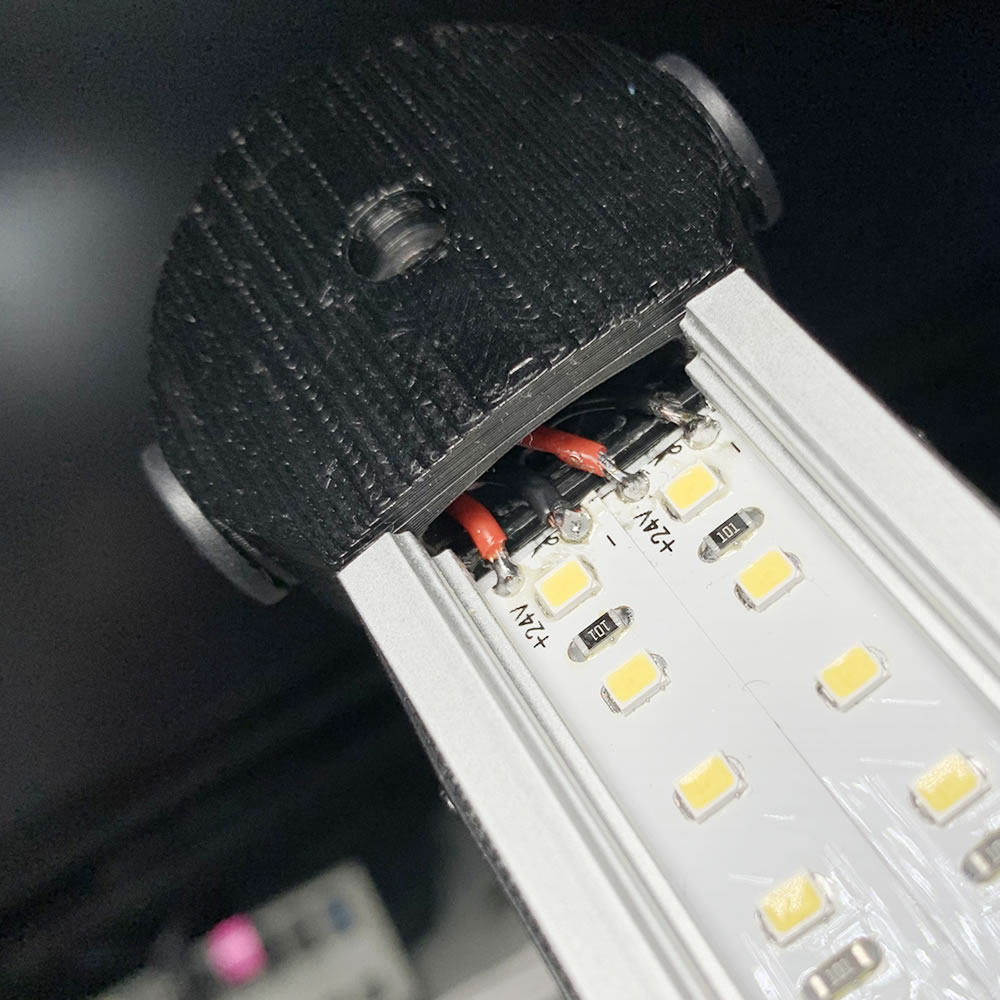

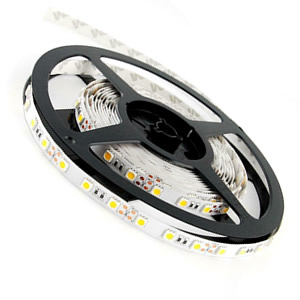

LED Strip UNIT IN METER
24V high brightness LED Strips 10mm
2x 2m strips side by side
Source: ebay
4m
± 5.00
sum: 20.00

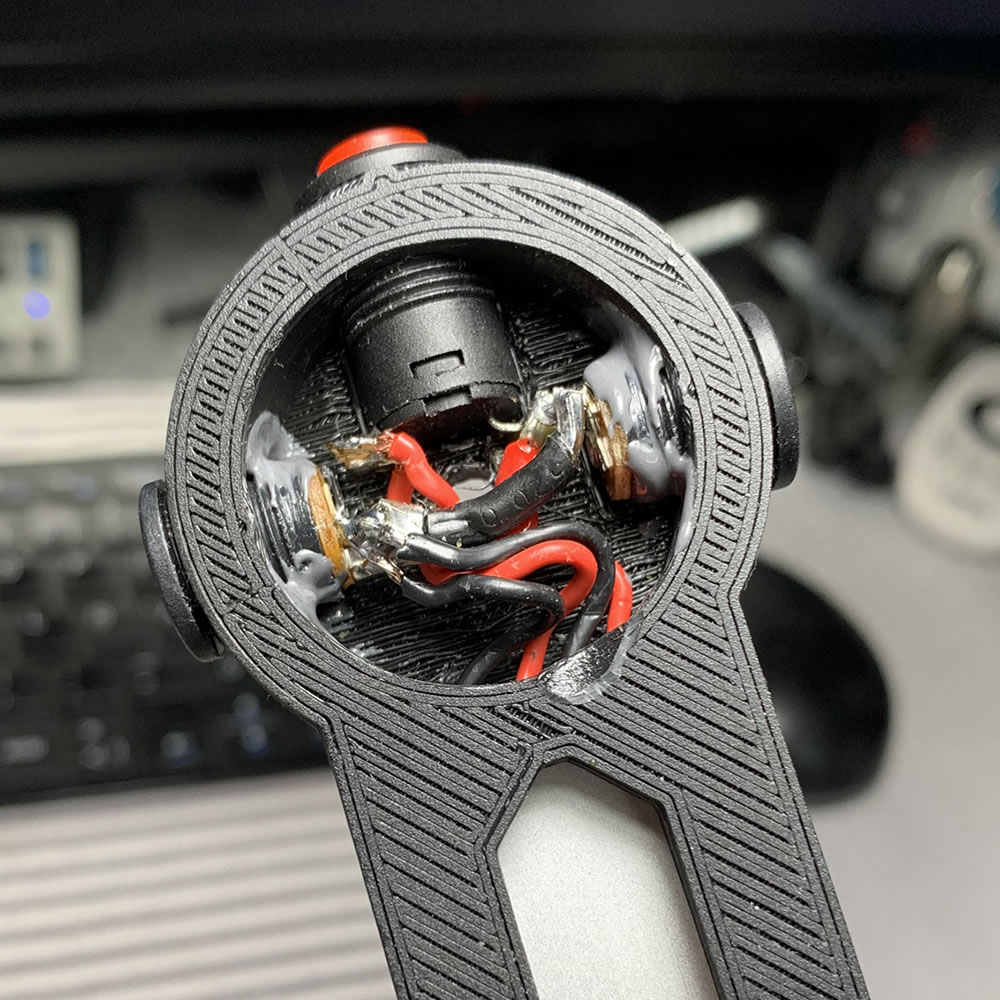

Barrel Port
Round 5.5x2.5 barrel socket female
Power in & out socket for daisy chain
Source: ebay
2x
± 0.40
sum: 0.80

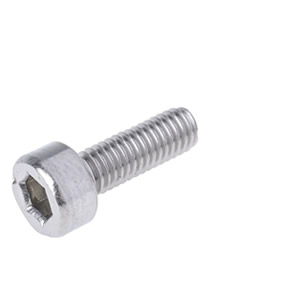

M4x25 Bolt
Standard M4x25mm Hex Bolt
Holding the magnet to the Housing
Source: local, ebay
2x
± 0.30
sum: 0.60

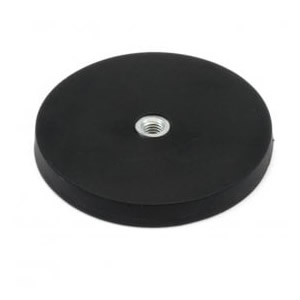

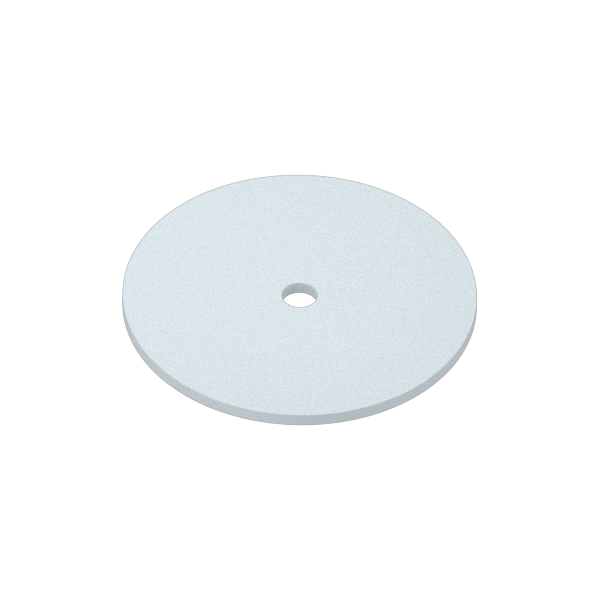

Magnet Disk
Generic magnet with bore, ~ 42x6mm
Easy mount and dismount from the ceiling
Source: local, ebay
2x
± 3.00
sum: 6.00
Without optional parts =
6 (20 pcs)
~ 41.80
All parts =
7 (21 pcs)
~ 42.30

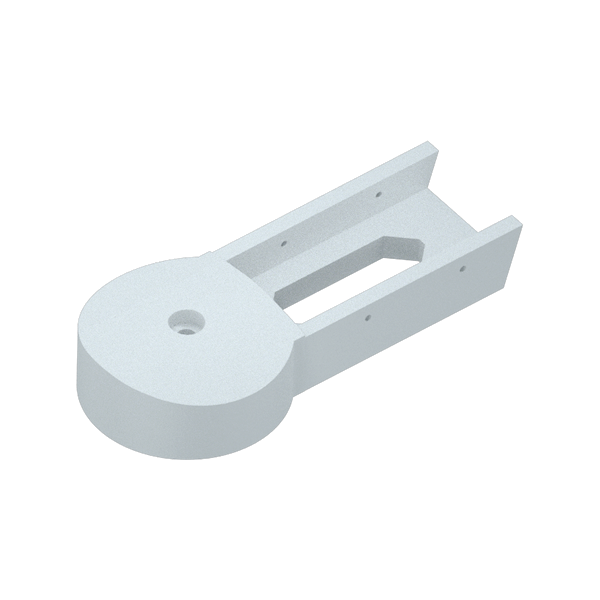

STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
