MO750
Cam Holder
Cam Holder Weight
Flexible

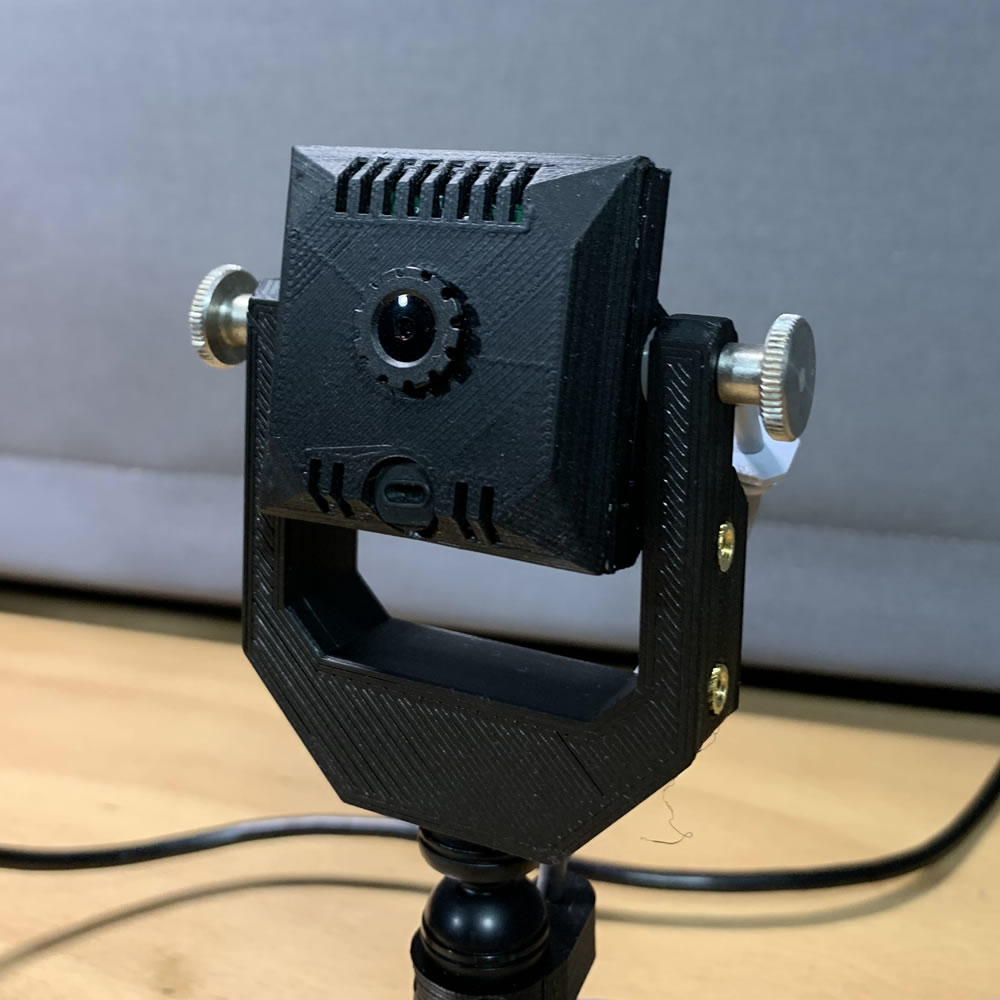

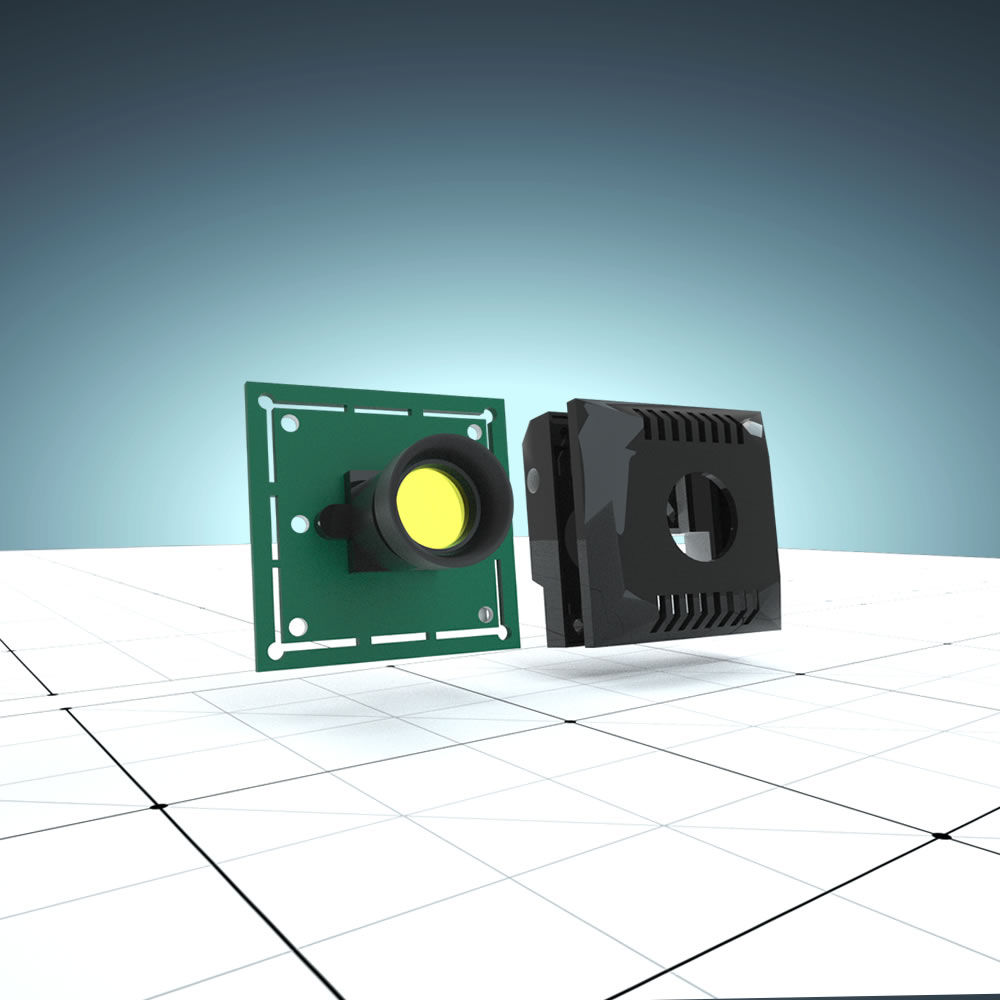

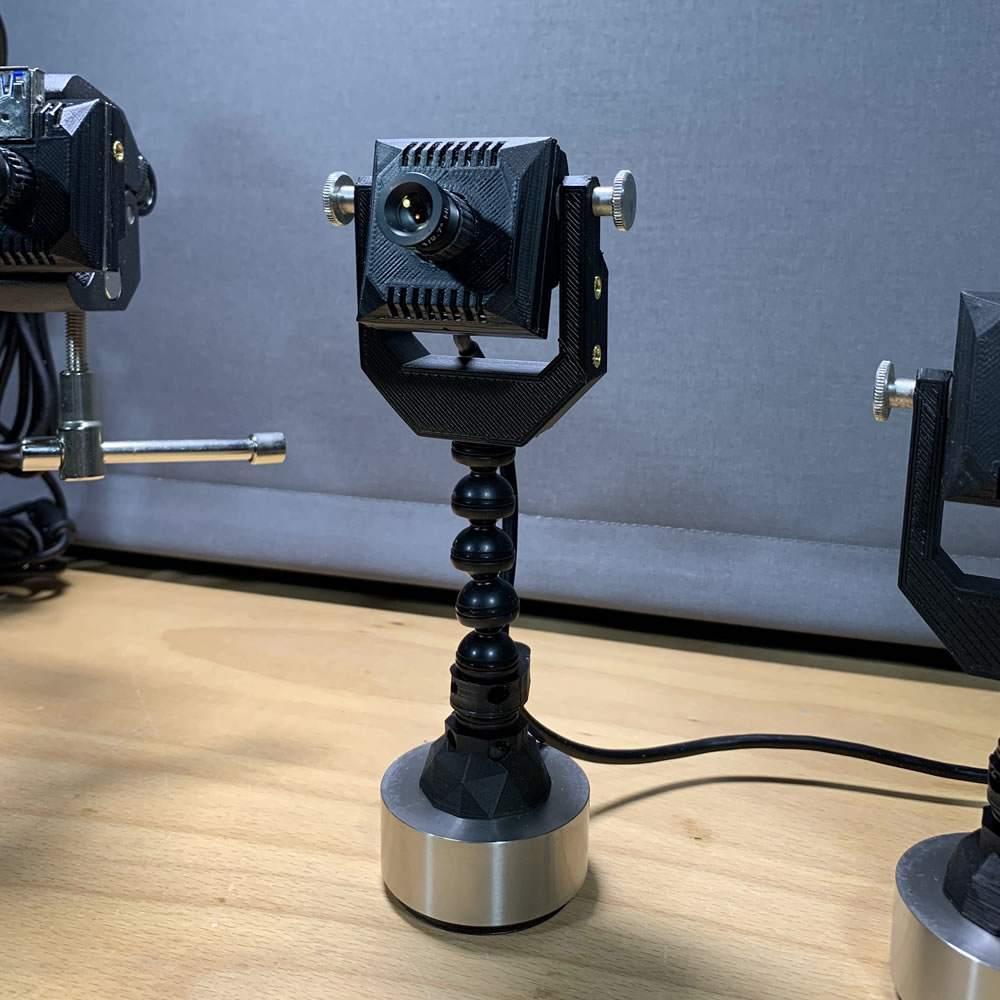

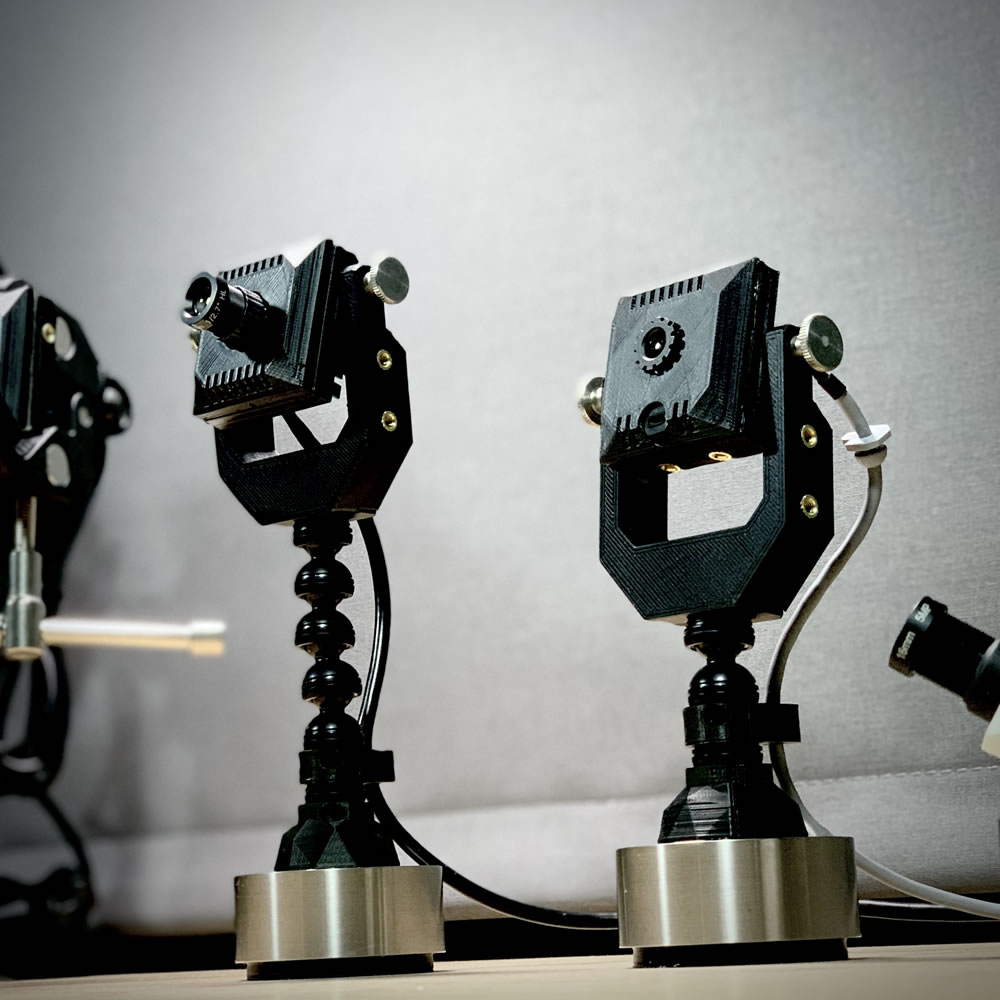

This holder gives you ample options of adjusting the Camera in the right position. It can rotate, twist and be bend into the desired config for the ideal chot. All square cams are supported.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Two holding the cover, one for the heatsink
Source: local, ebay
4x
± 0.05
sum: 0.20

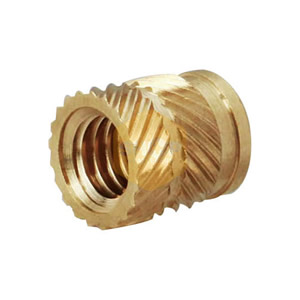

M3 Threaded insert COMMON OPTIONAL
Brass Insert for M3 4,4x7, long version
Can be used to mount additional parts
Source: local, ebay
4x
± 0.30
sum: 1.20
M3 Threaded insert COMMON
Brass Insert for M3 4,4x7, long version
Holding the base to the neck
Source: local, ebay
1x
± 0.30

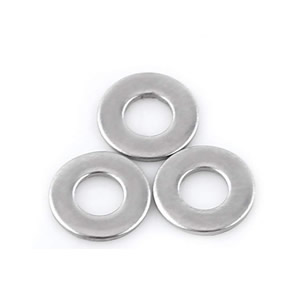

M3 Metal Washer COMMON
Standard M3 Metal Washer ~.3mm shim
Protection of the thumbscrew against the print
Source: local, ebay
2x
± 0.02
sum: 0.04
M3 Thumb Screw
Thumb Screw with M3 thread OD=12-20mm
Fast angle correction via Thumbscrews
Source: local, ebay
2x
± 0.60
sum: 1.20

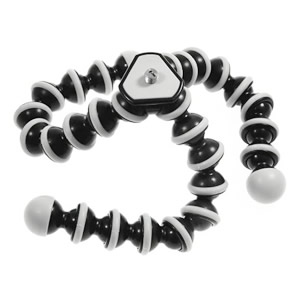

Octopus Flexible Tripod
3-armed flexible segments, 15mm diameter
You need only one leg, cut off the rubber if you want
Source: ebay
1x
± 4.00

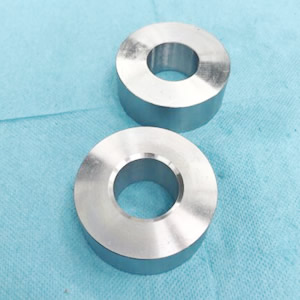

Round Steel Piece SPECIAL
Turning piece OD=50mm, ID=25mm, H=20mm

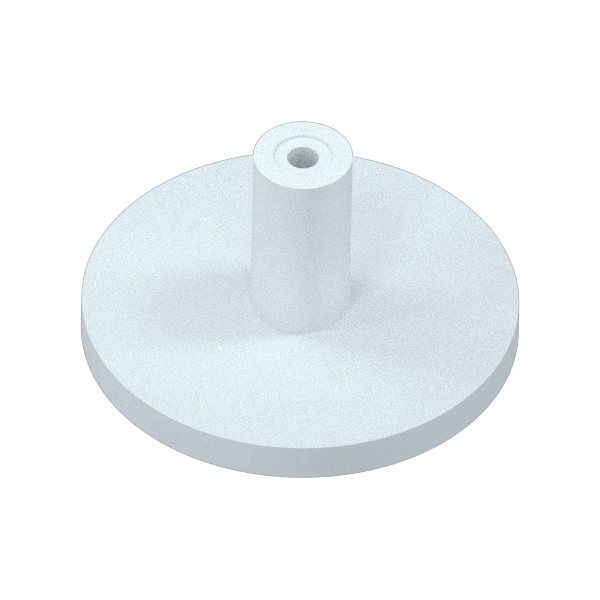

Heavy weight to give the cam a stable base
Source: ebay
1x
± 12.00
Without optional parts =
6 (11 pcs)
~ 17.74
All parts =
7 (15 pcs)
~ 18.94
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
