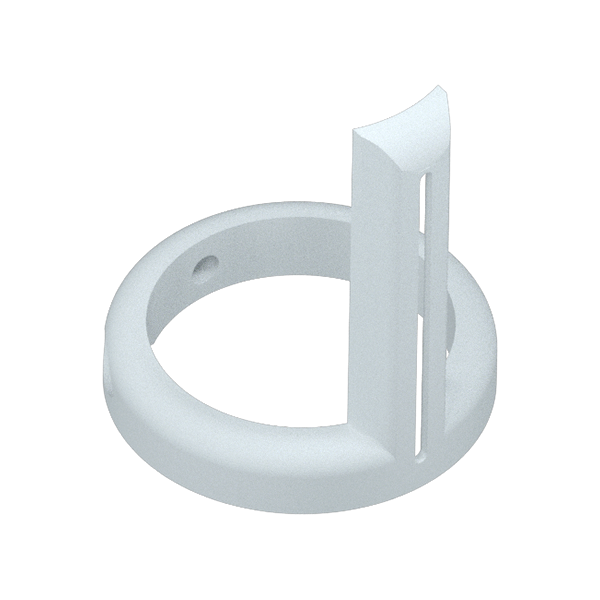

MO830
Micro LED
Depth indicator for microscope travelway
Depth gauge

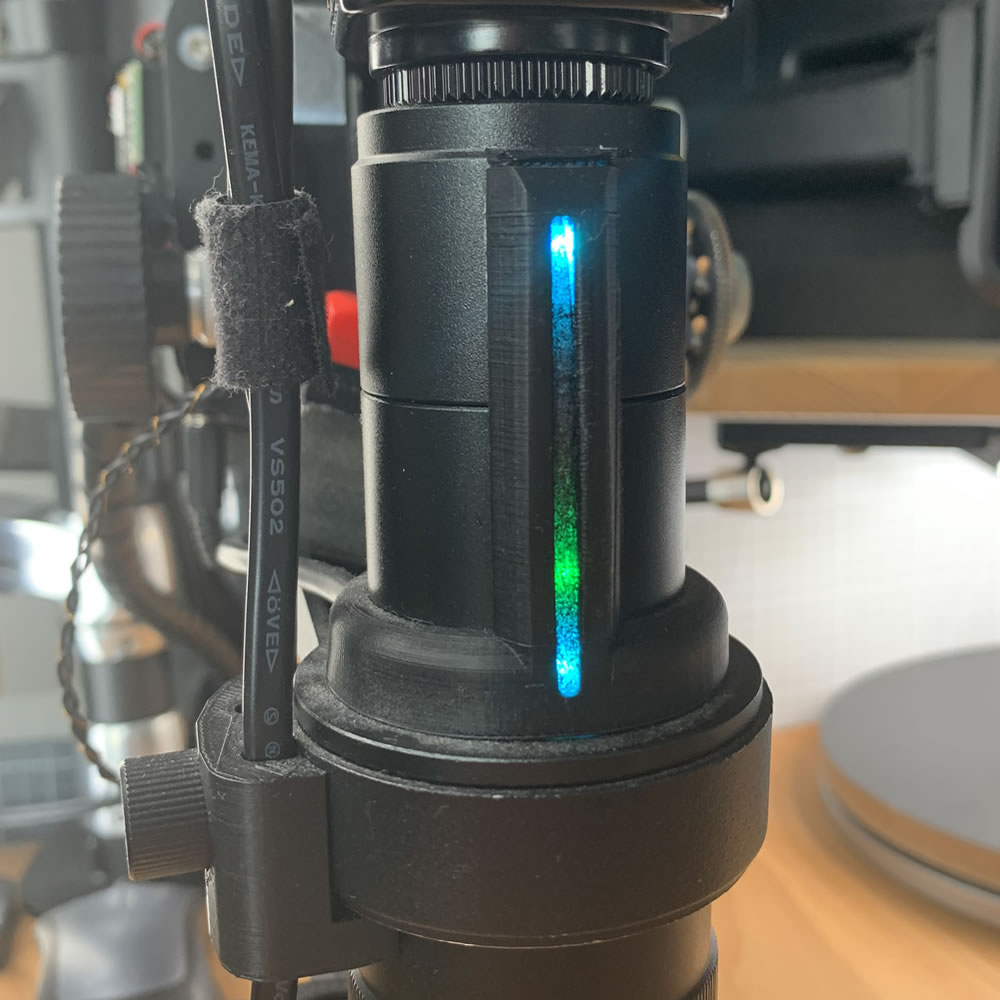

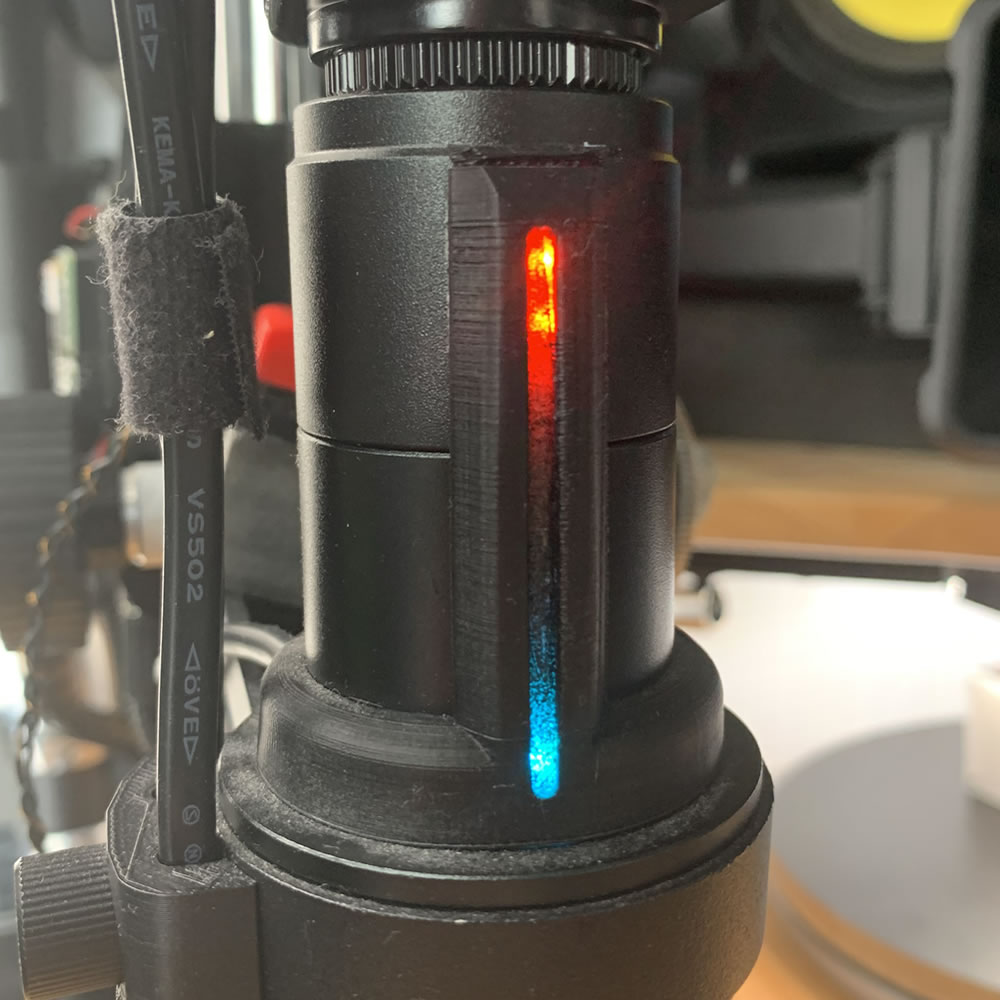

When working on the Microscope I never knew how much travelway I currently have left or where I am at all on the scale. I used a slide potentiomter to messaure the depth of travel and visulize it with this mini LED strip light. On reaching max positions the led blinks red.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Miniature RGB LED SPECIAL
WS28 like super narrow LED strip width=~3mm
Display the current depth/position of camera
Source: ebay
1x
± 3.00
All parts =
1 (1 pcs)
~ 3.00
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
