Power Distri
Custom Studio Part
Power ALL the things

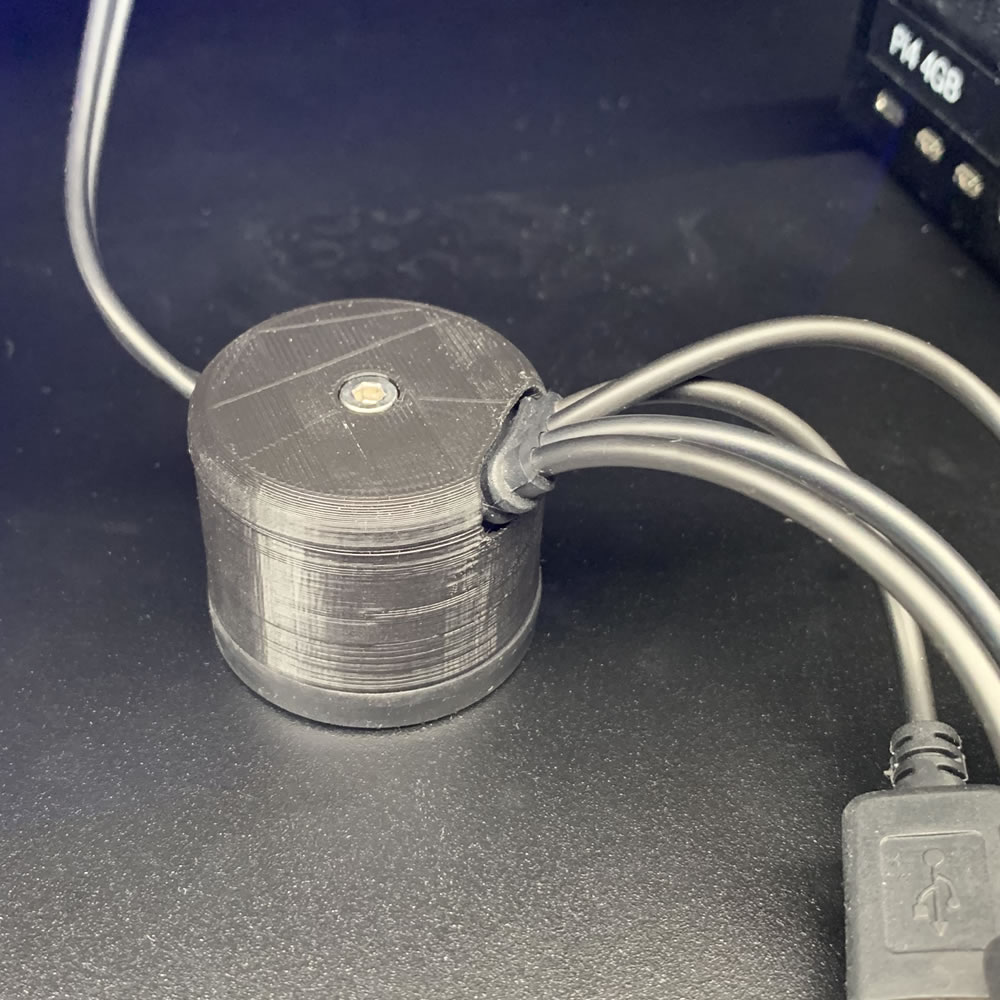

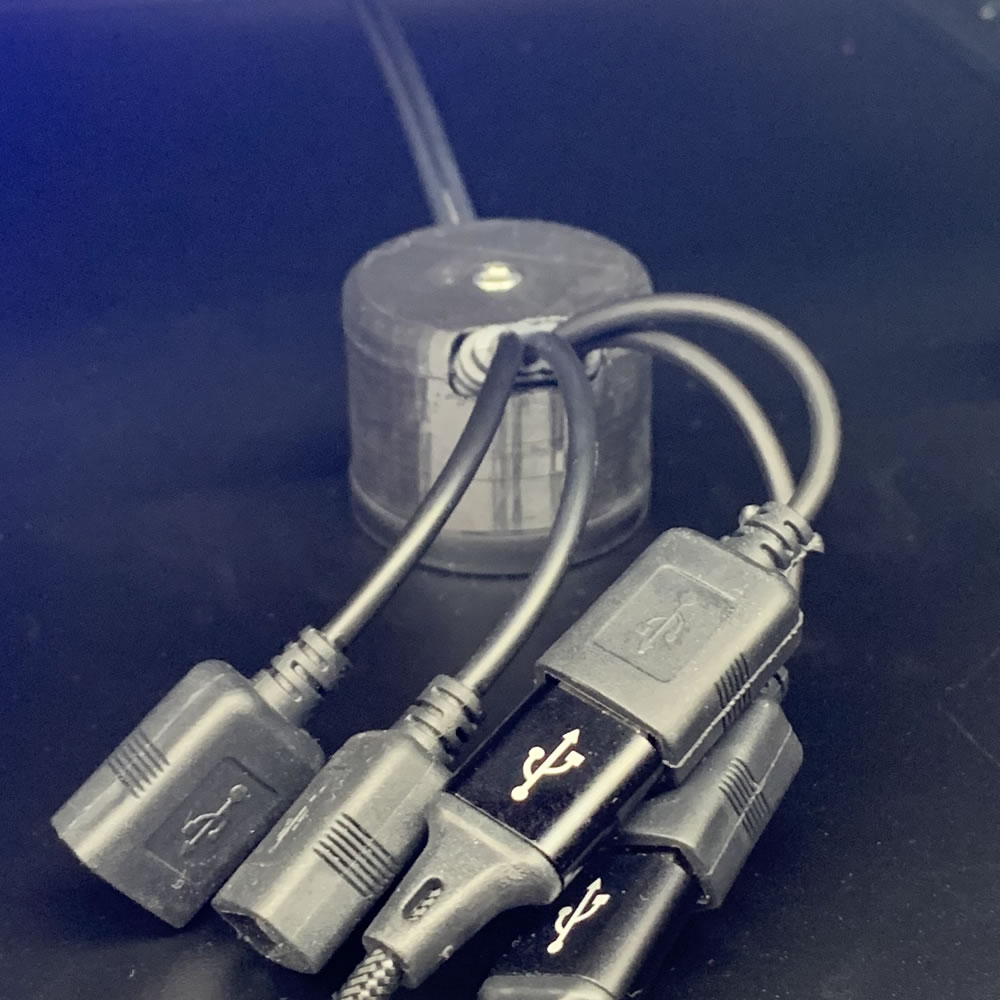

When powering devices via USB your never have enough ports. I build this small outlet to insert 5V/7A of power and having a quick way of connecting and unconnecting arduinos and RPis on demand inside my rack, For tht I added a magnet feet to the bottom to keep the movement to a minimum. It served me well until I switched most of my RPi to the POE+ hats. Now I use it power ESP and Arduino with it.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
M3x25 bolt COMMON
Standard M3x25 Hex Bolt
Holding the magnet in place
Source: local, ebay
1x
± 0.20
Magnet Disk
Generic magnet with bore, ~ 42x6mm
Alter the model to use any magnet you have in stock.
Source: local, ebay
1x
± 3.00
All parts =
2 (2 pcs)
~ 3.20
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
