MO420
PWM Case
Magnetic PWM Motor-Control Case
Big big Fan

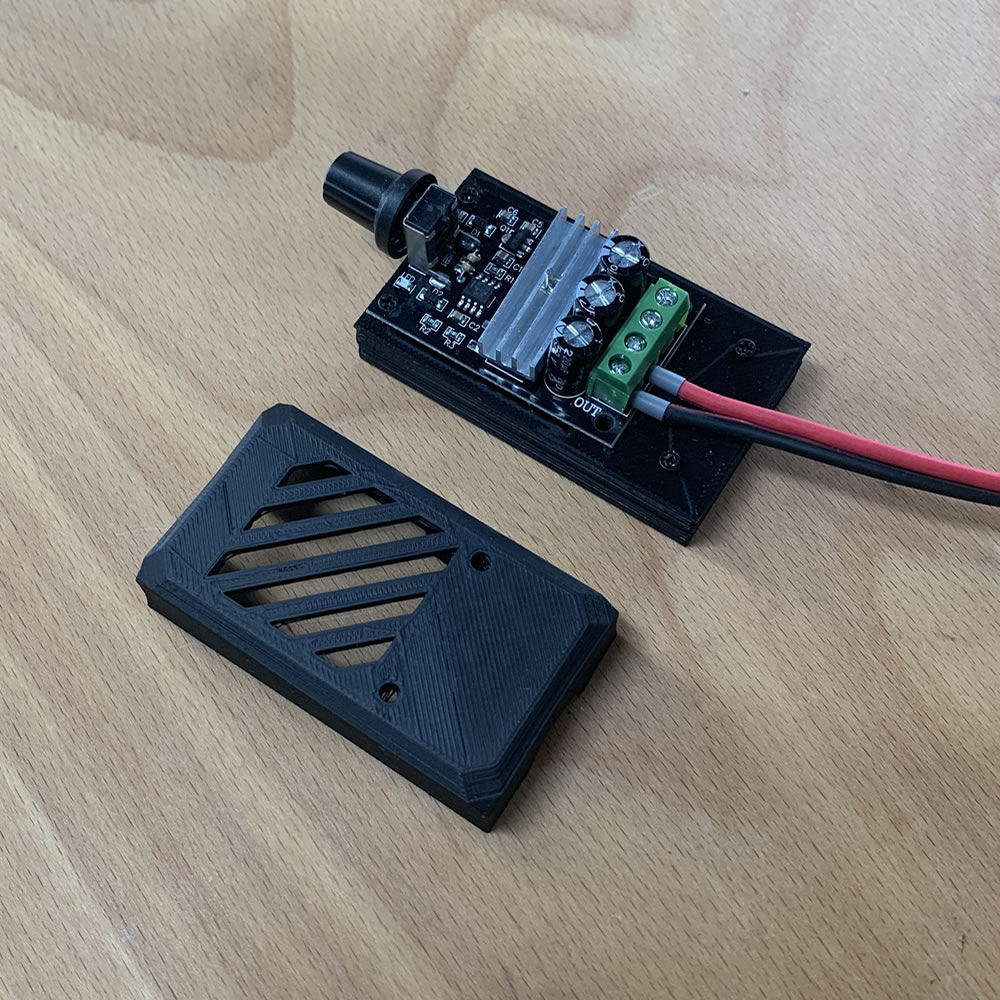

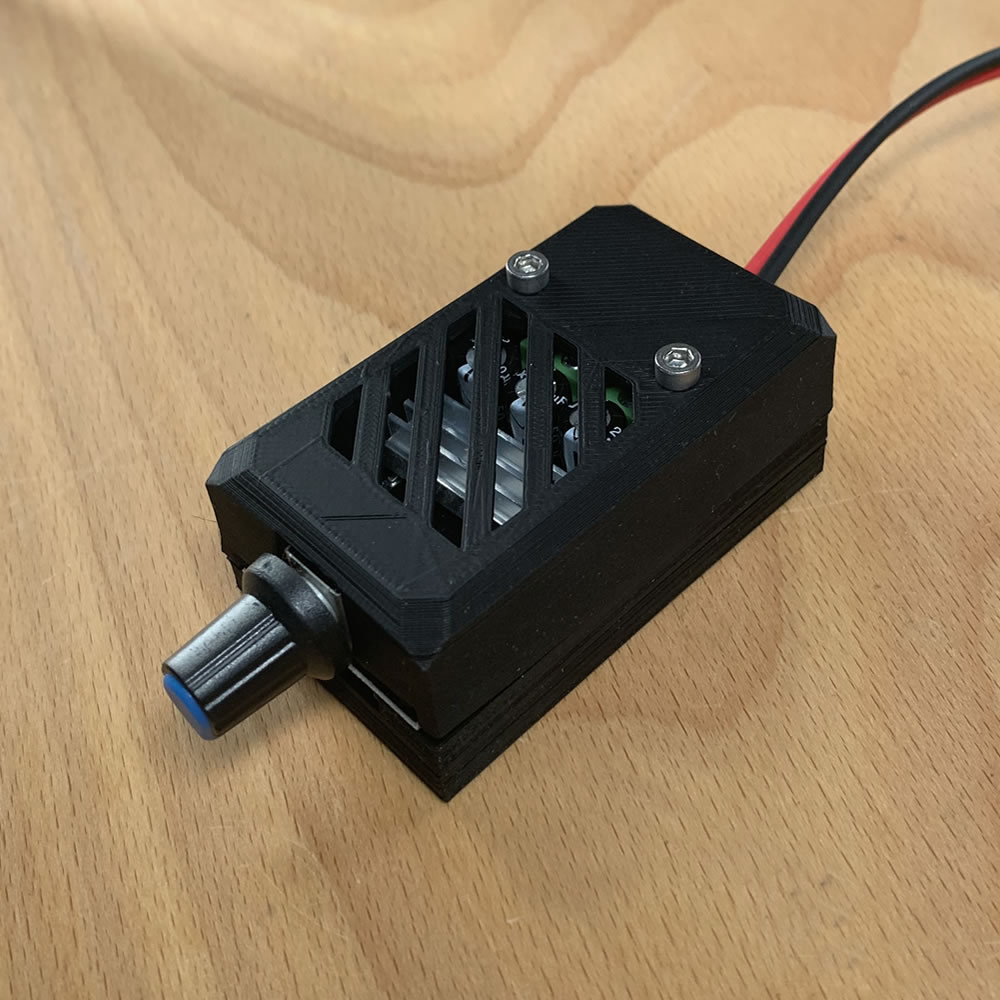

I use some fans inside my server rack and not always had the possibility to be inr each for a PWM controller to adjust the speed for the fan. So I created this small case to hold a standard PWM controller to control any fan or motor. I attached a magnet to the buttom so I can mount it anyhwere inside my server rack for optimal reach.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Holding the controller down
Source: local, ebay
2x
± 0.05
sum: 0.10
12/24V PWM Control

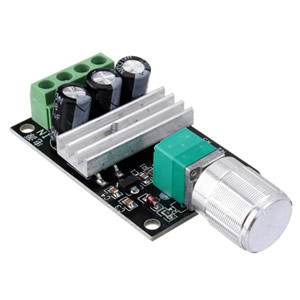

12V/24V@3A PWM Controller
PWM controller for fan speed control
Source: ebay
1x
± 4.00

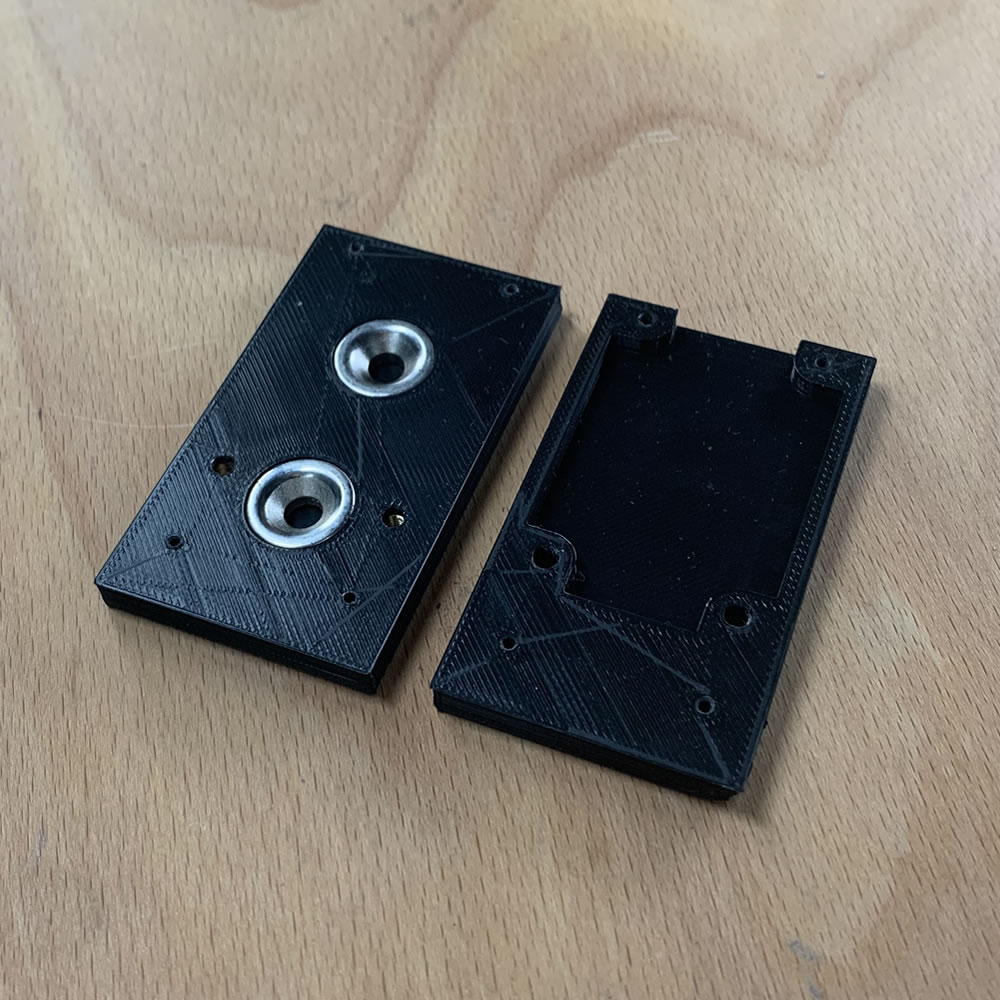

Magnet Disk OPTIONAL
Small magnet with 4mm hole, ~ 15x3mm
Placed on the bottom for easy mounting
Source: local, ebay
2x
± 0.70
sum: 1.40
M3 Threaded insert COMMON
Brass Insert for M3 4,4x7, long version
Counter thread for the bolts
Source: local, ebay
2x
± 0.30
sum: 0.60
M3x30 bolt COMMON
Standard M3x30 Hex Bolt
Holding the cover down
Source: local, ebay
2x
± 0.20
sum: 0.40
Without optional parts =
4 (7 pcs)
~ 5.10
All parts =
5 (9 pcs)
~ 6.50
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
