MO240

Spigot

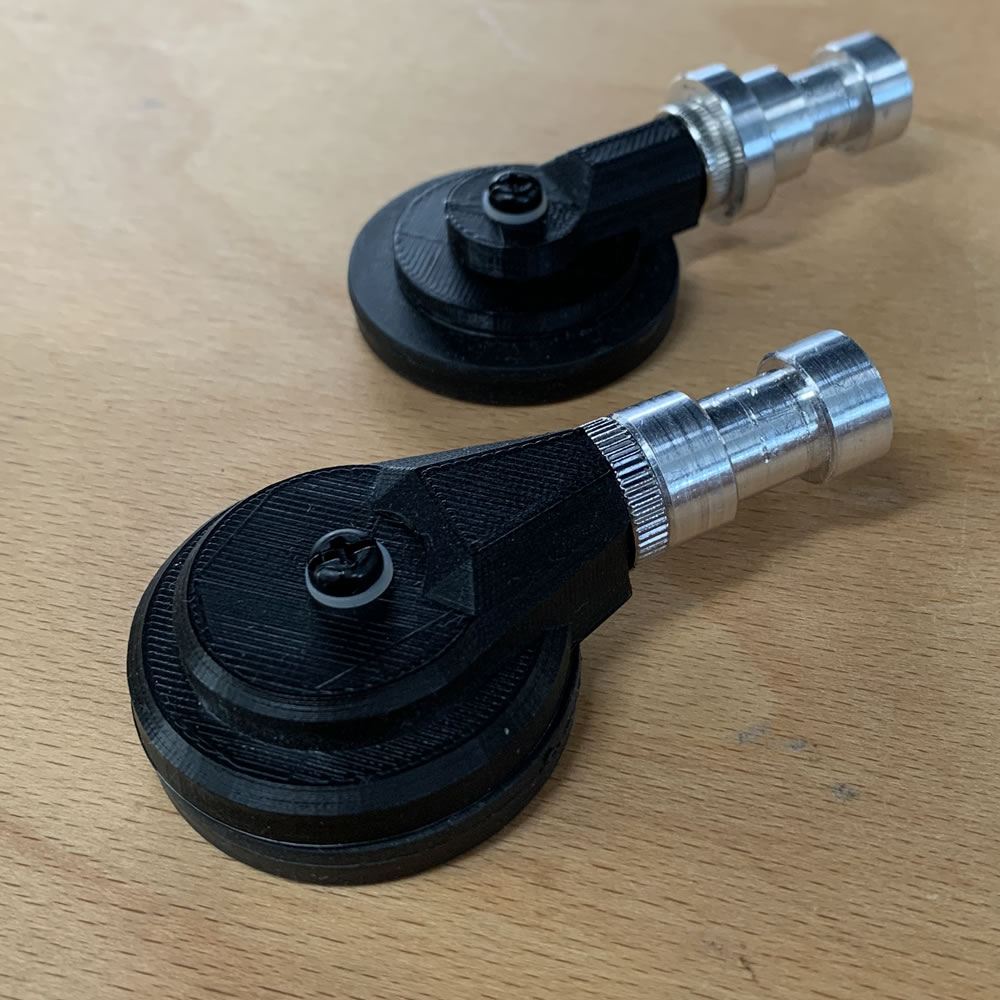

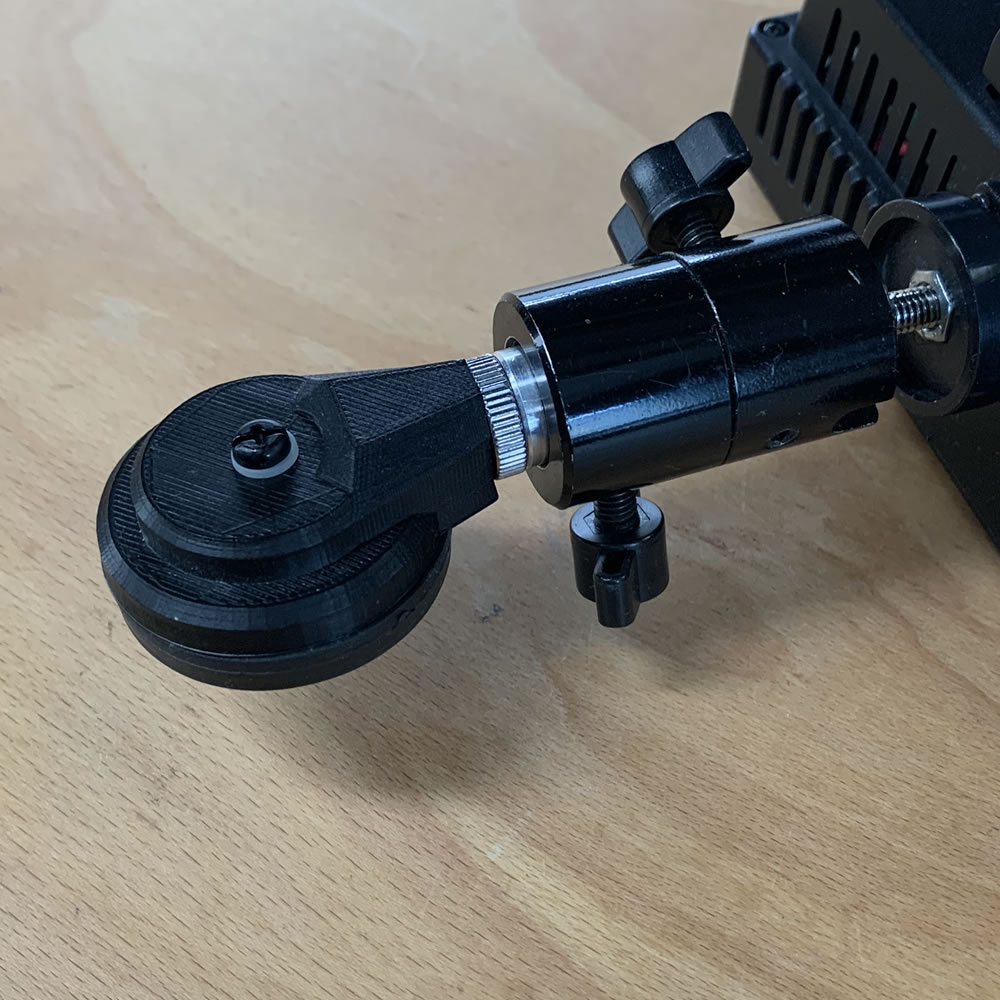

Magnetic Spigot Mounting Point

Magnetic Mounting

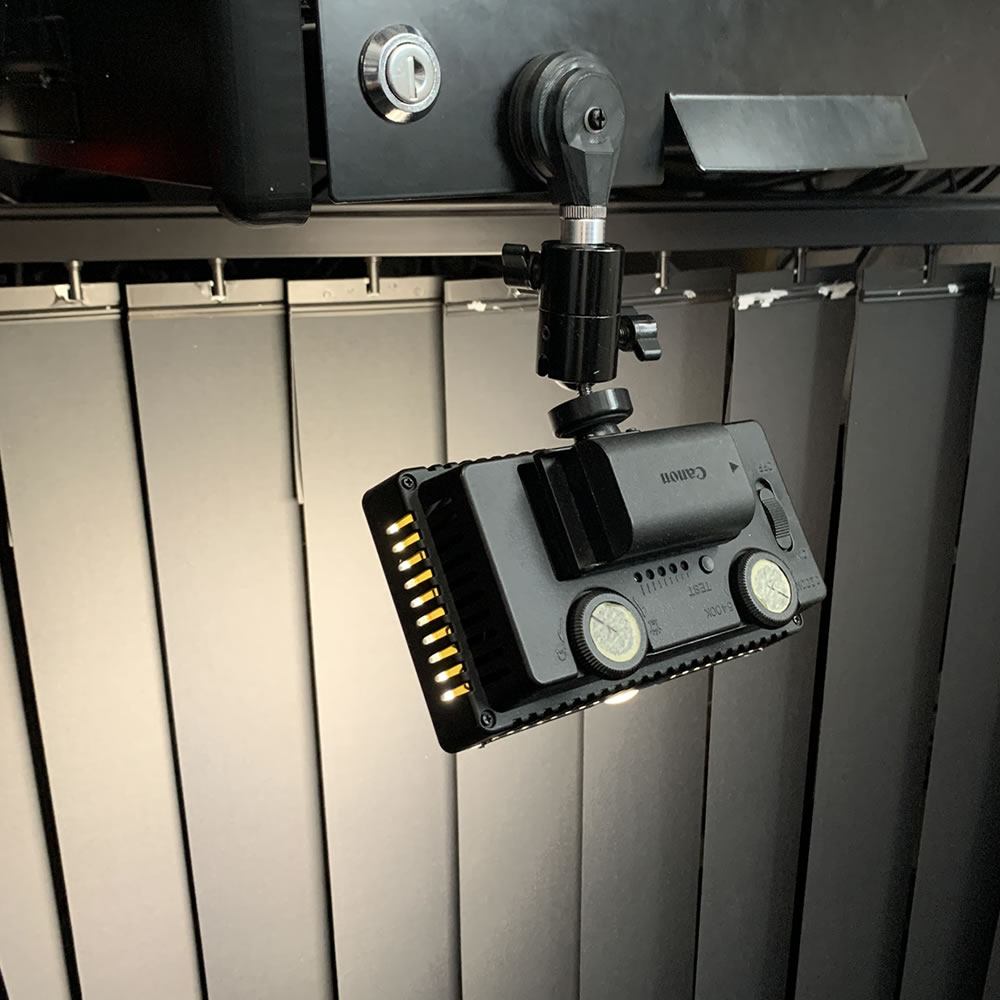

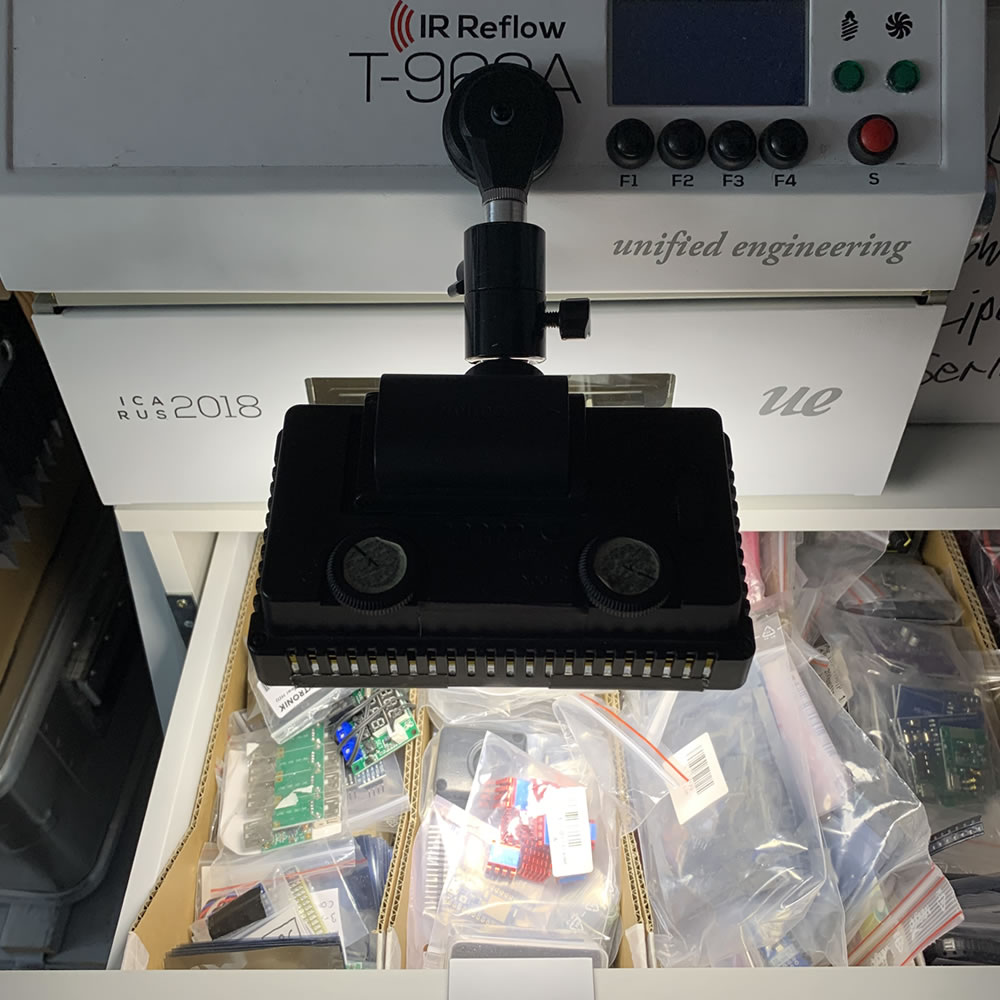

A l.ot of my camera gear and light fixures are based around the Spigot-Mounting technique. I like this mounting option as it is easy to quickly setup any scene I want. It is also versatile enough to move and rotate. I adopted this technique in some of my prints as well. I came up with this Model as I noticed that I sometimes encounter situations where like under the desk, where I need light, but am only surounded by metal. Therefore a Magnetic-Spigot model can close this gab. It allows by to mount lights in the server rack, under the table, on rails, gear wagon etc. pp.

Assembly Parts:


Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.

Part
Pieces
$ / € / ¤

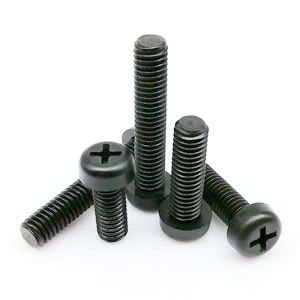

M4x12 Nylon Bolt
Black Phillips M4 bolt
Holding the magnet to the part
Source: local, ebay

1x

± 0.05

Threaded insert 1/4
Brass Insert for 1/4'' camera mounting options
Mounting point for camera equipment
Source: local, ebay

1x

± 0.40

Magnet Disk
Generic magnet with bore, ~ 42x6mm
Magnet mounting option for easy adjustings
Source: local, ebay

1x

± 3.00

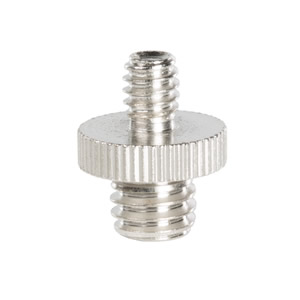

1/4 to 3/8 Adapter Screw
Camera adapter screw for size conversion
Convert from 1/4 to 3/8
Source: local, ebay

1x

± 2.00

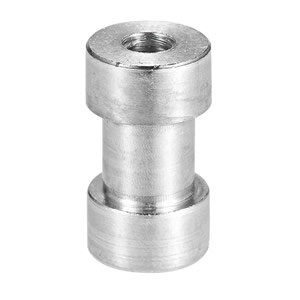

Camera Spigot
Spigot mount for camera equipment
Universal spigot mounting end
Source: local, ebay

1x

± 3.00

All parts =
5 (5 pcs)
~ 8.45

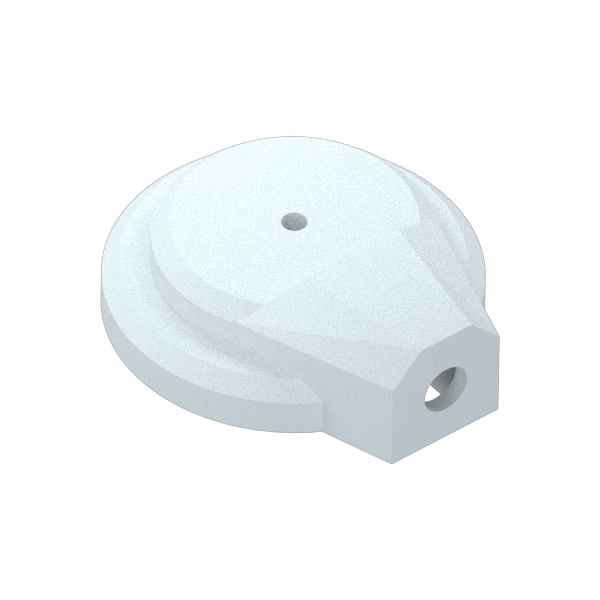

STL Files

Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️


CC BY-NC-SA 4.0
