MO400
Metal Pedal
Footswitch slim Wireless
Another Food Switch

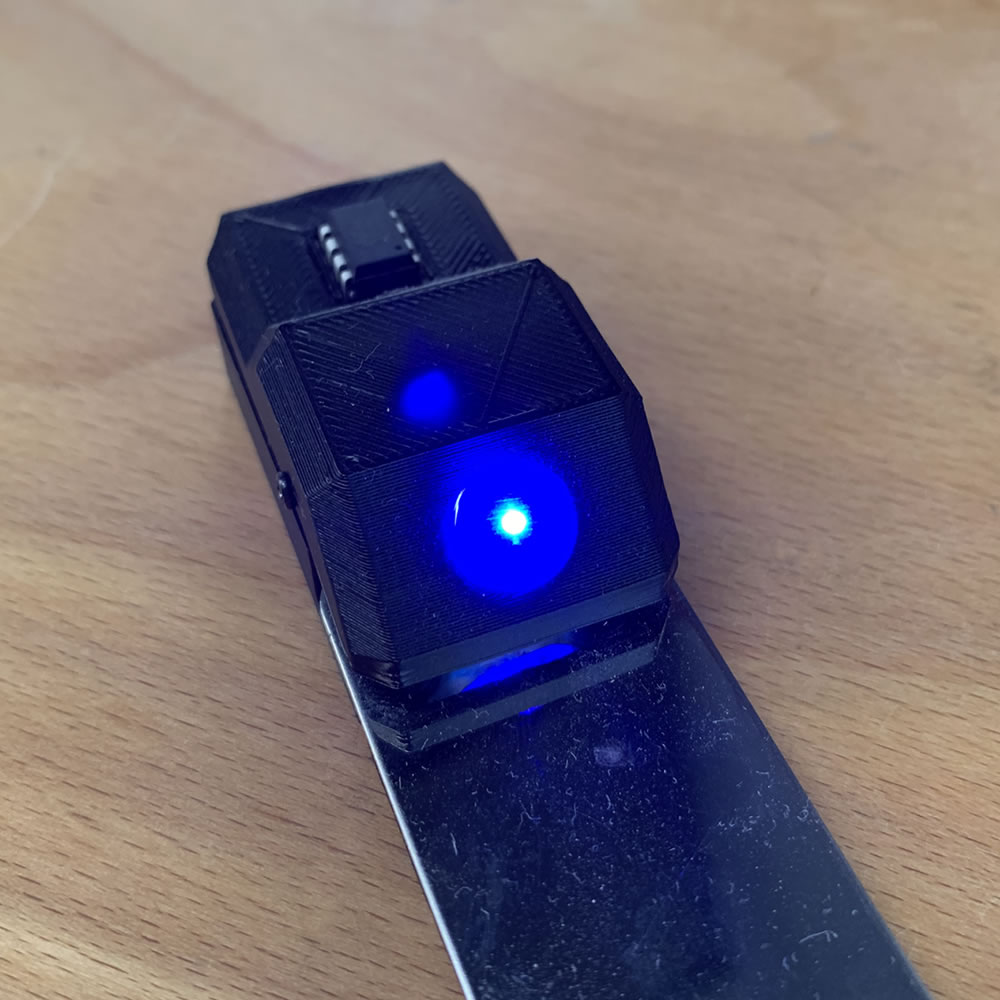

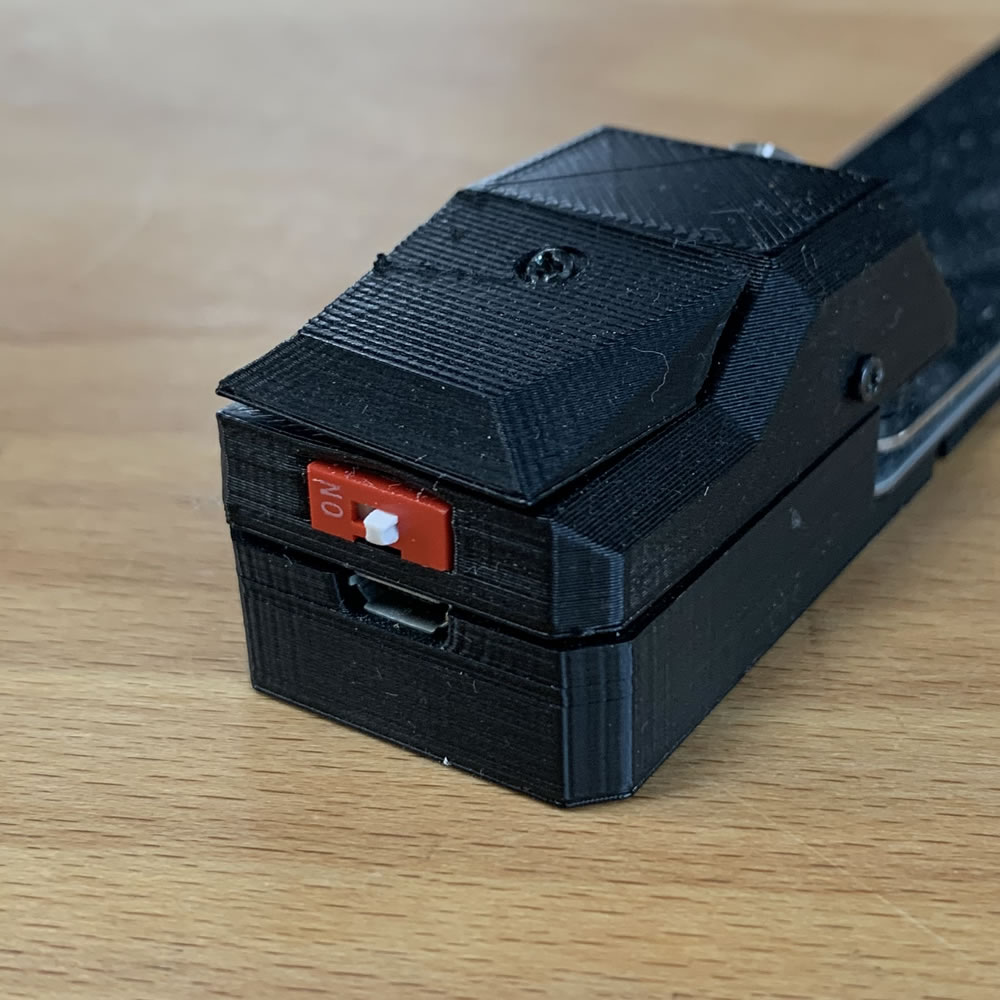

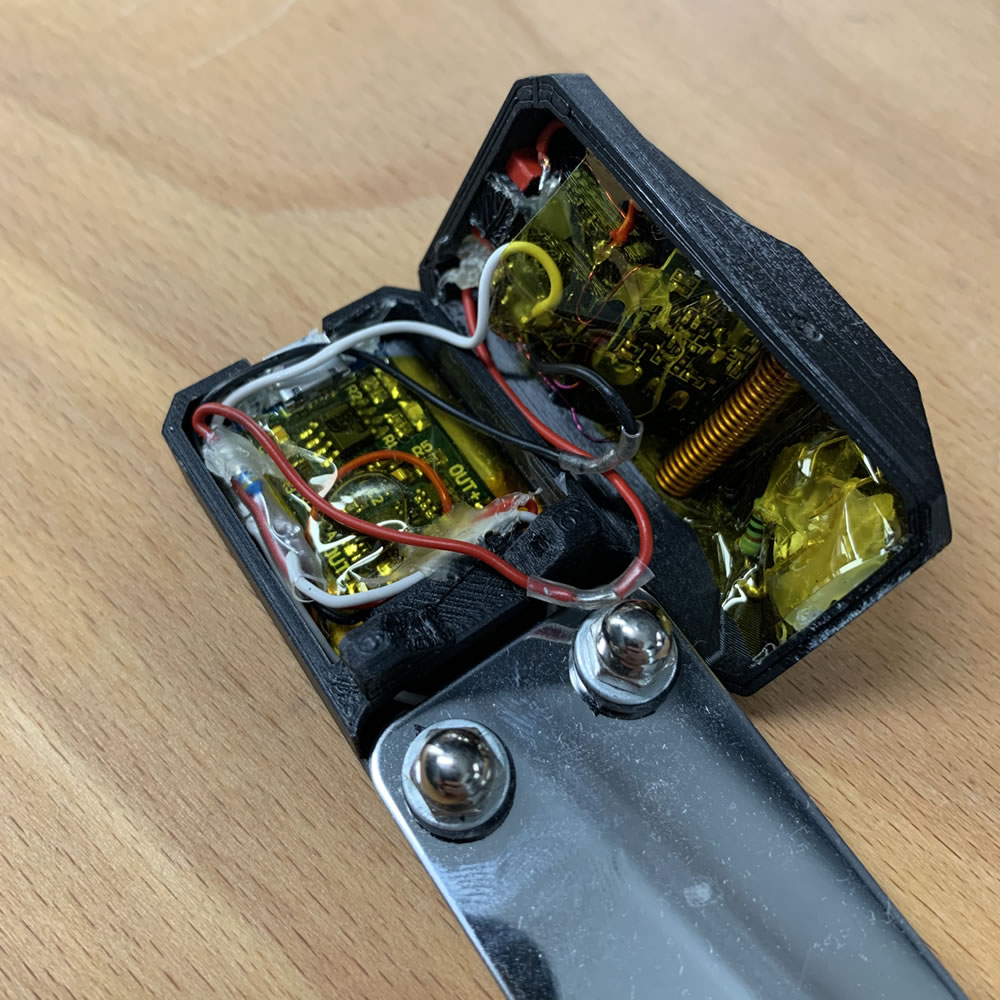

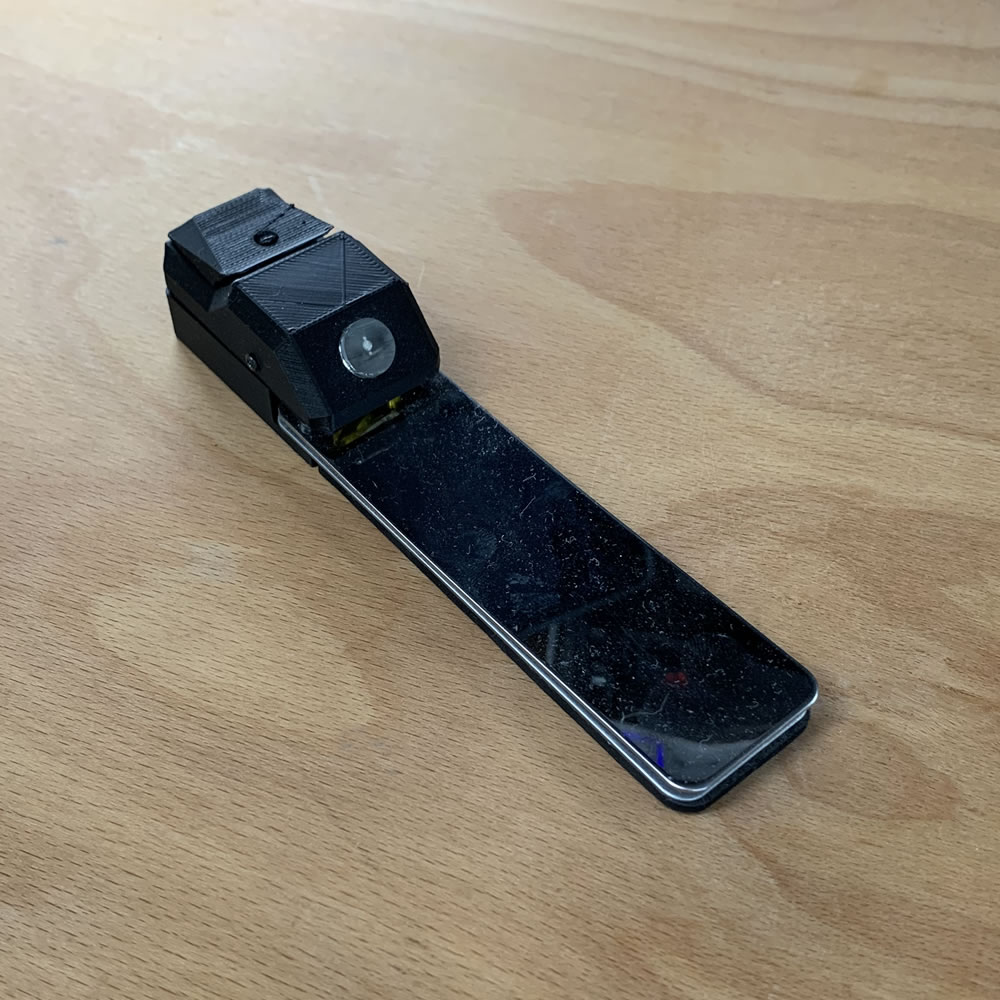

You could just go the the SW Foot Model and read the text here. This model serves the same purpose: Pressing button with the feet while your hands are distracted or on camera. This is a slim version. The electric hardware is the same but the button technique is a bit different. Also it mounts the ATTiny under a small hat.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Mini-Screw STOCK
Very small Screw 2mm x 8-10mm
Two on the side, one to hold the cover down
Source: local, ebay
3x
± 0.05
sum: 0.15

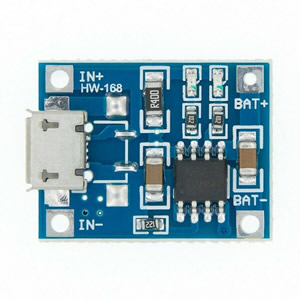

TP4056 Charger
Mini Board LiPo Charger
Charge when needed, else keep it wireless
Source: ebay
1x
± 1.00
LiPo Battery BATTERY
Mini LiPo 25x30mm 400mA
Holding enough power for the 433 Mhz Module
Source: ebay
1x
± 2.00

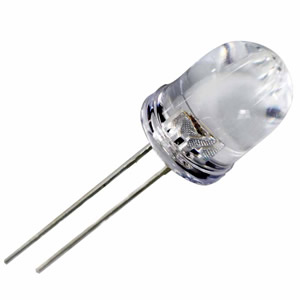

LED 10mm
Big 10mm LED (misc color)
Saw-off 10mm blue LED for visual feedback
Source: ebay
1x
± 0.30

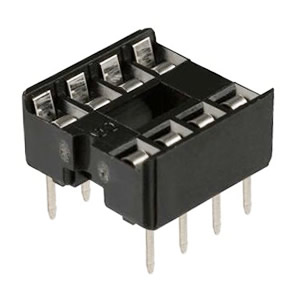

8-DIP Socket
Socket for 8Pin DIP, squared
Carrier for the ATTiny Microcontroller
Source: ebay
1x
± 0.20
ATTiny85
AVR® RISC-based microcontroller
The brain, taking care of com and the switch
Source: microchip, mouser, farnell, digikey, ebay
1x
± 0.30

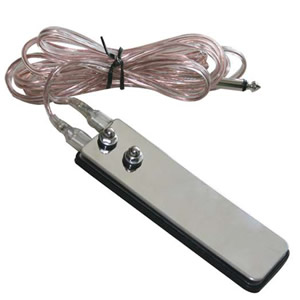

Flat Metal Pedal
Flat Stainless Steel Tattoo Foot Switch
Main part. Flat Pedal acting as a switch
Source: ebay
1x
± 5.00

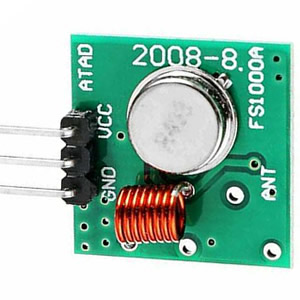

Transmitter
Low budget 433Mhz Transmitter
Small and cheap communication module
Source: ebay
1x
± 1.00
All parts =
8 (10 pcs)
~ 9.95

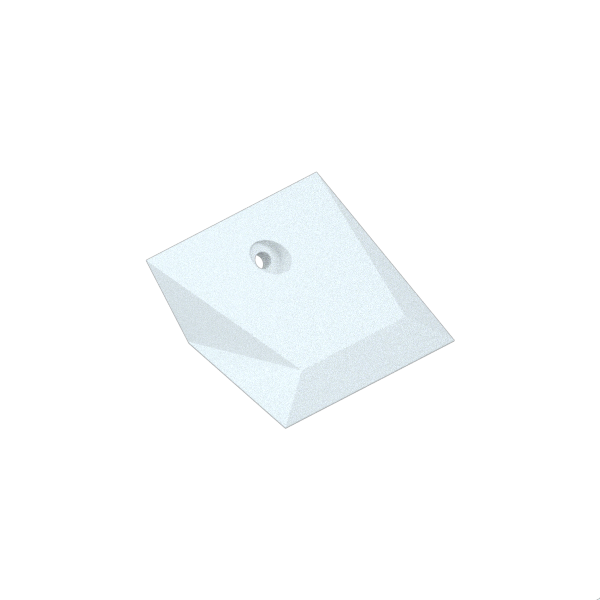

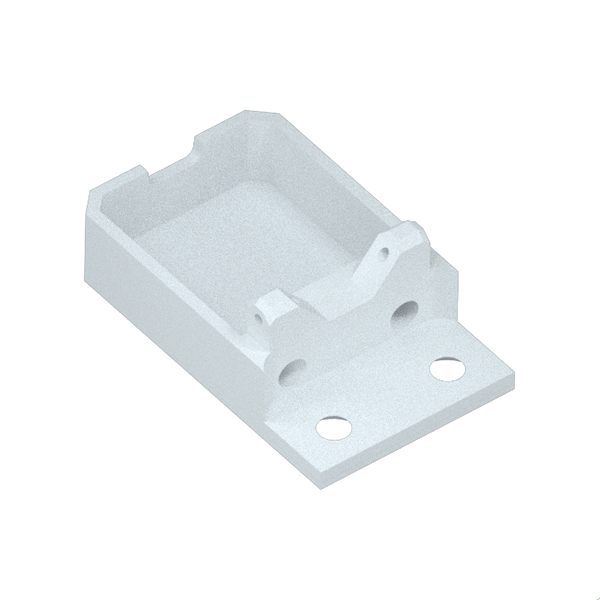

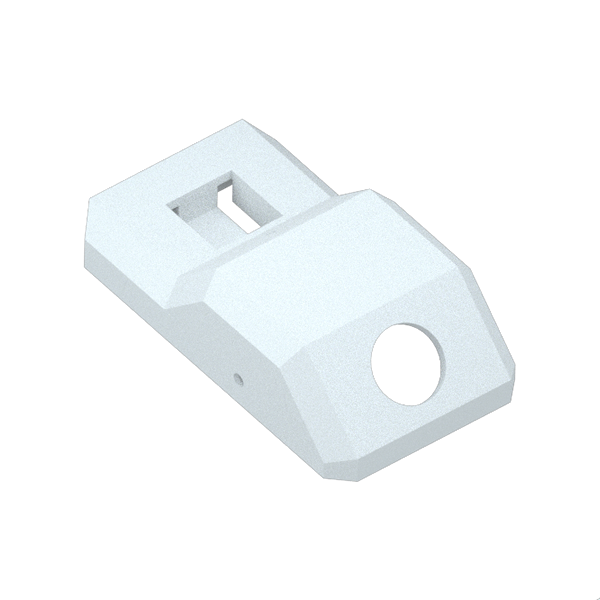

STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
