TB3 Hub
TB3 Heatsink Clamp
Heatsink my Thunderbolt

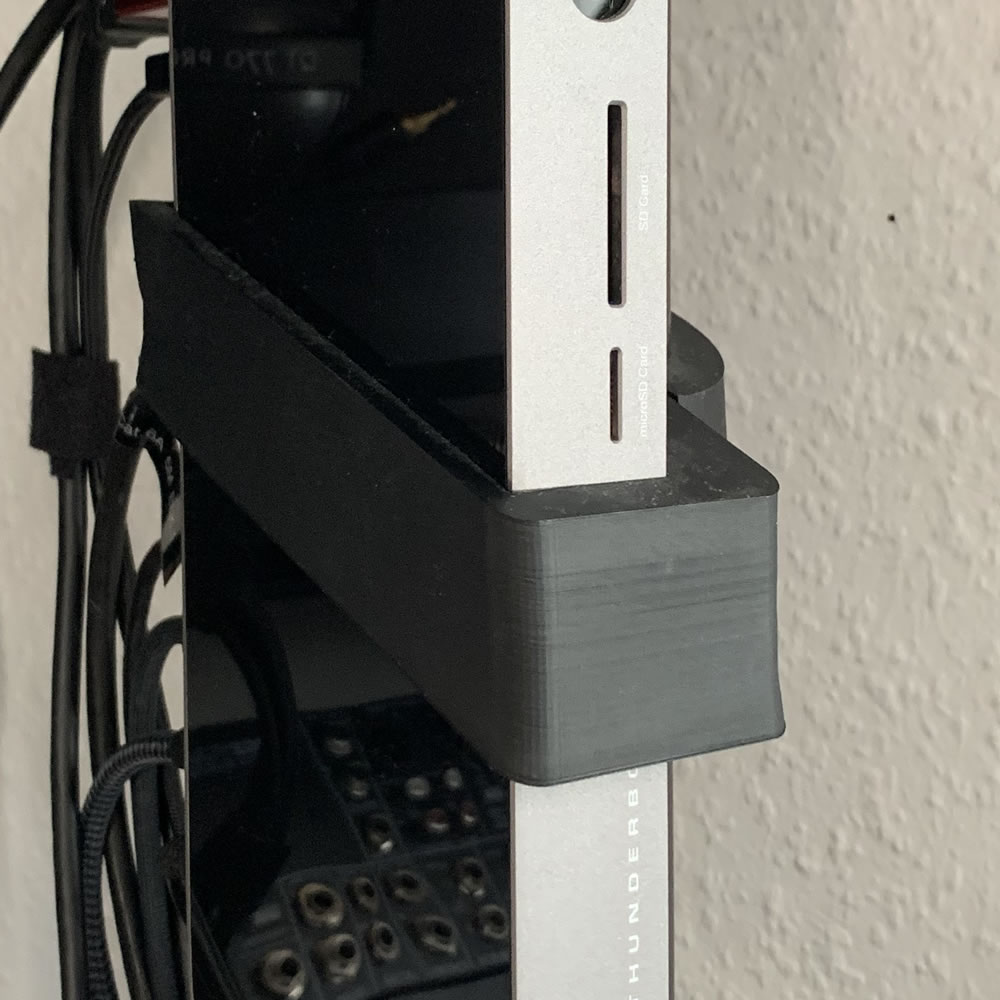

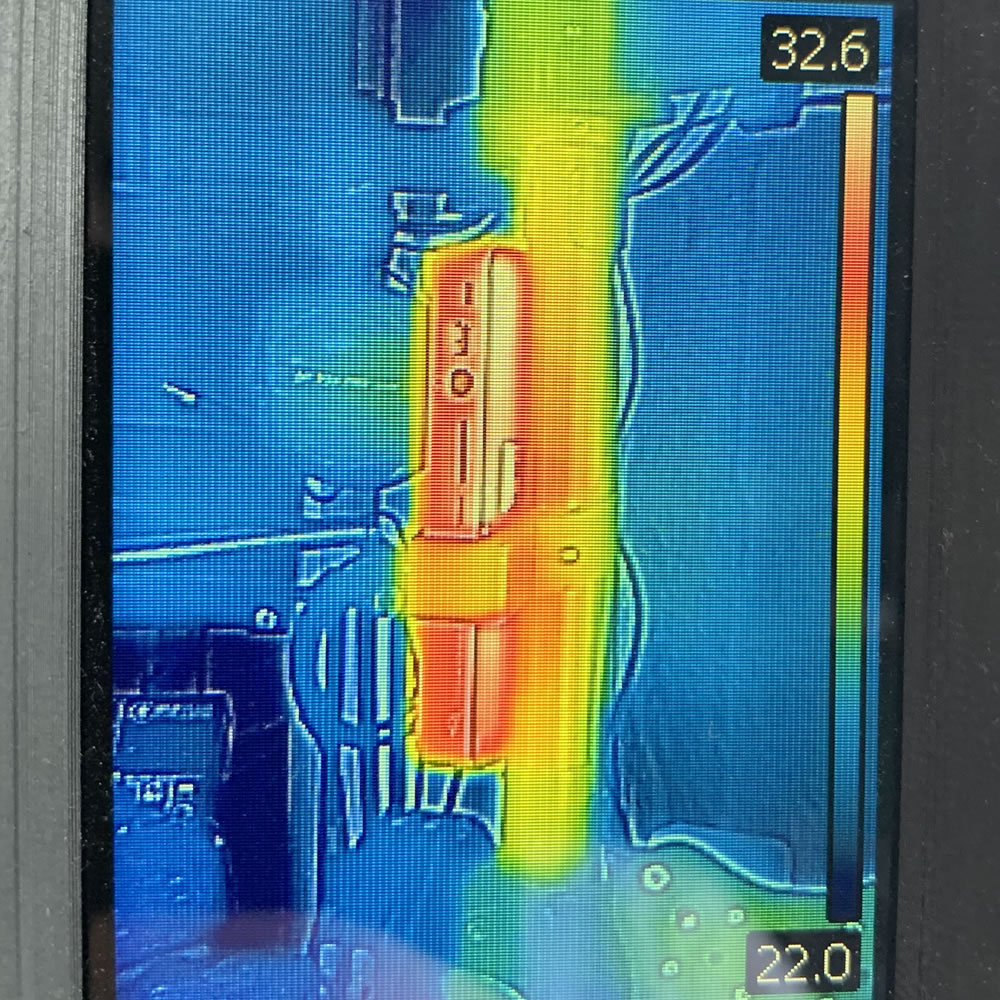

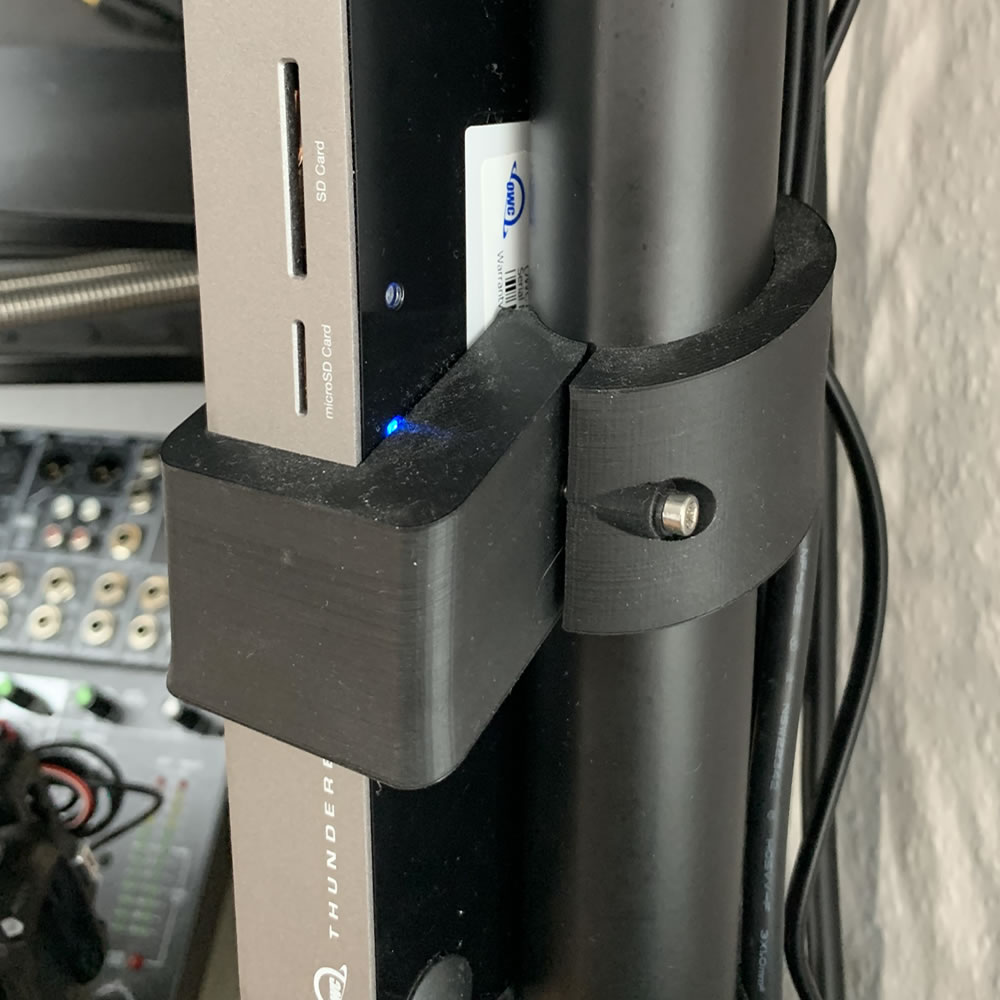

Having a TB3 Dock is amazing. Having to find a good place for this cable-mess is a completly nother story. I decided to mount the TB3 Dock on my rigging pole so it in reach but not in the way. As my TB3 docks get quite warm, I also use the pole as a giant heatsink to spread the heat away from the dock- escpiecllay usefull in the summerimes.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Insert M3 Square 0x0x0
Brass Insert with a square profile on the end
Counterpart for the M3 bolts
Source: local, ebay
2x
± 0.30
sum: 0.60
M3x20 bolt COMMON
Standard M3x20 Hex Bolt
Holding the two printed parts together
Source: local, ebay
2x
± 0.20
sum: 0.40
All parts =
2 (4 pcs)
~ 1.00
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
CC BY-NC-SA 4.0
