MO590
Vesa Mixer
Adapter-Plate for mounting an audio interface
VESA Panel

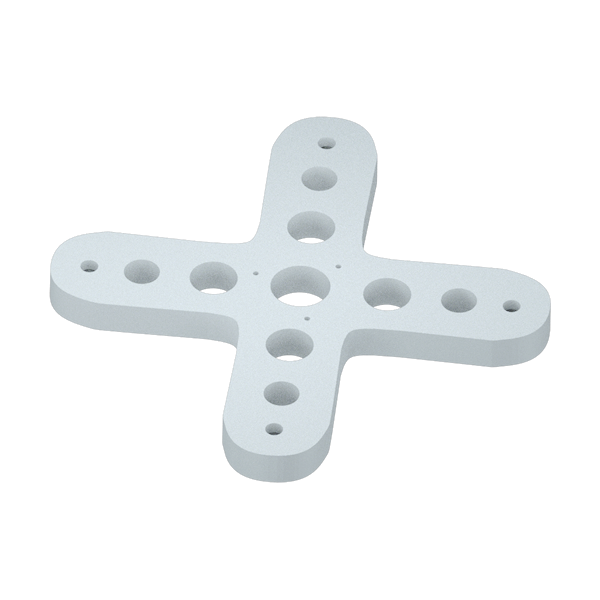

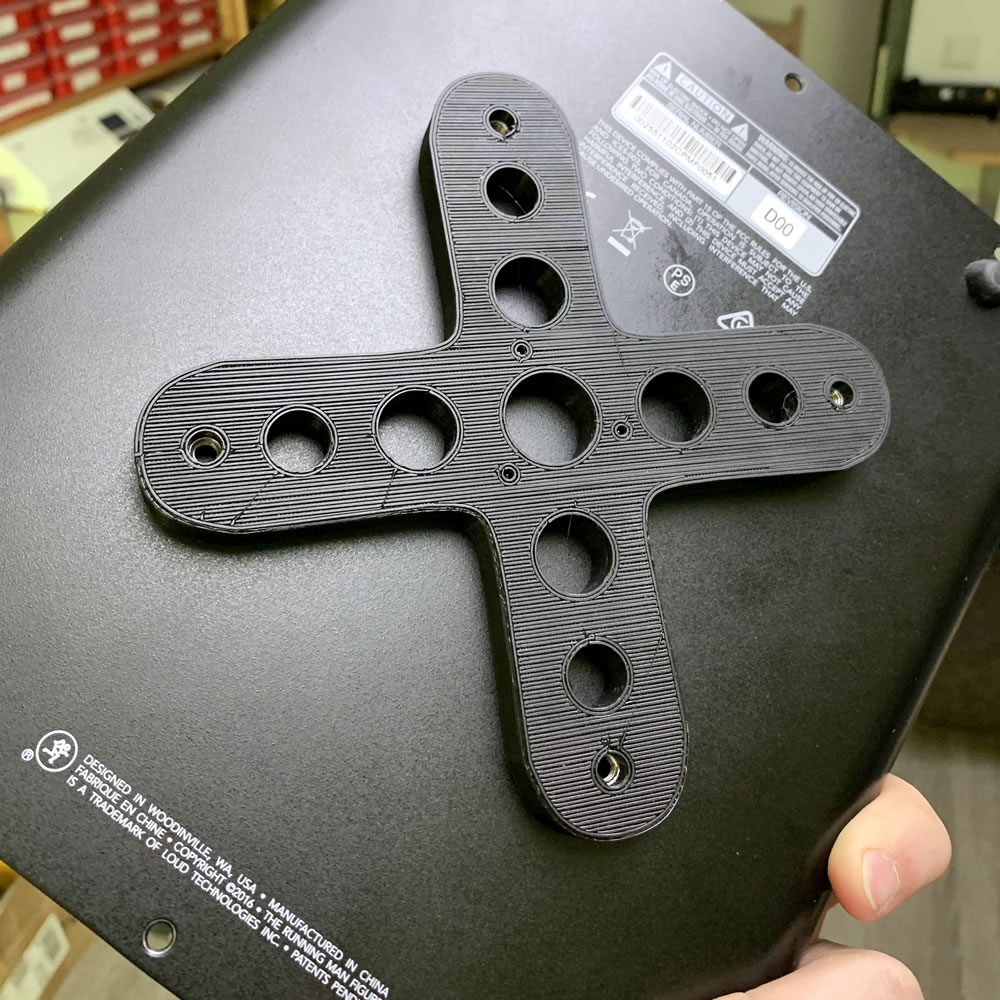

I have a small Audio mixer that I wanted to mount on my VESA rigging and came up with this small part. It is attached to the mixers back and can be mounted to a standard VESA Plate.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
Wood Screw STOCK

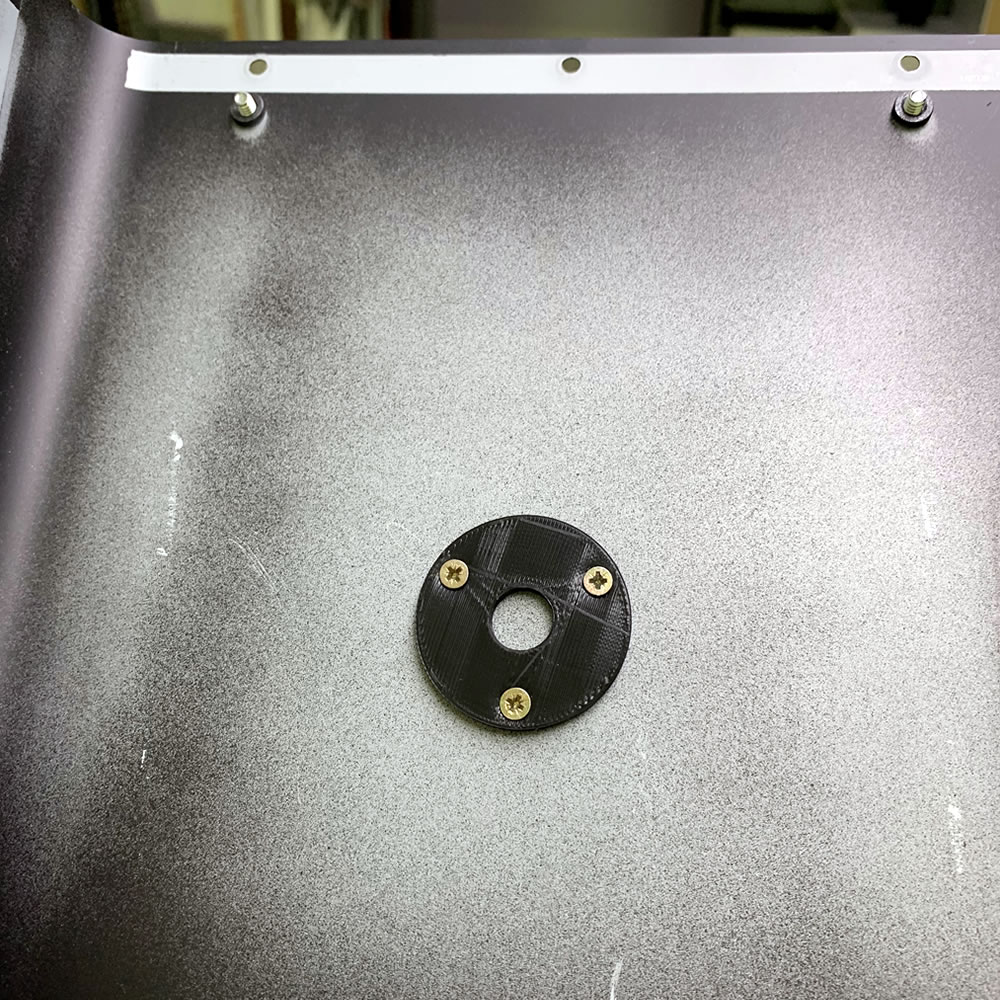

Small self cutting screw aprox. 10mm

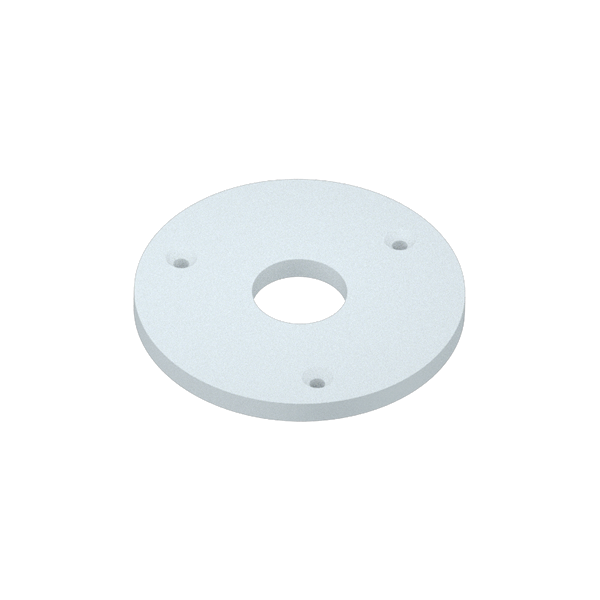

Semi-permanent connecting both parts
Source: local, ebay
3x
± 0.10
sum: 0.30
M4x25 Bolt
Standard M4x25mm Hex Bolt

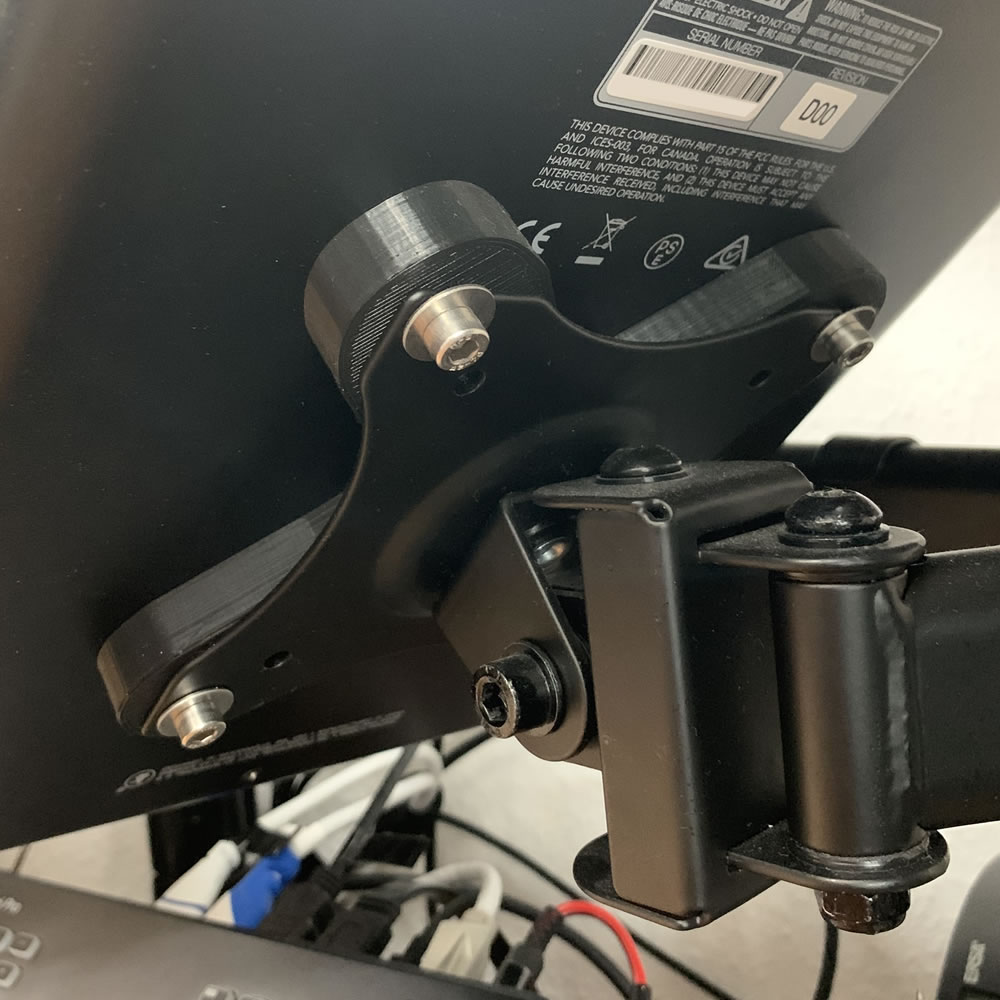

Mounting to the vesa plate
Source: local, ebay
4x
± 0.30
sum: 1.20
All parts =
2 (7 pcs)
~ 1.50
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
