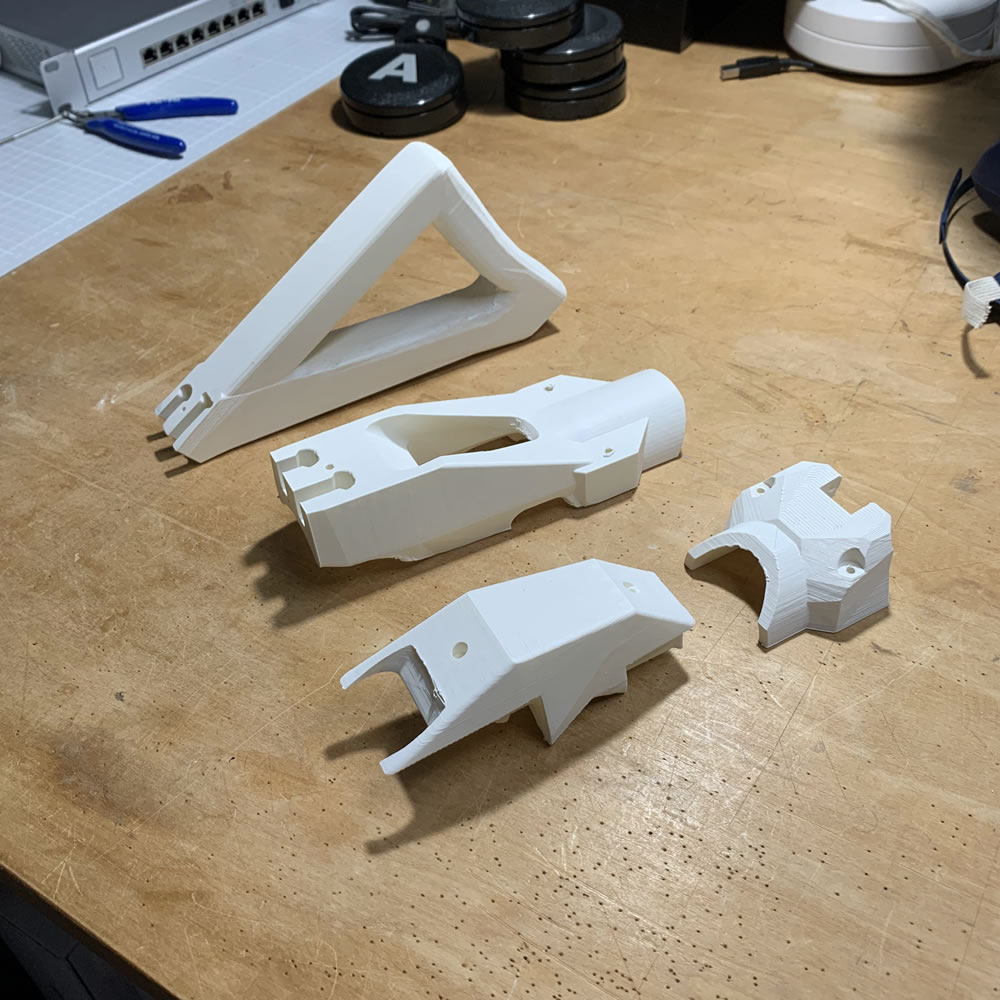

4 Easy parts
The stock consist of 4 pieces that fit seamless together, forming a strong rigid attachment that will withstand your most intense VR experiences.
MO120
VR Stock
Aim Controller compatible Shoulder Stock
I'm doing my part!
There are several models for bump stocks on the interwebz, that all have a different styles. I broke the most common ones within days of playing as they are mostly under-engineered. Some flex when you press the stock tight up to your shoulder, others broke off when trying to detach them from the controller. I needed a sturdy, solid, nonflexing, rigid body bump stock to support me in my immersive fights against the Aliens. It can get intense out there. Breaking your gun in the middle of a fight is a very extradited feeling. Therefore I build a version that can withstand the same pressure that I am under when I fought those pesky 6legged Aliens, running around sideways on their back fourth, screaming, charging at me... Sorry, I got carried away.
Anyway, If you also lost the fight because of breaking primary weaponry, I offer you a sturdy, easy assembled, rigid shoulder stock for your next mission, Lieutenant. Keep the Federation free from the insectoid aliens, join the mobile infrantry service and save the world. And Remember: The only good bug is a dead bug.
Would you like to know more?

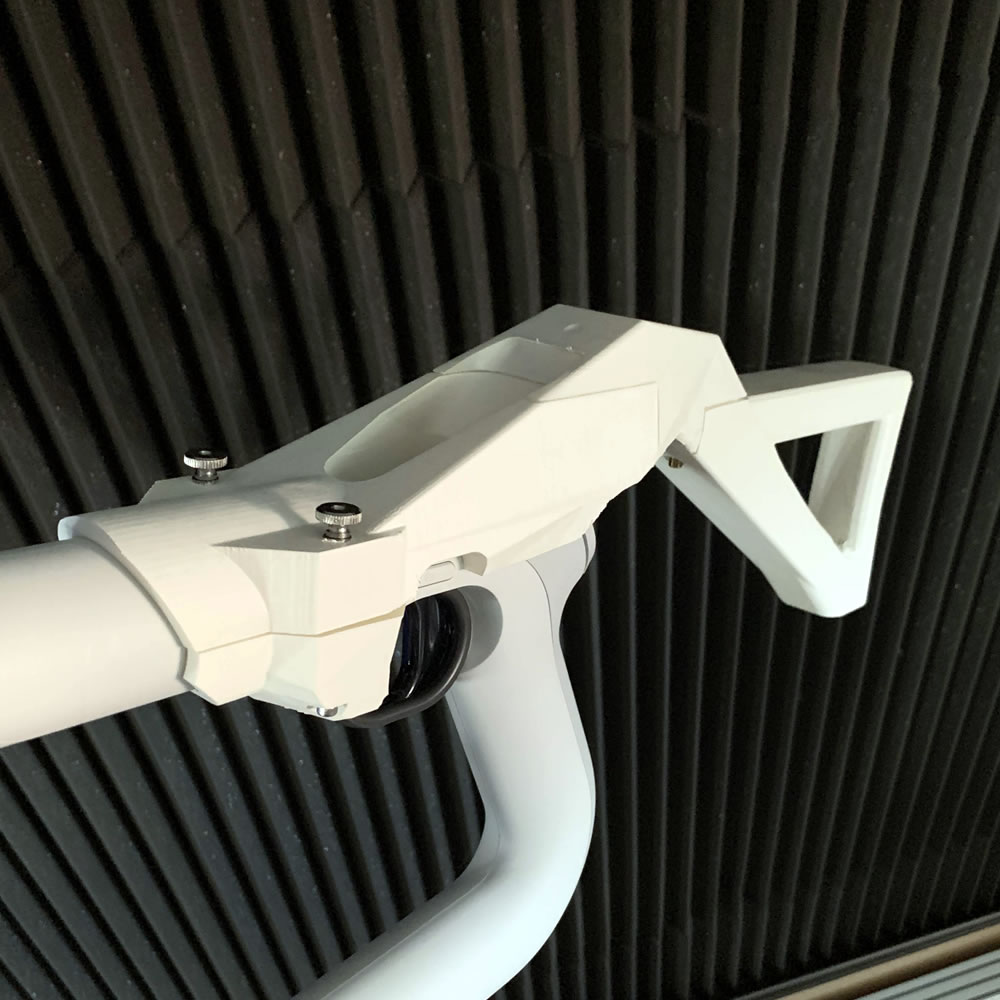

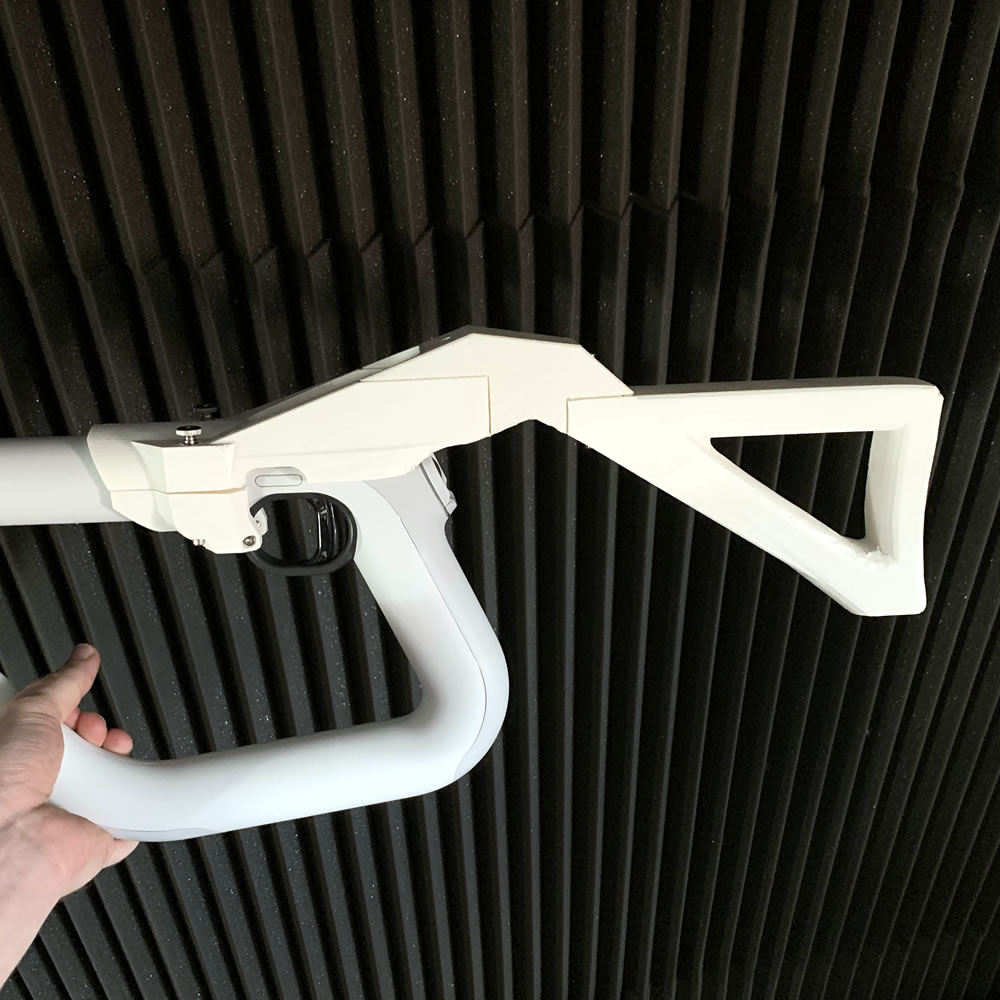

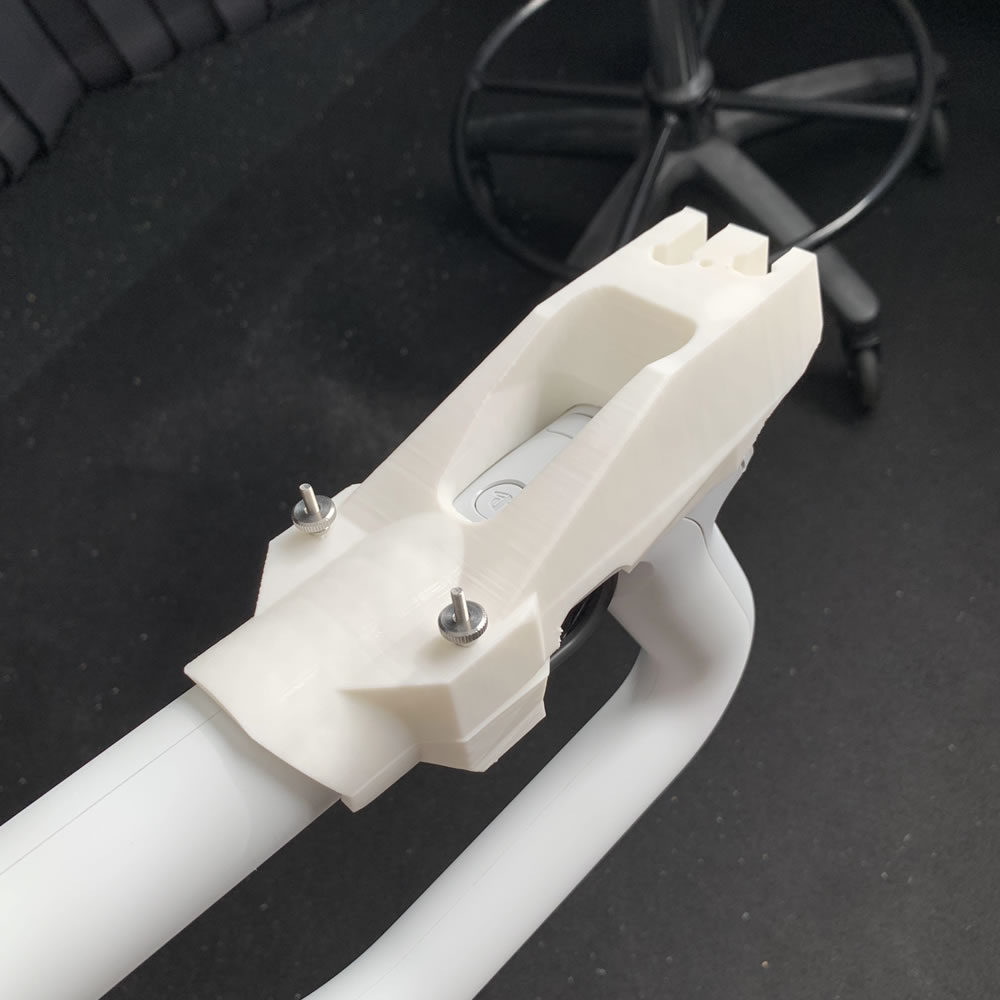

Test assembly
Make sure to use the right length of screws so they do not leave the ends revealed. Everything can be assembled with 5 shoulder bolts.
Assembly Parts:
Some are obligatory for the model to work, some are optional. It's up to you how close you will follow the instructions. Use what you have on hand and alter the model if necessary.
Part
Pieces
$ / € / ¤
M3x50 Bolt
Standard M3x50mm Hex Bolt
Holding the front part together
Source: local, ebay
2x
± 0.25
sum: 0.50
M3x40 Bolt COMMON
Standard M3x40mm Hex Bolt
One for the trigger, one for the stock
Source: local, ebay
2x
± 0.20
sum: 0.40
M3x25 bolt COMMON
Standard M3x25 Hex Bolt
Center Screw, holding the stock to the front
Source: local, ebay
1x
± 0.20
M3 Shim
Standard M3 Washer OD=~7mm
Distributes pressure by the bolt to the print
Source: local, ebay
5x
± 0.10
sum: 0.50

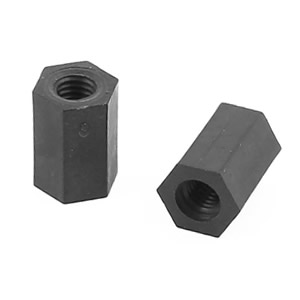

M3 Standoff
Hex Type Nylon/Brass Standoff 7-10mm
Counterparts for the bolts in the stock
Source: local, ebay
2x
± 0.20
sum: 0.40

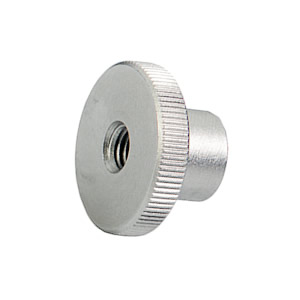

M3 Thumb Nut OPTIONAL
Thumb Nut with M3 thread OD= ~10-12mm
Enables easy detaching of the stock. Else use a nut.
Source: local, ebay
2x
± 0.40
sum: 0.80
Without optional parts =
5 (12 pcs)
~ 2.00
All parts =
6 (14 pcs)
~ 2.80
STL Files
Downloads and Purchases have been suspended as of 2024.
Thanks everyone for downloading! Feel free to build your own version of this ✌️
MO-C-PRIVATE License: non-commercial, personal use only
