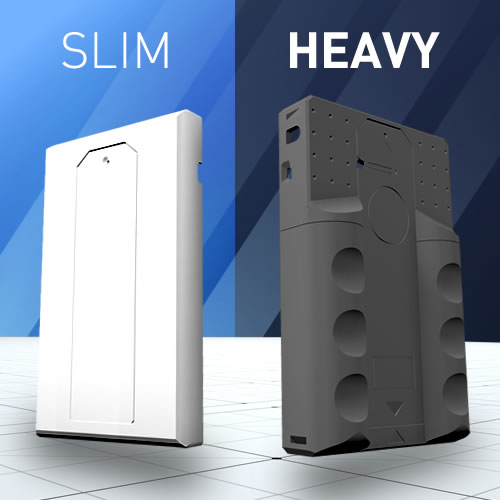

SLIM
(After Camp)
WHY_CASE_SLIM_BODY.stl

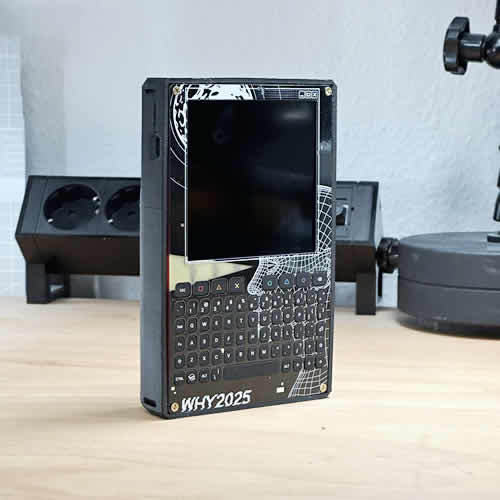

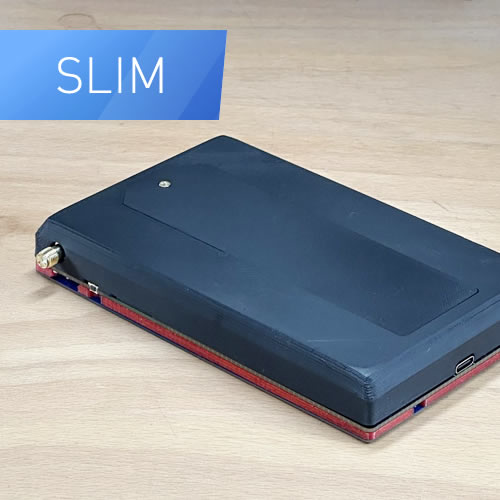

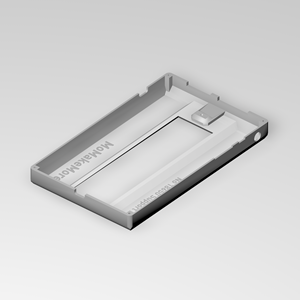

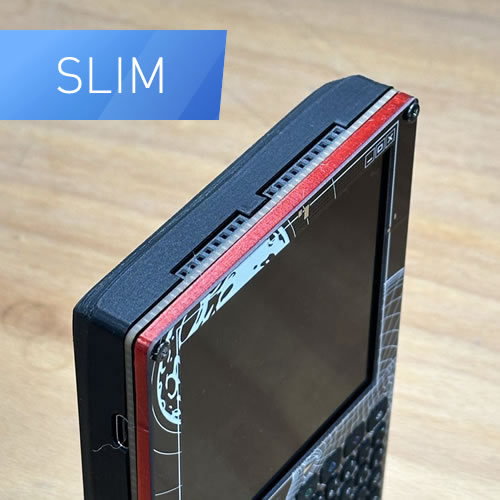

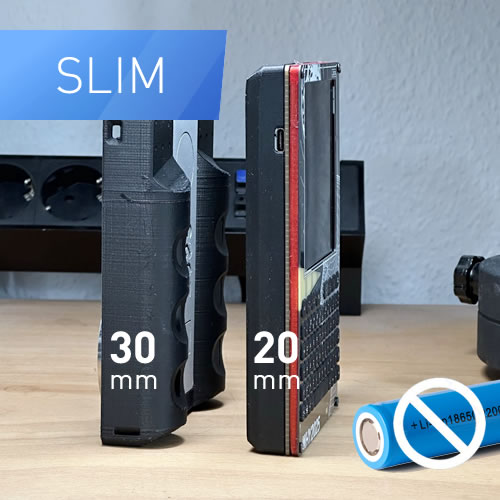

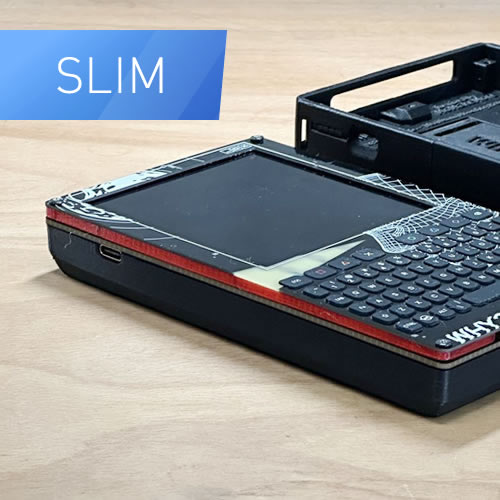

SLIM BODY - Minimal Size. It sits directly on the PCB and exposes the 3-Layer Badge (Front+Spacer+PCB). Because of the super slim design, using the 18650 is not possible - so USB only or using a pouch battery. The breakouts are limited to just the bare minimum. The Antenna is still broken out to make it a LORA Home Repeater/Basestation and not collect dust in your badge bin.
Download File (fixed links! Thanks Johanna)
WHY_CASE_SLIM_LATCH.stl
SLIM LATCH - The latch of the slim is not compatible to the HEAVY. This latch is build for material savings. Please use support material under the small overhanging lip at the end.
Download File (fixed links! Thanks Johanna)

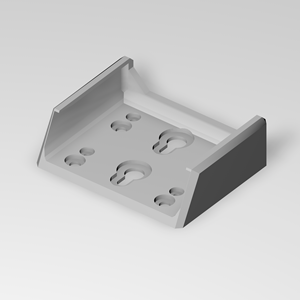

WHY_CASE_SLIM_CARRIER.stl

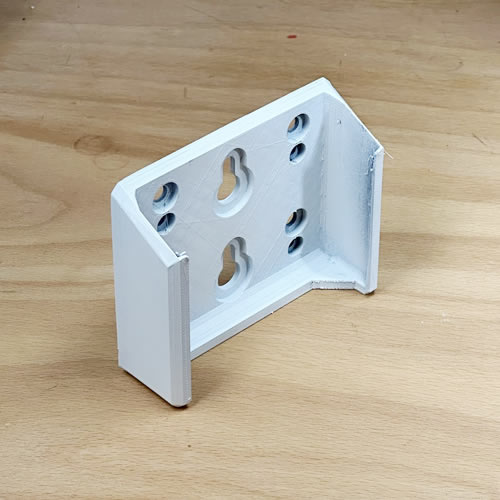

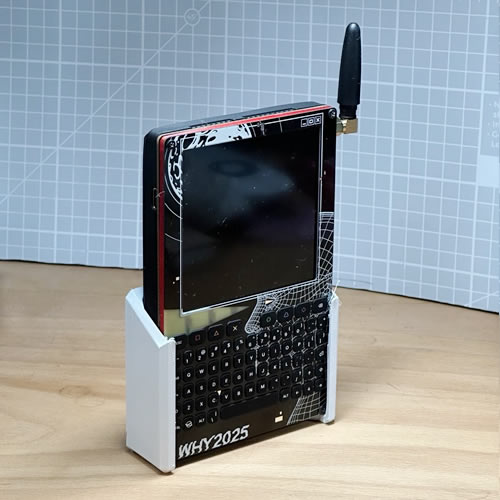

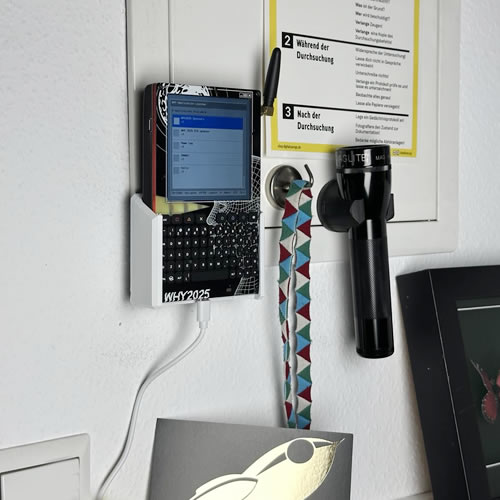

SLIM CARRIER - Wall mounted carrier, to hold your (USB Powered) Badge containing e.G. a LORA or a Home Automation Application
Download File

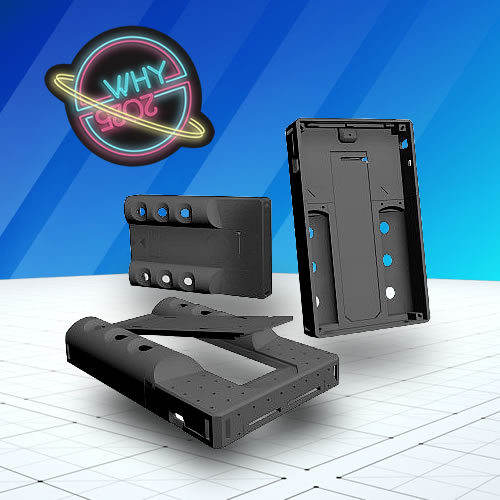

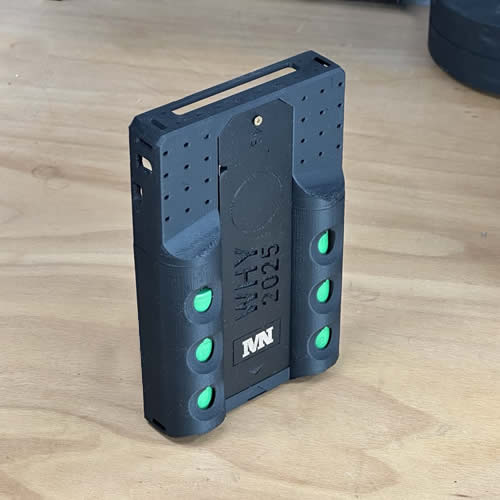

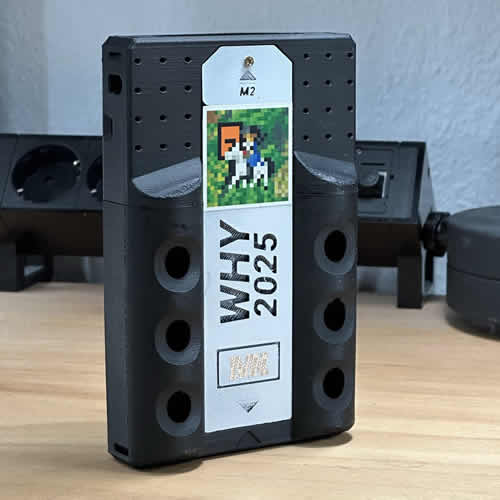

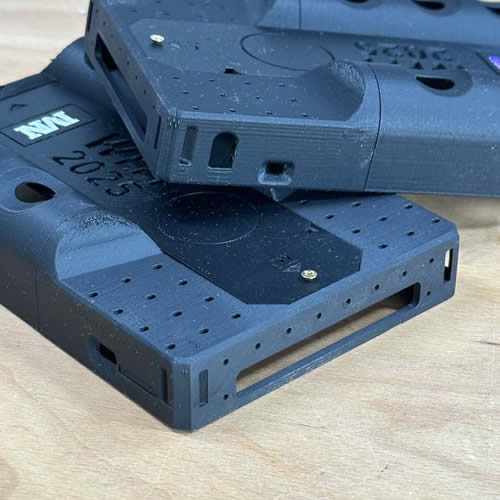

HEAVY

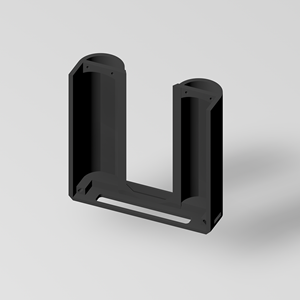

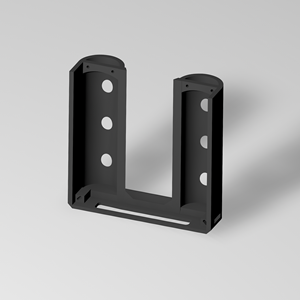

WHY_CASE_BOT.stl

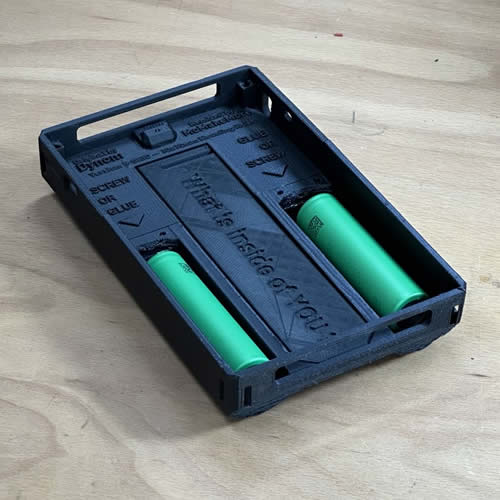

BOTTOM - Handgrip Part. Easy to print upwards in any 3D Printer. This Version has holes on the handles to make the colorfull 18650 cells show through. Maybe not best to prevent objects or dirt getting into the Case. Therefore see the other version -->
Download File
WHY_CASE_BOT_CLOSED.stl
BOTTOM CLOSED - Handgrip Part. Without holes. Not as fun and colorful, but better for preventing shorts by objects getting into the case. Your Choice.
Download File

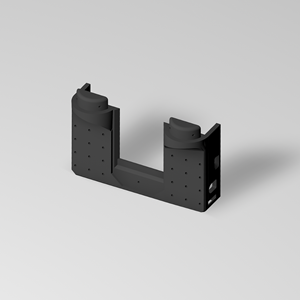

WHY_CASE_TOP.stlUPDATED 14.08 16:00

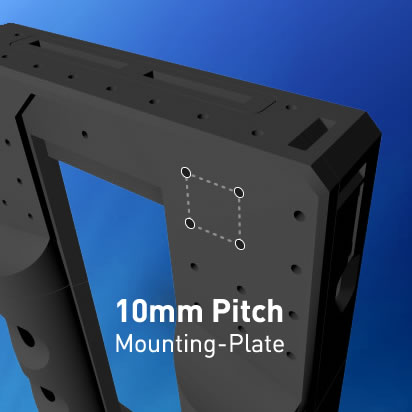

TOP - Glue or Screw the top part to the bottom. this version also has the grid plate mounting option. The updated version has the button not spared out anymore, but is an activly pressable button.
Download File
WHY_CASE_TOP_NOPLATE.stl
TOP NO PLATE - Same as TOP but does not come with the mounting holes to attach plates and equipment.
Download File

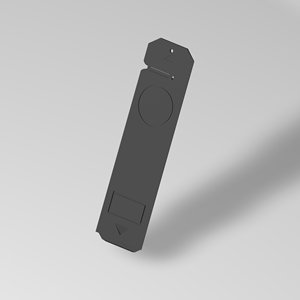

WHY_CASE_LATCH.stl
LATCH - Inserted at a slight angle into the bottom part and hold tight by a single golden M2 screw gives easy access to the PCB. You might need to add some support material under the smaller lip part on the bottom to avoid sagging lines while printing.
Download File (fixed link! Thanks ave)
WHY_CASE_LATCH_ECO.stl

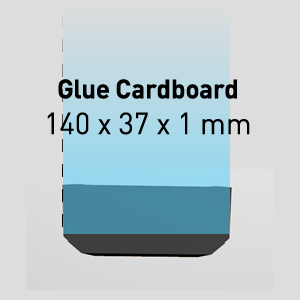

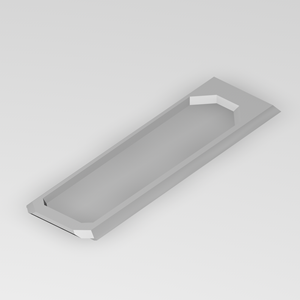

LATCH ECO - This small piece is fast to print. Just glue on a heavy weight 1mm cardboard 140x37mm to the part, chamfer the corners and design with colors and pens your eco friendly latch part.
Download File

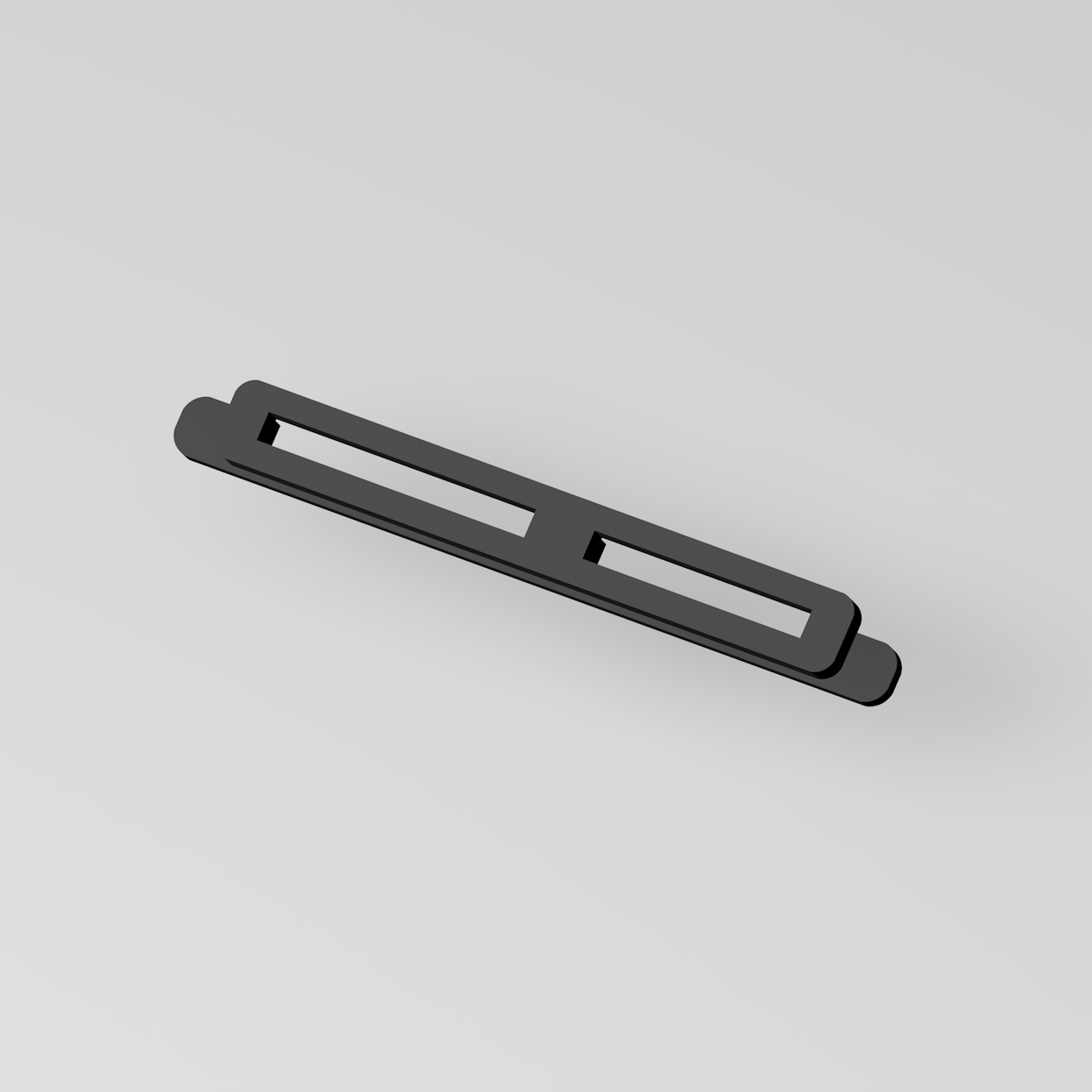

WHY_CASE_INSERT_TOP.stl
INSERT TOP - This insert is a first approach before seen the PCB. The peripheral on the top and bottom are fully spared out and can be either fully closed or adapted by different plate insert.
EDIT: Now that the Badges were released, it seems like they generally fit by @Dynoms cutouts, but as the pinheader do not reach over the boards edge, I would recommend to leave out the inserts, as pinheader normaly only have 6mm of pin-travel when plugged in, so adding 3mm material on top would not give a tight fit when attaching additional extensions.

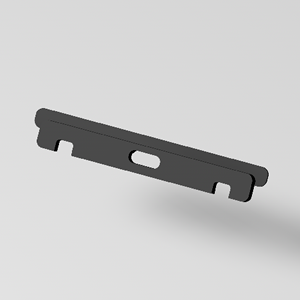

WHY_CASE_INSERT_BOT.stl
INSERT BOT - (first approach before PCB) These cutouts follow the positioning done by @Dynom. Print it out and glue the plate in if it fits. Or edit it to your desire until it fits.
EDIT: As the Case has its own lanyard holder, the two outer holes are not actually needed. The USB-C Port does not overhang the board though, because of that, any PLA Material here can only be minimal for the case. I gotta remake this part soon.
💖 THANK YOU FOR PRINTING! 💝
